DeWalt DCM563 Manual

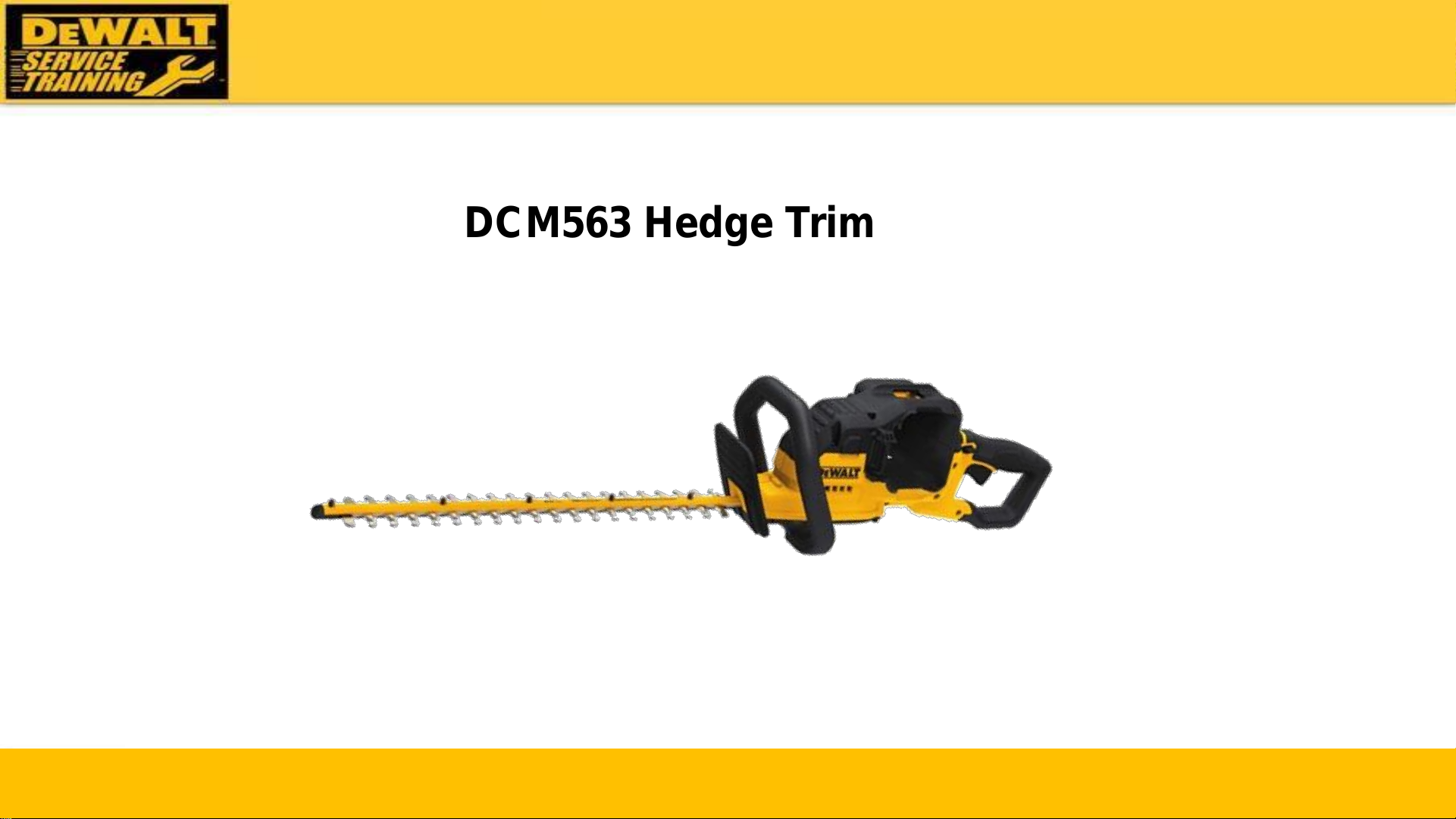

DCM563 Hedge Trimmer

Battery Protection

Cage For Durability

Impact Resistent &

Durable Xenoy™

Housing

Protection Guard –for Safety

Blade Channel & Tip

For Durability &

Protection

3,100 Strokes Per Minute

55CM Dual Action Blade

19MM Cut Capacity

Friction Clutch Delivers pro

durability in stall conditions

Dual Handed Switching To

Prevent Accidental activation

WrapAround Padded

Aux Handle - For Added

Comfort Suring Longer Use

Run time:

100 mins –6.0Ah

120 mins –7.5Ah

3A Charger

DCB413

Compatible with 6.0Ah

& 7.5Ah Battery Packs

DEWALT Hedge Trimmer DCM563

Before repair and service

Follow the

safety instruction

Before repair

Safety Notes

Before attempting any repairs, the following should be observed,

Ensure that the correct tool is used and only use good quality hand tools.

Ensure the work shop is clean and tidy.

Always wear protective clothing, Overalls, safety gloves, safety glasses, safety hat/net

etc.

Check that guards function correctly, if not repair before running the product.

Before turning product on for analysis carry out a visual check for loose/broken parts

Including accessories, blades, cutters etc.

Carry out an Earth continuity, Earth leakage and Insulation test (flash test) where

appropriate.

Never repair a product whilst it is plugged into a power supply

Remove all accessories, blades, cutters etc.

Release tension on parts before attempting to remove, for example arm springs.

ENGLISH GERMAN ITALIAN FRENCH SPANISH PORTUGUESE DUTCH

CHECK ÜBERPRÜFEN CONTROLLARE CONTROLER COMPROBAR VERIFIQUE CONTROLEREN

CORRECT RICHTIG CORRETTO CORRECT CORRECTO CORRECTO GOED

TURN COUNTER

CLOCKWISE DREHEN GEGEN

UHRZEIGERSINN GIRARE IN SENSO

ANTIORARIO

TOURNEZ DANS

LE SENS INVERSE

DES AIGUILLES

D’UNE MONTRE

GIRO IZQUIERDA GIRAR SENTIDO

ANTI-HORARIO DRAAI LINKSOM

TURN CLOCKWISE DREHEN IN

UHRZEIGERSINN GIRARE IN SENSO

ORARIO

TOURNEZ DANS

LE SENS DES

AIGUILLES D’UNE

MONTRE

GIRO DERECHA GIRAR NO

SENTIDO

HORARIO DRAAI RECHTSOM

MOVE IN THIS

DIRECTION IN RICHTUNG

BEWEGEN MUOVI IN

DIREZIONE BOUGEZ DANS

CETTE DIRECTION DIRECION DE LA

FLECHA AVANÇAR NESSA

DIREÇAO

BEWEEG IN DE

RICHTING VAN DE

PIJL

LIFT OVER ANHEBEN SOLLEVARE SOULEVEZ LEVANTAR LEVANTAR SOBRE

AOPHEFFEN

ATTENTION!

REMOVE BATTERY ACHTUNG! AKKU

ENTFERNEN

ATTENZIONE!

RIMUOVERE LA

BATTERIA

ATTENTION !

RETIREZ LA

BATTERIE

ATENCION!

QUITAR LA

BATERIA

ATENÇÃO!

RETIRAR A

BATERIA

OPGELET !

VERWIJDER DE

BATTERIJ

KEY (LEGEND) of SYMBOLS

ENGLISH GERMAN ITALIAN FRENCH SPANISH

PORTUGUESE

DUTCH

CROSS HEAD

SCREWDRIVER

PH –

SCHRAUBEN-

DREHER CACCIAVITE PH TOURNEVIS

CRUCIFORME DESTORNILLADO

R DE ESTRELLA CHAVE

PHILIPS

KRUIS

SCHROEVENDRA

AIER (PH TYPE)

TORX HEAD

SCREWDRIVER

TORX-

SCHRAUBEN-

DREHER

CACCIAVITE

TORX TOURNEVIS

TORX DESTORNILLADO

R TORX CHAVE TORX TORX

SCHROEVENDRA

AIER

HEX KEY SIZE GRÖSSE

INNENSECHSKAN

T-SCHLÜSSEL

DIMENSIONE VITE

ESAGONALE TAILLE SIX PAN TAMAÑO LLAVE

EXAGONAL

TAMANHO

CHAVE

HEX

AFMETING VAN DE

INBUSSLEUTEL

DATE CODE HERSTELLUNGS-

DATUM DATA DI

PRODUZIONE DATE CODE FECHA

FABRICACION CÓDIGO DE

PRODUÇÃO DATUM CODE

DISCONNECT TRENNEN SCOLLEGARE DEBRANCHEZ

DESCONECTADO

DESLIGAR ONTKOPPELEN

FUNCTION TEST

FUNKTIONSTEST

DURCHFÜHREN

ESEGUIRE IL TEST

TEST

FONCTIONNEL PRUEVA DE

FUNCIONAMIENTO

TESTE DE

FUNCIONAMENT

OFUNCTIETEST

USE STATIC

PROTECTION DEVICE

ANTISTATIK

MATTE

BENUTZEN

USARE I

DISPOSITIVI

ANTISTATICI

UTILISEZ UN

EQUIPEMENT DE

PROTECTION

ANTISTATIQUE

USE PROTECCION

ANTIESTATICA USE PROTEÇÃO

ESTATICA

GEBRUIK ANTI -

STATISCH

MATERIAAL

KEY (LEGEND) of SYMBOLS

⊕

DATE

CODE

TEST

START DISSASEMBLY

DISSASEMBLY

TX 20

DISSASEMBLY

TX 20 MM

DISSASEMBLY
