Develop Ineo+ 25 Manual de usuario

ineo+25

15.08.12

Product Guide

Product Guide ineo+25

Table of contents

Product Basic .............................................................................3

Product Configuration.................................................................4

System Specifications ................................................................7

Copier Specifications................................................................10

Printer Specifications................................................................11

Scanner Specifications.............................................................13

Fax Specifications ....................................................................14

Consumables............................................................................15

Article Numbers........................................................................16

Service Part..............................................................................17

Appendix...................................................................................18

Product Guide ineo+25

MODEL DEVELOPMENT CODE

Citrine AIO

PROPOSED MODEL NAME

ineo+25

SUCCESSOR MODEL FOR

ineo+20

ESTIMATED SALES START

05/11

DATAQUEST SEGMENT

ALSO AVAILABLE AS

KM bizhub C25, Olivetti d-Color

TYPE

Desktop Tandem Full Colour A4 Laser Beam Printer

MAX. (PEAK) MONTHLY COPY VOLUME

120 k prints

AVERAGE/PERMANENT MONTHLY COPY

VOLUME

6.6 k prints

EXPECTED AVERAGE MONTHLY COPY

VOLUME

378/882 prints (colour/black)

MACHINE LIFE

400 k sheets or 5 years whichever comes first

ADF & SCANNER LIFE

Flatbed: 100 k scans or 5 years whichever comes first

ADF: 100 k scans or 5 years whichever comes first

MCBF Body

(Mean Copies Between Failure)

60 k

MCBJ (Mean Copies Between Jam)

5 k

MCBV (Mean Copies between Visit)

No indication

MTTR (Mean Time To Repair)

30 minutes or less

SAFETY & ENVIRONMENT

English/German Product Data Sheets

dBox / Marketing / Safety and Environment

OPERATION CONDITIONS

Monochrome & Full Colour 2 pages/job

Average Coverage 5% for Monochrome & Full Colour

PLEASE NOTICE

Standard paper weight for systems is 80 g/m2for monochrome machines and 90 g/m2for full colour ones. Since using these standards

result in optimum system performance, all specifications on performance, reliability, maintenance and replacement based on those

standard papers. Using thick papers, labels, transfer and polyester films continuously can increase the wear and tear on replacement

parts and consumables –meaning your servicing costs will go up.

Use the bypass or the lower tray from the paper feed unit when working with materials having such characteristics as polyester films,

textile transfer films and labels. Otherwise, you may be faced with double feeding or a higher number of feeding jams.

If possible use subtray when working with materials having such characteristics as polyester films, textile transfer films and labels.

Roller-marks on the copy or print may appear or increased jams can occur. Standard paper weights yield the best possible copy and

print results. Using higher grammage may influence the quality of the output. Using standard paper weights also guarantees that double

sided copies and prints are made reliably. Different characters of films as well as thick, thin and coated papers may increase the jam rate

for double sided copies and prints.

Product Guide ineo+25

SYSTEM CONFIGURATION

Standard

Option

Lower Paper Feeder PF-P09

Hard Disc Kit HD-P03

Memory M-35C

Compact Flash Adapter MK-725

Compact Flash Card (Country local)

Simple Copy Desk SCD-25

Dongle Wireless LAN (Ethernet)

Automatic Document Feeder (ADF)

Duplex Unit

250 Sheet Paper Cassette

Multi Purpose Tray (MPT)

Product Guide ineo+25

SYSTEM DIMENSION

Unit in mm

Product Guide ineo+25

SYSTEM DIMENSION

Unit in mm

Product Guide ineo+25

ORIGINAL FEEDER

Standard

Original Size

A5, A4, Legal, Letter

Original Weight

50 –110 g/m²

Tray Capacity

35 originals

Double Side Feeding

No, only single side

Feeding Type

Input: Face up, Output: Face down

Speed

Up to 18 opm A4 (Full Colour & B/W are possible)

PAPER CASSETTE

Standard

Number of Cassettes

1 universal type

Capacity

250 sheets A4/80g/m²

Paper Size

A6 - A4 (Legal, Letter)

Paper Weight

60 –210 g/m²

Max. Paper Capacity

850 sheets (incl. optional cassette)

Media Types

Plain Paper, Recycling paper

MULTI PURPOSE TRAY

Standard

Capacity

100 sheets 80 g/m²

Paper Size

A4 lengthwise, A5 lengthwise, A6 lengthwise, Custom Size (width: 92

–216 mm, length: 148 –356 mm)

Paper Weight

60 –210 g/m²

Media Types

Plain paper, recycling paper, labels, thick paper, glossy paper,

envelopes. OHP transparencies are not supported.

DUPLEX UNIT

Standard

Paper Size

A4 lengthwise, B5 lengthwise, custom size: 182 –216 mm, 254 –

356 mm.

Paper Weight

60 –210 g/m²

Media Types

Plain paper, recycling paper, thick paper

Product Guide ineo+25

LOWER PAPER FEEDER PF-P09

Option

Capacity

500 sheets A4/80g/m²

Paper Size

A4 (B5, letter, legal)

Paper Weight

60 –90 g/m²

Dimensions (W x D x H) [mm]

444 x 520 x 117

Weight [kg]

7.0

Remark

One additional cassette can be adapted.

SIMPLE COPY DESK SCD-25

Option

Dimensions (W x D x H) [mm]

520 x 419.1 x 505

Weight [kg]

13.2

Function

To place the machine in a correct operation height and to store paper

and/or consumables

Remark

The SCD-25 can be used also for ineo+35P.

COMPACT FLASH ADAPTER MK-725

Option

Remark

Either the HDD Kit or the Compact Flash Adapter can be installed.

CF FLASH CARD

Option

Availability Status

Local procurement

Capacity

1 GB or more

Recommended Supplier

Kingston

Remark

Flash card enables direct printing (PDF, TIFF, JPEG), downloading

fonts/profiles/overlays, collating, PDF direct print

Product Guide ineo+25

HDD KIT HD-P03

Option

Capacity

40 GB

Remark

HDD Kit enables direct printing (PDF, TIFF; JPEG), downloading

fonts/profiles/overlays, collating, PDF direct print, secure printing,

proof-then-print, job storing, XPS emulation.

Either the HDD Kit or the Compact Flash Adapter can be installed.

MEMORY M-35C

Option

Capacity

512 MB

Remark

Increases printing performance. To make sure, that the machine will

run properly, use just the recommended memory expansion.

NETWORK-TO-WIRELESS ADAPTER

SX-600

Option

Function

Wireless LAN dongle for Ethernet connection

Product Guide ineo+25

WARM-UP TIME

Switch on to READY: 38 sec. or less

Sleep to READY: 38 sec. or less

FIRST COPY

Monochrome: 11 sec. or less

Full Colour: 16 sec. or less

COPY SPEED

Continuous: 24/24 ppm A4 lengthwise

1:1: 20/20 ppm A4 lengthwise

SCAN RESOLUTION

CD Direction: 300 dpi, 600 dpi

FD Direction: 600 dpi

300 dpi (ADF)

COPY/PRINT RESOLUTION

CD Direction: 600 dpi (x3bit when using controller)

FD Direction: 600 dpi

GRADATION

256 colour shades per pixel (8-bit)

MEMORY CAPACITY

128 MB (std./max.)[shared with copy, scan and fax]

HDD

Not required for copying

ZOOM RATIO

Flatbed: 25 –400 % (1 % increment)

ADF: 25 –200 % (1 % increment)

ENLARGEMENT / REDUCTION

fixed ratios supported

MULTI COPY

1 –99

EXPOSURE MODES

Text, Text/Photo, Photo

Auto/Manual (7 levels)

PRINTABLE AREA

Copy Mode: 4.0 mm void area on all edges

Printing: 4.2 mm void area on all edges

OUTPUT CAPACITY

150 pages plain paper

10 pages thick paper, films, etc.

POWER REQUIREMENT

220-240 V AC/50/60 Hz/4.4 A

POWER CONSUMPTION

Max. 1.1 kW or less

Sleep Mode: 34 W or less

TEC VALUE

4.415 kWh or less

DIMENSIONS (W x D x H) mm

446.5 x 558 x 490

MACHINE WEIGHT (kg)

27.7 (w/o consumables)

32.5 (incl. consumables)

FEATURES

Duplex Copy

yes

Sort Copy

yes

ID Card Copy

yes

x-in-1 copy

2in1, 4in1

Flatbed N-in-1 copy

yes

Image Repeat

yes

Poster Mode

yes

Otros manuales para ineo+ 25

Tabla de contenidos

Otros manuales de Impresora todo en uno de Develop

Develop

Develop ineo 5020i Manual de usuario

Develop

Develop ineo+ 3110 Manual de usuario

Develop

Develop ineo+ 451 Manual de usuario

Develop

Develop ineo+35 Manual de usuario

Develop

Develop ineo+ 220 Manual de usuario

Develop

Develop ineo 161 Manual de usuario

Develop

Develop ineo+ 224 Manual de usuario

Develop

Develop ineo 3320 Manual de usuario

Develop

Develop ineo 164 Manual de usuario

Develop

Develop ineo+ 25 Manual de usuario

Develop

Develop ineo 163 Manual de usuario

Develop

Develop ineo 361 Manual de usuario

Develop

Develop ineo+ 353 Manual de usuario

Develop

Develop ineo+ 220 Manual de usuario

Develop

Develop ineo+ 360i Manual de usuario

Develop

Develop ineo 164 Manual de usuario

Develop

Develop ineo 163 Manual de usuario

Develop

Develop ineo 161 Manual de usuario

Develop

Develop ineo 250 Manual de usuario

Develop

Develop ineo 40P Manual de usuario

Develop

Develop ineo 1051 Manual de usuario

Develop

Develop ineo 4050 Manual de usuario

Develop

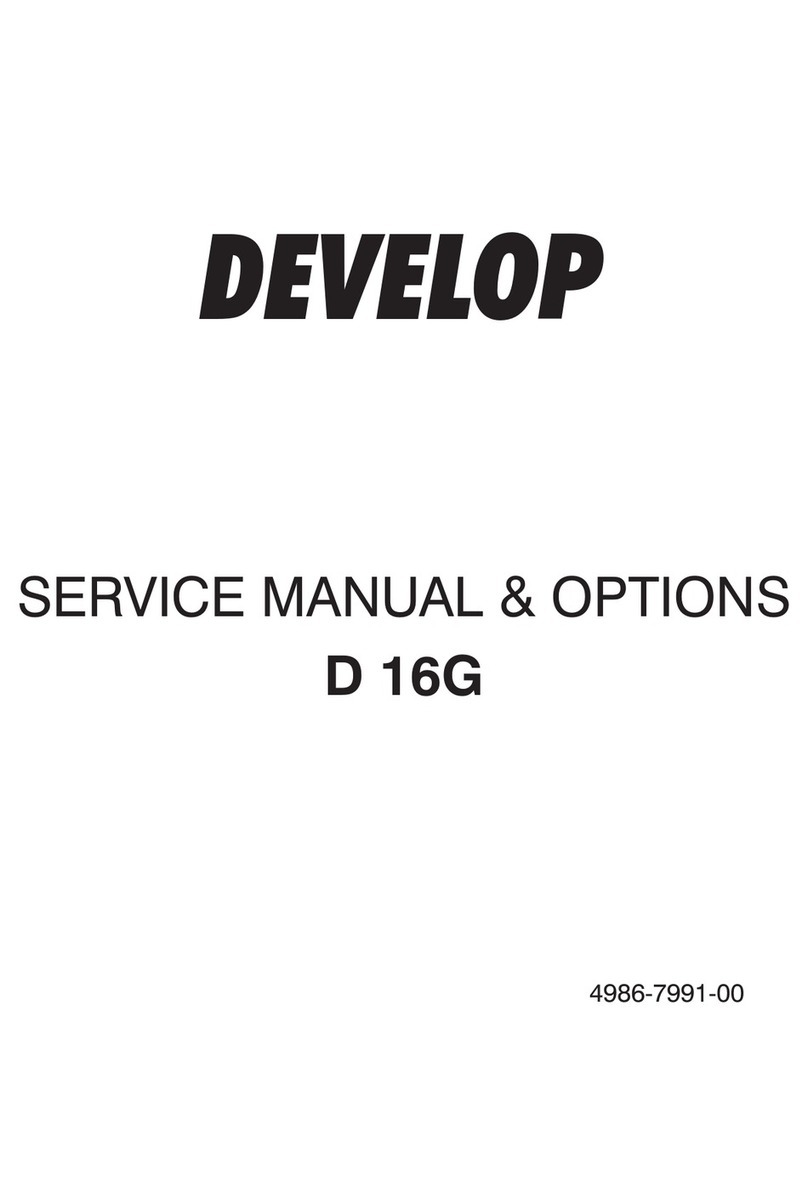

Develop D 16G Manual de usuario
