DEVA Broadcast DB9000-RX Manual de usuario
INSTALLATION GUIDE
DB9000-RX
Professional IP Audio Decoder
with
Stereo & RDS Encoder Module
Publish Date: 12-Oct-2015
In order to facilitate the assembling of DB9000RX with the Stereo and RDS
Encoder module we have written these detailed instructions.
The instructions will acquaint you with the assembly of the RDS encoder
module. Please read them carefully before you start.
We have illustrated with a photograph each step of the assembling process. If
you have any doubts, before the beginning of a step refer to these photos to
check the accuracy of the assembly process.
Please note that the device must NOT be connected to the electrical network
during the assembly. Please observe the safety standards.
Basic Assembly Principles
Here are a few tips that would make the assembly of the DB-9000RX
Professional IP Audio Decoder and the Stereo and RDS Encoder Module
quick and easy. By using these principles, you can simplify the process and
save yourself some extra time and effort.
1. When you are having a trouble placing a bolt between two separate pieces,
you can get the bolt holes to line up by gently lifting and slightly gliding one of
the pieces, so that it matches the factory holes perfectly.
2. You can make the assembly process faster by gathering the pieces you
need for each step, prior to starting the step.
3. As a general rule for all bolts and locknuts - turning toward the right will
tighten them, turning toward the left will loosen them.
Tools You Will Need
You will need the following tools to complete the assembly of the DB-9000RX
Professional IP Audio Decoder with the Stereo and RDS Encoder Module. If
you don’t have these tools, you can find them at any hardware or department
store.
• Star shaped screwdriver №: PH1 and PH2
• Hex screwdriver №5
*** NOTE: Please note that the device must NOT be connected to the
electrical network during the assembly. Please observe the safety standards.
Step 1:
Place the device on a working table with static surface. The rear part of the
device must be set against you (Picture 1 represents the proper position for the
device).
Next, using a star blade screwdriver №PH2 unscrew the three bolts that
hold the cover of the device. Picture 1 displays the position of the bolts. (For
your convenience we have circled them in red.)
Place the unscrewed bolts near you so that they can be at hand during the
reassembling of DB-9000RX Professional IP Audio Decoder with Stereo and
RDS Encoder Module.
Picture 1
*** NOTE: Please note that the device must NOT be connected to the
electrical network during the assembly. Please observe the safety standards.
Step 2:
Use a star blade screwdriver №PH2 to unbolt the bolts holding the cover of
the device on its left and right side. Picture 2 and Picture 3 show the position
of the bolts. (For your convenience we have circled them in red.)
Place the unscrewed bolts near you so that they can be at hand during the
reassembling of DB-9000RX Professional IP Audio Decoder with Stereo and
RDS Encoder Module.

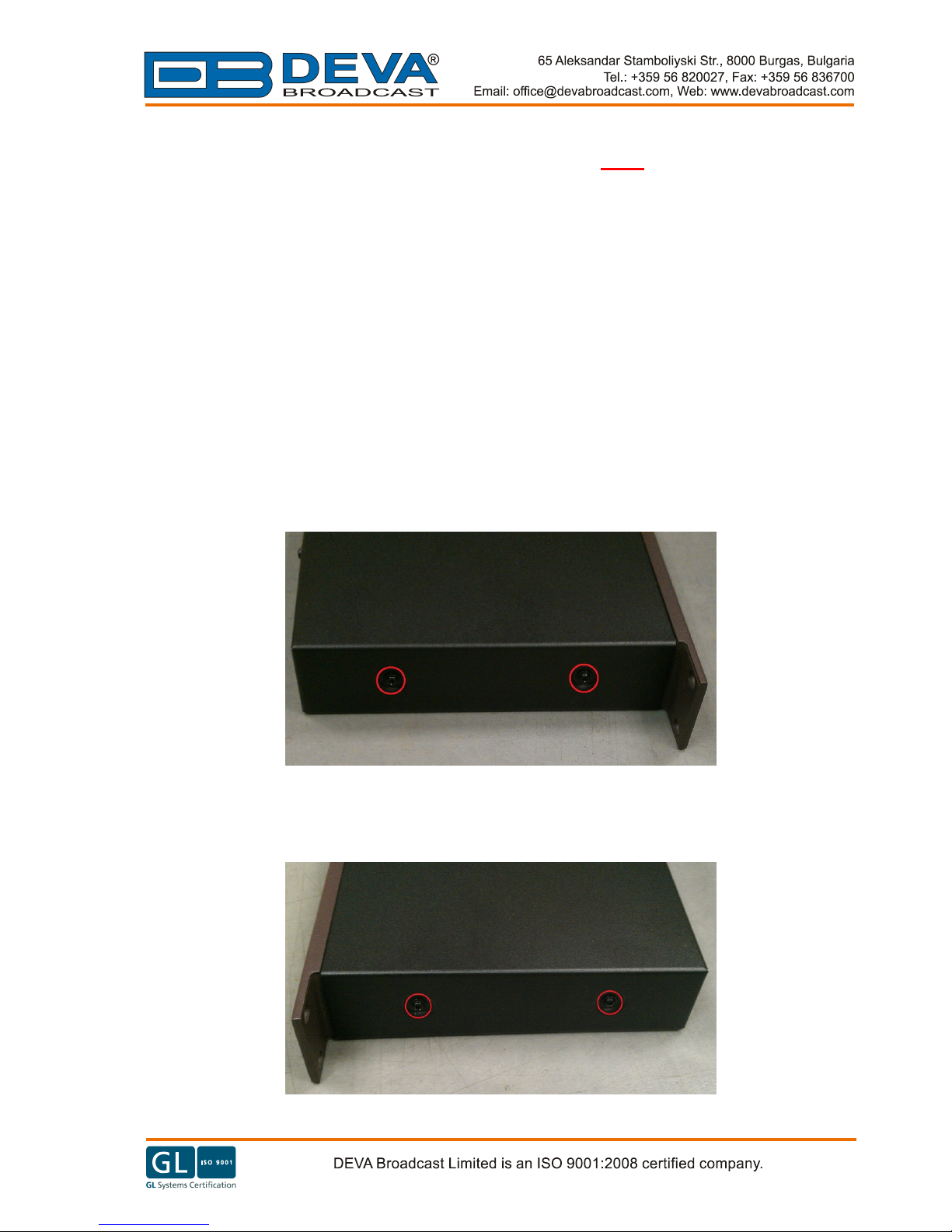

Picture 2
Picture 3
*** NOTE: Please note that the device must NOT be connected to the
electrical network during the assembly. Please observe the safety standards.
Step 3:
Use a star blade screwdriver №PH1 to unscrew bolts with numbers from 1
to 8 which hold the rear cover of the device. Picture 4 displays the position of
the bolts. (For your convenience we have circled them in red.)
Bolts 9 and 10, placed on both sides of the RS-232 Com-port, have to be
unscrewed with a hex screwdriver №5. (Circled in yellow on Picture 4)
Place the unscrewed bolts near you so that they can be at hand during the
reassembling of DB-9000RX Professional IP Audio Decoder with Stereo and
RDS Encoder Module.
Picture 4
*** NOTE: Please note that the device must NOT be connected to the
electrical network during the assembly. Please observe the safety standards.
Step 4:
The next step of the process is the removal of the plugs (circled in red on Picture
5). This will ensure space for the cable terminals of the Stereo and RDS
Encoder Module.
The following steps will guarantee you an easy removal of the plugs:
1. Grasp the plug with your fingers;
2. Press the shifts to the inside;
3. Push out the plug.
The extracted plugs will no longer be needed.
Picture 5
*** NOTE: Please note that the device must NOT be connected to the
electrical network during the assembly. Please observe the safety standards.
Step 5:
Use a star blade screwdriver №PH2 to unscrew the bolts holding the front
panel of the device on its left and right side. Picture 6 and Picture 7 show the
position of the bolts. (For your convenience we have circled them in red.)
Place the unscrewed bolts near you so that they can be at hand during the
reassembling of DB-9000RX Professional IP Audio Decoder with Stereo and
RDS Encoder Module.
Picture 6
Picture 7
*** NOTE: Please note that the device must NOT be connected to the
electrical network during the assembly. Please observe the safety standards.
Step 6:
Use a star blade screwdriver №PH1 to gently unbolt the bolts holding the
motherboard to the metal bottom of DB-9000RX. Picture 8 displays the
position of the bolts. (For your convenience we have circled them in red.)
Gently remove the motherboard from the device’s metal body and place it on a
static surface.
Place the unscrewed bolts near you so that they can be at hand during the
reassembling of DB-9000RX Professional IP Audio Decoder with Stereo and
RDS Encoder Module.

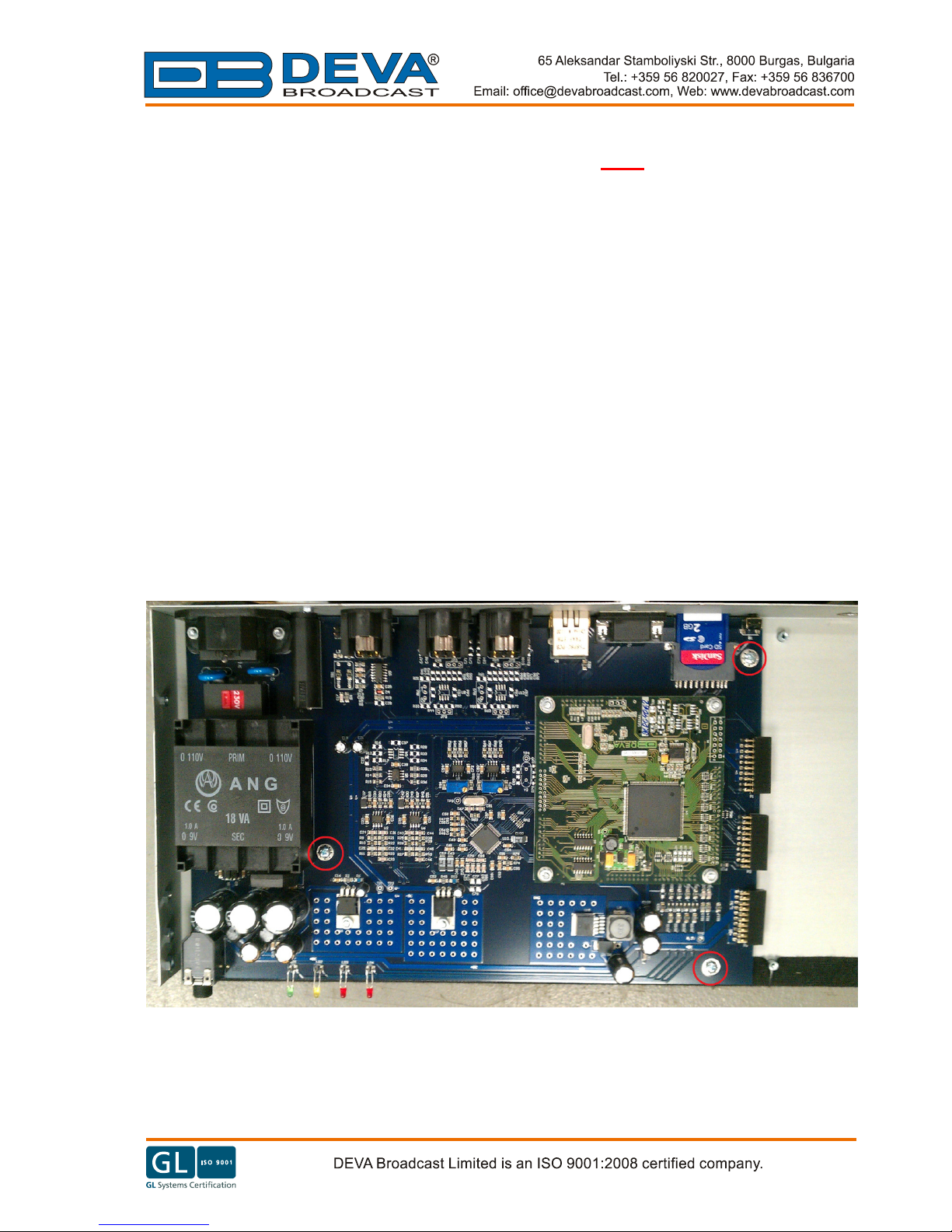

Picture 8
Please do not remove or damage any parts of the motherboard!
*** NOTE: Please note that the device must NOT be connected to the
electrical network during the assembly. Please observe the safety standards.
Step 7:
Before we continue with the next step, please pay special attention to Picture
9.
Carefully place both motherboards one next to the other and fit together the
plug and socket connectors. Do not displace them to the left or right. They
must fit perfectly.
Picture 9
Please do not remove or damage any parts of the motherboard!
*** NOTE: Please note that the device must NOT be connected to the
electrical network during the assembly. Please observe the safety standards.
Step 8:
Carefully place the connected motherboards into the device’s metal body. The
picture below shows the correct position of the motherboards and the cable
terminals.
Use a star blade screwdriver №PH1 and the additional bolts, included in the
set, to gently screw in the bolts to the metal bottom of the device as shown on
Picture 10.
Picture 10
Please do not remove or damage any parts of the motherboard!
