DS7400Xi Control/Communicator
Terminal Wiring & Programming
P/N 44128C DS7400 Programming
.DS7400Xi Panel Wiring & Programming
© Radionics Inc. reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties.2
44128C DS7400 Programming
Control Terminal Wiring
DS7400Xi Panel Wiring & Programming
© Radionics Inc. reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties.3
Before servicing, remove all power including
the transformer, battery and phone line.
A complete functional test is required after
any programming.
Incorrect connections may result in damage
to the unit.
System is Power Limited except for battery
terminals. All wiring entering the enclosure
must be power limited.
DS7400Xi Panel Wiring & Programming
© Radionics Inc. reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties.4
1
2
3
4
5
6
7
8
EARTH GROUND:Must be connected to a good earth ground
such as a cold water pipe and also connected to the cabinet
cover using the supplied wire jumper.
A/C INPUT: Use U.L. listed, 18 VAC 50 VA, class 2
transformer. Model TR-1850 requires 50/60 Hz. unswitched
dedicated outlet. Do not share.
ALARM OUTPUT: Provides 12 VDC, special application, up to
1.75A for powering bells, sirens drivers, etc.
Function programmed in address 0146
AUXILIARY POWER: Provides 12 VDC, special application,
up to 1.0A for powering detectors.
A
C
_
A
_
+
A/C Power Indication LED
DS7400Xi Panel Wiring & Programming
© Radionics Inc. reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties.5
R
B
G
Y
Y
OPTIONS BUS:
Used for options such as the ARDIS communications
module, the DS7420i Dual Phone Line module, etc.
Also for keypads #11 - #15.
For Commercial Fire Mode: Option Bus Wiring must
be run in conduit if run outside the enclosure.
DS7412 RS-232 Interface Module
DS7488 Octal Relay Module
DS7489 Octal Open Collector Module
DS7420i Commercial Fire Module
DS7416 ARDIS Transmitter
X7410 X10 Interface Module
Options Include:
DS7400Xi Panel Wiring & Programming
© Radionics Inc. reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties.6
RBGY
Y
1211109
KEYPAD BUS*:
Up to 15 keypads**
may be used.
Can be “home-run”
or “daisy-chained.”
Keypads #1 - 10
*= Maximum wire length each: 1000 ft. (305 m).
Max. wire length total in system: 6000 ft. (1830 m)
when using #22 AWG (.8mm) or #18 AWG (1.0mm)
cable.
** = Keypads #1 - 10 connect to the Keypad Bus.
Keypads #11 - 15 connect to the Options Bus.
Shared cable is not recommended for keypad
bus, multiplex bus, options bus, telephone, or
siren wiring.
DS7400Xi Panel Wiring & Programming
© Radionics Inc. reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties.7
Phone Line:
(RJ-31x or 38x)
T TH RH R
GBSR
16151413
House
Telephone
Company
DS7400Xi Panel Wiring & Programming
© Radionics Inc. reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties.8

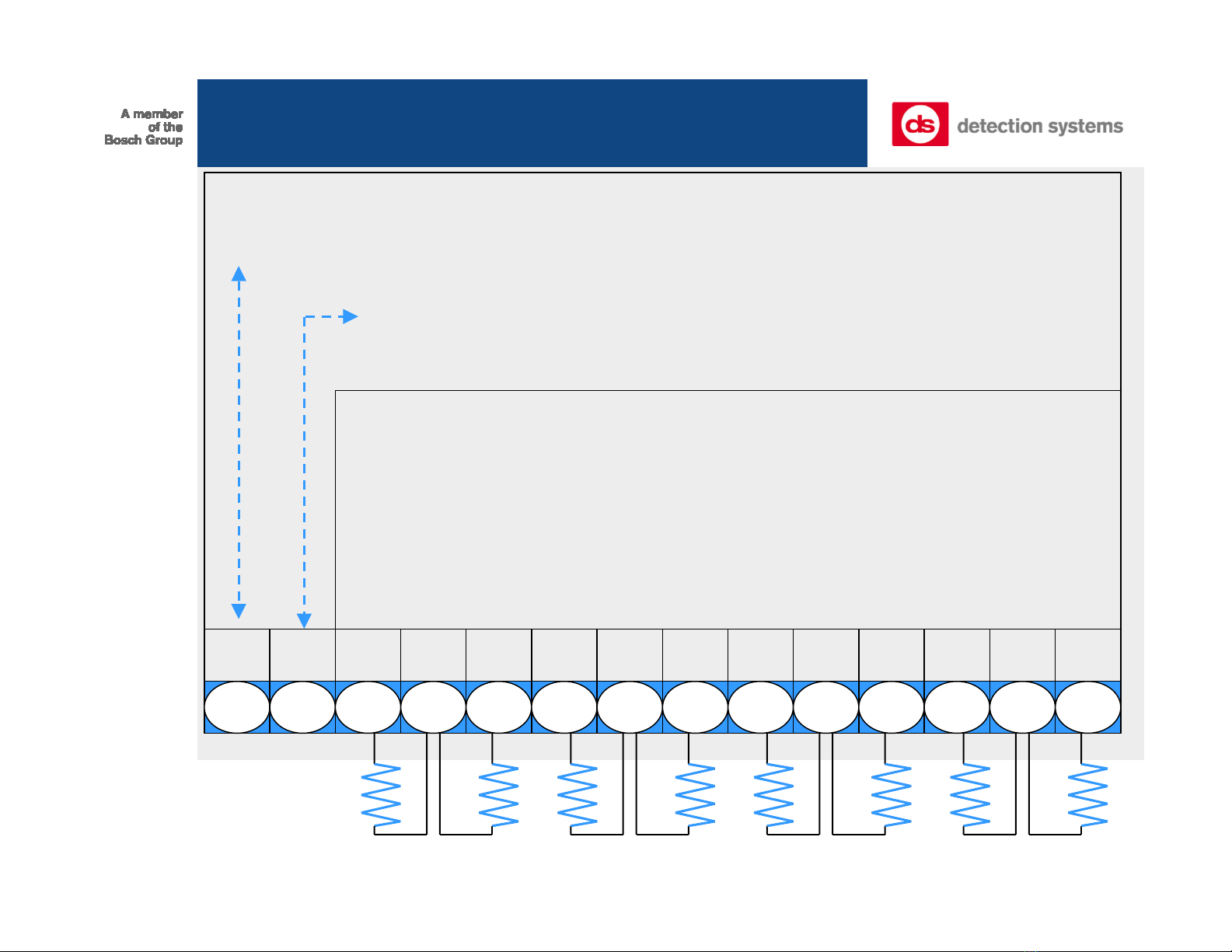

17 18 19 20 21 22 23 24 25 26 27 28 29 30
PO1 PO2 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 -L + L + L + L +
ZONES 1-8 : Intended for connection of Normally Open or
Normally Closed alarm contacts. May be used for compatible
2-wire smoke detectors. These zones require a 2.21KW resistor
(P/N 25899) at the end of the loop.
Power is momentarily removed from L+ after a [PIN]+[System
Reset] or during fire verification.
Zone 1-8 assignments are programmed in addresses 0018-0025.
PROGRAMMABLE OUTPUTS:
PO1 shorts to aux. power negative when activated. PO1 can sink up to 1.0A.
PO1 function programmed in address 0147.
PO2 supplies 12 V and up to 500 mA when activated.
PO2 function programmed in address 0148.
DS7400Xi Panel Wiring & Programming
© Radionics Inc. reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties.9
Disconnect wire jumper from terminal 4 to inner housing of Bell Box.
(Prevents a ground fault condition)
Connect wiring between control and Bell Box as shown next slide.
To use AB-12 Bell/Housing, cut jumper wire “JP1” on control.
EOL used in AB-12 Bell / Housing must be 27K ohms.
Program Zone 8 as 24-hour zone by programming it to follow zn function 7.
(Program address 0025 should be 07)
Do not change default programming of zone function 7.
(Program address 0007 should be 22)
Wiring & Programming for Installations
using Ademco AB-12 Housing
DS7400Xi Panel Wiring & Programming
© Radionics Inc. reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties.10
6
5
4
3
2
1Bell
To Earth Ground Terminal 1
1
29
30
5
6
To Control Loop Positive Terminal 29
To Control Zone 8 Input Terminal 30
To Control Alarm Output Terminal 5
To Control Alarm Output Terminal 6
EOL
27kW
Inner Bell Housing
Outer Bell Housing
Cut this Jumper - JP1
Control/Communicator
