Denver WIQ-10024 Instrucciones de funcionamiento
2
ENGLISH / ENGLISH
Important safety and handling information
•This product is suitable for use in non-tropic areas below 2,000 meters,
which is indicated by the symbol found in product specifications.
•Do not drop, bend, puncture, insert foreign objects or place heavy objects
on yourtablet. Sensitive components inside might become damaged.
•Do not expose the tablet to extremely low or high temperatures (>35°) or to
any environment where the air is too cold, too hot, too humid or has too
much dust. Keep Tablet out of direct sunlight.
•Do not use the device in strong magnetic and electrostatic fields.
•Do not immerse yourtablet in water or leave it in a location where it can get
saturated with water or other liquids. In case water or other liquids come
into contact with the device, shut it off immediately and do not turn it back
on until it dries out completely.
•Do not clean the tablet with detergent or any cleaning product containing
chemicals or other liquids in general to avoid causing damage and
corrosion. If cleaning is necessary, use a dry cloth or paper towel.
•Our company will not be responsible for data loss due to intentional or
accidental damage caused to the device, maintenance, or other reasons.
•Back up your important data frequently to avoid losing important
information.
•Do not disassemble or modify your tablet. All internal repairs must be done
by an authorized repair facility or technician. Attempting to open or modify
your tablet will void the warranty.
•Replacing the internal battery with an incompatible battery or a battery
produced by a different vendor may cause an explosion. Do not attempt to
replace the original battery yourself. Contact an authorized repair facility or
technician.
3
ENGLISH / ENGLISH
Tablet layout and key functions
1. Power button: Press down to open or close the touch screen panel. You
can also press the Power button to put the tablet in and out of sleep mode.
2. Volume + key: Volume up
3. Volume - key: Volume down
4. MIC
5. Microphone
6. DC
7. USB
8. mini HDMI
9. Micro USB Interface: Used to transfer data via a USB port.
10. Micro SD card slot: The built-in storage card reader slot supports
4
ENGLISH / ENGLISH
Keyboard
Important: Using the keyboard is optional and its configuration depends on the
model of Tablet you have purchased.
Keyboard group: The keyboard provides a full size QWERTZ keyboardand
ensures comfortable typewriting.
Demonstration:
Tablet and keyboard in use
5
ENGLISH / ENGLISH
Introduction to Start screen
Windows 8.1 Start screen
The Start screen displays shortcuts to applications installed on your tablet.
The shortcuts are displayed in a tile form. Tapping/clicking the desired tile will
start the corresponding application.
To start using applications, you will need to log into your Microsoft account.
Using the touch screen - gestures
Slide right
Slide your finger from left to right side
of the screen to open a list of all
running programs.
Slide left
Slide your finger from right to left side
of the screen to open the Charm
menu.
6
ENGLISH / ENGLISH
Zoom out
On the Home screen, slide your
fingers together to reduce tile size.
Zoom in
On the Home screen, slide your
fingers apart to enlarge tile size.
Slide down
On the Home screen, slide your
finger down to customize the
appearance of tile groups.
Slide left/right
On the Home screen, slide your
finger horizontally, left or right, to
move through the list oftiles.
Slide up
On the Home screen, slide your
finger up from the bottom of the
screen to view all applications
installed on your tablet.
7
ENGLISH / ENGLISH

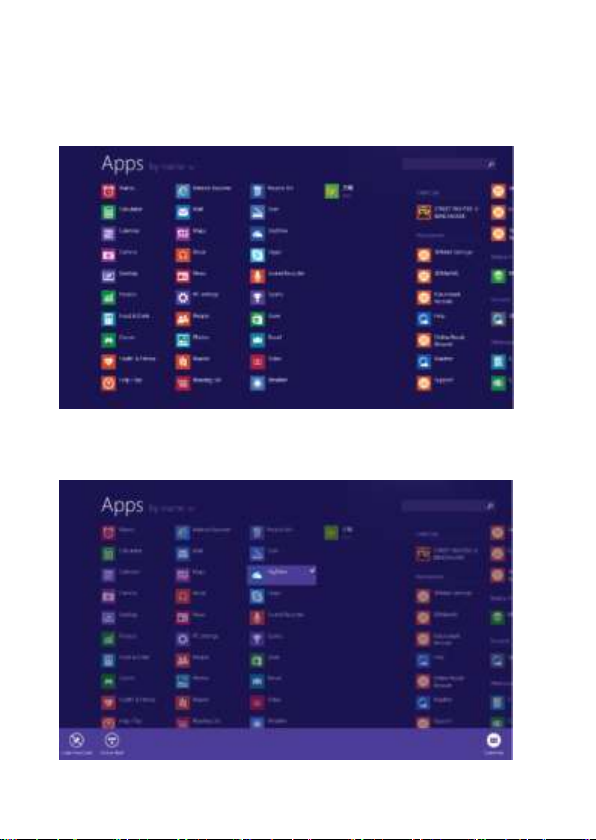

Additional options
In addition to the applications that are visible on the Home screen, you can
browse through a list of more applications installed on your Tablet and launch
the ones you want.
If you want to add more applications to the Home screen, do the following:
1. Touch and hold the item for about one second and then let go
2. Select the second option (Find in Start) from the list of available
commands to create the app shortcut on the Home screen.
8
ENGLISH / ENGLISH
If you want to remove an application from the Home screen, delete it
completely, or resize the shortcut tile, do the following:
1. Touch and hold the item for about one second and then let it go
2. Select the appropriate option from the list of available commands to
complete the desired operation.
Charm menu options
Slide your finger from the right side ofthe screen tothe left to bring up Charm
menu shortcuts: Search, Share, Start, Devices and Settings.
9
ENGLISH / ENGLISH
Search through all files and programs on your Tablet.
Share data (pictures, videos and other content) via social
networks, e-mail or other options.
While running an application, click/tap Start to go to the Home
screen. If you area already on the Home screen and touch Start,
you will return to the last opened application.
Read, write and share files, connect your tablet to an external
screen or printer and connect other devices to your tablet.
Configure your Tablet settings.
Search menu
Share menu
Device menu
Set up menu
10
ENGLISH / ENGLISH

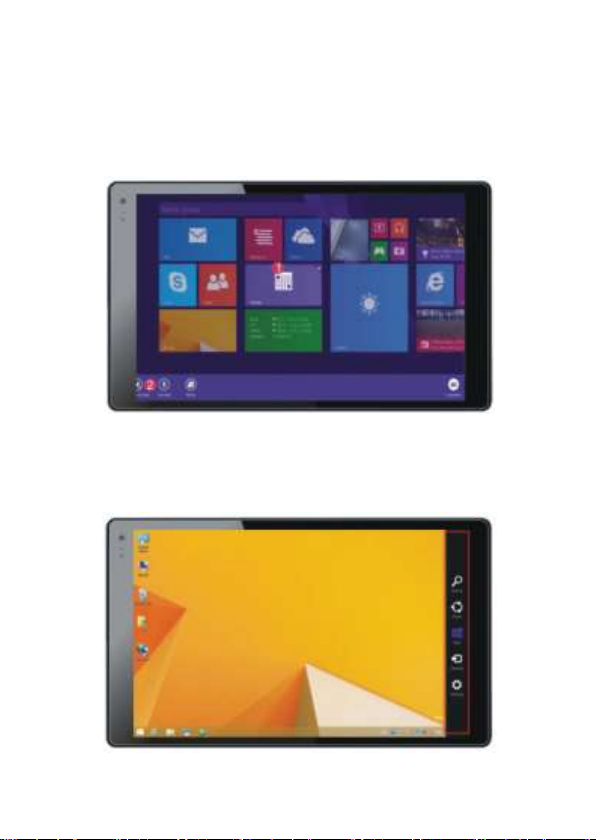

Split screen feature
To access the Split Screen feature, do the following:
While you are on the Home screen (Figure 1) or using an application, swipe
your fingerdown from the top of the screen, hold and then drag the item to the
left or right side of the screen. Release when Split Screen interface appears.
When in Split Screen mode (Figure 2), touch the partition button in the middle
of the partition line and drag your fingerto the right or left side of the screen to
change the display proportions of the Split Screens.
Figure 1
Figure 2
