Denver DMB-113CI Manual de usuario
T
for digital pay tv and free to air tv channels
usb port with pvr
ci – common
interface
for pay
tv channels
pvr
record tv programs
to usb stick
T
USER MANUAL
BETJENINGSVEJLEDNING
BRUKSANVISNING
BEDIENUNGSANLEITUNG
Important safety instructions to be kept with the product
Please read attentively
To prevent fire and electric shock, do not expose this receiver to rain or
moisture. In order to avoid any possible risk of electric shock, never
attempt to open the unit. In case of breakdown, reparation should be
made by qualified technicians. No part of this unit should be repaired by
users.
WARNING!
Presence of dangerous tension inside apparatus! Do not open. Risk of electric shock!
No part should be repaired by users. The maintenance of the receiver should be
carried out exclusively by qualified persons.
If the power cord is damaged, it must be replaced or repaired by the manufacturer, its
after-sales service, qualified electrician or persons of similar qualification in order to avoid
possible danger.
The product must be installed in accordance with national regulations.
The used batteries must be disposed of safely. Throw them in collection bins provided is
prohibited (inquire after your retailer for more details) in order to protect the environment.
Proper Installation
- Place the receiver on a flat, firm and stable surface. Do not put it on a carpet or rug.
- Do not place the receiver on top of another device, such as an amplifier. This may lead to
overheating.
- Do not put anything above the unit (for example, CDs or magazines).
Sufficient Ventilation
- Place the receiver in a well-ventilated location to prevent accumulation of internal heat.
Allow a gap of at least 10cm to the rear and the top of the unit, as well as a space of 5cm to
both sides to avoid overheating.
- Do not obstruct any ventilation openings with items such as newspapers, tablecloths,
curtains, etc.
Protecting the Receiver from High Temperatures, Humidity, Water and Dust
- The receiver should not be exposed to dripping water or splashing.
- No objects filled with liquids, such as vases, shall be placed on the unit.
- Do not place any objects that might damage your unit near it (e.g. liquid filled objects or
candles).
- Do not place any source of flames such as lit candles on the receiver.
- This receiver is to be used in a temperate climate and should not be used in a tropical
climate.
Electricity Supply
HSILGNE
1
2
- Please unplug the receiver in case of prolonged non-use.
- If the power cord is damaged, it must be replaced or repaired by the manufacturer, its
after-sales service, qualified electrician or similar qualifications to those to avoid possible
danger.
- This device must be connected to a 240V ~ 50Hz electrical network.
- The plug must remain readily accessible after the installation of the product.
Welcome Section
Congratulations on choosing to buy a DENVER product. By doing so you now have the
assurance and peace of mind that comes with purchasing a product made by one of the
leading manufactory. All products brought to you by DENVER are manufactured to the
highest standards of performance and safety, and, as part of our philosophy of customer
service and satisfaction, are backed by our comprehensive 1Years Warranty.
Main featuresġ
Slim size
MPEG-2, MPEG-4(H.264) decoding
USB2.0 for software update , music ,image, movie and recording
LCN(Logical Channel Number) supported;
Parental control
Favorite lists
Timer
EPG/TXT/SUBTITLE supported
Digital sound through COAXIAL output (S/PDIF)
PVR ready supported
HSILGNE
3
Contents
1. Installation of STB..............................................................................................................6
1.1 Front Panel.....................................................................................................................6
1.2 Rear Panel .....................................................................................................................6
1.3 Connection.....................................................................................................................7
1.3.1 Connecting to cable signal................................................................................................... 8
1.3.2 Connecting to TV................................................................................................................. 8
1.3.3 Connecting to Digital Audio Amplifier................................................................................... 8
2. IR..........................................................................................................................................9
2.1 Remote...........................................................................................................................9
3. Basic functions ................................................................................................................10
3.1 First Installation............................................................................................................10
3.2 Volume adjustment and Mute ......................................................................................10
3.3 TV/RADIO programs switch.........................................................................................10
3.4 Station switch ...............................................................................................................10
3.5 Program list..................................................................................................................10
3.6 Display information of programs ..................................................................................10
3.7 Program return.............................................................................................................10
3.8 Audio language switch and L/R channel switch...........................................................11
3.9 Electronic programs guide (EPG) ................................................................................11
3.10 Teletext.........................................................................................................................11
3.11 Subtitle .......................................................................................................................11
3.12 REC............................................................................................................................11
3.13 Time shift....................................................................................................................11
4. Installation ........................................................................................................................12
4.1 Auto Search................................................................................................................12
4.2 Manual Search ...........................................................................................................12
4.3 Channel Filter.............................................................................................................12
4.4 LCN ............................................................................................................................12
4.5 Active Antenna ...........................................................................................................12
5. Channel.............................................................................................................................13
5.1 Channel Manager.......................................................................................................13
5.2 Favorite List................................................................................................................13
6. Preference Setting ...........................................................................................................13
6.1 OSD Language ..........................................................................................................13
6.2 Preferred Subtitle .......................................................................................................13
HSILGNE
4
6.3 Hard Hearing..............................................................................................................13
6.4 Preferred Audio ..........................................................................................................14
6.5 Multimedia..................................................................................................................14
6.6 PVR Config.................................................................................................................14
7. System Setting .................................................................................................................15
7.1 Timers ..........................................................................................................................15
7.2 Child Lock ....................................................................................................................15
7.3 Date Time.....................................................................................................................15
7.4 Common Interface .......................................................................................................15
7.5 Factory Reset...............................................................................................................16
7.6 Upgrade .......................................................................................................................16
7.7 Version .........................................................................................................................16
7.8 Auto Standby................................................................................................................16
8. AV Setting .........................................................................................................................16
8.1 Contrast........................................................................................................................16
8.2 Brightness ....................................................................................................................16
8.3 Saturation.....................................................................................................................16
8.4 HUE..............................................................................................................................16
8.5 SPDIF...........................................................................................................................17
8.6 Aspect Ratio.................................................................................................................17
8.7 Video Output ................................................................................................................17
8.8 Video Resolution..........................................................................................................17
8.9 HDMI Color Space .......................................................................................................17
8.10 HDMI Deep Color.......................................................................................................17
9. OSD Game ........................................................................................................................17
10. Multi-Media .....................................................................................................................17
10.1 MOVIE........................................................................................................................17
10.1.1 Movie file browser............................................................................................................ 17
10.1.2 Movie playback ............................................................................................................. 18
10.2 MUSIC........................................................................................................................18
10.3 PHOTO ......................................................................................................................19
10.3.1 Photo file browser ......................................................................................................... 19
10.3.2 Photo playback ............................................................................................................. 19
10.3.3 Photo thumbnail ............................................................................................................ 20
10.4 NATIVE32 GAME.......................................................................................................20
10.5 RECORDER MANAGER ...........................................................................................20
10.5.1 Recorder manager browser .......................................................................................... 20
10.6 DISK MANAGER .......................................................................................................21
10.6.1 Disk manager browser .................................................................................................. 21
HSILGNE
5
10.6.2 Move/Copy.................................................................................................................... 21
10.7 E-Book .......................................................................................................................21
10.7.1 E-Book browser ............................................................................................................ 21
11. Upgrade...........................................................................................................................21
11.1 USB Upgrade .............................................................................................................21
12. Troubleshooting.............................................................................................................22
HSILGNE
1. Installation of STB
1.1 Front Panel
1:Switch between Standby mode and active mode.
2CH+: Down channel
3CH-: Up channel
4On/off:Power lamp, red color in Standby mode, green color in active mode
5IR : Receives the remote control signal
1.2 Rear Panel
1. RF OUT
To connect to TV.
2. RF IN
Connect cable signal.
3. HDMI
Connecting to the HDMI input on the TV set.
HSILGNE
6
7
4.TV SCART Connector
Use this connector to connect your receiver to your video recorder using a SCART cable.
Your video signal will now be looped through your receiver to your TV set.
5. SCART VCR
Connect the external video input
6. S/PDIF
Digital audio signal output
7.CI
Insert CI module and Smart Card into CI slot, to decode pay tv programs
8. USB
It is used for playing media and PVR
USB harddisc on products with PVR function.
Please notice that we recommend using a hard disc with OWN power supply on this
unit. This is to ensure that it has enough power to work properly.
You can buy many hard discs without power supply, but our experience is that they
need too much power to work stable. MAXIMUM power for hard discs without
power supply is 500mAh.. If they use more than this, they will fail when recording.
9. Power Cord
1.3 Connection
Note: Before connect this STB to other devices, please close all devices’ power.
HSILGNE
8

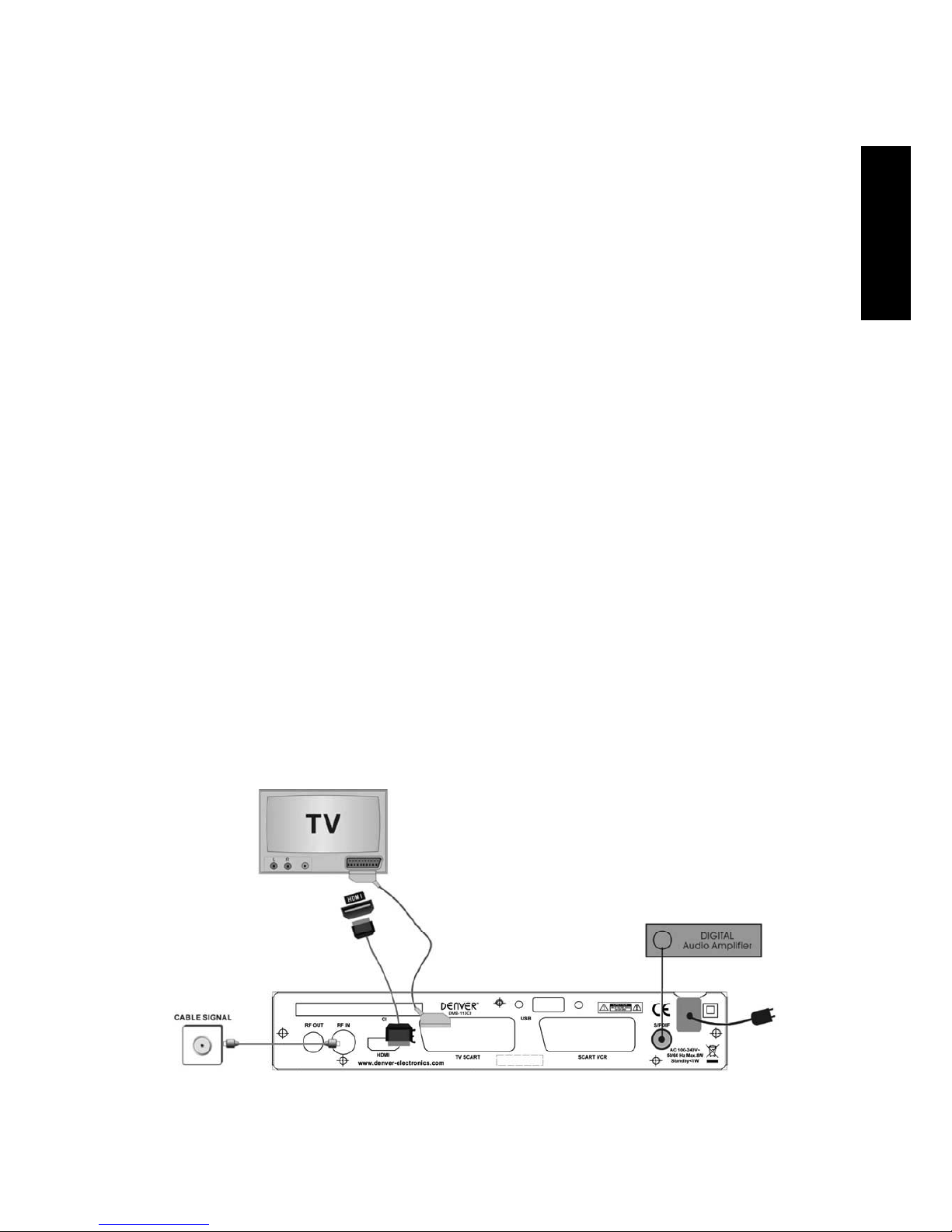

1.3.1 Connecting to cable signal
To receive the broadcast signal, the cable signal should be connected to the CABLE IN
connector at the back of the receiver.
1.3.2 Connecting to TV
1. Connect the scart connectors at the back of the receiver to the scart connectors on
your TV set.
2. Connect the HDMI connector at the back of the receiver to the HDMI connector on
your TV set.
1.3.3 Connecting to Digital Audio Amplifier
Connect OPTICAL connector at the back of your receiver to appropriated input of your
Digital Audio
HSILGNE
2. IR
2.1 Remote
1.ǍSTANDBYǎswitch of power supply
2.ǍRECALLǎreturn to upper menu or previous program palyed.
3.ǍAUDIOǎaudio switch and left/right channel
4.ǍMUTEǎmute control
5.ǍTV/RADIOǎTV/RADIO switch
6.ǍFAVǎenter channel/Fav list
7.ǍTXTǎTeletext
8.ǍEPGǎgo to EPG
9.ǍINFOǎDisplay information of programs
10.ǍSUBǎSubtitle
11.ǍMENUǎEnter main menu
12.ǍCH+/-ǎleft/right channel
13.ǍRETURN/EXITǎExit to the menu or escape from the item
14.ǍVOLˇ/ˉǎ volume adjusting
15.Ǎ///& OKǎmove high_light and confirm
16.ǍPAGE UP&DOWNǎPage up&down
17.ǍNUMBERǎdigital strokes
18.ǍRECǎenter REC
19.ǍDTV/VCRǎswitch DTV to VCR
20.ǍUSBǎInto USB menu
21.ǍPLAY/PAUSEǎplay/pause key
22.ǍSTOPǎstop playing USB Media
23.ǍREPEATǎset repeat mode
24.ǍPREV & NEXTǎplay previous&next USB Media
25.ǍREV & FWDǎspeed up&down while USB Media playing
26.ǍCOLOURǎUse to navigate between pages in teletext mode.
HSILGNE
9
Tabla de contenidos
Idiomas:
Otros manuales de Decodificador de Denver
Denver
Denver DMB-106HD Manual de usuario
Denver
Denver DVBT-16 Manual de usuario
Denver
Denver DTB-142 Manual de usuario
Denver
Denver DMB-105HD Manual de usuario
Denver
Denver DMB-115CI Manual de usuario
Denver
Denver DTB-120CP Manual de usuario
Denver
Denver DVH-1240M Manual de usuario
Denver
Denver DVBT-12 Manual de usuario
Denver
Denver DVBT-41 Manual de usuario
Denver
Denver DVBT-42 Manual de usuario
