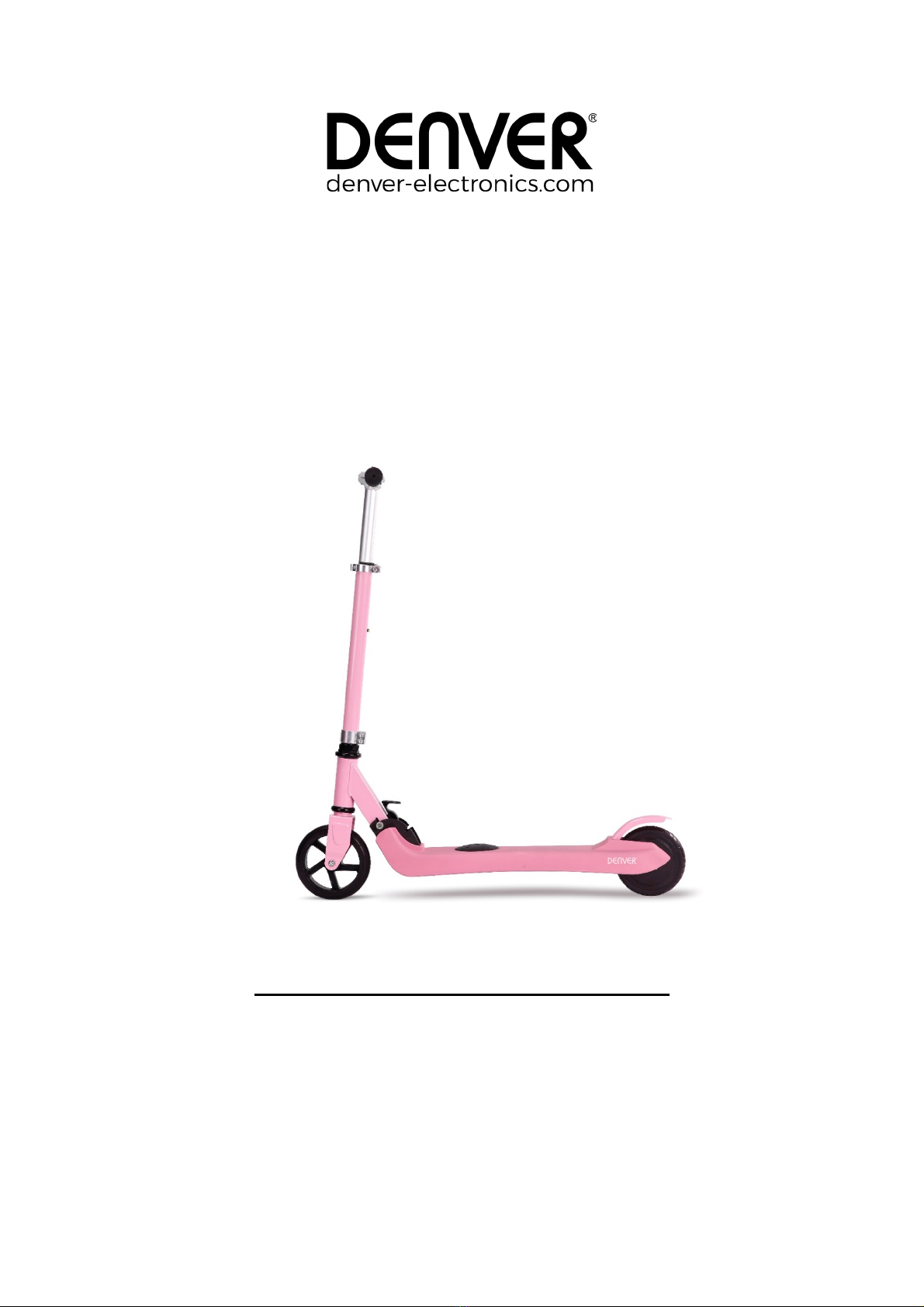

Denver SCK-5300 Instrucciones de operación

Original Instruction

SCK-5300

www.facebook.com/denverelectronics

efore operating this electric kids scooter, parents/adult supervisors must read all the

instructions for safe assembly, operations and maintenance. User’s manual can guide you

through the functions and usage of the electric kids scooter. efore using this electric kids

scooter, familiarize yourself with how to operate, so that you can keep the electric kids scooter

in the best condition possible.

Warning!

This appliance can be used by children aged from 8 years and above and persons with reduced

physical,sensory or mental capabilities or lack of experience and knowledge if they have been

given supervision or instruction concerning use of the appliance in a safe way and understand the

hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall

not be made by children without supervision.

Chapter 1 General information

We urge owners of this electric kids scooter model to charge and store it in a safe place.

To increase the safety and life of the batteries associated with this model it is important

not to charge this model if the temperature is below 5°C or above 45°C. In addition, the

charger must be disconnected when the battery is fully charged. Only use the supplied

charger (HLT-118 -2520900E).

We do not recommend kids under 6 years of age to ride this electric kids scooter.

WARNING:

To avoid serious injury:

PARENTAL AND ADULT RESPONSIBILITY AND SUPERVISION ARE

NECESSARY.

Riding this electric kids scooter can be hazardous. Parents and supervising adults need

to select the riding products which are appropriate for their child’s age to avoid children

are too immature or inexperienced to endanger themselves.

Parents/supervising adults must assemble the product and make sure the product is

working well before they let the children use the product.

Parents/supervising adults must teach children how to safely ride this electric scooter.

Always pay attention to where the children are going.

Cleaning and maintenance shall not be made by children, only by parents or supervising

adults. Please make sure to cover the charging input to avoid electrical problems. Always

disconnect the product from charger prior to wiping it down or cleaning it with a damp

cloth. Only clean the scooter with a damp cloth. Do not use running water or a pressured

water-gun. Do not clean with alcohol, gas, kerosene or other corrosive and volatile

chemical solvents.

Do not immerse the product in water.

Store the product in a dry and cool place when not use it. Defectives caused by

storing or using the electric kids scooter in wet/humid places are not covered by the

warranty.

Do not leave the device exposed to sunlight in a car.

1.1 T e risk of driving

WARNING:

- Learn how to drive safely before you drive fast on the electric kids scooter.

- Do not make dangerous moves or one-handed rides while the scooter is running.

Keep your feet on the foot pedal.

- Falling, losing control, crashing, including violating the rules in the user’s manual can

lead to injury.

- Speed and range may differ based on rider’s weight, terrain, temperature, and driving

style.

- Make sure to wear helmet, protective clothing, kneepads and elbow pads before

using the electric kids scooter to avoid serious injury.

- Do not wear loose clothing or open laces that can be caught in the wheels.

- Make sure to read the manual carefully before using the electric kids scooter.

- Only for use in dry weather. Don’t ride in rain, snow or moist areas.

- When encountering rough or uneven road conditions, please slow down or get off the

scooter.

- Do not try to directly pass steps exceeding3 cm. It may cause the scooter to subvert,

causing the rider to be injured or the scooter to be damaged.

- This electric kids scooter is for domestic use only. Direct parental/adult supervision is

required at all times. Only use the product in controlled environments free of potential

traffic hazards and do not use it on public streets.

- Do not use this product if the temperature is below -5°C.

- Do not use it in a sloping section over 5 degrees. For use over 5 degrees uphill, you

need to assist with your foot.

Please note:

The manufacturer accepts no liability for improper use of this product.

1.2 T e preparation before operation

efore using, the battery should be fully charged. Please check Chapter 2.3.

1.3 T e weig t limitation of t e operator

The reason of the weight limitation:

1. guarantee the safety of the operator

. avoid overloading which can make motor defective.

Maximum load: 50kg.

Defective motor caused by overloading will not be covered by t e warranty.

Chapter 2 Operating t e Electric kids scooter

2.1 Folding procedure

Lift the folding handle up with one hand and lift the front fork tube with the other hand

and you hear a "click".

Press the folding lock firmly (the folding lock can adjust the tightness).

Use the screwdriver to lock the handle block.

Make sure that the buckle is released.

Press adjustment marble with one hand and adjust the telescopic rod to the proper

position with the other hand. Users must adjust the height of the product to the proper

position to ensure safe driving.

Tighten and lock the buckle.

2.2 Using t e scooter

Start using the electric kids scooter.

1. Hold the handle with both hands and place one foot on the round power pedal and

keep it there.

. Gently push forward with the other foot. When you reach 5-6 km/h then the motor

will make a EEP and the engine starts.

3. Now the electric kids scooter drives itself and will maintain a speed of 4-6km/h

dependent on the surface.

4. If you want to stop the motor again you just step off the power pedal.

5. If you want to slow down then step lightly on the rear mechanical brake.

6. If you want to stop. Please use one foot to step on the rear mechanical brake. After

hearing the EEP, then continue to step on the brake until the electric kids scooter

stops.

7. If the scooter gives a continuous series of “beeps”, the battery is low. Please charge

the scooter.

2.3 C arging t e scooter

This chapter mainly discusses the charging methods, battery maintenance, safety issues

and battery specifications. For safety of yourself and others, and extending the battery’s

life and improving battery performance, please make sure to follow the following

operations. If the product is not used for a long period of time, be sure to charge it once a

month to protect the battery life. Charger should only be operated by an adult. It is not a

toy.

Note: If t e battery is damaged due to water, collision and ot er abnormal usage, it

is not covered by t e warranty.

Low battery

If the electric kids scooter gives a continuous series of “beeps”, the battery is low.

Please stop riding and charge immediately after the scooter emits a low battery

warning tone to avoid damage to the battery or affect your use.

C arging t e battery

1. Only use the supplied and dedicated charger (HLT-118 -2520900E).

. Open the charging rubber cover on the pedal and insert the charger output

connector into the charging hole.

3. Plug the charger input power into the power socket.

4. The charger indicator is red, indicating that it is charging. When the charger

indicator turns green, the battery is fully charged and after approximately 30 mins

the adapter will stop charging.

5. When the charging is finished, unplug the battery charger from the mains power

supply and from the electric kids scooter and close the charging rubber cover

again.

6. The electric kids scooter is ready for use.

WARNING:

Do not charge the battery or use the product in the following cases.

- Giving out some odor or excessive heat.

- Leakage of any substance.

WARNING:

- Do not ride the electric kids scooter when charging!

- It is prohibited to disassemble the battery.

- Do not touch any substance leaking out of the battery.

- Do not let children and animals touch the battery.

- atteries contain dangerous substances inside. It is forbidden to open the

battery and stick objects into the battery.

- Use only the supplied charger (HLT-118 -2520900E).

- Don’t over charge or discharge the battery.

WARNING:

Lithium battery inside!

Regarding battery c arging

Important – Please read!

Dear customer. We hope you get a lot of joy out of your new kids scooter.

The battery in these kinds of scooters is not fully charged from production line to avoid

slow charge or damage. When left unused, the battery will slowly discharge.

If you cannot turn on your kids scooter, and it doesn’t seem to charge (the charger light

up green instantly), then please do the following.

1. Leave the charger in for 6-7 hours. This will make sure the battery will be fully

charged again (it can take 3-4 hours before it starts normal charging).

. If this does not solve your problem, please ride the kids scooter manually

without turning it on. Use your legs to give speed, for around 100 m, and then connect

the charger. The engine in the rear wheel will this way help to activate the charging

function and it will charge normally. (fully charge takes 2 hours if using this way)

Please enter: www.denver-electronics.com to obtain the electronic version of the

manual.

Parameters

Model SCK-5300

Color Black, W ite, Blue, Pink

Speed 4-6km/

Maximum grade About 5°

Maximum running distance 6km

Battery

Type: Li-ion battery

Nominal voltage (V): 21.6V

Voltage (V): 25.2V

Battery capacity: 2000mA

Ride condition Not recommended for kids below 6 years of age

Ride load less t an 50kg

C arger

Rated input voltage (V): 100V - 240V AC

Rated output voltage (V): 25.2V

Rated current (A): 0.9 A

C arging Time About 2.0

Motor power 100W

Front W eel 145mm PU W eel

Braking met od Manual brake on back w eel.

Low battery protection Will sound "Beep, beep, beep" w en power is 15%

Please notice - All products are subject to change without any notice. We take

reservations for errors and omissions in the manual.

Electric and electronic equipment and included batteries contains materials,

components and substances that can be hazardous to your health and the

environment, if the waste material (discarded electric and electronic equipment and

batteries) is not handled correctly.

Electric and electronic equipment and batteries is marked with the crossed out trash

can symbol, seen below. This symbol signifies that electric and electronic equipment

and batteries should not be disposed of with other household waste, but should be

disposed of separately.

As the end user it is important that you submit your used batteries to the appropriate

and designated facility. In this manner you make sure that the batteries are recycled

in accordance with legislature and will not harm the environment.

All cities have established collection points, where electric and electronic equipment

and batteries can either be submitted free of charge at recycling stations and other

collection sites, or be collected from the households. Additional information is

available at the technical department of your city.

DENVER ELECTRONICS A/S

Omega 5A, Soeften

DK-8382 Hinnerup

Denmark

www.facebook.com/denverelectronics

WARNINGS

Tabla de contenidos

Otros manuales de Scooter de Denver

Denver

Denver SEL-10510 Manual de usuario

Denver

Denver SEL-85355 Manual de usuario

Denver

Denver SEL-65230 Manual de reparación

Denver

Denver SEL-85350F Manual de usuario

Denver

Denver SEL-85360F Instrucciones de operación

Denver

Denver SEL-10500 Manual de usuario

Denver

Denver DBO-6520 Manual de usuario

Denver

Denver SEL-10800 Manual de usuario

Denver

Denver SCK-5400 Instrucciones de operación

Denver

Denver SEL-10860DONARPRO Instrucciones de operación

Denver

Denver SEL-10360DONAR Instrucciones de operación

Denver

Denver SEL-80150 Instrucciones de operación

Denver

Denver DBO-8000 Instrucciones de operación

Denver

Denver SCO-80125 Manual de usuario

Denver

Denver SCO-65210 Instrucciones de operación

Denver

Denver SEL-80140F Instrucciones de operación

Denver

Denver SEL-10370F Instrucciones de operación

Denver

Denver DBO-6500 Manual de usuario

Denver

Denver SCO-85351 THOR Manual de usuario

Denver

Denver SEL-90100F Instrucciones de operación

Denver

Denver SEL-80125 Manual de usuario

Denver

Denver SEL-90100 Instrucciones de operación

Denver

Denver SCK-5300 MK2 Instrucciones de operación

Denver

Denver SCO-85350 Manual de usuario

Manuales populares de Scooter de otras marcas

TEKTRO

TEKTRO CHEETAH Manual de usuario

Douglas

Douglas Vespa Sprint Guía de instalación

PLAYTIVE

PLAYTIVE AS-2448 Manual de usuario

Ebinger

Ebinger DONKEY XL Manual de usuario

Flyer

Flyer Mountain Guía del usuario

BackCountry eBikes

BackCountry eBikes Storm Manual de usuario

equipmed

equipmed FreeRoam II Manual de usuario

Yoto

Yoto Lion Manual de usuario

WESTHILL BIKES

WESTHILL BIKES LINK Manual de usuario

BAnff

BAnff eProdigy series Manual de usuario

Winther

Winther 475 Manual de usuario

Jetson

Jetson JBZL17 Manual de usuario

First Choice Mobility

First Choice Mobility Roma Medical Corella S741 Manual de usuario

Carrera

Carrera impel Manual de usuario

Afikim

Afikim Superlight SL-3 Manual de usuario

CareCo

CareCo ZOOM Manual de usuario

Douglas

Douglas Vespa G.S. Manual de usuario

Gazelle

Gazelle with BOSCH System Manual de usuario
