Denver TCM-108 Manual de usuario

Location of controls

(1) FUNCTION SWITCH

CD/POWER OFF/RADIO

(2) BAND SWITCH

(3) FM ANTENNA

(4) CD DOOR

(5) TUNING KNOB

(6) BASS BOOST BUTTON

(7) CD SKIP/SEARCH/FOLDER

FORWARD BUTTON

(8) CD SKIP/SEARCH/FOLDER

BACKWARD BUTTON

(9) CD PROGRAM BUTTON

(10) CD REPEAT BUTTON

(11) CD STOP BUTTON

(12) CD PLAY/PAUSE BUTTON

(13) CD LCD DISPLAY

(14) STEREO HEADPHONE JACK

(15) VOLUME CONTROL KNOB

(16) AC SOCKET

(17) BATTERY DOOR

(18) FM STEREO LED INDICATOR

(19) SPEAKER LEFT

(20) SPEAKER RIGHT

English - 1

AC OPERATION

Before operation please be sure that the VOLTAGE on the set corresponds to

the VOLTAGE of your local area. Unravel the AC Line Cord, insert one end

into the AC jack on the set, and the other end into a standard AC outlet.

BATTERY OPERATION

Disconnect the AC Cord Set completely. Open the BATTERY COMPARTMENT

DOOR and insert UM-2/ “C” size x 8 batteries (not supplied) making sure that

the indicated battery polarity is observed.

RADIO OPERATION

Slide the FUNCTION switch to the “RADIO” position. Slide the BAND switch to

the desired waveband. Turn the TUNING KNOB to your desired radio station.

Adjust the sound level by rotating the VOLUME CONTROL KNOB. To turn off

the radio, simply slide the FUNCTION SWITCH to “POWER OFF” position.

NOTE : Radio frequency is shown on the tuning knob.

FM STEREO INDICATOR

When tuned to a FM stereo broadcast the “FM ST.” LED indicator will light up.

In weak signal areas the FM Stereo signal may not be strong enough and can

cause excessive background noise. In this case, switch to the “FM” position.

ANTENNAS

For best reception, fully extend the FM Antenna to receive FM stations. For

AM reception, the unit has a built-in antenna, turn the whole unit for best

reception.

BASS BOOST

For increased bass at all volume levels, slide the BASS BOOST BUTTON to

“ON” position to boost the low frequency tone for an emphasized bass sound.

To release the super bass, simply slide to “OFF” position.

STEREO HEADPHONE JACK

For private listening, insert the plug of a STEREO Headphone into the

STEREO HEADPHONE JACK and adjust the VOLUME CONTROL KNOB

accordingly. During the use of a headphone, the Speakers are automatically

disconnected.

English - 2

CD OPERATION

PLAYING COMPACT DISC (CD-R/RW PLAYBACK COMPATIBLE)

GETTING STARTED

NOTE: Should skipping of tracks occur during CD playing, try turning the

volume down.

When CD is playing, do not open the CD Door.

1. Open the CD DOOR by pull up the CD DOOR. Put a CD disc into the CD

COMPARTMENT and close the CD DOOR. Set the FUNCTION SWITCH to

“CD” position.

NOTE : Ensure the CD Door is closed properly and locked in place.

2. When the CD DOOR is closed with a CD

inside, total number of tracks of the

disc will be shown on the CD LCD

DISPLAY and will go to stop mode. (ex.

Total 17 tracks inside the disc).

3. If the CD DOOR is not closed or there

is no disc inside, the DISPLAY will show

“” and go to stop mode.

PLAY/PAUSE MODE

1. When the PLAY/PAUSE BUTTON is

pressed during CD stop mode, the first

track will be played. The PLAY

INDICATOR “” will be shown on the

LCD DISPLAY. The CD LCD DISPLAY will

show the specific number of track being

played.

2. For interruption while the CD is playing,

press the CD PLAY/PAUSE BUTTON

once. The PAUSE INDICATOR “” will

be shown on the LCD DISPLAY.

3. Though the sound stops, the disc will

continue to spin. To re-start playing,

press the CD PLAY/PAUSE BUTTON once again. The music will start from

the exact position where it was interrupted.

4. To stop the CD, press the CD STOP BUTTON once whether the CD is in

Play or Pause mode.

5. To turn off the unit, slide the FUNCTION SWITCH to “POWER OFF”

position.

English - 3

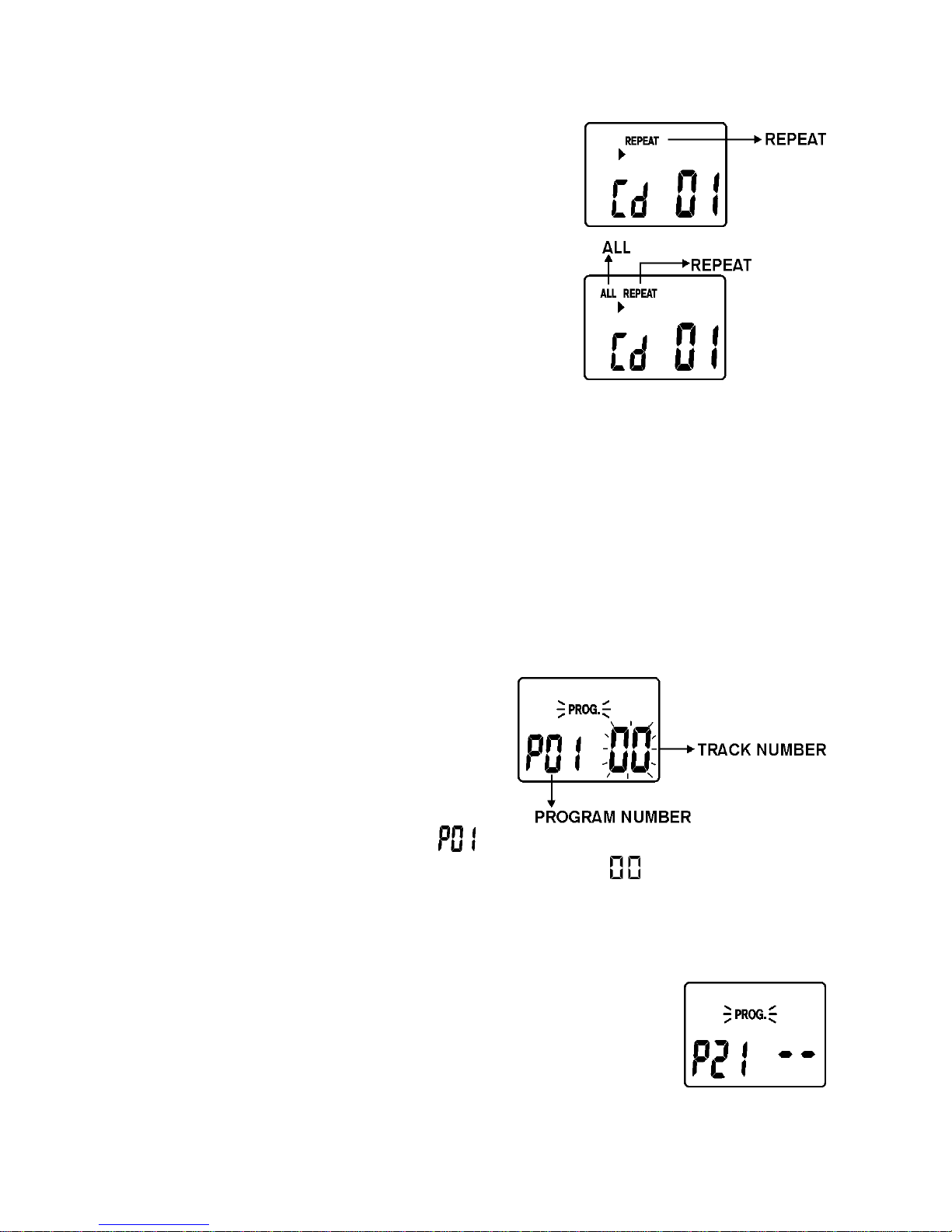

REPEAT MODE

1. REPEAT 1 :

When the REPEAT BUTTON is pressed once,

the “REPEAT” INDICATOR will be shown on

the LCD DISPLAY. This single track of music

will be repeated.

2. REPEAT ALL:

When the REPEAT BUTTON is pressed twice,

the “ALL REPEAT” INDICATOR will be shown

on the LCD DISPLAY. The whole disc can be

played continuously.

3. TO CANCEL THE REPEAT FUNCTION

Press the REPEAT BUTTON until the REPEAT INDICATOR disappears

from the LCD DISPLAY.

SKIP AND SEARCH MODE

1. During play or pause mode, when CD SKIP/SEARCH/FOLDER or CD

SKIP/SEARCH/FOLDER Button is pressed once, it will go to the next

track or go back to the beginning of the track.

2. During play mode, when CD SKIP/SEARCH/FOLDER or CD

SKIP/SEARCH/FOLDER BUTTON is pressed and held, it will search the

track with audible high-speed forward or backward playback.

Program Mode

1. During the CD stop mode, press the

PROGRAM BUTTON once. The

PROGRAM INDICATOR “PROG” will

light up and blink continuously while

the CD LCD DISPLAY will show the

number of Program to be memorized

starts from the first program “ ”.

The track number is to be memorized will show “ ” and blink

continuously as well. Press the CD SKIP/SEARCH/FOLDER or

SKIP/SEARCH/FOLDER BUTTON to your desired musical track, the CD

LCD DISPLAY will show the appropriate track number. Press the

PROGRAM BUTTON to store the desired track in

memory.

2. Repeat above procedure until all desired tracks have

been programmed. A total of 20 tracks can be stored in

memory. After complete programming, LCD DISPLAY

English - 4

will show “ ” and “PROG” indicator will flash continuously.

3. To start the PROGRAMMED playback,

press the CD PLAY/PAUSE BUTTON

once and the CD PLAY INDICATOR

“” will light up.

4. To check the program you have

stored after complete programming,

press the PROGRAM BUTTON step by

step during the CD stop mode.

Note : While PROGRAM INDICATOR is flashing, never press the CD

STOP BUTTON otherwise all programmed memory will be

cancelled automatically.

5. To cancel the PROGRAMMED memory :

¾Press the PROGRAM BUTTON once, “PROG” indicator is flashing on

the LCD DISPLAY, then press the CD STOP BUTTON.

¾Open the CD Door during the CD stop mode.

PLAYING MP3 DISC

GETTING STARTED

NOTE: Should skipping of tracks occur during CD playing, try turning the

volume down.

When MP3 disc is playing, do not open the CD Door.

1. Open the CD DOOR by pull up the CD DOOR. Put a MP3 disc into the CD

COMPARTMENT and close the CD DOOR. Set the FUNCTION SWITCH to

“CD” position.

NOTE : Ensure the CD Door is closed

properly and locked in place

2. When the CD DOOR is closed with a

MP3 disc inside, the total number of

folders and tracks of the disc will be

shown on the CD LCD DISPLAY and go

to stop mode. MP3 indicator will be

shown on the LCD DISPLAY as well to indicator MP3 disc is being played.

3. If the CD DOOR is not closed or there is

no disc inside, the DISPLAY will show

“” and go to stop mode.

English - 5

PLAY/PAUSE MODE

1. When the PLAY/PAUSE BUTTON is

pressed during CD stop mode, the

first track will be played. The PLAY

INDICATOR “”will be lighted. The

CD LCD DISPLAY will show the

specific folder and track number

being played.

NOTE :

a. If the MP3 disc is downloaded without dividing into folder, then only

“ ” will show on the Folder number.

b. If the MP3 disc is downloaded with several folders inside, then “ ”

will always be shown in the Folder number when you first play the disc.

(“ ” will never be shown in this case because it represents all the

tracks and folders inside this MP3 disc).

2. For interruption while MP3 disc is playing, press the CD PLAY/PAUSE

BUTTON once. The PAUSE INDICATOR “” will be shown on the display.

3. Though the sound stops, the disc will continue to spin. To re-start playing,

press the CD PLAY/PAUSE BUTTON once again. The music will start from

the exact position where it was interrupted.

4. To stop the MP3 disc, press the CD STOP BUTTON once whether the MP3

disc is in Play or Pause mode.

5. To turn off the unit, slide the FUNCTION SWITCH to “POWER OFF”

position.

REPEAT MODE

1. REPEAT 1 :

When the REPEAT BUTTON is pressed

once, the “REPEAT” INDICATOR will

light. This single track of music will be

repeated.

2. REPEAT FOLDER :

When the REPEAT BUTTON is pressed

twice, the “REPEAT FOLDER” indicator

will be shown. This specific folder will

be played repeatly.

English - 6

3. REPEAT ALL :

When the REPEAT BUTTON is pressed

three times, the “ALL REPEAT”

INDICATOR will be shown. The whole

disc can be played continuously.

4. TO CANCEL THE REPEAT FUNCTION

Press the REPEAT BUTTON until the REPEAT INDICATOR disappears from

the LCD DISPLAY.

SKIP AND FOLDER

1. During play or pause mode, when CD SKIP/SEARCH/FOLDER or CD

SKIP/SEARCH/FOLDER Button is pressed once, it will go to the next

track or go back to the beginning of the track.

2. During play or pause mode, when CD SKIP/SEARCH/FOLDER or CD

SKIP/SEARCH/FOLDER BUTTON is pressed once and held, it will go to

the next or previous folder for speed track selection.

NOTE : There has no search function in MP3 playback.

Program Mode

1. During the CD stop mode, press the PROGRAM BUTTON once. The

PROGRAM INDICATOR will light up and blink continuously while the CD

LCD DISPLAY will show the number of Program to be memorized starts

from the first program “ ”. The track number is to be memorized will

show “ ” and blink continuously as well. Press the

CD SKIP/SEARCH/FOLDER or CD

SKIP/SEARCH/FOLDER BUTTON to your desired

musical track, the CD LCD DISPLAY will show the

appropriate track number. Press the PROGRAM BUTTON

to store the desired track in memory.

2. Repeat above procedure until all desired tracks have

been programmed. A total of 20 tracks can be stored in

memory. After complete programming, LCD DISPLAY

will show “ ” and the “PROG” indicator will blink

continuously.

3. To start the PROGRAMMED playback, press the CD PLAY/PAUSE BUTTON

once and the CD PLAY INDICATOR “” will light up.

4. To check the program you have stored after complete programming,

press the PROGRAM BUTTON step by step during CD stop mode.

English - 7

Note : While PROGRAM INDICATOR is flashing, never press the CD

STOP BUTTON otherwise all programmed memory will be

cancelled automatically.

5. To cancel the PROGRAMMED memory :

¾Press the PROGRAM BUTTON once, “PROG” indicator is flashing on

the LCD DISPLAY, then press the CD stop BUTTON.

¾Open the CD Door during the CD stop mode.

WARNING:

TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THE APPLIANCE TO

RAIN OR MOISTURE. DO NOT REMOVE COVER, PILOT LAMPS SOLDERED IN

PLACE. NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO

QUALIFIED SERVICE PERSONNEL.

English - 8

Tabla de contenidos

Otros manuales de Sistema estéreo portátil de Denver

Denver

Denver TCU-209 Manual de usuario

Denver

Denver TCD-85 Manual de usuario

Denver

Denver TDA-60 Manual de usuario

Denver

Denver TCL-212BT Manual de usuario

Denver

Denver TDA-60 Manual de usuario

Denver

Denver TCL-212BTPINK Manual de usuario

Denver

Denver TDB-10 Manual de usuario

Denver

Denver TC-25 Manual de usuario

Denver

Denver TC-13C Manual de usuario

Denver

Denver TCP-34 Manual de usuario

Denver

Denver TCM-208 Manual de usuario

Denver

Denver TCD-21 Manual de usuario

Denver

Denver TC-17C Manual de usuario

Denver

Denver TCD-57 Manual de usuario

Denver

Denver TCM-210 Manual de usuario

Denver

Denver TCD-32C Manual de usuario

Denver

Denver TC-19C Manual de usuario

Denver

Denver TCU-86 Manual de usuario

Denver

Denver TCD-34 Manual de usuario

Denver

Denver TC-17C Manual de usuario

Denver

Denver TCD-47 Manual de usuario

Denver

Denver TCP-38 MK2 Manual de usuario

Denver

Denver TCS-86 Manual de usuario

Denver

Denver TDC-250 Manual de usuario

Manuales populares de Sistema estéreo portátil de otras marcas

Panasonic

Panasonic RXDS520 - RADIO CASSETTE W/CD Manual de usuario

LG SB159ST Manual de usuario

Philips

Philips AZ305 Manual de usuario

Manta

Manta BBX002 Manual de usuario

Sony

Sony ZS-BTG900 Manual de usuario

Memcorp

Memcorp Disney DB3000-P Manual de usuario

Sharp

Sharp GF-800HS Manual de usuario

Philips

Philips AZ 2760 Manual de usuario

Hyundai

Hyundai H-1443 Manual de usuario

Grundig

Grundig RR 300 CD Manual de usuario

Insignia

Insignia NS-BCDCAS1 Manual de usuario

Philips

Philips AZ380W Manual de usuario

Sony

Sony ZS-S10CP Manual de instrucciones de instalación

AudioSonic

AudioSonic 42373117 Manual de usuario

Akai

Akai A60009 Manual de usuario

Sony

Sony HCD-E301 Manual de usuario

Memorex

Memorex MW5554 Manual de usuario

Panasonic

Panasonic RXDS16 - RADIO CASSETTE W/CD Manual de usuario
