Denver LED-6568T2CS Manual de usuario

LED TV with DVB-T2/S2/DVB-C

Model: LED-5568T2CS

LED-6568T2CS

User’s Guide

NOTE:

Read all of the instructions before using this TV and keep the instruction

manual in a safe place for future reference.

Contents

Select Input Source 8

First Time Installation 9-10

Main Menu Operation 11-13

1.Picture menu 14-15

OSD MENU 14-25

2.Sound menu 16

3.Time menu 17-18

4.Lock menu 19-21

5.Setup menu 22-25

Media Operation 26-30

6.Screen menu 26

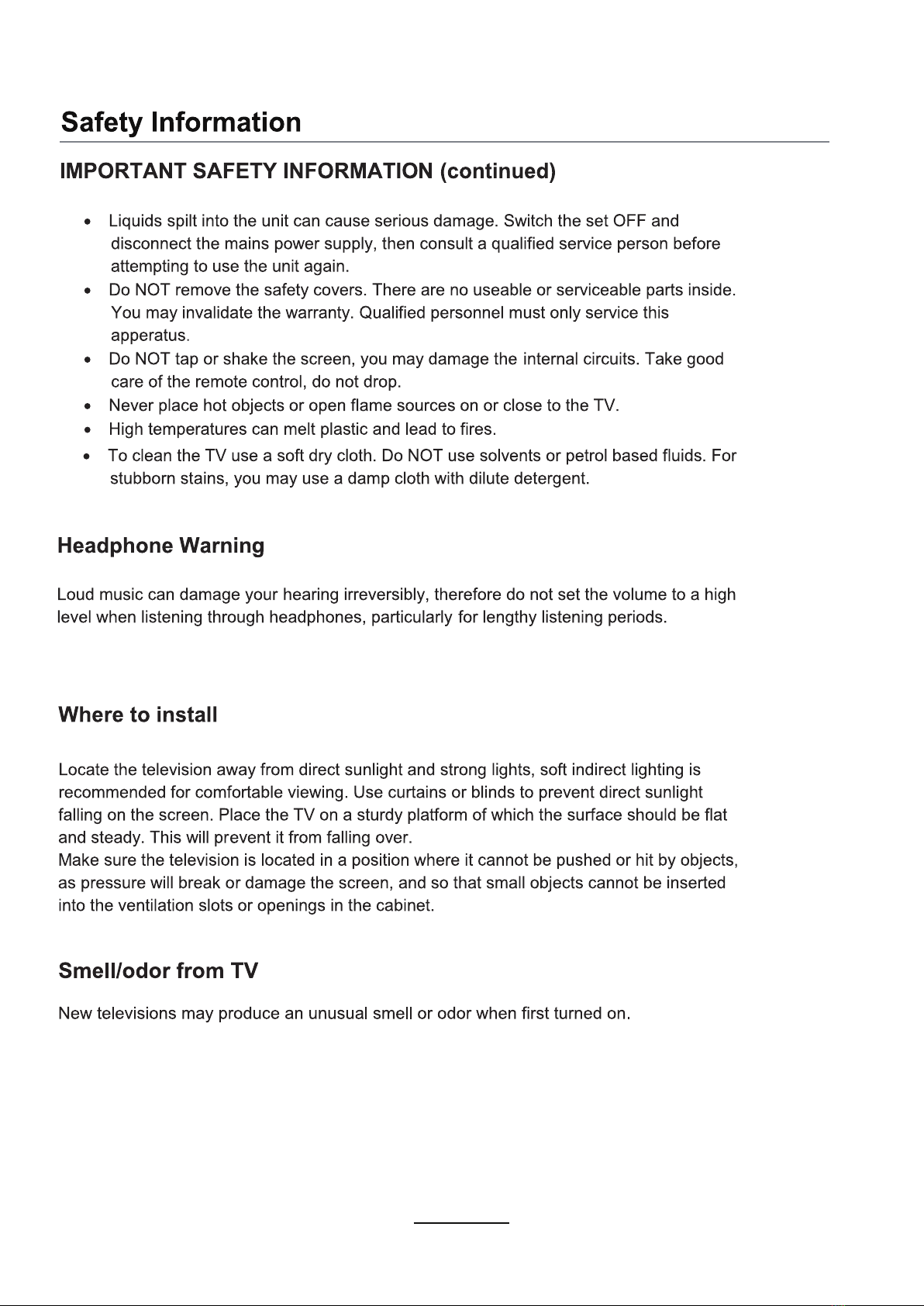

Due to the manufacturing process of components, televisions and other electronic products

can have parts that may produce a smell after the product is first turned on and warms up.

The smell will usually dissipate within a few days of use and does not return.

This is normal and occurs with many electronic products. Please ensure there is sufficient

ventilation around the TV and in the room and the odor will dissipate.

STANDBY:

Power Switch

(LED-5568T2CS)

Power Switch

(LED-6568T2CS)

PC AUDIO

Coax: Digital output to AV receiver.

TV2(T2/C):

HDMI2 HDMI3 COAX MINI

MINI

YPbPr USB

Common Interface

HDMI1

SCARTPC AUDIOVGA TV1(S2) TV2(T2/C)

The remote control is using Infra-Red(IR). Point it towards the front of the LED TV. The remote

control may not work correctly if it is operated out of range or out of angle.

CH.LIST: Display the programs list.

EPG: To show the Electronic Program Guide during no-

menu state only in DTV mode.

FAV: Display the favorite program list.

SLEEP: StandbyTimer

PICTURE: Select the picture mode.

SOUND: Select the sound mode.

POWER(red button): Turn the TV on/standby.

MUTE: Press to mute the sound, press again or press

VOL+ to unmute.

Buttons for Basic operating

MENU: Press to display the OSD menu.

INPUT : Display the input source menu.

EXIT: Press to exit the OSD menu.

THUMBSTICK( OK): Allows you to navigate

the on-screen menus and adjust the system settings to your

preference.

NUMBER BUTTONS: Choose channel directly. Press

number buttons and press OK button to play the channel.

: Return to the previous channel viewed.

ASPECT: Adjust picture size

SUBTITLE: Turn on/off the subtitle display in DTV mode

TV/RADIO: Switch to TV/RADIO.

DISPLAY: Press to display the current mode’s information.

ETUMREWOP

DISPLAY

TV/TXT CANCEL REVEAL NICAM/A2

INDEX HOLD SIZE SUBPAGE

EXIT

HCLOV

1 2 3 4

5 6 7 8

9 0

INPUTTV/RADIO

PICTURE SOUND ASPECT SLEEP

SUBTITLE CH.LIST EPG FAV

ETUMREWOP

DISPLAY

TV/TXT CANCEL REVEAL NICAM/A2

INDEX HOLD SIZE SUBPAGE

EXIT

HCLOV

1 2 3 4

5 6 7 8

9 0

INPUTTV/RADIO

PICTURE SOUND ASPECT SLEEP

SUBTITLE CH.LIST EPG FAV

Buttons for TELETEXT operating

You could use the buttons only in TELETEXT .

TV/TXT: Turn off/on the Teletext display.

REVEAL: Reveal any hidden text.

HOLD: Hold or carry on the current subpage.

Colour buttons : Short cuts-follow the coloured links in the text.

INDEX: Go to index.

CH / : Channel/Program +/-.

VOL +/- : Volume +/-.

: Fast forward.

: Fast reverse.

: Previous chapter.

: Next chapter.

: Stop program.

: Play/pause program.

SIZE: Press to see top half of page double size. Press again to

see the bottom half of page double size. Press again for

normal size.

CANCEL: Cancel the Teletext display.

NICAM/A2: TV Nicam/A2 select.

SUBPAGE: Press to enter subpages, press again to cancel.
