Denver PFF-710BLACK MK2 Manual de usuario

USER MANUAL

PFF-710BLACK MK2

Before connecting, operating or adjusting this product, please read this user’s manu- al

carefully and completely.

If the user manual is not printed in your local language, then please enter our website to see

if it is found online under the model you have. The website address is: www.denver-

electronics.com

ENGLISH

ENG-1

1. POWER

After connecting power adapter, please press and hold power button for approximately 5 seconds (until screen

turns on).

When it is on, press and hold power button for approximately 3 seconds to access reboot or power off menu.

Short press on power button will turn off/onscreen (but leave the photo frame in on position).

2. USB

Connect a USB flash drive. USB is for service use only.

3. RESET

Use a needle or paper clip to reset unit.

4. MicroSD card

Load external max 32GB microSD memory card here.

5. DC

Connect DC adapter to power on the device.

RESET

USB DC

ENG-2

User Manual

Version: 1.5.1

ENG-3

Contents

Getting started.................................................................................................................................... 4

Frameo app........................................................................................................................................ 4

Frameo quick setup............................................................................................................................ 5

Start using frameo .............................................................................................................................. 5

Connecting a new friend:.................................................................................................................... 5

Navigating your frameo....................................................................................................................... 6

Settings .............................................................................................................................................. 8

My frame ............................................................................................................................................ 8

Manage photos................................................................................................................................... 8

My Friends.......................................................................................................................................... 9

Display and slideshow ...................................................................................................................... 10

Wi-Fi................................................................................................................................................. 11

Backup and Restore......................................................................................................................... 11

About................................................................................................................................................ 12

Help.................................................................................................................................................. 12

Privacy.............................................................................................................................................. 12

Support............................................................................................................................................. 12

Warranty, Compliance, Support and Safety information.................................................................... 13

ENG-4

Getting started

Thank you for purchasing your very own frameo.

First, to set up your frame follow the ‘Quick start guide’ included in the package. If you are

new to using frameo then start by following the frameo quick setup on page or follow the on

screen guide when powering it on for the first time.

Once you have set up your Frameo frame, start connecting it to your friends and family.

Frameo app

To send photos to your frame, use the frameo app for iOS or Android

Find the frameo app on:

Google play by searching for “frameo” or scan this QR code

App Store by searching for frameo or scan this QR code

ENG-5

Frameo quick setup

When starting your frame for the first time, you will need to setup the frame.

●First you start by selecting a language. This will be the language used throughout

frameo.

●Connect your frame to the internet by connecting it to a Wi-Fi.

If a newer version of the frameo software is available, then you will be prompted

with an update dialog. It is recommended to update your frame immediately if

prompted.

●Enter your name, and the location where you have placed your frame e.g. “Living

room”, “Kitchen” or “Office” and finally set the timezone if not correct.

Start using frameo

Start by connecting with your friends and family by providing them with a unique code from

your frame.

If you want to be able to send photos to the frame yourself, start by downloading the app for

iOS or Android on App Store or Google Play. Then use the code to connect your frame and

app as described below.

Connecting a new friend:

●Make sure that your friend has downloaded and installed the frameo app

●Click the add friend icon on your frame . A dialog will appear showing a unique

code which is valid for 12 hours.

●Now share this code in whatever fashion you prefer e.g. SMS, E-Mail, IM, phone

call, to your friend.

●Once your friends have added the code in their frameo app, they will automatically

appear on your frame and be able to send you photos.

●Read chapter Change options for a friend to allow connected friends, to retrieve

and share the connection code via the smartphone app.

ENG-6

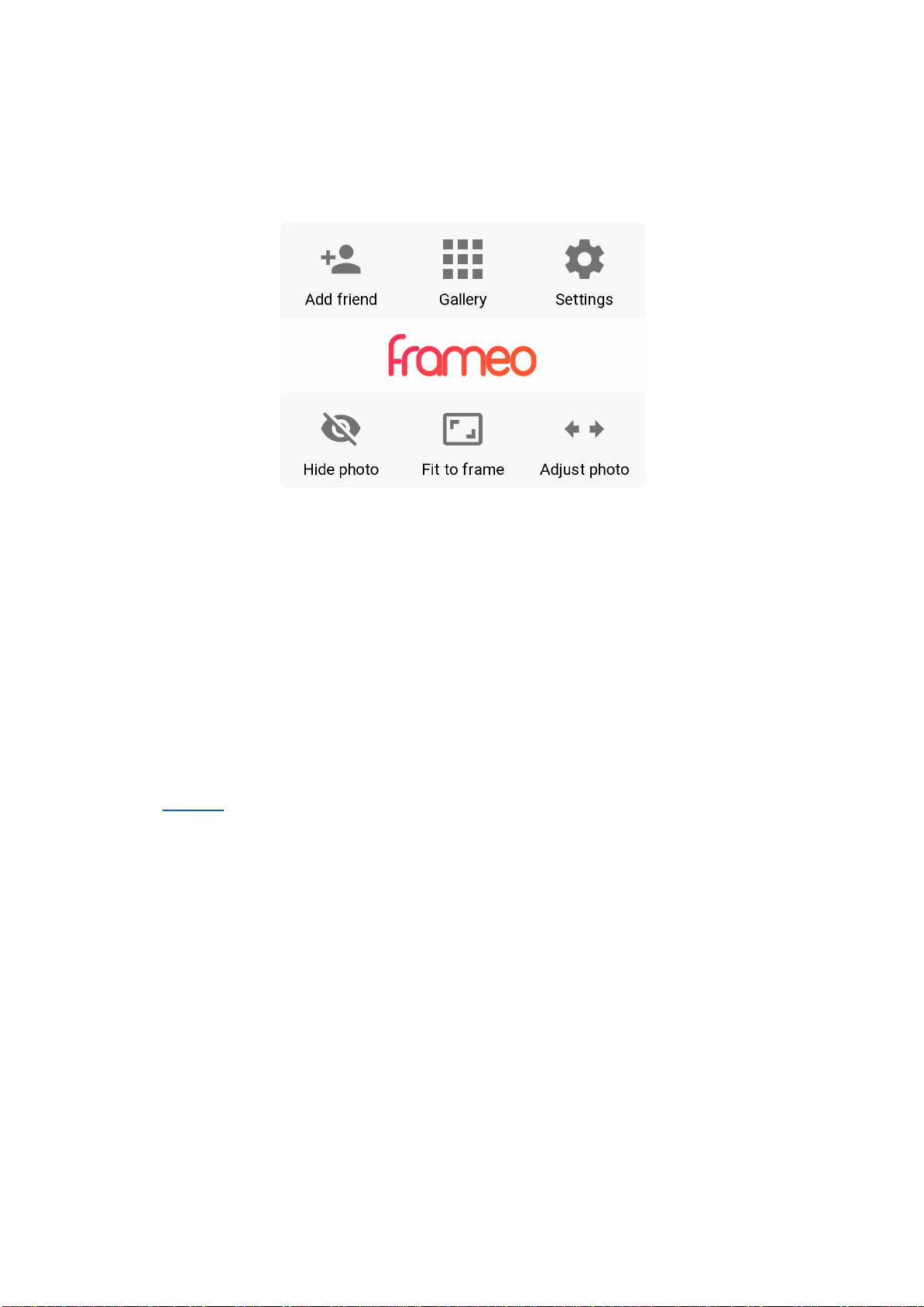

Navigating your frameo

Swipe left or right to go through your photos.

To access the menu, simply tap once on the screen.

In the menu you will find the most used features.

Add friend

This will generate a code that you can share with your friends and family so they can connect and

send photos to your frame.

Gallery

Opens a gallery which allows for easy and fast navigation through your photos.

Settings

Opens the Settings.

Hide photo

Hides the current photo. This means that the photo will no longer be shown in the slideshow. If

needed the photo can be shown again through the settings menu.

Fit to frame/Fill frame

This toggles how the photo is shown.

The Fill frame option is the default. The photo is scaled so that it fills the whole screen. It will be

centered around what is selected as the most important part. See the first picture below.

Fit to frame will make sure that the entire photo is shown on the screen. See the second picture

below.

ENG-7

Adjust photo

The adjust photo feature is only available when the photo is set to fill frame. It allows you to adjust the

position of photo in the frame for an even better fit.

Interacting with videos

When a video is shown two additional controls are shown. One for play/pause of the video and one

for mute/unmute of the video.

Press to start the video playback. Pressing will pause the video playback.

Pressing will mute the video while pressing will unmute the video.

Power menu

Tap the power icon in the top right corner of the screen to access the power menu. Here you can

power off or restart your frame and make it go into sleep mode.

NB. Make sure to always use the power off button on the device or in the power menu to turn

ENG-8

Frameo off. Never disconnect power when Frameo is running.

Settings

Through settings, you can personalize your frame to your needs.

My frame

Frame name:

Changes the name of your frame. This is also the name the connected friends and family will

see in their list of connected frames.

Frame location:

Changes the location of your frame. This is the location displayed on your friends' and family's

list of connected frames which can help to distinguish frames from each other.

Set language:

Sets the language throughout your frame.

Enable/Disable 24-hour format

Enables, and disables, 24-hour time format.

Set time zone

Sets the timezone that should be used on your frame.

Sleep mode:

frameo offers a sleep mode which turns off the screen to reduce power consumption while

you

e.g. are sleeping. Its default setting is to turn off the screen at 23:00 and turn on the screen

again at 07:00. To change this just set the sleep mode start/end time.

Your frame is not powered down or in standby, so you will still be able to receive photos

during sleep mode.

Manage photos

Show/hide photos:

Select which photos to hide by tapping the particular photos you wish to hide. Hidden photos

will NOT be deleted from your frame, you can always select them to be shown again.

ENG-9

Use to hide or show all photos.

Delete photos:

Select photos that you want to permanently delete from your frame by tapping the photo. Use

to select or deselect all and to delete the selected photos.

Import photos:

Allows you to import photos from an external max 32GB SD card.

Before you try to import photos from a SD card, make sure you have a SD card with photos

on inserted into your frame.

Start by selecting the photos that you want to import onto your frame. Once selected tap the

import button to start the import process.

It is currently not possible to add a caption or define the most important part of the photo

when using the import function. Alternatively add yourself to your friend list and send them

using the app.

Export photos

Allows you to export photos from the frame to external storage (e.g. microSD card).

The export function will export all photos on the frame as well as profile pictures.

My Friends

This list contains all the people that are allowed to send photos to your frame.

Change options for a friend

Click the options icon to open the friend options menu. From here you can allow/disallow if a

friend may share the code to the frame. If this is enabled the friend can retrieve and share the code to

the frame from his/her app.

From the options menu you can also delete a friend, by pressing the DELETE FRIEND button. This

will remove the friend from the list and thereby remove their permission to send photos to the frame.

You will then be asked to confirm the removal and if you would like to remove all photos previously

received from this friend.

Remove person

To remove a person from this list, thereby removing their permission to send you photos, tap

the delete icon . You will then be asked to confirm the removal and if you would like to

remove all photos received from this person.

Add person
