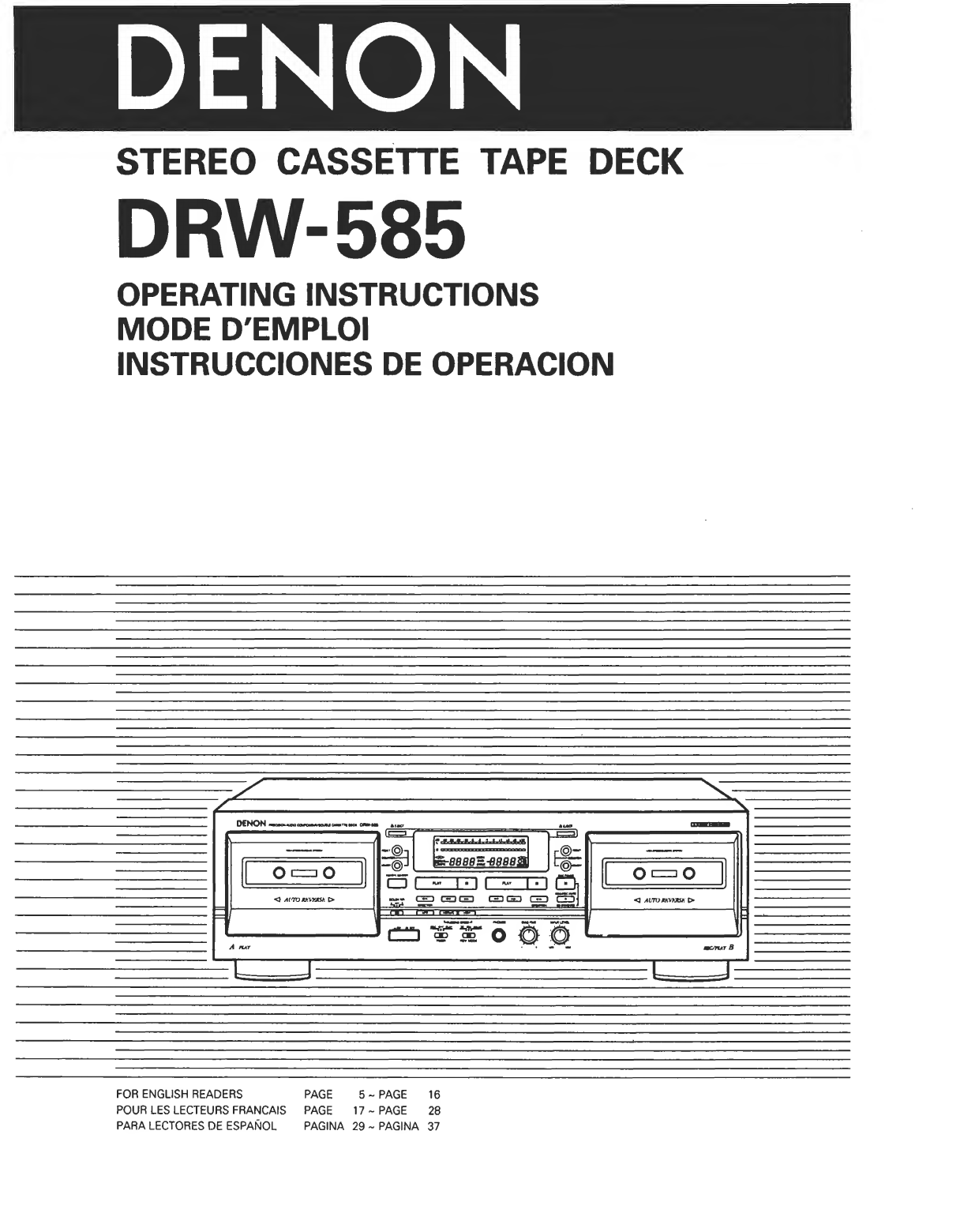

STEREO

CASSETTE

TAPE

DECK

DRW-585

OPERATING

INSTRUCTIONS

MODE

D'EMPLOI

INSTRUCCIONES

DE

OPERACION

FOR

ENGLISH

READERS

PAGE

5

~

PAGE

16

POUR

LES

LECTEURS

FRANCAIS

PAGE

17

~

PAGE

28

PARA

LECTORES

DE

ESPANOL

PAGINA

29

~

PAGINA

37

IMPORTANT

TO

SAFETY

WARNING:

TO

PREVENT

RRE

OR

SHOCK

HAZARD,

DO

NOT

EXPOSE

THIS

APPLIANCE

TO

RAIN

OR

MOISTURE.

CAUTION:

1.

Handle

the

power

supply

cord

carefully

Do

not

damage

or

deform

the

power

supply

cord.

If

it

is

damaged

or

deformed,

it

may

cause

electric

shock

or

malfunction

when

used.

When

removing

it

from

wall

outlet,

be

sure

to

remove

by

holding

the

plug

attachment

and

not

by

pulling

the

cord.

2.

Do

not

open

the

top

cover

In

order

to

prevent

electric

shock,

do

not

open

the

top

cover.

If

problems

occur,

contact

your

DENON

DEALER.

3.

Do

not

place

anything

inside

Do

not

place

metal

objects

or

spill

liquid

inside

the

cassette

tape

deck.

Electric

shock

or

malfunction

may

result.

Please,

record

and

retain

the

Model

name

and

serial

number

of

your

set

shown

on

the

rating

label.

Model

No.

DRW-585

Serial

No-

RISK

OF

ELECTRIC

SHOCK

DO

NOT

OPEN

CAUTION:

TO

REDUCE

THE

RISK

OF

ELECTRIC

SHOCK,

DO

NOT

REMOVE

COVER

(OR

BACK).

NO

USER

SERVICEABLE

PARTS

INSIDE.

REFER

SERVICING

TO

QUALIFIED

SERVICE

PERSONNEL

The

lightning

flash

with

arrowhead

symbol

within

an

equilateral

triangle

is

intended

to

alert

the

user

of

the

presence

of

uninsulated

"dangerous

voltage"

within

the

product's

enclosure

that

may

be

of

sufficient

magnitude

to

constitute

a

risk

of

electric

shock

to

persons.

The

exclamation

point

within

an

equilateral

triangle

is

intended

to

alert

the

user

of

the

presence

of

important

operating

and

maintenance

(servicing)

instruction

in

the

literature

accompanying

the

ap¬

pliance.

•

FOR

U

S

A-

A

CANADA

MODEL

ONLY

CAUTION

TO

PREVENT

ELECTRIC

SHOCK

DO

NOT

USE

THIS

(POLARIZED)

Pltfit

WITH

AN

EXTENSION

CORD,

RECEPTACLE

OR

OTHER

OUTLET

UNLESS

THE

BLADES

CAN

BE

FULLY

INSERTED

TO

PREVENT

8LADE

EXPOSURE.

•

POUR

LES

MODELES

AMERICANS

ET

CANADIENS

UMQUEMENT

_

ATTENTION

_

'

POUR

PREVENIR

LES

CHOCS

ELECTRIQUES

NE

PAS

UTILISER

CETTE

FICHE

POLARISEE

AVEC

UN

PROLONGATEUR

UNE

PRISE

DE

COU-

RANT

OU

UNE

AUTRE

SORTIE

DE

COURANT,

SAUF

SI

LES

LAMES

PEUVENT

ETRE

INSEREES

A

FOND

SANS

EN

LAISSER

AUCUNE

PARTIE

A

DECOUVERT.

This

device

complies

with

Part

15

of

the

FCC

Rules.

Operation

is

subject

to

the

following

two

conditions:

(1)

This

device

may

not

cause

harmful

interference,

and

(2)

this

device

must

accept

any

interference

received,

including

interference

that

may

cause

undesired

operation.

This

Class

B

digital

apparatus

meets

all

requirements

of

the

Canadian

In¬

terference-Causing

Equipment

Regulations.

Cet

appareil

num6rique

de

la

classe

B

respecte

toutes

les

exigences

du

Rdglement

sur

le

materiel

brouilleur

du

Canada.

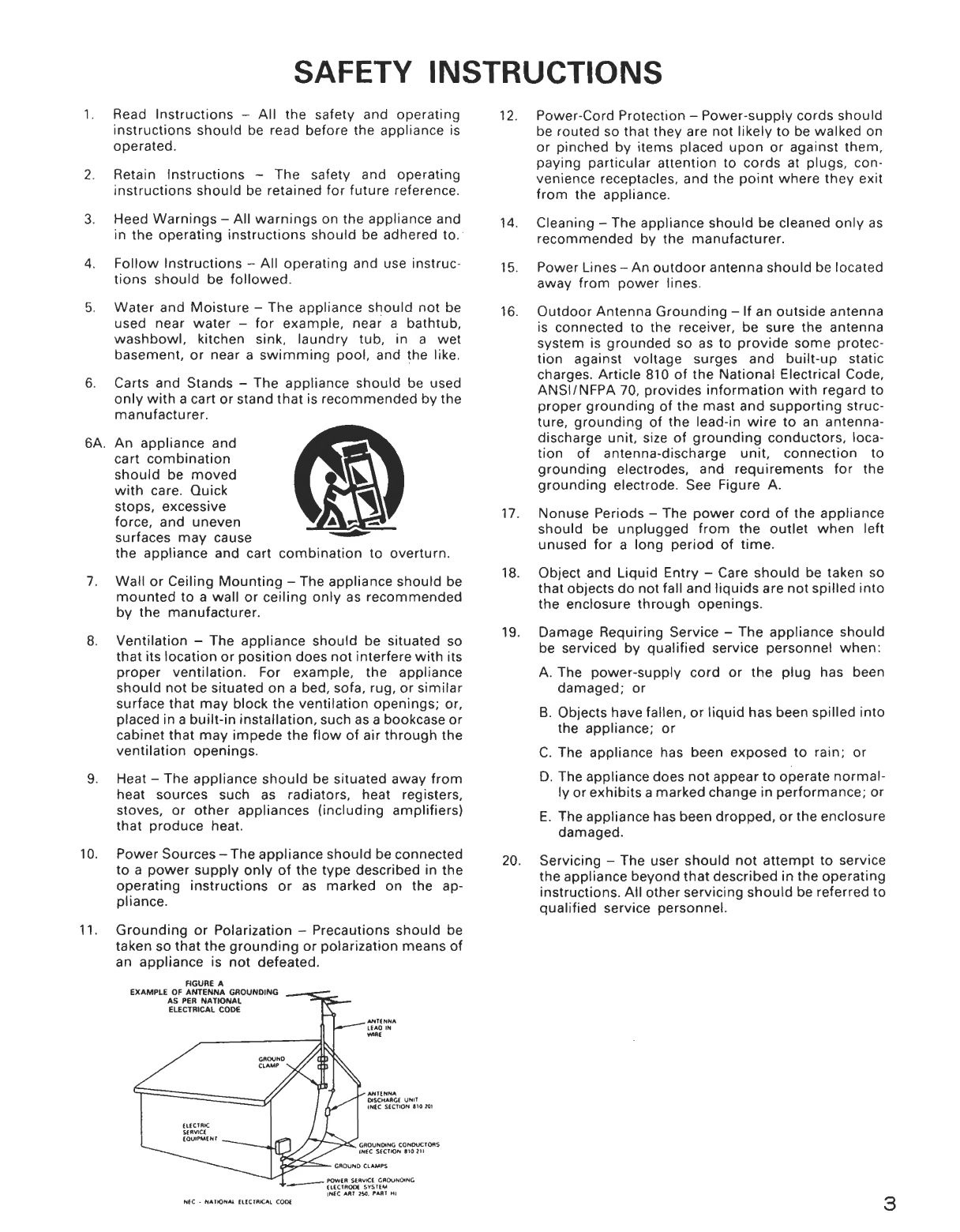

SAFETY

INSTRUCTIONS

1.

Read

Instructions

-

All

the

safety

and

operating

instructions

should

be

read

before

the

appliance

is

operated.

2.

Retain

Instructions

-

The

safety

and

operating

instructions

should

be

retained

for

future

reference.

3.

Heed

Warnings

-

All

warnings

on

the

appliance

and

in

the

operating

instructions

should

be

adhered

to.

4.

Follow

Instructions

-

All

operating

and

use

instruc¬

tions

should

be

followed.

5.

Water

and

Moisture

-

The

appliance

should

not

be

used

near

water

-

for

example,

near

a

bathtub,

washbowl,

kitchen

sink,

laundry

tub,

in

a

wet

basement,

or

near

a

swimming

pool,

and

the

like.

6.

Carts

and

Stands

-

The

appliance

should

be

used

only

with

a

cart

or

stand

that

is

recommended

by

the

manufacturer.

6A.

An

appliance

and

cart

combination

should

be

moved

with

care.

Quick

stops,

excessive

force,

and

uneven

surfaces

may

cause

the

appliance

and

cart

7.

Wall

or

Ceiling

Mounting

-

The

appliance

should

be

mounted

to

a

wall

or

ceiling

only

as

recommended

by

the

manufacturer.

8.

Ventilation

-

The

appliance

should

be

situated

so

that

its

location

or

position

does

not

interfere

with

its

proper

ventilation.

For

example,

the

appliance

should

not

be

situated

on

a

bed,

sofa,

rug,

or

similar

surface

that

may

block

the

ventilation

openings;

or,

placed

in

a

built-in

installation,

such

as

a

bookcase

or

cabinet

that

may

impede

the

flow

of

air

through

the

ventilation

openings.

9.

Heat

-

The

appliance

should

be

situated

away

from

heat

sources

such

as

radiators,

heat

registers,

stoves,

or

other

appliances

(including

amplifiers)

that

produce

heat.

10.

P

o

w

er

Sources-The

appliance

should

be

connected

to

a

power

supply

only

of

the

type

described

in

the

operating

instructions

or

as

marked

on

the

ap¬

pliance.

combination

to

overturn.

11.

G

r

ounding

or

Polarization

-

Precautions

should

be

taken

so

that

the

grounding

or

polarization

means

of

an

appliance

is

not

defeated.

FIGURE

A

EXAMPLE

OF

ANTENNA

GROUNDING

AS

PER

NATIONAL

ELECTRICAL

CODE

ANTENNA

DISCHARGE

UNIT

(NIC

SECTION

810

HI

GROUND

CLAMPS

12.

P

o

w

e

r

-

C

o

r

d

Protection

-

Power-supply

cords

should

be

routed

so

that

they

are

not

likely

to

be

walked

on

or

pinched

by

items

placed

upon

or

against

them,

paying

particular

attention

to

cords

at

plugs,

con¬

venience

receptacles,

and

the

point

where

they

exit

from

the

appliance.

14.

Cleaning

-

The

appliance

should

be

cleaned

only

as

recommended

by

the

manufacturer.

15.

Power

Lines

-

An

outdoor

antenna

should

be

located

away

from

power

lines.

16.

Outdoor

Antenna

Grounding

-

If

an

outside

antenna

is

connected

to

the

receiver,

be

sure

the

antenna

system

is

grounded

so

as

to

provide

some

protec¬

tion

against

voltage

surges

and

built-up

static

charges.

Article

810

of

the

National

Electrical

Code,

ANSI/NFPA

70,

provides

information

with

regard

to

proper

grounding

of

the

mast

and

supporting

struc¬

ture,

grounding

of

the

lead-in

wire

to

an

antenna-

discharge

unit,

size

of

grounding

conductors,

loca¬

tion

of

antenna-discharge

unit,

connection

to

grounding

electrodes,

and

requirements

for

the

grounding

electrode.

See

Figure

A.

17.

Nonuse

Periods

-

The

power

cord

of

the

appliance

should

be

unplugged

from

the

outlet

when

left

unused

for

a

long

period

of

time.

18.

Object

and

Liquid

Entry

-

Care

should

be

taken

so

that

objects

do

not

fall

and

liquids

are

not

spilled

into

the

enclosure

through

openings.

19.

Damage

Requiring

Service

-

The

appliance

should

be

serviced

by

qualified

service

personnel

when:

A.

The

power-supply

cord

or

the

plug

has

been

damaged;

or

B.

Objects

have

fallen,

or

liquid

has

been

spilled

into

the

appliance;

or

C.

The

appliance

has

been

exposed

to

rain;

or

D.

The

appliance

does

not

appear

to

operate

normal¬

ly

or

exhibits

a

marked

change

in

performance;

or

E.

The

appliance

has

been

dropped,

or

the

enclosure

damaged.

20.

Servicing

-

The

user

should

not

attempt

to

service

the

appliance

beyond

that

described

in

the

operating

instructions.

All

other

servicing

should

be

referred

to

qualified

service

personnel.

NEC

-

NATIONAL

ELECTRICAL

CODE

POWER

SERVICE

GROUNDING

CLECTRQOt

SYSTEM

(NEC

ART

ISO,

PART

Ml

3

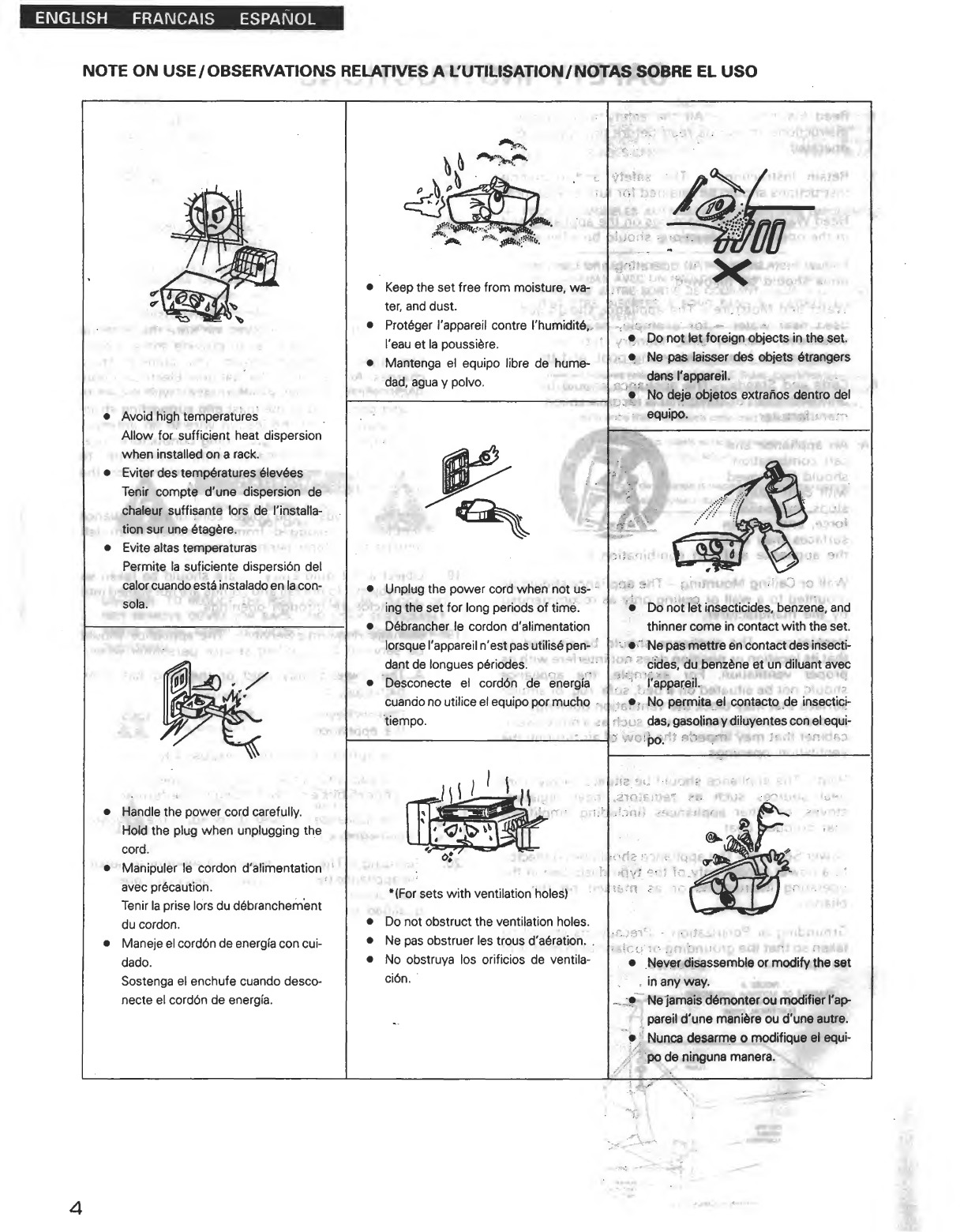

NOTE

ON

USE/OBSERVATIONS

RELATIVES

A

L'UTILISATION/NOTAS

SOBRE

EL

USO

•

Avoid

high

temperatures

Allow

for

sufficient

heat

dispersion

when

installed

on

a

rack.

•

Eviter

des

temperatures

dlevdes

Tenir

compte

d'une

dispersion

de

chaleur

suffisante

lors

de

['installa¬

tion

sur

une

dtagdre.

•

Evite

altas

temperaturas

Permite

la

suficiente

dispersidn

del

calor

cuando

estd

instalado

en

la

con-

sola.

•

Handle

the

power

cord

carefully.

Hold

the

plug

when

unplugging

the

cord.

•

Manipuler

le

cordon

d'alimentation

avec

precaution.

Tenir

la

prise

lors

du

debranchem’ent

du

cordon.

•

Maneje

el

corddn

de

energfa

con

cui-

dado.

Sostenga

el

enchufe

cuando

desco-

necte

el

corddn

de

energi'a.

•

Keep

the

set

free

from

moisture,

wa¬

ter,

and

dust.

•

Protdger

I'appareil

contre

I'humidite,

I'eau

et

la

poussidre.

•

Mantenga

el

equipo

libre

de

hume-

dad,

agua

y

polvo.

•

Unplug

the

power

cord

when

not

us¬

ing

the

set

for

long

periods

of

time.

•

Ddbrancher

le

cordon

d'alimentation

lorsque

I'appareil

n'est

pas

utilisd

pen¬

dant

de

longues

pdriodes.

•

Desconecte

el

corddn

de

energfa

cuando

no

utilice

el

equipo

por

mucho

tiempo.

*(For

sets

with

ventilation

holes)

•

Do

not

obstruct

the

ventilation

holes.

•

Ne

pas

obstruer

les

trous

d'adration.

•

No

obstruya

los

orificios

de

ventila-

cidn.

I'appareil.

•

Do

not

let

foreign

objects

in

the

set.

•

Ne

pas

laisser

des

objets

dtrangers

dans

I'appareil.

•

No

deje

objetos

extrahos

dentro

del

equipo.

•

Do

not

let

insecticides,

benzene,

and

thinner

come

in

contact

with

the

set.

•

Ne

pas

mettre

en

contact

des

insecti¬

cides.

du

benzdne

et

un

diluant

avec

permita

el

contacto

de

insectici-

das,

gasolina

y

diiuyentes

con

el

equi¬

po.

•

Never

disassemble

or

modify

the

set

in

any

way.

•

Ne

jamais

ddmonter

ou

modifier

I'ap-

pareil

d'une

manidre

ou

d'une

autre.

•

Nunca

desamne

o

modifique

el

equi¬

po

de

ninguna

manera.

ENGLISH

Thank

you

very

much

for

purchasing

the

DENON

component

stereo

cassette

tape

deck,

DENON

proudly

presents

this

advanced

tape

deck

to

audiophiles

and

music

lovers

as

a

further

proof

of

DENON's

non-compromising

pursuit

of

the

ultimate

in

sound

quality.

The

high

quality

performance

and

easy

operation

are

certain

to

provide

you

with

many

hours

of

outstanding

listening

pleasure.

—

TABLE

OF

CONTENTS

—

FEATURES.

5

CONNECTION.

5

NAMES

AND

FUNCTION

OF

PARTS.

6,

7

CASSETTE

TAPES.

7

AUTOMATIC

TAPE

SELECTION

.

8

PLAYBACK.

8

RELAY

PLAY.

9

MUSIC

SEARCH

SYSTEM

.

9

RECORDING

.

10

PROPER

RECORDING

LEVEL.

11

RECORDING

BIAS

ADJUSTMENT.

11

REC/REC

MUTE

AND

REC

PAUSE

BUTTON.

11

DIMMER

ADJUSTMENT.

11

DUBBING

..

12

SYNCHRONIZED

RECORDING

FUNCTION

.

12.13

TAPE

COUNTER

AND

MEMORY

STOP.

13

TIMER

RECORDING/PLAYBACK.

14

DOLBY

B

AND

C

NOISE

REDUCTION

SYSTEM.

14

DOLBY

HX-PRO

HEADROOM

EXTENSION

SYSTEM

.

15

MAINTENANCE.

15

TROUBLESHOOTING.

16

SPECIFICATIONS

.

16

Please

check

to

make

sure

the

following

items

are

included

with

the

main

unit

in

the

carton:

(1)

Operating

Instructions.

1

(2)

Connection

Cords

.

2

(3)

Mini-Plug

Cable.

1

FEATURES_

■

Computer

Controlled

Mechanism

■

Dual

Power

Supply

■

Dolby

HX-Pro

Headroom

Extension

System

■

Dolby

B

&

C

Noise

Reduction

Systems

■

Manual

Bias

Adjustment

Control

■

Dual

Computing

Tape

Counter

with

4-Digit

Readout

and

Memory

Stop

■

Music

Search

System

■

FL

Peak

Level

Meters

■

Auto

Tape

Selector

■

2-Speed

Dubbing

■

Relay

Playback

■

Synchronized

Recording

■

Timer

Play

and

Timer

Recording

■

Optional

Remote

Controllable

■

Tape

Lighting

CONNECTION_

•

Leave

your

entire

system

(including

this

cassette

deck)

turned

off

until

all

connections

between

the

deck

and

other

components

have

been

completed.

Receiver

or

amplifier

DRW-585

■

Connecting

the

Deck

to

an

Amplifier

•

Before

connecting

the

deck

to

your

amplifier,

please

review

your

amplifier's

instruction

manual.

•

Use

the

white

plugs

for

the

left

channel

and

red

plugs

for

the

right

channel.

■

Tape

Dubbing

•

Many

stereo

amplifiers

and

receivers

have

tape

dubbing

circuitry

so

that

tape

duplication

can

be

performed

between

two

or

more

tape

decks.

Review

your

amplifier's

instruction

manual

for

a

full

explanation

of

this

mode

of

operation.

■

Connecting

Headphones

To

listen

through

headphones,

plug

your

headphones

into

the

PHONES

jack.

■

Installation

Precautions

If

the

deck

is

placed

near

an

amplifier,

TV

or

tuner,

noise

(induced

hum)

or

beat

interference

may

result,

especially

during

FM

or

AM

reception.

If

this

occurs,

place

the

deck

further

away

from

other

components

or

reorient

its

position.

—

Caution-

A

mechanical

sound

is

heard

the

first

time

the

power

switch

is

set

to

"ON"

after

the

power

cord

is

plugged

into

an

outlet.

This

is

the

sound

of

the

cassette

mechanism

being

set

to

the

proper

operating

state,

and

is

normal.

(When

using

an

AC

outlet

on

a

receiver

or

amplifier,

used

an

"UNSWITCHED"

outlet.)

5

ENGLISH

NAMES

AND

FUNCTIONS

OF

PARTS

o

0

0

o

e

o

o

©

Power

Operation

Switch

Press

once

to

turn

the

power

to

deck

on,

and

once

more

to

turn

the

power

off.

The

deck

remains

in

a

stand-by

(non-operative)

mode

for

approx¬

imately

2

seconds

after

it

is

switched

on.

Eject

Button

(

A

)

Press

this

button

to

open

the

cassette

compartment

cover.

When

the

tape

is

running,

press

the

STOP

(

■

)

button

first

to

stop

tape

transport,

then

press

the

Eject

button.

Counter

Reset

Button

(COUNTER

RESET)

Press

this

button

to

reset

the

tape

counter

to

zero.

MPX

Filter

Button

(MPX)

The

MPX

FILTER

button

should

be

used

to

prevent

interference

with

the

Dolby

NR

circuit

when

making

Dolby

NR

encoded

recordings

of

FM

stereo

programs.

When

making

Dolby

NR

encoded

recordings

from

any

program

source

other

than

FM

stereo,

leave

this

button

in

the

"OFF"

position.

Counter

Memory

Button

(MEMORY)

When

this

button

is

pressed

during

forward

tape

travel

(M,

fast

rewinding

(

44

)

will

stop

automatically

at

the

tape

counter

position

"

00

0

0

"

.

When

this

button

is

pressed

during

reverse

tape

travel

(0),

fast

forwarding

(

►►

)

will

stop

automatically

at

the

tape

counter

position

"

0

000

"

.

See

page

13.

Dolby

NR

Switch

(DOLBY

NR)

To

record

or

playback

tapes

with

Dolby

B

or

C-type

noise

reduction,

set

this

switch

to

"B"

or

T.

Turn

it

"OFF"

when

not

using

the

Dolby

NR

system.

Reverse

Mode

Switch

(REV.

MODE)

Select

the

type

of

tape

transport.

The

reverse

mode

canbe

set

to

(one

side),

r^~)(continuous

playback),

RELAY

(relay

playback).

Dubbing

Speed

Buttons

(DUBBING

SPEED)

Pressing

the

NORMAL

button

starts

regular

speed

dubbing

from

deck

A

to

deck

B.

Press

the

HIGH

button

to

perform

dubbing

at

double

speed.

See

page

12.

0

Bias

Fine

Control

(BIAS

FINE)

(For

Normal,

Cr0

2

and

Metal

tape)

Use

this

control

to

fine-adjust

the

bias.

Standard

bias

is

obtained

at

the

center

click-stop

position.

See

page

11.

4jj)

Input

Level

Control

(INPUT

LEVEL)

This

knob

adjusts

the

recording

input

level.

It

affects

the

level

in

both

channels.

See

page

10.

0

Tape

Lighting

The

tape

lighting

makes

it

possible

to

clearly

check

the

amount

of

tape

remaining.

®

Cassette

Compartment

Cover

If

the

cover

is

not

closed

completely,

the

tape

transport

buttons

will

remain

inoperative.

<§)

Headphone

Jack

(PHONES)

For

private

music

enjoyment

without

disturbing

others,

or

for

monitoring

a

recording,

a

headphone

set

may

be

connected

to

this

jack.

Use

a

headphone

with

an

impedance

rating

of

8

to

1200

ft/ohms.

0

Remote

Sensor

(REMOTE

SENSOR)

With

DRW-585

the

remote

control

unit

is

not

included.

Each

of

"PLAY,

FF,

REW,

STOP,

REC

PAUSE

and

REC/REC

MUTE"

functions

can

be

remote

controlled

with

wireless

handset

of

the

receiver

(DRA

Series

receivers).

For

details

refer

to'the

DRA

Series

operating

instructions.

NOTE:

Note

that

only

the

A

deck

can

be

operated

with

remote

control

units

which

have

no

A/B

selector

button.

-Caution:--

Whenever

the

power

switch

is

in

the

OFF

state,

the

apparatus

is

still

connected

on

AC

line

voltage.

Please

be

sure

to

unplug

the

cord

when

you

leave

home

for,

say,

a

vacation.

0

Timer

Switch

(TIMER)

This

switch

is

provided

for

use

with

an

optional

audio

timer

for

unattended

recording

or

morning-alarm

playback.

For

non-timer

operation,

this

switch

should

be

set

in

the

"OFF"

position.

See

page

14.

6

ENGLISH

©

Tape

Transport

Buttons

PLAY

Play

Button

Press

to

playback

tape.

■

Stop

Button

Press

to

stop

the

tape

in

any

mode.

M

Fast

Rewind

Button

Press

for

fast

rewind.

Fast

Forward

Button

Press

for

fast

forwarding.

•

REC/REC

MUTE

(Deck

B

only)

Rec/Rec

Mute

Button

Press

the

REC/REC

MUTE

(•)

button

and

PLAY

button

simultaneously

to

start

recording.

If

only

the

REC/REC

MUTE

(•)

button

is

pressed,

the

deck

enters

the

Recording

Pause

mode.

Pressing

this

button

in

the

Recording

Pause

mode

will

start

Auto

Rec

Mute,

and

a

5-second

silent

space

is

recorded

onto

the

tape.

See

page

11.

II

REC

PAUSE

(Deck

B

only)

Rec

Pause

Button

Press

this

button

to

enter

the

recording

pause

mode

from

the

recording

or

recording

mute

mode.

This

button

can

only

be

used

during

recording.

See

page

11.

Direction

Button

Changes

the'tape

transport

direction

from

forward

to

reverse

“4",

and

vice

versa.

®

Display

Indicators

with

an

encircled

number

light

up

when

the

corresponding

button

is

pressed.

.Deck

A

Tape

Transport

Indicators

Peak

Level

Meter

Indicates

the

recording

and

playback

signal

levels

for

the

left

and

right

channels.

-40

-30

-20

xrrp:

-10

-5

-3

-1

0

+1

+3

+5

+10

□

□□□□□

Daaaannonac

m

m

-

HIGH-i

MEMO—

LJ

LJ

LJ

LJ

DUB-

®MPX

fUUUO

SYNC

Deck

A

Tape

Counter

-MPX

Filter

Indicator

-

Remote

Control

Indicator

Deck

A

Memory

Indicator

~S888

<1DH

QM

MBMOf

■

Deck

8

Tape

Counter

•

Dubbing

Speed

Indicators

-Deck

B

Tape

Transport

Indicators

.

Deck

B

Memory

Indicator

■

S

ynchro

Rec

Indicator

See

pages

12,

13

CASSETTE

TAPES

■

Handling

Precautions

•

C-120

Cassettes

C-120

cassette

tapes

are

not

recommended

as

they

use

a

very

thin

tape

base

which

may

become

tangled

around

the

capstan

or

pinch

roller.

•

Tape

Slack

Before

putting

a

tape

into

the

deck,

take

up

any

slack

with

a

pencil

or

your

finger

tip.

This

precaution

prevents

the

tape

from

becoming

entangled

around

the

capstan

or

pinch

roller.

■

Storage

Precautions

•

Do

not

store

cassette

tapes

in

a

place

where

they

will

be

subject

to:

•

Extremely

high

temperature

or

excessive

moisture

•

Excessive

dust

•

Direct

sunlight

•

Magnetic

fields

(near

TV

sets

or

speakers)

•

To

eliminate

tape

slack,

store

your

cassettes

in

cassette

cases

with

hub

stops

■

Accidental

Erasure

Prevention

•

All

cassettes

have

erasure

prevention

tabs

for

each

side.

To

protect

valuable

recordings

from

accidental

or

inadvertent

erasure,

remove

the

tab

for

the

appropriate

side

with

a

screwdriver

or

another

tool.

•

To

record

on

a

tape

whose

erasure

prevention

tabs

have

been

removed,

cover

the

tab

holes

with

adhesive

tape.

Erasure

prevention

tab

for

side

B

7

ENGLISH

AUTOMATIC

TAPE

SELECTION

This

Stereo

Cassette

Deck

contains

an

automatic

tape

selector

which

automatically

selects

the

optimum

bias

and

equalization

for

the

tape

in

use.

This

is

accomplished

by

detection

of

the

tape

type

detections

holes

in

the

cassette

housing.

PLAYBACK_

•

The

operations

described

below

apply

to

deck

A

and

deck

B

alike.

•

Switch

on

your

amplifier

or

receiver.

•

Set

the

Tape

Monitor

switch

on

your

amplifier

or

receiver

to

the

TAPE

position.

•

The

numbers

in

the

illustration

below

depict

the

order

in

which

operation

steps

are

carried

out.

©

Press

the

POWER

switch

to

the

ON

(

»

)

position.

(D

Press

the

EJECT

(

—

)

button

to

open

the

cassette

compartment

cover.

©

Load

the

cassette

tape

and

close

the

cassette

compartment

cover.

(

4

)

When

listening

to

a

tape

that

has

been

recorded

with

Dolby

noise

reduction,

set

the

DOLBY

NR

switch

to

match

the

system

used

at

the

time

of

recording.

DOLBY

NR

B

OFF

C

©

Press

the

Direction

(4

►

)

button

to

select

the

direction

of

tape

transport.

Transport

Direction

Indicator

Forward

.

t>

Reverse

<1

®

Select

the

type

of

tape

transport

with

the

REVERSE

MODE

switch.

cs>

Sfeutsr

~

dD

REV.

MODE

Mode

Switch

position

To

listen

to

one

side

only

Z

—'

:

To

listen

to

repeat

playback

of

both

sides

0

To

listen

to

continuous

play

back

of

both

sides

and

both

decks.

RELAY

©

Press

the

PLAY

button

to

begin

playback.

©

Press

the

stop

(

■

)

button

to.

stop

the

playback.

•

In

the

continuous

playback

mode

(REVERSE

MODE

set

toC!!3),

playback

of

both

tape

sides

will

be

repeated

5

times

and

then

stop

automatically.

•

If

different

types

of

Dolby

noise

reduction

are

used

for

record

and

playback,

playback

response

will

be

adversely

effected.

•

When

power

is

turned

off

during

tape

transport,

it

may

not

be

possible

to

remove

the

cassette

by

pressing

the

EJECT

(

—

|

button.

In

this

case,

turn

on

power

again

before

you

press

the

EJECT

(

—

)

button.

8

ENGLISH

■

RELAY

PLAY

(continuous

playback

of

the

tapes

in

deck

A

and

deck

B)

•

Load

a

cassette

tape

into

deck

A

and

B,

and

set

the

Dolby

NR

button

correctly.

©

REVERSE

MODE

set

to

"RELAY".

©

Press

the

PLAY

button

of

the

deck

you

first

wish

to

listen

to.

©

To

stop

relay

play,

press

the

stop

(

■

)

button

of

the

deck

currently

playing

the

tape.

•

Relay

play

will

play

decks

A

and

B

in

succession

for

5

cycles,

upon

which

playback

stops.

When

playback

starts

from

deck

B,

when

switching

to

deck

A,

the

first

deck

A

playback

cycle

will

be

counted

as

the

second

cycle.

The

completion

of

5

cycles

will

always

be

at

the

opposite

side

of

the

tape

in

deck

B.

■

MUSIC

SEARCH

SYSTEM

The

music

search

system

detects

blank

sections

(lasting

for

at

least

4

seconds)

between

selections

in

order

to

locate

the

beginning

of

selections

in

the

forward

or

reverse

direction,

1,

To

advance

from

the

current

selection

to

the

beginning

of

the

next

selection

(CUE):

Press

the

PLAY

button,

keep

it

pressed

in,

and

press

the

Fast

Forward

(

»

)

button

when

the

tape

is

travelling

in

the

forward

(

t>

)

direction.

Press

the

PLAY

button,

keep

it

pressed

in,

and

press

the

Rewind

(

44

)

button

when

the

tape

is

travelling

in

the

reverse

(

<]

)

direction.

The

tape

transport

indicator

flashes.

The

deck

will

skip

the

rest

of

the

current

selection

and

automatically

resume

play

from

the

beginning

of

the

next

selection.

2.

To

repeat

playback

from

the

beginning

of

the

current

selection

(REVIEW):

Press

the

PLAY

button,

keep

it

pressed

in,

and

press

the

Rewind

(

44

)

button

when

the

tape

is

travelling

in

the

forward

(

t>

)

direction.

Press

the

PLAY

button,

keep

it

pressed

in,

and

press

the

Fast

Forward

(

»

)

button

when

the

tape

is

travelling

in

the

reverse

(

<3

)

direction.

The

tape

transport

indicator

flashes.

The

deck

will

rewind

the

tape

to

the

beginning

of

the

current

selection

and

automatically

resume

play

from

that

point.

This

is

very

convenient

for

repeating

playback

of

the

current

selection.

Notes

on

Music

Search

Operation:

The

search

functions

operates

by

detecting

comparatively

long,

blank

sections

approximately

4

to

5

seconds

long,

in

between

recorded

selections.

Therefore,

the

system

may

not

operate

normally

in

the

following

cases:

•

Recordings

with

discontinuous

speech

or

conversation.

•

Recordings

with

long

periods

of

pianissimo

(softly

played

music).

•

Recordings

with

long

silences.

•

Blank

sections

with

a

high

level

of

noise.

•

Blank

sections

shorter

than

4

seconds.

•

If

noise-emitting

appliances,

such

as

electric

razors,

drills,

refrigerators,

etc.,

are

operated

nearby.

•

REV

close

to

the

beginning

of

the

program

or

CUE

close

to

the

ending.

9

ENGLISH

RECORDING

(DECK

B

only)-

•

Switch

on

your

amplifier

or

receiver

and

the

source

component,

•

Set

the

Tape

Monitor

switch

on

your

amplifier

or

receiver

to

the

SOURCE

position.

(T)

Press

the

POWER

switch

to

the

ON

(

)

position.

©

Load

the

cassette

tape.

(Check

that

the

erasure

prevention

tabs

of

the

cassette

housing

have

not

been

broken

off.)

©

Move

the

DOLBY

NR

switch

and

select

the

Dolby

NR

type

that

suits

the

recording.

DOLBY

NR

B

OFF

C

—nr~

CED

Caution:

•

Be

careful

not

to

erase

important

recordings

by

mistake.

Inadvertent

start

of

recording

wilt

happen

in

the

following

cases:

1.

If

the

PLAY

button

is

pressed

while

the

•

indicator

lights,

recording

starts.

2.

If

the

PLAY

and

REC/REC

MUTE

{•)

button

are

pressed

at

the

same

time,

recording

starts.

The

best

way

to

avoid

accidental

erasure

is

to

break

off

the

two

erasure

prevention

tabs

on

the

cassette

housing.

(

4

)

Press

the

Direction

(4

►

)

button

to

select

the

direction

of

tape

transport.

®

Select

the

type

of

tape

transport

with

the

REVERSE

MODE

switch.

Mode

Switch

position

To

record

on

only

one

side

To

continuously

record

on

both

sides

CD

or

RELAY

©

Press

the

REC/REC

MUTE

(•)

button

to

set

the

recording

pause

mode.

The

ell

indicator

will

light

up.

®

Adjust

the

recording

level

with

the

INPUT

LEVEL

control

while

watching

the

Peak

Level

Meter

©

Press

the

PLAY

button

to

start

the

recording.

The

PLAY

(0

or

t>)

and

the

•

indicator

will

light

during

recording.

©

To

pause

the

recording,

press

the

REC

PAUSE

(II)

button.

Press

the

PLAY

button

to

resume

recording.

©

To

stop

recording,

press

the

stop

(

■

)

button,

10
