Denon DRA-F109 Manual de usuario

DRA-F109

STEREO RECEIVER

Getting Started

Erste Schritte / Mise en route / Guida introduttiva / Antes de empezar / Aan de slag / Att komma igång / Начало работы / Skrócona instrukcja obsługi

SVENSKA ESpAñol FrANçAiSNEDErlANDS itAliANo DEutSch ENGliSh

РУССКИЙ

POLSKI

ENGliSh DEutSch FrANçAiS itAliANo ESpAñol NEDErlANDS SVENSKA

Welcome

Thank you for choosing a DENON receiver. This guide provides

step-by-step instructions for setting up your receiver.

If you have setup problems:

If you need additional help in solving problems, contact DENON

customer service in your area.

See the address sheet included in the box.

ENGliShDEutSchFrANçAiSitAliANoESpAñolNEDErlANDSSVENSKA

Before You Begin

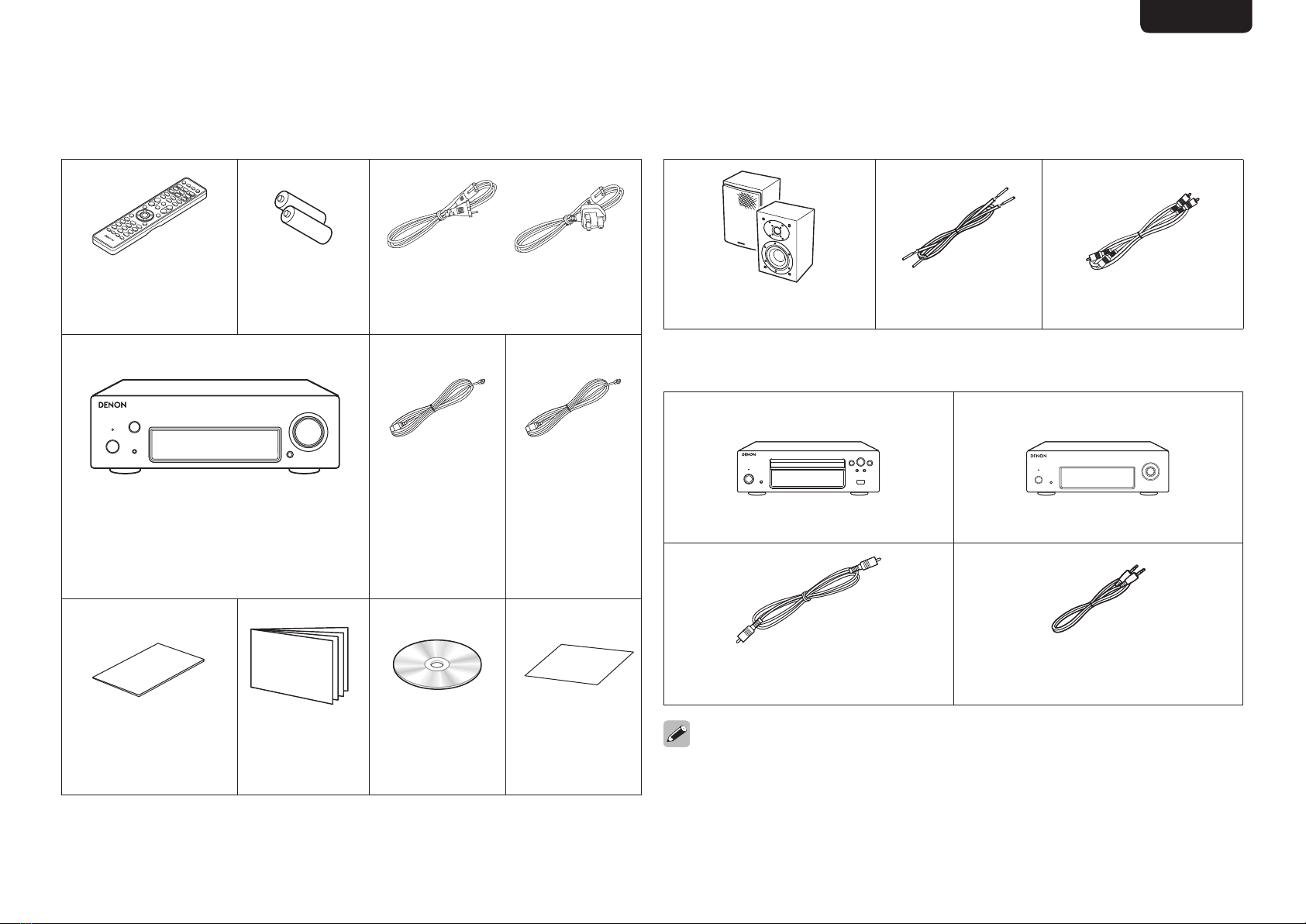

What’s In the Box

Remote control

unit

R03/AAA

batteries Power cord

Receiver

FM indoor

antenna

For continental model

only

DAB/FM

indoor

antenna

For UK model only

Safety

Instructions

Getting

Started

Owner’s

Manual

Service

network list

Required for setup

Speaker systems Speaker cables Audio cable

Required for F109 system connections

DCD-F109 DNP-F109

CD player Network audio player

Digital coaxial cable

(included with DCD-F109/DNP-F109)

System cable

(included with DCD-F109/DNP-F109)

Note that the illustrations in this manual is for explanation purposes and

may differ from the actual unit.

For continental model

only

For UK model only

ENGliSh DEutSch FrANçAiS itAliANo ESpAñol NEDErlANDS SVENSKA

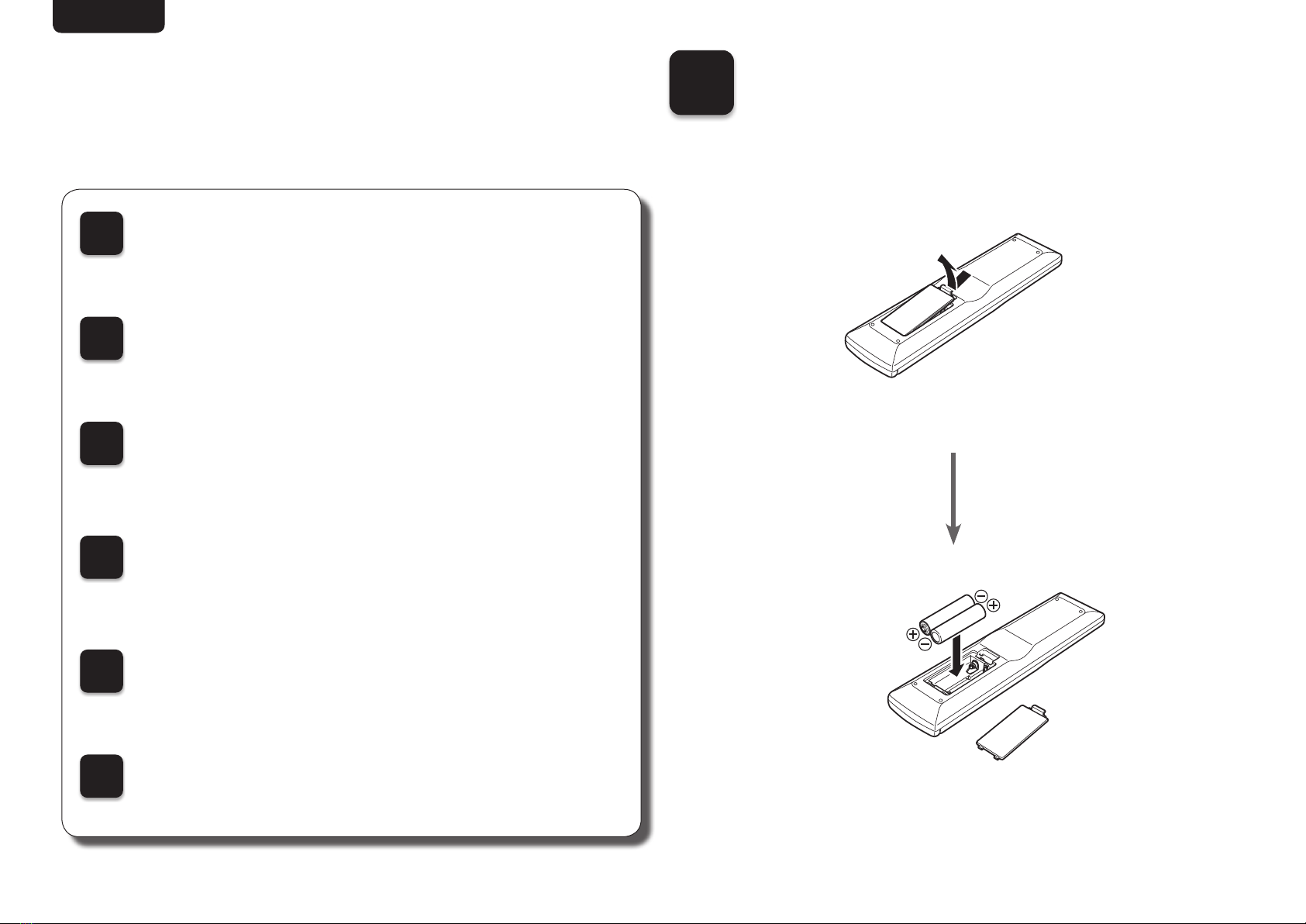

Setup Steps 1Installing batteries in

the remote control unit

R03/AAA

batteries

There are six steps to the setup process.

1Install batteries in the remote control unit

2Connect the speakers

3Connect the audio devices

4Connect the power cable

5Turn the power on

6Begin playback

ENGliShDEutSchFrANçAiSitAliANoESpAñolNEDErlANDSSVENSKA

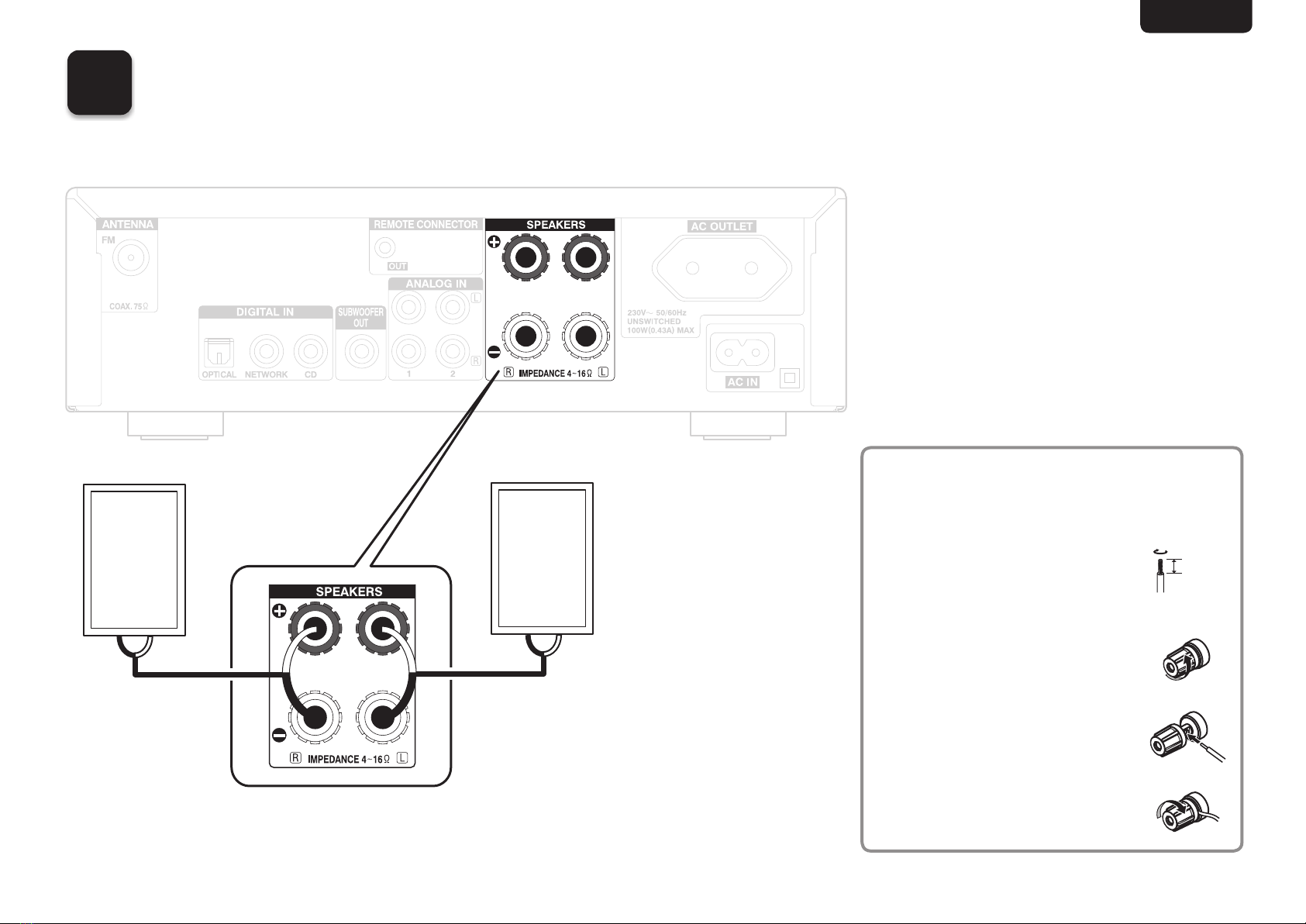

2Connect the speakers

(R) (L)

Connecting the speaker

cables

qPeel off about 10 mm

of sheathing from

the tip, then twist the

wire core.

10 mm

wLoosen the speaker

terminal.

eInsert the speaker

cable into the speaker

terminal.

rTighten the speaker

terminal.

ENGliSh DEutSch FrANçAiS itAliANo ESpAñol NEDErlANDS SVENSKA

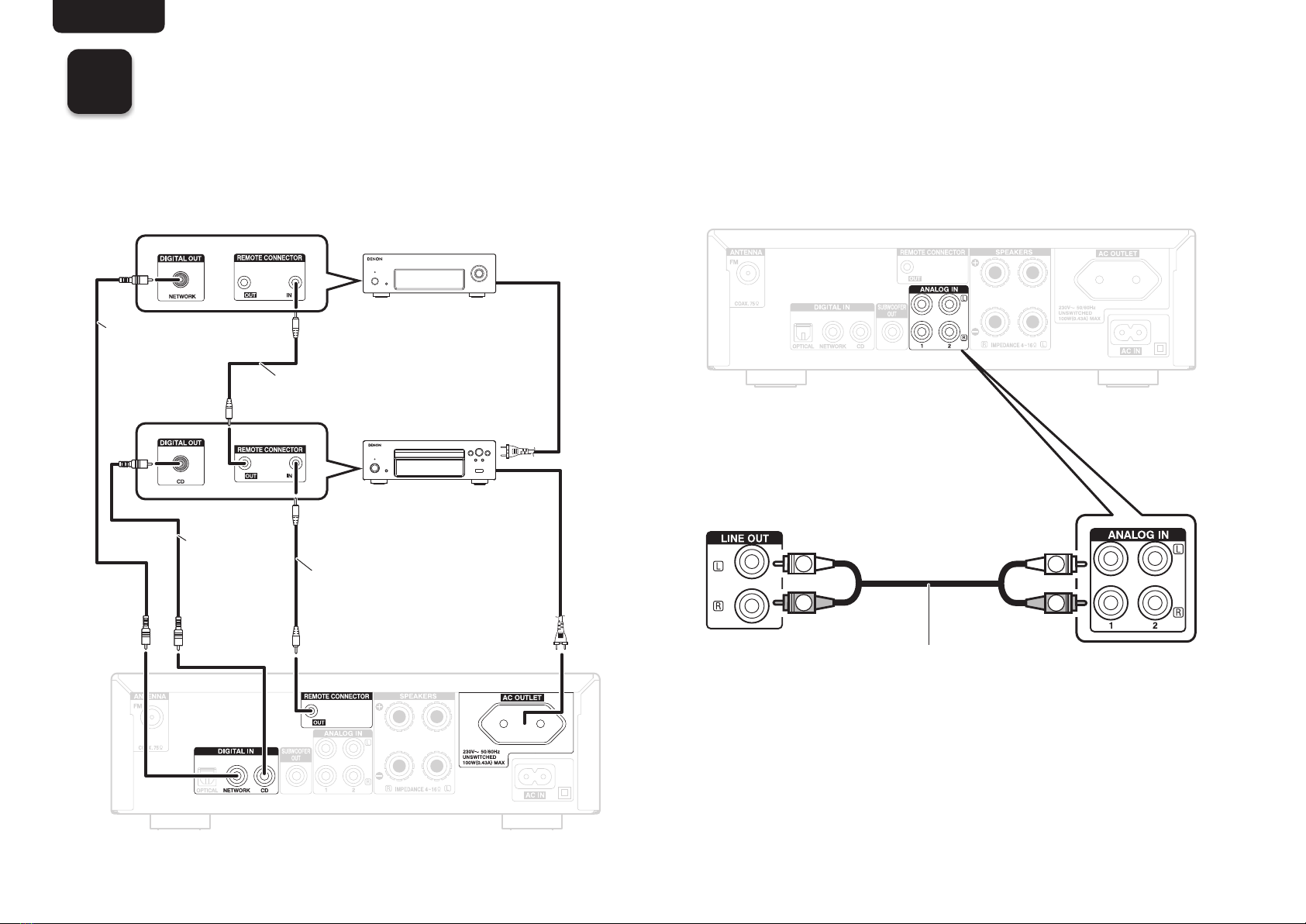

3Connect the audio devices

nWhen making system connections nWhen making an analog connection

DNP-F109

DCD-F109

White

Red

White

Red

System cable

Digital coaxial

cable

Analog audio

device

System cable

Digital

coaxial

cable

DRA-F109 Audio cable

ENGliShDEutSchFrANçAiSitAliANoESpAñolNEDErlANDSSVENSKA

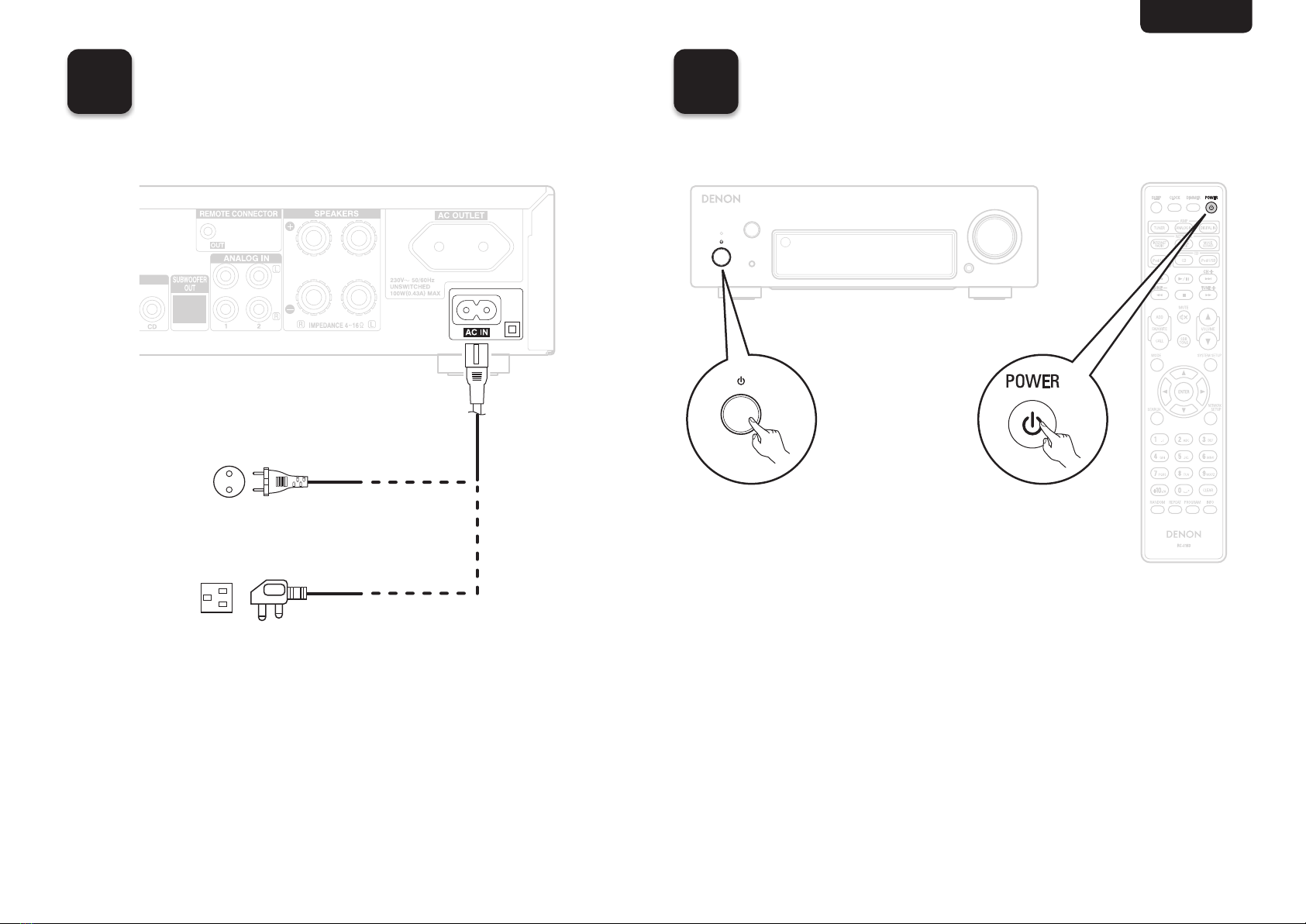

4Connect the power

cable 5Turn the power on

Connect to household power outlet

(AC 230 V, 50/60 Hz)

For continental model only

For UK model only

ENGliSh DEutSch FrANçAiS itAliANo ESpAñol NEDErlANDS SVENSKA

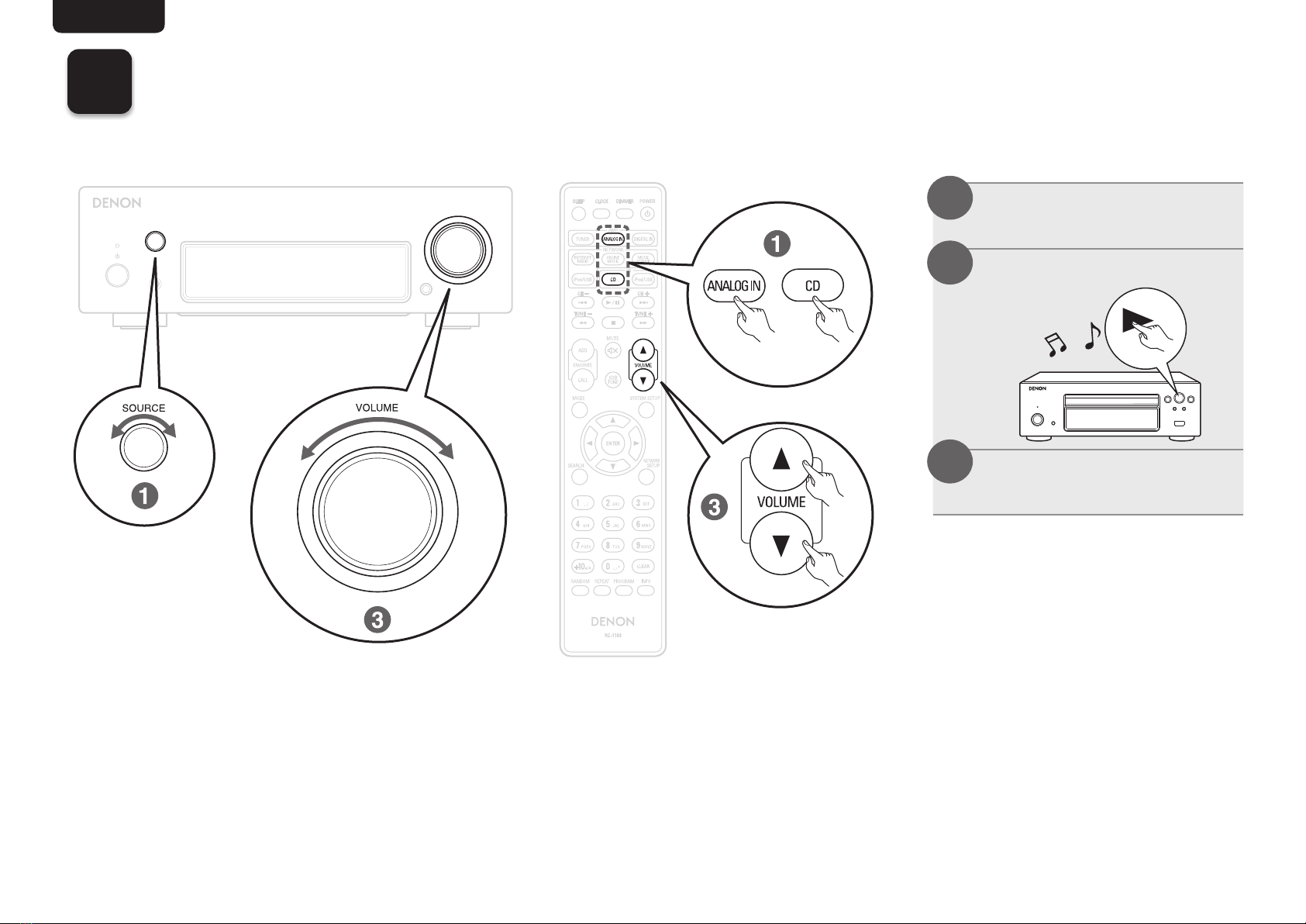

6Begin playback

Select the source.

Play the source.

Adjust the volume.

ENGliShDEutSchFrANçAiSitAliANoESpAñolNEDErlANDSSVENSKA

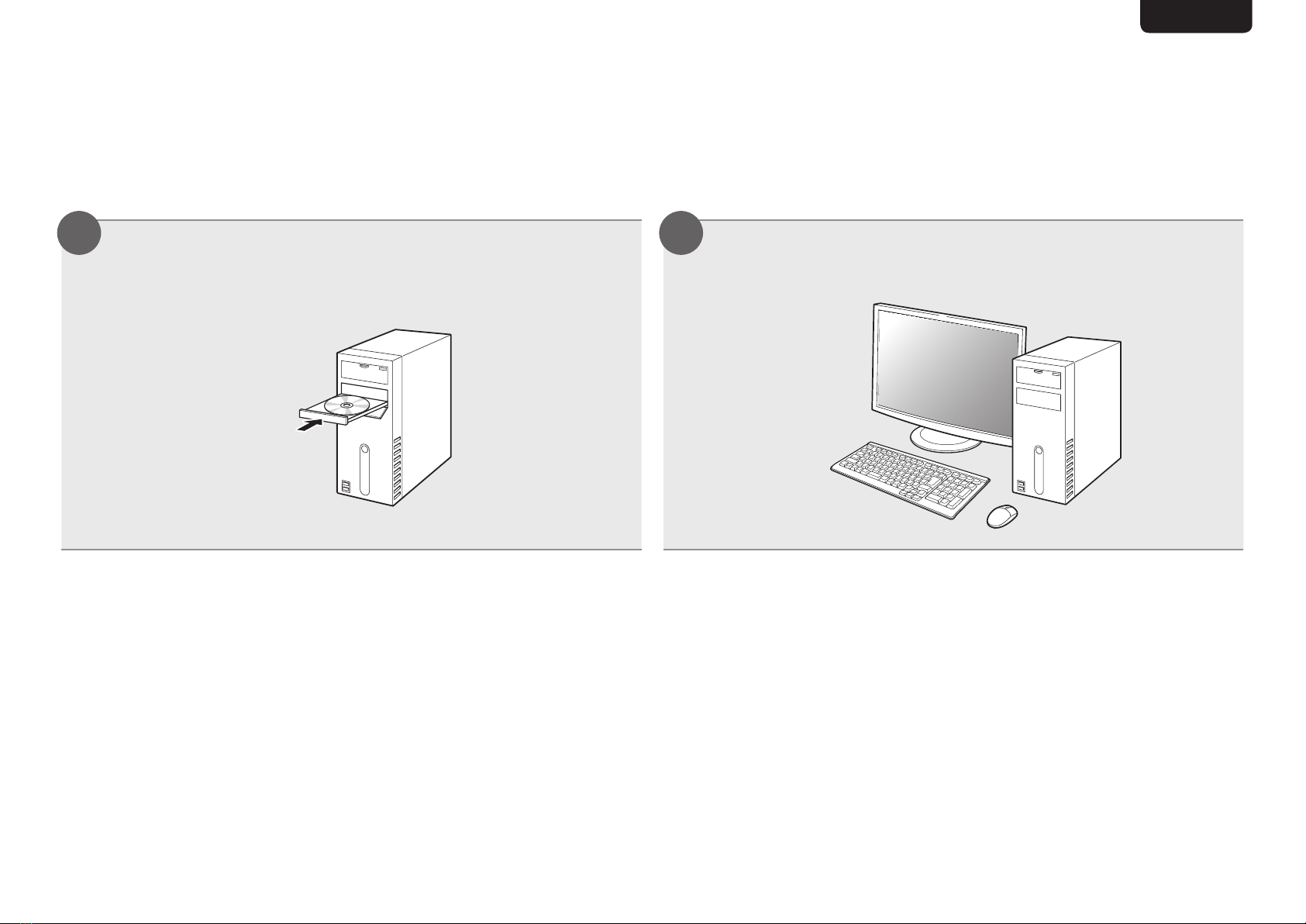

Owner’s Manual

The included CD-ROM contains an Adobe PDF version of the full owner’s manual for the receiver.

Please reference this manual for more details about the setup and operation of the receiver and it’s features.

Insert the disc into your PC. Follow the screen or double click on the PDF le.

1 2

D&M Holdings Inc.

Printed in China 5411 10870 00AD

www.denon.com

V00
