Denon AVR-X3200W Manual de usuario

AVR-X3200W

INTEGRATED NETWORK AV RECEIVER

Owner’s Manual

Contents Connections Playback Settings Tips Appendix

Front panel Display Rear panel Remote Index

Accessories 7

Inserting the batteries 8

Operating range of the remote control unit 8

Features 9

High quality sound 9

High performance 9

Easy operation 12

Part names and functions 13

Front panel 13

Display 16

Rear panel 18

Remote control unit 22

Connections

Connecting speakers 26

Speaker installation 26

Speaker connection 33

Speaker configuration and “Amp Assign” settings 37

Connecting a TV 49

Connection 1 : TV equipped with an HDMI connector and

compatible with the ARC (Audio Return Channel) 50

Connection 2 : TV equipped with an HDMI connector and

incompatible with the ARC (Audio Return Channel) 51

Connection 3 : TV equipped without an HDMI connector 52

Connecting a playback device 53

Connecting a set-top box (Satellite tuner/cable TV) 54

Connecting a DVD player or Blu-ray Disc player 55

Connecting a video camcorder or game console 56

Connecting an iPod or USB memory device to the USB port 57

Connecting an FM/AM antenna 59

Connecting to a home network (LAN) 61

Wired LAN 61

Wireless LAN 62

Connecting an external control device 63

REMOTE CONTROL jacks 63

TRIGGER OUT jack 64

Connecting the power cord 65

Playback

Basic operation 67

Turning the power on 67

Selecting the input source 67

Adjusting the volume 68

Turning off the sound temporarily (Muting) 68

Playback a DVD player/Blu-ray Disc player 68

Contents Connections Playback Settings Tips Appendix

Contents

Front panel Display Rear panel Remote Index

Playing an iPod 69

Listening to music on an iPod 70

iPod Browse Mode settings 71

Performing repeat playback 73

Performing random playback 73

Playing a USB memory device 74

Playing files stored on USB memory devices 75

Listening to music on a Bluetooth device 77

Playing music from Bluetooth device 78

Pairing with other Bluetooth devices 80

Reconnecting to this unit from a Bluetooth device 81

Listening to FM/AM broadcasts 82

Listening to FM/AM broadcasts 83

Tuning in by entering the frequency (Direct Tune) 84

Changing the tune mode (Tune Mode) 85

Tuning in to stations and presetting them automatically (Auto

Preset Memory) 85

Presetting the current broadcast station (Preset Memory) 86

Listening to preset stations 86

Specify a name for the preset broadcast station (Preset Name) 87

Skipping preset broadcast stations (Preset Skip) 88

Cancelling Preset Skip 89

Listening to Internet Radio 90

Listening to Internet Radio 91

Playing the last played Internet Radio station 92

Using vTuner to add Internet Radio stations to favorites 93

Playing back files stored on a PC and NAS 94

Applying media sharing settings 95

Playing back files stored on a PC and NAS 96

Listening to Pandora®98

Listening to Pandora®99

Creating a new station 101

Listening to an existing station 102

Listening to created radio stations at random 102

Giving feedback and managing stations 103

Sign Out 104

Listening to SiriusXM Internet Radio 105

Listening to SiriusXM Internet Radio 106

Sign Out 107

Contents Connections Playback Settings Tips Appendix

Front panel Display Rear panel Remote Index

AirPlay function 108

Playing songs from your iPhone, iPod touch or iPad 109

Playing iTunes music with this unit 109

Selecting multiple speakers (devices) 110

Perform iTunes playback operations with the remote control unit

of this unit 110

Spotify Connect function 111

Playing Spotify music with this unit 111

Convenience functions 112

Performing repeat playback 113

Performing random playback 113

Registering to Favorites 114

Playing back content added to the “Save to Favorites” 114

Deleting content added to favorites 115

Searching content with keywords (Text Search) 115

Playing back music and a favorite picture at the same time

(Slideshow) 116

Setting the Slideshow Interval 117

Adjusting the volume of each channel to match the input source

(Channel Level Adjust) 118

Adjusting the tone (Tone) 119

Displaying your desired video during audio playback (Video

Select) 120

Adjusting the picture quality for your viewing environment (Picture

Mode) 121

Playing the same music in all zones (All Zone Stereo) 122

Selecting a sound mode 123

Selecting a sound mode 124

Direct playback 125

Pure Direct playback 125

Auto surround playback 126

HDMI control function 135

Setting procedure 135

Smart Menu function 136

Sleep timer function 138

Using the sleep timer 139

Quick select plus function 140

Calling up the settings 141

Changing the settings 142

Web control function 143

Controlling the unit from a web control 143

Playback in ZONE2 (Separate room) 145

Connecting ZONE2 145

Playback in ZONE2 147

Contents Connections Playback Settings Tips Appendix

Front panel Display Rear panel Remote Index

Settings

Menu map 149

Menu operations 152

Inputting characters 153

Using the keyboard screen 154

Audio 155

Dialog Level Adjust 155

Subwoofer Level Adjust 155

Surround Parameter 156

Restorer 160

Audio Delay 161

Volume 161

Audyssey®162

Graphic EQ 165

Video 167

Picture Adjust 167

HDMI Setup 169

Output Settings 175

On Screen Display 179

TV Format 180

Inputs 181

Input Assign 181

Source Rename 183

Hide Sources 184

Source Level 184

Input Select 185

Speakers 186

Audyssey® Setup 186

Procedure for speaker settings (Audyssey® Setup) 188

Error messages 194

Retrieving Audyssey® Setup settings 195

Manual Setup 196

Amp Assign 196

Speaker Config. 197

Distances 202

Levels 203

Crossovers 204

Bass 205

Front Speaker 206

Contents Connections Playback Settings Tips Appendix

Front panel Display Rear panel Remote Index

Network 207

Information 207

Connection 207

Wi-Fi Setup 208

Settings 211

Network Control 213

Friendly Name 213

Diagnostics 214

Maintenance Mode 215

General 216

Language 216

ECO 216

ZONE2 Setup 219

Zone Rename 221

Quick Select Names 221

Trigger Out 222

Front Display 222

Firmware 223

Information 225

Usage Data 226

Setup Lock 227

Limiting the operating zone with the remote control 228

Tips

Tips 230

Troubleshooting 232

Resetting factory settings 250

Appendix

About HDMI 251

Video conversion function 254

Playing back a USB memory devices 256

Playing back a Bluetooth device 257

Playing back a file saved on a PC or NAS 258

Playing back Internet Radio 259

Personal memory plus function 259

Last function memory 259

Sound modes and channel output 260

Sound modes and surround parameters 262

Types of input signals, and corresponding sound modes 265

Explanation of terms 268

Trademark information 277

Specifications 279

Index 285

License 288

Contents Connections Playback Settings Tips Appendix

Front panel Display Rear panel Remote Index

Thank you for purchasing this Denon product.

To ensure proper operation, please read this owner’s manual carefully before using the product.

After reading this manual, be sure to keep it for future reference.

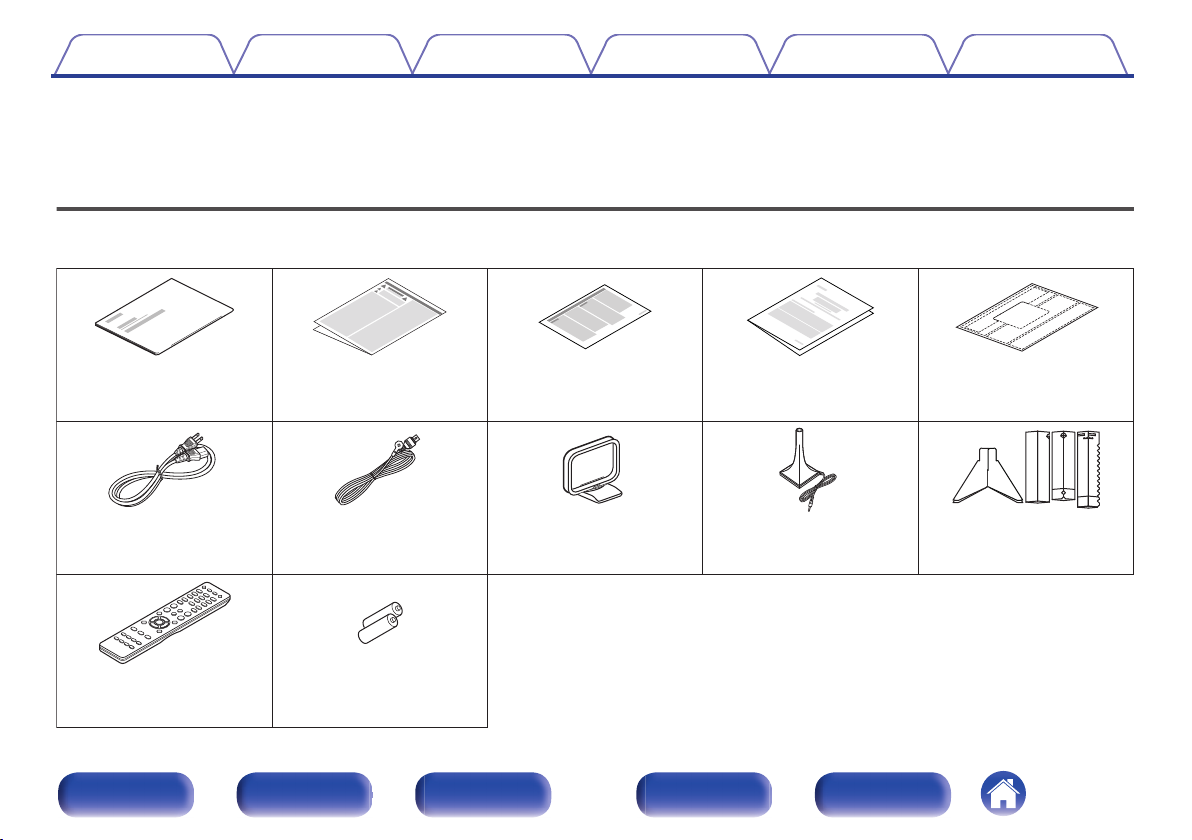

Accessories

Check that the following parts are supplied with the product.

Quick Start Guide Safety Instructions Notes on radio Warranty

(for North America

model only)

Cable labels

Power cord FM indoor antenna AM loop antenna Sound calibration

microphone

(ACM1HB)

Sound calibration

microphone stand

Remote control unit

(RC-1192)

R03/AAA batteries

Contents Connections Playback Settings Tips Appendix

Front panel Display Rear panel Remote Index

Inserting the batteries

1Remove the rear lid in the direction of the arrow and

remove it.

2Insert two batteries correctly into the battery

compartment as indicated.

R03/AAA batteries

3Put the rear cover back on.

NOTE

0To prevent damage or leakage of battery fluid:

0Do not use a new battery together with an old one.

0Do not use two different types of batteries.

0Remove the batteries from the remote control unit if it will not be in use for long

periods.

0If the battery fluid should leak, carefully wipe the fluid off the inside of the battery

compartment and insert new batteries.

Operating range of the remote control

unit

Point the remote control unit at the remote sensor when operating it.

Approx. 23 ft/7 m

30° 30°

Contents Connections Playback Settings Tips Appendix

Front panel Display Rear panel Remote Index

Features

High quality sound

0With discrete circuit technology, the power amplifier provides

identical quality for all 7-channels (135 Watts x 7-channels)

For optimum realism and stunning dynamic range, the power amplifier

section features discrete power devices (not integrated circuitry).

By using high current, high power discrete power devices, the amplifier

is able to easily drive high quality speakers.

0Dolby Atmos (v p. 269)

This unit is equipped with a decoder that supports Dolby Atmos audio

format. The placement or movement of sound is accurately reproduced

by the addition of overhead speakers, enabling you to experience an

incredibly natural and realistic surround sound field.

0DTS:X

This unit is equipped with the DTS:X decoder technology. DTS:X

brings the home theater experience to new heights with its immersive

object based audio technology which removes the bounds of channels.

The flexibility of objects allows for sound to be scaled large or small

and moved around the room with greater accuracy than ever before

leading to a richer immersive audio experience.

High performance

04K 60Hz input/output supported

When 4K Ultra HD (High Definition) is used, an input/output speed of 60

frames per second (60p) is achieved for video signals. When connected

to 4K Ultra HD and 60p video signal input compatible TV, you can enjoy

the sense of realism only available from high-definition images, even

when viewing fast-moving video.

This unit also supports image processing for 4K 60p, 4:4:4 and 24-bit

videos. By processing the video at the original resolution, this unit lets

you enjoy flawless, high-definition picture quality.

0HDCP 2.2

This unit is compatible with HDCP 2.2 copyright protection standard.

Contents Connections Playback Settings Tips Appendix

Front panel Display Rear panel Remote Index

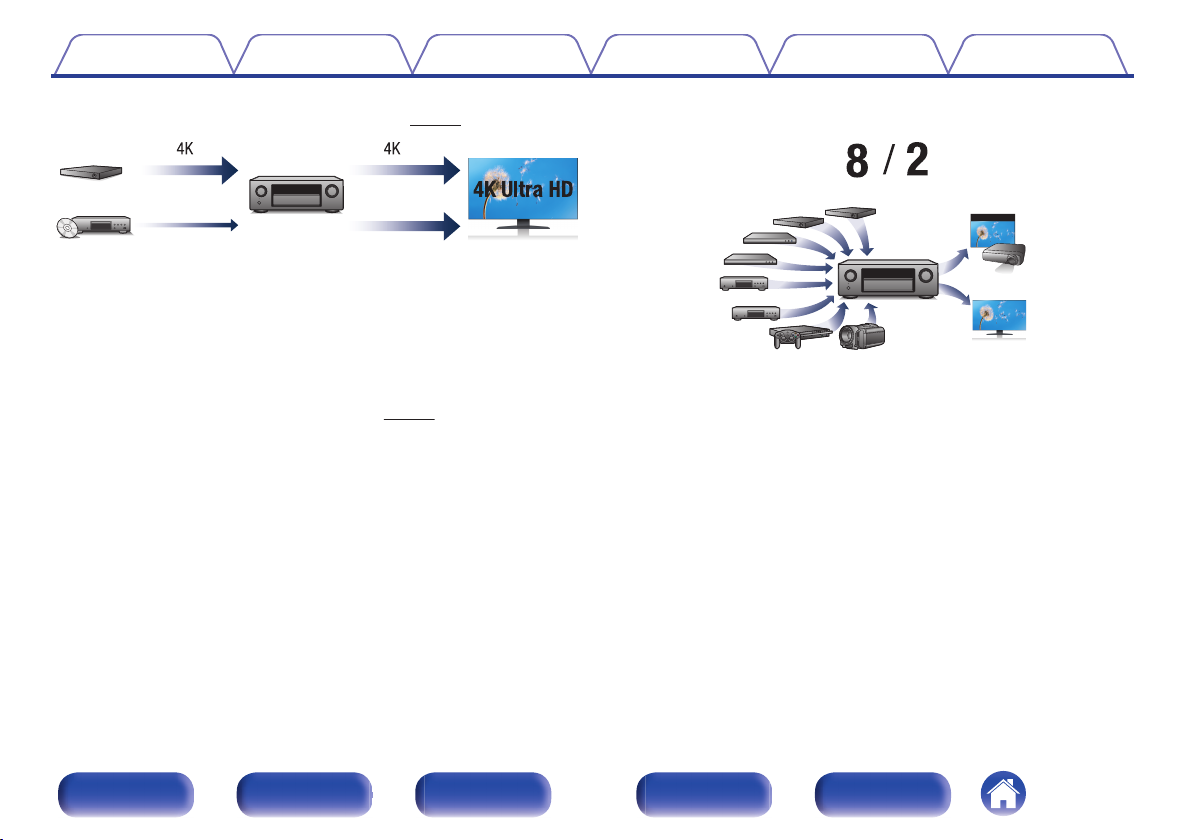

0Digital video processor upscales analog video signals (SD

resolution) to HD (720p/1080p) and 4K (v p. 177)

Up scaling

Up to 1080p

This unit is equipped with a 4K video upscaling function that allows

analog video or SD (Standard Definition) video to be output via HDMI at

4K (3840 × 2160 pixels) resolution. This function enables the device to

be connected to a TV using a single HDMI cable, and produces high

definition images for any video source.

0Equipped with HDMI ZONE2 output (v p. 145)

The ZONE2 multi-room output includes an HDMI output that lets you

enjoy a different A/V source in that room, with another program playing

in the main room.

0HDMI connections enable connection to various digital AV

devices (8 inputs, 2 outputs)

Out

For connection to a broad range of digital sources, this unit features 8

HDMI inputs, including 1 on the front panel that lets you quickly and

conveniently connect a camcorder, game console or other HDMI-

equipped device. There’s an HDMI output for the MAIN ZONE, and a

second HDMI output for ZONE2.

Contents Connections Playback Settings Tips Appendix

Front panel Display Rear panel Remote Index

Otros manuales para AVR-X3200W

Este manual sirve para los siguientes modelos

Otros manuales de Receptor estéreo de Denon

Denon

Denon AVR-X2600H DAB Manual de usuario

Denon

Denon AVR-X4300H Manual de usuario

Denon

Denon AVC-A11XVA Manual de usuario

Denon

Denon AVR-1312 Guía de configuración

Denon

Denon ADV-700 Manual de usuario

Denon

Denon AVR-S960H Manual de usuario

Denon

Denon AVR 1709 - AV Receiver Manual de usuario

Denon

Denon AVR-686 Manual de usuario

Denon

Denon AVR-S770H Manual de usuario

Denon

Denon AVR-3806S Manual de usuario

Denon

Denon AVR-3805 Manual de usuario

Denon

Denon AVR-X1600H Manual de usuario

Denon

Denon AVR-3805 Manual de usuario

Denon

Denon AVR-4308 Guía del usuario

Denon

Denon DRA-F109 Manual de usuario

Denon

Denon AVR-S510BT Manual de usuario

Denon

Denon AVR-X4200W Manual de usuario

Denon

Denon AVR 2808CI - AV Receiver Manual de usuario

Denon

Denon AVR-A110 Manual de usuario

Denon

Denon AVR1910 - Multi-Zone Home Theater Receiver Manual de usuario

Denon

Denon AVR-2309CI Manual de usuario

Denon

Denon DRA-F107 Manual de usuario

Denon

Denon AVR-5800 Manual de usuario

Denon

Denon AVR-X2300W Manual de usuario

Manuales populares de Receptor estéreo de otras marcas

Marantz

Marantz CINEMA 70S Manual de usuario

Kenwood

Kenwood KMDX92 Manual de usuario

Yamaha

Yamaha RX-830 Manual de usuario

Pioneer

Pioneer AVH-Z7250BT Manual de usuario

Yamaha

Yamaha RX-750 Manual de usuario

Pioneer

Pioneer SC-LX904 Manual

Sony

Sony XAV-1500 Manual de usuario

Radio Shack

Radio Shack DX-399 Manual de usuario

Sony

Sony STR-DE535 - Fm Stereo/fm-am Receiver Manual de usuario

Pioneer

Pioneer SX-1000TA Manual de usuario

Yamaha

Yamaha MusicCast TSR-5B3D Manual de usuario

Sony

Sony STR-DE335 - Fm Stereo/fm-am Receiver Manual de usuario

Sony

Sony STR-DG500 - Multi Channel Av Receiver Manual de usuario

Panasonic

Panasonic AJSD955B - DVCPRO50 STUDIO DECK Manual de usuario

Pioneer

Pioneer SX-838 Manual de usuario

Sherwood

Sherwood S-2660CP Manual técnico

Sony

Sony STR-K790 - Lifier Manual de usuario

Pioneer

Pioneer XR-VS77 Manual de usuario
