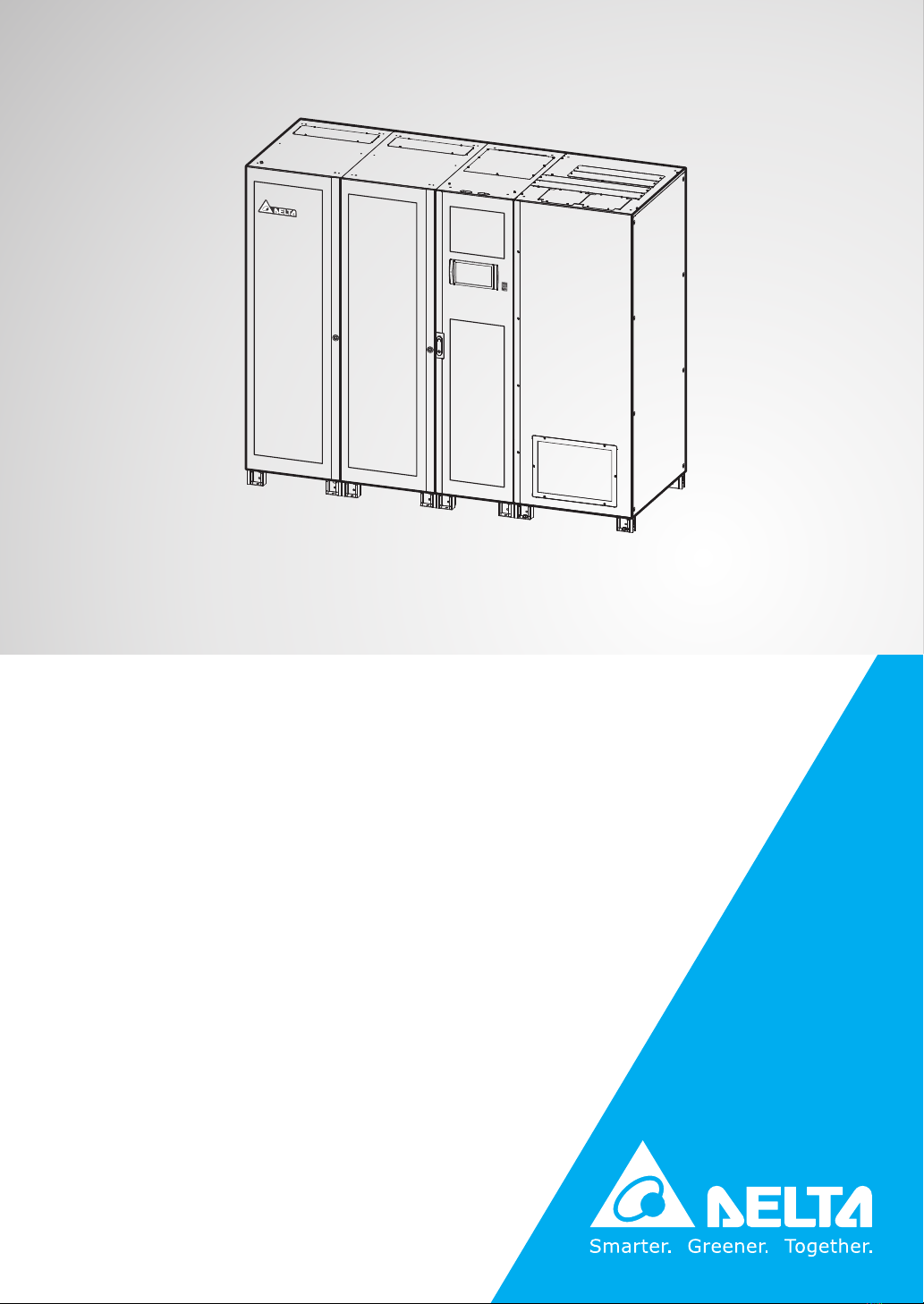

Delta DPS Series Manual de usuario

Delta UPS - Modulon Family

The power behind competitiveness

www.deltapowersolutions.com

DPS Series, Three Phase

800/ 1000/ 1200 kVA

User Manual

Ultron DPS Series 2

SAVE THIS MANUAL

This manual contains important instructions and warnings that you should follow during

the installation, operation, storage and maintenance of this product. Failure to heed these

instructions and warnings will void the warranty.

(“Manual”), including but not limited to the contents, information, and figures are solely

owned and reserved by Delta Electronics Inc. (“Delta”). The Manual can only be applied to

the operation or the use of this product. Any disposition, duplication, dissemination,

reproduction, modification, translation, extraction, or usage of this Manual in whole or in part

is prohibited without the prior written permission of Delta. Given that Delta will continuously

improve and develop the product, changes may be made to the information in this Manual

at any time without obligation to notify any person of such revision or changes. Delta will

make all possible efforts to secure the accuracy and the integrity of this Manual. Delta

disclaims any kinds or forms of warranty, guarantee, or undertaking, either expressly or

implicitly, including but not limited to the completeness, faultlessness, accuracy, non-

infringement, merchantability or fitness for a particular purpose of the Manual.

Table of Contents

Chapter 1 : Important Safety Instructions ..............................................................................7

1.1Installation Warnings...........................................................................7

1.2Connection Warnings..........................................................................7

1.3Usage Warnings..................................................................................9

1.4Storage Warnings ............................................................................. 11

1.5Standard Compliance ....................................................................... 11

Chapter 2 : Introduction .......................................................................................................12

2.1General Overview .............................................................................12

2.2Package Inspection...........................................................................12

2.3Functions & Features........................................................................16

2.4Exterior & Dimensions ......................................................................17

2.5 Front View_ 800kVA..........................................................................19

2.6 Front View_ 1000/ 1200kVA .............................................................20

2.7Internal View_ 800kVA ......................................................................22

2.8Internal View_ 1000/ 1200 kVA.........................................................24

2.9 Tri-color LED Indicator & Buzzer ......................................................27

Chapter 3 : Operation Modes ..............................................................................................30

3.1On-Line Mode ...................................................................................30

3.2Battery Mode.....................................................................................31

3.3Bypass Mode ....................................................................................32

3.4Manual Bypass Mode .......................................................................32

3.5ECO Mode ........................................................................................33

3.6Frequency Conversion Mode............................................................34

Chapter 4 : Communication Interfaces ................................................................................35

4.1Communication Interfaces (I): on the Front of the System Cabinet

with Its Front Door Open...................................................................35

4.1.1Display Port.......................................................................................36

4.1.2REPO Dry Contacts ..........................................................................36

4.1.3External Battery Temperature Dry Contacts .....................................37

4.1.4External Switch/ Breaker Status Dry Contacts .................................38

4.1.5Output Dry Contacts .........................................................................38

Ultron DPS Series 4

4.1.6Input Dry Contacts ............................................................................41

4.1.7Parallel Communication Cards .........................................................43

4.1.8Parallel Ports.....................................................................................43

4.1.9SMART Slot ......................................................................................44

4.1.10USB Port & RS-232 Port...................................................................44

4.1.11Auxiliary Power Cards.......................................................................45

4.1.12Battery Start Buttons.........................................................................45

4.2Communication Interfaces (II): at the Rear of the Touch Panel........46

4.3Cable Routing for the Communication Interfaces.............................48

Chapter 5 : Installation and Wiring ......................................................................................51

5.1Before Installation and Wiring...........................................................51

5.2Installation Environment....................................................................51

5.3UPS Installation ................................................................................53

5.4Wiring................................................................................................59

5.4.1Pre-wiring Warnings..........................................................................59

5.4.2Single Input to Dual Input Modification .............................................63

5.4.3 Single Unit Wiring .............................................................................64

5.4.3.1Single Input (Single Unit) ..................................................................66

5.4.3.2Dual Input (Single Unit).....................................................................71

5.4.4 Parallel Units Wiring..........................................................................72

5.5External Battery Cabinet Connection Warnings ...............................74

5.6Installation of Rodent Shields ...........................................................82

5.6.1Installation of 800kVA UPS’s Rodent Shields ...................................82

5.6.2Installation of 1000/1200kVA UPS’s Rodent Shields........................84

Chapter 6 : UPS Operation..................................................................................................88

6.1Pre Start-up & Pre Turn-off Warnings ...............................................88

6.2Start-up Procedures..........................................................................89

6.2.1On-Line Mode Start-up Procedures..................................................89

6.2.2Battery Mode Start-up Procedures ...................................................90

6.2.3Bypass Mode Start-up Procedures...................................................91

6.2.4Manual Bypass Mode Start-up Procedures......................................91

6.2.5ECO Mode Start-up Procedures.......................................................93

6.2.6Frequency Conversion Mode Start-up Procedures ..........................95

6.3Turn-off Procedures ..........................................................................97

6.3.1On-Line Mode Turn-off Procedures ..................................................97

6.3.2Battery Mode Turn-off Procedures....................................................97

6.3.3Bypass Mode Turn-off Procedures ...................................................98

6.3.4Manual Bypass Mode Turn-off Procedures ......................................98

6.3.5ECO Mode Turn-off Procedures .......................................................98

6.3.6Frequency Conversion Mode Turn-off Procedures...........................99

6.4Start-up & Turn off Procedures for Parallel Units..............................99

Chapter 7 : LCD Display & Settings ..................................................................................101

7.1LCD Display Hierarchy....................................................................101

7.2How to Turn on the LCD .................................................................104

7.3Introduction of Touch Panel and Function Keys .............................105

7.4 Password Entry............................................................................... 110

7.5Check Kilowatt-Hour ....................................................................... 111

7.6UPS Settings................................................................................... 112

7.6.1Bypass Setting ................................................................................ 112

7.6.2Mode Setting................................................................................... 113

7.6.3Output Setting ................................................................................. 113

7.6.4Battery & Charging Setting ............................................................. 114

7.6.5Parallel Setting................................................................................ 116

7.6.6Dry Contact Setting......................................................................... 116

7.6.7General Setting ............................................................................... 118

7.6.8IP Setting......................................................................................... 119

7.6.9Control............................................................................................. 119

7.7 System Maintenance ......................................................................120

7.7.1Warning...........................................................................................120

7.7.2Historical Event ...............................................................................121

7.7.3Statistics..........................................................................................121

7.7.4Test..................................................................................................121

7.7.5Clear................................................................................................121

7.7.6Advanced Diagnosis .......................................................................122

7.7.7Version & S/N..................................................................................122

Chapter 8 : Optional Accessories ......................................................................................124

Ultron DPS Series 6

8.1EMS Function on the LCD Screen..................................................125

8.2BMS Function on the LCD Screen..................................................129

8.3MFC Function on the LCD Screen..................................................130

Chapter 9 : Maintenance ...................................................................................................133

Appendix 1 : Technical Specifications ...............................................................................134

Appendix 2 : Warranty .......................................................................................................137

Chapter 1 : Important Safety Instructions

1.1 Installation Warnings

•This is a three-phase four-wire on-line uninterruptible power supply (hereafter referred

to as 'UPS'). It can be used for commercial and industrial applications.

•Install the UPS in a well-ventilated indoor area, away from excess moisture, heat, dust,

flammable gas or explosives. To avoid fire accidents and electric shock, the indoor area

must be free of conductive contaminants. For the temperature and humidity

specifications, please refer to Appendix 1: Technical Specifications.

•Leave adequate space around all sides of the UPS for proper ventilation and

maintenance. Please refer to 5.2 Installation Environment.

•Only authorized Delta engineers or service personnel can perform installation and

maintenance. If you want to install the UPS by yourself, please install it under the

supervision of authorized Delta engineers or service personnel.

•Follow the IEC 60364-4-42 standard to install the UPS.

1.2 Connection Warnings

•Before applying electrical power to the UPS, make sure that the UPS is grounded to

avoid a possible risk of current leakage.

•You can parallel up to eight UPS units.

•The UPS must be connected with an external battery cabinet (user-supplied, handled

and configured by Delta service personnel). Please refer to 5.5 External Battery

Cabinet Connection Warnings for relevant information.

•The UPS must be connected with an external maintenance bypass cabinet (user-

supplied, handled and configured by Delta service personnel). For the external

maintenance bypass cabinet’s information, please refer to the table below.

External

Maintenance

Bypass Cabinet

(user-supplied,

handled and

configured by

Delta service

personnel)

For configurations of the external maintenance bypass cabinet,

please refer to the following.

a. Selection of three or four breakers (switches):

(1) Three breakers (switches) for single input:

An input breaker (switch), a manual bypass breaker

(switch) and an output breaker (switch) must be installed.

(2) Four breakers (switches) for dual input:

An input breaker (switch), a bypass breaker (switch), a

manual bypass breaker (switch) and an output breaker

(switch) must be installed.

Ultron DPS Series 8

External

Maintenance

Bypass Cabinet

(user-supplied,

handled and

configured by

Delta service

personnel)

b. Each breaker (switch) mentioned above must be a 3-pole

(L1/ L2/ L3) device and meets the specifications defined in

Table 5-2 and Table 5-4.

c. It is suggested that each breaker (switch) should be

configured with an auxiliary switch. For relevant information,

please refer to 4.1.4 External Switch/ Breaker Status Dry

Contacts.

d. Install the external maintenance bypass cabinet next to the

UPS or align it with the UPS for convenient operation.

NOTE:

If there are switches but not breakers installed in the external maintenance bypass

cabinet, you must install (1) an additional protective device between the input

power and the external maintenance bypass cabinet and (2) an additional

protective device between the connected critical loads and the external

maintenance bypass cabinet. The protective device could be a breaker or a fuse.

For the protective device’s rating current, please refer to the table below.

800kVA 1000kVA 1200kVA

1600A 2000A 2500A

•It is necessary to connect the protective devices with the UPS when the UPS is

connected to power sources and critical loads.

•The protective devices connected to the UPS must be installed near the UPS and easily

accessible for operation.

•Protective Devices:

1. For single input, you must install (1) a protective device between the main AC source

and the UPS and (2) a protective device between the connected critical loads and

the UPS.

2. For dual input, you must install (1) a protective device between the main AC source

and the UPS, (2) a protective device between the bypass source and the UPS and

(3) a protective device between the connected critical loads and the UPS.

3. For grounding information, please refer to Figure 5-17 and Figure 5-20.

4. The recommended electrical rating of the input, output and backfeed protective

devices are as follows. Application of the protective devices shall be in accordance

with local installation codes.

800kVA 1000kVA 1200kVA

690V/ 1600A 690V/ 2000A 690V/ 2500A

5. Each protective device should have the functions of overcurrent protection, short

circuit protection, insulating protection and shunt trip feature. Please refer to the table

below for the UPS rated short-time withstand current (Icw).

800kVA 1000kVA 1200kVA

100kA 100kA 100kA

6. When selecting the protective devices, please take each power cable’s current

capacity and the system’s overload capacity (please refer to Appendix 1: Technical

Specifications) into consideration. Besides, the short-circuit capacity of the

upstream protective devices must be equal to or larger than the capacity of the UPS’s

input protective devices

7. Due to abnormalities in the UPS, the fault current may reach 20kA. At the time, the

UPS’s internal semi-conductor fuses will take 8 ~ 10 ms to open. Thus, the reaction

time of the upstream*1protective devices must be more than 10 ms so that the fuses

would have sufficient time to interrupt the fault current, and the UPS’s bypass will be

able to keep supplying power to the loads.

NOTE:

*1For dual input application, this refers to the bypass upstream.

8. If the UPS is supplied by a power source whose neutral is grounded, each protective

device must be a 3-pole type. If the UPS is supplied by a power source whose neutral

is not grounded, each protective device must be a 4-pole type.

1.3 Usage Warnings

•Before installation, wiring and working on the UPS’s internal circuits, please completely

cut off all power supplying to the UPS, including the input power and battery power.

•The UPS is specifically designed for information technology equipment and used to

power computers, servers, and associated peripheral devices. If you want to connect

any capacitive loads or non-linear loads (that have serious surge current) to the UPS, it

needs to be de-rated according to on-site applications. For such special applications,

please contact Delta service personnel for the accurate UPS sizing. The UPS is not

suitable for connecting with any asymmetrical loads. For the load suitability, please

contact Delta customer service before purchasing.

•The external slits and openings in the UPS are provided for ventilation. To ensure reliable

operation of the UPS and to protect the UPS from overheating, these slits and openings

must not be blocked or covered. Do not insert any object into the slits and openings that

may hinder ventilation.

•Before applying electrical power to the UPS, you must allow the UPS to adjust to room

temperature (20°C ~ 25°C (68°F ~ 77°F)) for at least one hour, and ensure that there is

no moisture condensing inside the unit.

•Do not put beverages on the UPS, external battery cabinet(s) or any other accessory

associated with the UPS.

Ultron DPS Series 10

•Do not open or remove the covers or panels of the UPS to avoid high-voltage electric

shock. Only authorized Delta engineers or service personnel can do so for installation

or maintenance. If you want to open or remove the covers or panels, do it only under the

supervision of authorized Delta engineers or service personnel.

•It is not recommended to connect the UPS to any regenerative loads. For the load

suitability, please contact Delta customer service before purchasing.

•The risk of dangerous high voltage is possible when batteries are still connected to the

UPS even though the UPS is disconnected from the power sources. Before maintenance

of the UPS, turn off each external battery cabinet’s circuit breaker to completely cut off

the battery power from the UPS.

•Do not dispose of the battery or batteries in a fire. The batteries may explode.

•Do not open or damage the battery or batteries. The released electrolyte is harmful to

the skin and eyes and may be toxic.

•The UPS is electronic equipment that runs 24 hours continuously. To ensure its normal

lifetime, regular maintenance of the UPS and batteries is of vital importance and

necessary.

•Some components like batteries, power capacitors, and fans will become worn-out due

to long-term usage, and this will increase the risk of UPS failure. To replace and maintain

the components, please contact Delta service personnel.

•A battery can present a risk of electric shock and high short-circuit current. The following

precautions should be observed before replacement of batteries:

1. Remove watches, rings, or other metal objects.

2. Use tools with insulating handles.

3. Wear insulating gloves and boots.

4. Do not lay tools or metal parts on the top of batteries.

5. Disconnect the charging source prior to connecting or disconnecting battery

terminals.

•You must contact Delta customer service if any of the following events occurs:

1. Any liquid is poured or splashed on the UPS.

2. The UPS is deformed.

3. Any conductive powders or metals enter into the UPS.

4. The UPS does not run normally after you carefully followed the instructions in this

User Manual.

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Unión Postal Universal de Delta

Delta

Delta Amplon Series Manual de usuario

Delta

Delta Amplon RX series Manual de usuario

Delta

Delta MBB-S Instrucciones de funcionamiento originales

Delta

Delta Modulon DPH series Manual de usuario

Delta

Delta 3KVA Manual de usuario

Delta

Delta Ultron HPH series Manual de usuario

Delta

Delta HPH-60K Manual de usuario

Delta

Delta 1KVA Manual de usuario

Delta

Delta Amplon MX Series Manual de usuario

Delta

Delta UPS102R2000B0B1 Instrucciones de funcionamiento originales

Delta

Delta Ultron DPM Series Manual de usuario

Delta

Delta Amplon RT Series Manual de usuario

Delta

Delta Amplon Series Manual de usuario

Delta

Delta Modulon DPH series Manual de usuario

Delta

Delta DPH series Manual de usuario

Delta

Delta RT Series Manual de usuario

Delta

Delta Amplon RT Series Manual de usuario

Delta

Delta Amplon RT5K Manual de usuario

Delta

Delta Ultron DPS-400K Manual de usuario

Delta

Delta Amplon RT Series 5-10kVA Manual de usuario

Delta

Delta UPS103N2004N0B0 Instrucciones de funcionamiento originales

Delta

Delta Amplon RT Series Manual de usuario

Delta

Delta VX Series Manual de usuario

Delta

Delta Amplon RT Series Manual de usuario

Manuales populares de Unión Postal Universal de otras marcas

Pylontech

Pylontech Victron & Pylontech US5000 Manual de usuario

Tecnoware

Tecnoware EVO DSP PLUS MM 6.8 Manual de usuario

Mecer

Mecer ME-1000-WTU Manual de usuario

Mustek

Mustek PowerMust 530(B) Plus Manual de instalación y operación

Emerson

Emerson Liebert NXL series Manual de usuario

MAKELSAN

MAKELSAN BOXER SERIES Manual de usuario

Block

Block PC-0524-400-0 Manual de usuario

CyberPower

CyberPower CP585LCD Manual de usuario

Eaton

Eaton 3S Instrucciones de montaje

CyberPower

CyberPower Office Tower Series UPS 1000 Manual de usuario

CyberPower

CyberPower BM100 Manual de usuario

Best Power

Best Power 610 Manual de usuario

Best Power

Best Power Unity/I UT3K Manual de usuario

Mustek

Mustek PowerMust 400 Offline Manual de usuario

Xantrex

Xantrex Trace 512 UR-UPS Manual de usuario

Forza

Forza SL-1501UL Manual de usuario

LEGRAND

LEGRAND keor 310081 Manual de usuario

ABB

ABB Conceptpower DPA 500 Manual de usuario
