Delta 34-868 Manual de usuario

422-04-655-0053 - 10-17-02

INSTALLING 34-868 SPLITTER

ASSEMBLY

INTRODUCTION

IMPORTANT: The following instructions for installing

the splitter are shown on a Delta 10" right-tilting arbor

Unisaw.

Fig. 2

Fig. 3

Fig. 1

ASSEMBLY

1. Locate the following components shown in Fig.1, for

the splitter assembly.

A. Splitter

B. 5/16 - 18 x 5/8" button head screws (2)

DISCONNECT MACHINE FROM

POWER SOURCE.

2. Remove the saw blade from the saw arbor and

remove the standard splitter assembly, including mount-

ing brackets, from the saw as shown in Fig. 2.

DO NOT USE THIS MACHINE WITH-

OUT A BLADE GUARD. AN OVERARM TYPE GUARD

SYSTEM IS RECOMMEND TO BE USED WITH THIS

SPLITTER ASSEMBLY.

3. Assemble the splitter (A) Fig. 3, to the inside of rear

trunnion using two button head screws (B), and hex

wrench (C). NOTE: Do not completely tighten the button

head screws at this time.

4. Using a straight edge (S) Fig. 4, align the splitter (A) to

saw arbor (B) as shown. Then tighten two screws assem-

bled in step 3.

Fig. 4

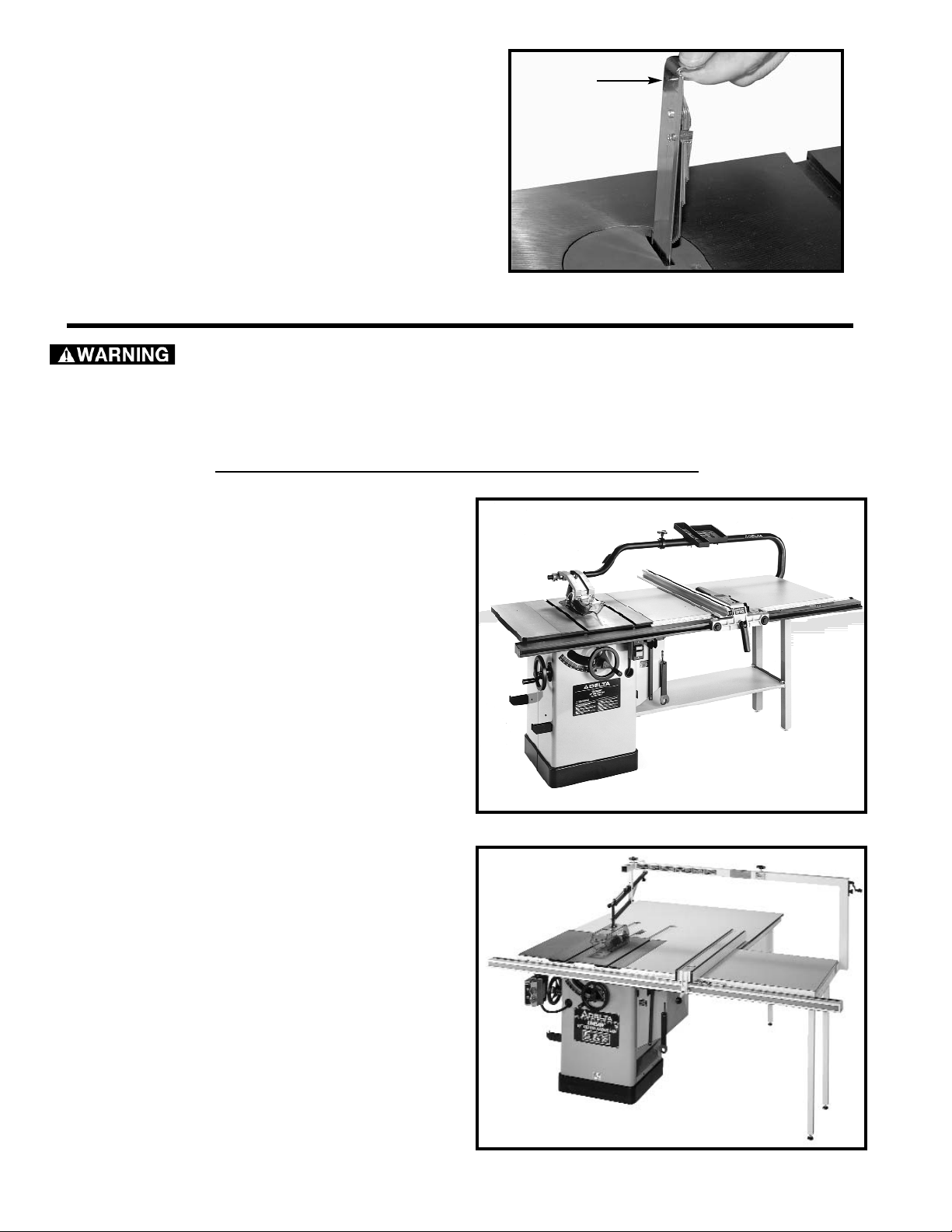

5. To position the splitter for use, lift up on the slide bar

as shown in (B) Fig. 5, and then release.

Fig. 5

BLADE GUARD ACCESSORIES

Deluxe Uniguard®Blade Guard

The Delta Model 34-976 Uniguard Blade Guard Fig. 6, is

an accessory that can be used in place of the standard

blade guard. The Delta Model 34-976 Uniguard Blade

Guard can be mounted with a UniRip or Unifence, fence

systems.

78-953 Uniguard Strap Kit. Kit replaces the rear angle

rail of Biesemeyer 30" and 50" Commercial Fence

Systems and Home Shop Fence Systems up to 52" for

mounting the No. 34-976 Delta Uniguard Blade Guard.

Fig. 6

Biesemeyer®T-Square®Table

Saw Blade Guard System

The Biesemeyer Model 78-960 T-Square Table Saw

Blade Guard System Fig. 7, is an accessory that can be

used in place of the standard blade guard.

78-960 10" System for Home Shop 52" and Commercial

50" Fence Systems.

78-955 10" System for Home Shop 28", 40" and

Commercial 26", 30" and 38" Fence Systems. Same as

78-960 except for fence systems 40" and under.

Fig. 7

DO NOT USE THIS MACHINE WITHOUT A BLADE GUARD. AN OVERARM

TYPE GUARD SYSTEM IS RECOMMEND TO BE USED WITH THIS SPLITTER ASSEMBLY.

SOME TYPES OF OVERARM BLADE GUARD SYSTEMS ARE SHOWN BELOW AND ARE

AVAILABLE FROM DELTA. OTHER BRANDS SIMILAR TO THESE CAN ALSO BE USED.
