Delta VFD-E Manual de usuario

Revision Oct. 2009, 07EE, SW--PW V1.14/CTL V2.14 1-1

Chapter 1 Introduction

The AC motor drive should be kept in the shipping carton or crate before installation. In order to retain

the warranty coverage, the AC motor drive should be stored properly when it is not to be used for an

extended period of time. Storage conditions are:

CAUTION!

1. Store in a clean and dry location free from direct sunlight or corrosive fumes.

2. Store within an ambient temperature range of -20 °C to +60 °C.

3. Store within a relative humidity range of 0% to 90% and non-condensing environment.

4. Store within an air pressure range of 86 kPA to 106kPA.

5. DO NOT place on the ground directly. It should be stored properly. Moreover, if the surrounding

environment is humid, you should put exsiccator in the package.

6. DO NOT store in an area with rapid changes in temperature. It may cause condensation and

frost.

7. If the AC motor drive is stored for more than 3 months, the temperature should not be higher

than 30 °C. Storage longer than one year is not recommended, it could result in the degradation

of the electrolytic capacitors.

8. When the AC motor drive is not used for longer time after installation on building sites or places

with humidity and dust, it’s best to move the AC motor drive to an environment as stated above.

Chapter 1 Introduction|

1-2 Revision Oct. 2009, 07EE, SW--PW V1.14/CTL V2.14

1.1 Receiving and Inspection

This VFD-E AC motor drive has gone through rigorous quality control tests at the factory before

shipment. After receiving the AC motor drive, please check for the following:

Check to make sure that the package includes an AC motor drive, the User Manual/Quick

Start and CD.

Inspect the unit to assure it was not damaged during shipment.

Make sure that the part number indicated on the nameplate corresponds with the part

number of your order.

1.1.1 Nameplate Information

Example for 1HP/0.75kW 3-phase 230V AC motor drive

MODEL VFD007E23A:

INPUT :3PH 200-240V 50/60Hz 5.1A

OU TPUT :3PH 0-240V 4.2A 1.6kVA 0.75kW/1HP

FREQUENCY RANGE : 0.1~400Hz

Se ri a l Nu mber & Bar Co de

AC Drive Mod el

Input Spec.

Output Spec.

Output Frequency Range

007E23A0T8011230

01.03

02.03

Software Version

Power Board

Control Board

1.1.2 Model Explanation

VFD A

Version Type

Mains Input Voltage

11:115 Single phaseV 21: phase230V Single

23:230 Three phaseV

E Series

007

Applicable motor capacity

Series Name ( ariable requency rive)VF D

43:460 Three phaseV

A: Standard driv

C: CANopen

P: Cold plate drive (frame A only)

T: Frame A, built-in brake chopper

004: 0.5 HP(0.4kW)

007: 1 HP(0.75kW)

015: 2 HP(1.5kW)

022: 3 HP(2.2kW)

002: 0.25 HP(0.2kW)

055: 7.5 HP(5.5kW)

075: 10 HP(7.5kW)

110: 15 HP(11kW)

037: 5 HP(3.7kW)

150: 20 HP(15kW)

220: 30 HP(22kW)

185: 25 HP(18.5kW)

Chapter 1 Introduction|

Revision Oct. 2009, 07EE, SW--PW V1.14/CTL V2.14 1-3

1.1.3 Series Number Explanation

1230

0T007E23A

Production number

Production year 2008

Pro duction f actory

Production week

T: Taoyuan, W: Wujiang

Model

230V 3-phase 1HP(0.75kW)

If the nameplate information does not correspond to your purchase order or if there are

any problems, please contact your distributor.

1.1.4 Drive Frames and Appearances

0.25-2HP/0.2-1.5kW (Frame A)

Input terminals

(R/L1, S/L2, T/L3)

Keypad cover

Output terminals

(U/T1, V/T2, W/T3)

Control board cover

Chapter 1 Introduction|

1-4 Revision Oct. 2009, 07EE, SW--PW V1.14/CTL V2.14

1-5HP/0.75-3.7kW (Frame B)

Input terminals

(R/L1, S/L2, T/L3)

Keypad cover

Case body

Control board cover

Output terminals

(U/T1, V/T2, W/T3)

7.5-15HP/5.5-11kW (Frame C)

Input terminals

(R/L1, S/L2, T/L3)

Case body

Keypad cover

Control board cover

Output terminals

(U/T1, V/T2, W/T3)

20-30HP/15-22kW (Frame D)

Input terminals

(R/L1, S/L2, T/L3)

Case body

Keypad cover

Control board cover

Output terminals

(U/T1, V/T2, W/T3)

Chapter 1 Introduction|

Revision Oct. 2009, 07EE, SW--PW V1.14/CTL V2.14 1-5

Internal Structure

READY: power indicator

RUN: status indicator

FAULT: fault indicator

NPN/PNP

RS485 port (RJ-45)

Switch to ON for 50Hz, refer to

P 01.00 to P01.02 for details

Switch to ON for free run to stop

refer to P02.02

Switch to ON for setting frequency

source to ACI (P 02.00=2)

ACI terminal (ACI/AVI2 switch )

Mounting port for extension card

NOTE

The LED “READY” will light up after applying power. The light won’t be off until the capacitors are

discharged to safe voltage levels after power off.

RFI Jumper Location

Frame A: near the output terminals (U/T1, V/T2, W/T3)

Chapter 1 Introduction|

1-6 Revision Oct. 2009, 07EE, SW--PW V1.14/CTL V2.14

Frame B: above the nameplate

Frame C: above the warning label

Frame D: near the input terminals (R/L1, S/L2, T/L3)

Frame Power range Models

VFD002E11A/21A/23A, VFD004E11A/21A/23A/43A,

VFD007E21A/23A/43A, VFD015E23A/43A

VFD002E11C/21C/23C, VFD004E11C/21C/23C/43C,

VFD007E21C/23C/43C, VFD015E23C/43C

A (A1) 0.25-2hp (0.2-1.5kW)

VFD002E11T/21T/23T, VFD004E11T/21T/23T/43T,

VFD007E21T/23T/43T, VFD015E23T/43T

A (A2) 0.25-2hp (0.2-1.5kW) VFD002E11P/21P/23P, VFD004E11P/21P/23P/43P,

VFD007E21P/23P/43P, VFD015E23P/43P

B 1-5hp (0.75-3.7kW)

VFD007E11A, VFD015E21A, VFD022E21A/23A/43A,

VFD037E23A/43A, VFD007E11C, VFD015E21C,

VFD022E21C/23C/43C, VFD037E23C/43C

C 7.5-15hp (5.5-11kW) VFD055E23A/43A, VFD075E23A/43A, VFD110E23A/43A,

VFD055E23C/43C, VFD075E23C/43C, VFD110E23C/43C

D 20-30hp (15-22kW) VFD150E23A/43A, VFD150E23C/43C, VFD185E43A/43C,

VFD220E43A/43C

Chapter 1 Introduction|

Revision Oct. 2009, 07EE, SW--PW V1.14/CTL V2.14 1-7

RFI Jumper

RFI Jumper: The AC motor drive may emit the electrical noise. The RFI jumper is used to suppress

the interference (Radio Frequency Interference) on the power line.

Main power isolated from earth:

If the AC motor drive is supplied from an isolated power (IT power), the RFI jumper must be cut off.

Then the RFI capacities (filter capacitors) will be disconnected from ground to prevent circuit damage

(according to IEC 61800-3) and reduce earth leakage current.

CAUTION!

1. After applying power to the AC motor drive, do not cut off the RFI jumper. Therefore,

please make sure that main power has been switched off before cutting the RFI jumper.

2. The gap discharge may occur when the transient voltage is higher than 1,000V. Besides,

electro-magnetic compatibility of the AC motor drives will be lower after cutting the RFI

jumper.

3. Do NOT cut the RFI jumper when main power is connected to earth.

4. The RFI jumper cannot be cut when Hi-pot tests are performed. The mains power and

motor must be separated if high voltage test is performed and the leakage currents are

too high.

5. To prevent drive damage, the RFI jumper connected to ground shall be cut off if the AC

motor drive is installed on an ungrounded power system or a high resistance-grounded

(over 30 ohms) power system or a corner grounded TN system.

1.1.5 Remove Instructions

Chapter 1 Introduction|

1-8 Revision Oct. 2009, 07EE, SW--PW V1.14/CTL V2.14

Remove Keypad

1. Press and hold in the tabs on each side

of the cover.

2. Pull the cover up to release.

Remove Front Cover

Step 1 Step 2

Remove RST Terminal Cover

For Frame B, Frame C and Frame D: it only

needs to turn the cover lightly to open it

For frame A, it doesn’t have cover and can be

wired directly.

Remove UVW Terminal Cover

For Frame B, Frame C and Frame D: it only

needs to turn the cover light to open the cover

For frame A, it doesn’t have cover and can be

wired directly.

Remove Fan

For Frame A, Frame B, Frame C and Frame

press and hold in the tabs on each side of the

fan and pull the fan up to release.

Remove Extension Card

For Frame A, Frame B, Frame C and Frame

press and hold in the tabs on each side of the

extension card and pull the extension card up

to release. On the other hand, it can install the

extension card into the AC motor drive with

screws.

Chapter 1 Introduction|

Revision Oct. 2009, 07EE, SW--PW V1.14/CTL V2.14 1-9

1.2 Preparation for Installation and Wiring

1.2.1 Ambient Conditions

Install the AC motor drive in an environment with the following conditions:

Air Temperature: -10 ~ +50°C (14 ~ 122°F) for UL & cUL

-10 ~ +40°C (14 ~ 104°F) for side-by-side mounting

Relative Humidity: <90%, no condensation allowed

Atmosphere

pressure: 86 ~ 106 kPa

Installation Site

Altitude: <1000m

Operation

Vibration: <20Hz: 9.80 m/s2(1G) max

20 ~ 50Hz: 5.88 m/s2(0.6G) max

Temperature: -20°C ~ +60°C (-4°F ~ 140°F)

Relative Humidity: <90%, no condensation allowed

Atmosphere

pressure: 86 ~ 106 kPa

Storage

Transportation

Vibration: <20Hz: 9.80 m/s2(1G) max

20 ~ 50Hz: 5.88 m/s2(0.6G) max

Pollution

Degree 2: good for a factory type environment.

Minimum Mounting Clearances

Frame A Mounting Clearances

Single drive Side-by-side installation Air flow

120mm

50mm

120mm

50mm

Air Flow

Otros manuales para VFD-E

Tabla de contenidos

Otros manuales de Accionamiento de CC de Delta

Delta

Delta VFD300C43S-HS Manual de usuario

Delta

Delta VFD-EL-C Series Manual de usuario

Delta

Delta VFD-M Series Manual de usuario

Delta

Delta VFD-EL-W Series Manual de usuario

Delta

Delta CT2000 Series Manual de usuario

Delta

Delta VFD-ED Series Manual de usuario

Delta

Delta ME300 Series Manual de usuario

Delta

Delta EB3000 Series Manual de usuario

Delta

Delta VFD-B Series Manual de usuario

Delta

Delta VFD-B 230V Series Manual de usuario

Delta

Delta VFD-MS300 Series Manual

Delta

Delta VFD-EL-W Series Manual de usuario

Delta

Delta CP2000 Series Manual de usuario

Delta

Delta CP2000 Series Manual de usuario

Delta

Delta VFD-B Manual de usuario

Delta

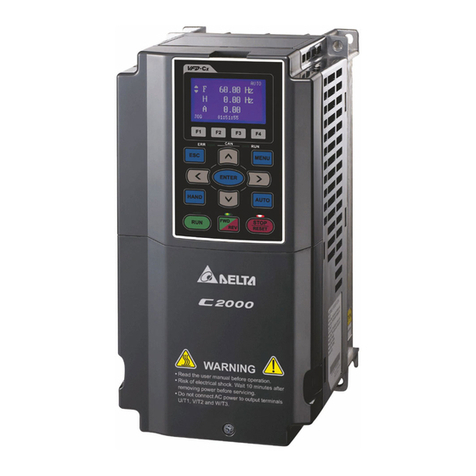

Delta C2000 Plus Series Manual de usuario
