OPBD-155F1J1R

DELTA ELECTRONICS, INC.

1 Revision: S2

03/09/2007

www.deltaww.com

1x9 Bi-Directional Transceiver Module for Fast

Ethernet, ATM, SONET OC-3/SDH STM-1

FEATURES

 RoHS compliant

 Industry Standard 1 x 9 Footprint

 Single Mode Fiber, Bi-Directional

Transmission with 1550nm Transmitter and

1310nm Receiver

 Link Distance up to 15km

 Single +5V power supply and PECL logic

interface

 Wave Solderable and Aqueous Washable

 Bellcore GR-468 compliant

 Laser Class 1 Product which comply with the

requirements of IEC 60825-1 and IEC 60825-2

Description

DELTA’s 1x9 Bi-Directional transceiver is

designed for point-to-point Bi-Directional Optical

Network transmission. The module consists

1550nm FP laser, InGaAs PIN, Preamplifier and

WDM filter in a high-integrated optical

sub-assembly, and it receives up to 155Mbps of

continuous data at 1310nm, and transmits

155Mbps of continuous data at 1550nm.

The module is contained in a 1x9 industry

standard package with a SC receptacle connector,

and support PECL electrical signal Interface and

receiver signal detect output.

Application

 TTC TS-1000

 ITU-T G.985

 IEEE 802.3ah 100BASE-BX/ Fast Ethernet

 SONET OC-3/SDH STM-1/ ATM Network

 FTTx Broadband Access System

Performance

 OPBD-F1J1R data link up to 15km in 9/125um

single mode fiber.

OPBD-155F1J1R

DELTA ELECTRONICS, INC.

2 Revision: S2

03/09/2007

www.deltaww.com

0.85

1.20

0.80

1.00

0.50

0.20

0.00

-0.20

Amplitude

0.350.150.00

Time

0.65

Mean level of logical "0"

1.00

Mean level of logical "1"

Opt

l P

h B

esse

l Fil

Spec

ifi

in IT

-T

G.957

1. Absolute Maximum Ratings

Parameter Symbol Min. Typ. Max. Unit Note

Storage Temperature Ts -40 85 ºC

Operating Ambient Temperature Ta -10 80 ºC

Storage Ambient Humidity HA5 95 %

Power Supply Voltage VCC -0.5 6 V

Signal Input Voltage -0.3 Vcc+0.3 V

Optical Input Power (Peak) 0 dBm

Lead Soldering Temperature TSOLD 260 ºC

Lead Soldering Time tSOLD 10 sec

2. Recommended Operating Conditions

Parameter Symbol Min. Typ. Max. Unit Note

Ambient Operating Temperature TA0 70 ºC

Without air flow

Ambient Humidity HA5 85 %

Non-condensing

Power Supply Voltage VCC 4.75 5 5.25 V

Power Supply Current ICC 250 mA

Power Supply Noise Rejection 100 mVp-p 100Hz to 1MHz

Data Rate 10 155.52 Mbps

Transmission Distance 15 km

3. Optical Specification of Transmitter

Parameter Symbol Min. Typ. Max. Unit Note

Average Launched Power PO-14 -11 -8 dBm Note (1)

Launched power (Peak.) -5

dBm

Extinction Ratio ER 8.5 dB

Center Wavelength λC1480 1520 1580 nm FP Laser

Spectrum Width (RMS) σ3

Optical Rise/Fall Time tr/tf1.3 ns Note (2)

Total Jitter tJ1 ns Note (3)

Optical Return Loss Tolerance ORLT 14 dB

Relative Intensity Noise RIN -116 dB/Hz

Output Eye Mask Compliant with Bellcore TR-NWT-000253

and ITU recommendation G.957 Note (4)

Note (1). Launched power (avg.) is power coupled into a single mode fiber.

Note (2). These are unfiltered 20-80% values.

Note (3). Measure at 223-1 NRZ PRBS pattern

Note (4). Eye Mask definition

OPBD-155F1J1R

DELTA ELECTRONICS, INC.

3 Revision: S2

03/09/2007

www.deltaww.com

4. Optical Specification of Receiver

Parameter Symbol Min. Typ. Max. Unit Note

Input Optical Wavelength λIN 1260 1360 nm PIN-PD

Receiver Sensitivity PIN -30

dBm Note (1)

Input Saturation Power (Overload) PSAT -3 dBm

Signal Detect -Assert Power PA- -30 dBm

Signal Detect -Deassert Power PD-44 dBm Note (2)

Signal Detect Hysteresis PA-PD0.5 2.5 6 dB

Optical Receiver Reflectance -14 dB Note (3)

Output Data Rise/Fall time tr/tf1.5 ns Note (4)

S/X Endurance 10 dB Note (5)

Optical Isolation 25 dB Note (6)

Note (1). Measured with 1310nm, ER=10dB; BER =<10-10@PRBS=223-1 NRZ

Note (2). When SD deasserted, the data output is Low-level (fixed)

Note (3). When the terminal is viewed from the optical path, the reflection toward the optical path of the

optical signal with a central wavelength of 1260nm to 1360nm transmitted to terminal.

Note (4). These are 20%~80% values

Note (5). X=10 MHz, Rectangular BER =10-10

Note (6). Receiver isolation between 1480nm ~1580nm

5. Electrical Interface Characteristics

Parameter Symbol Min. Typ. Max. Unit Note

Transmitter

Total Supply Current ICC A mA Note (1)

Differential line input Impedance RIN 80 100 120 Ohm

Differential Data Input Swing VDT 300 1600 mVp-p

Data Input Voltage- High VIH-VCC -1.165 -0.880 V

Data Input Voltage- Low VIL-VCC -1.810 -1.475 V PECL

Receiver

Total Supply Current ICC B mA Note (1)

Differential Data Output Swing VDR 400 2000 mVp-p

Data Output Voltage-High VOH-VCC -1.085 -0.880 V

Data Output Voltage-Low VOL-VCC -1.830 -1.555 V

Signal Detect Output Voltage-High VOH-VCC -1.085 -0.880 V

Signal Detect Output Voltage-Low VOL-VCC -1.830 -1.555 V

PECL

Note (1). A (TX)+ B (RX) = 250mA

(A: Not include termination circuit; B: using a resister of 270Ωbetween Data-output and ground)

OPBD-155F1J1R

DELTA ELECTRONICS, INC.

4 Revision: S2

03/09/2007

www.deltaww.com

6. Pin Description

Tx/Rx Pin No. I/O Pin Name Description

1 VeeR Receiver Ground

2 O RD(n) Inverted Receiver Data Output

3 O RD(p) Non-Inverted Receiver Data Output

4 O SD

Normal Optical Input indicated by logic “High”, and No Optical

Input indicated by logic “Low”.

5 VccR +5V Receiver Power Supply

6 VccT +5V Transmitter Power Supply

7 I

TD(p) Non-Inverted Transmitter Data Input

8 I

TD(n) Inverted Transmitter Data Input

9 VeeT Transmitter Ground

MS Mounting studs/ connect this pin to Chassis ground

Bottom View

OPBD-155F1J1R

DELTA ELECTRONICS, INC.

5 Revision: S2

03/09/2007

www.deltaww.com

7. Recommended Interface Circuit (AC Coupling)

C1/2/3 =4.7uF

C4/5/6/7 = 100 nF

L1/2 =1uH

R1/2 =68Ω(If C4/5=0, then R1/2 =82 Ω, it is for DC-coupled.)

R3/4 =180Ω(If C4/5=0, then R3/4 =130 Ω, it is for DC-coupled.)

R7/8 =270

Ω

WR5/6/9/10/11/12 Depend on SerDes chip used

R13 =510Ω

Value of R5/6/9/10/11/12 may vary as long as proper 50 Ωtermination or differential 100 Ωis

provided. For good EMI performance, the power supply filter is required. Use shorter tracks from the

inductor L1/2 to the module VccTx/VccRx .

Laser

Driver

LIMITING

Amp lif i er

Serializer/

Deserializer

ECL/PECL

DRIVER

Receiver

PLL etc.

VCC

TX+

TX-

RD-

RD+

VCC SerDes

3.3V

TXGND

TxD

VCCRx

VCC SerDes

3.3V

Pre-

Amp

RxD

RxGND

VCCTx

Delta Transceiver

C1 L2

Signal detect

S D to upper leve l

R13

R12

R10

R11

R4 R2

Laser

Driver

LIMITING

Amp lif i er

Serializer/

Deserializer

ECL/PECL

DRIVER

Receiver

PLL etc.

VCC

TX+

TX-

RD-

RD+

VCC SerDes

3.3V

TXGND

TxD

VCCRx

VCC SerDes

3.3V

Pre-

Amp

RxD

RxGND

VCCTx

Delta Transceiver

C1 L2

Signal detect

S D to upper leve l

R13

R12

R10

R11

R4 R2

OPBD-155F1J1R

DELTA ELECTRONICS, INC.

6 Revision: S2

03/09/2007

www.deltaww.com

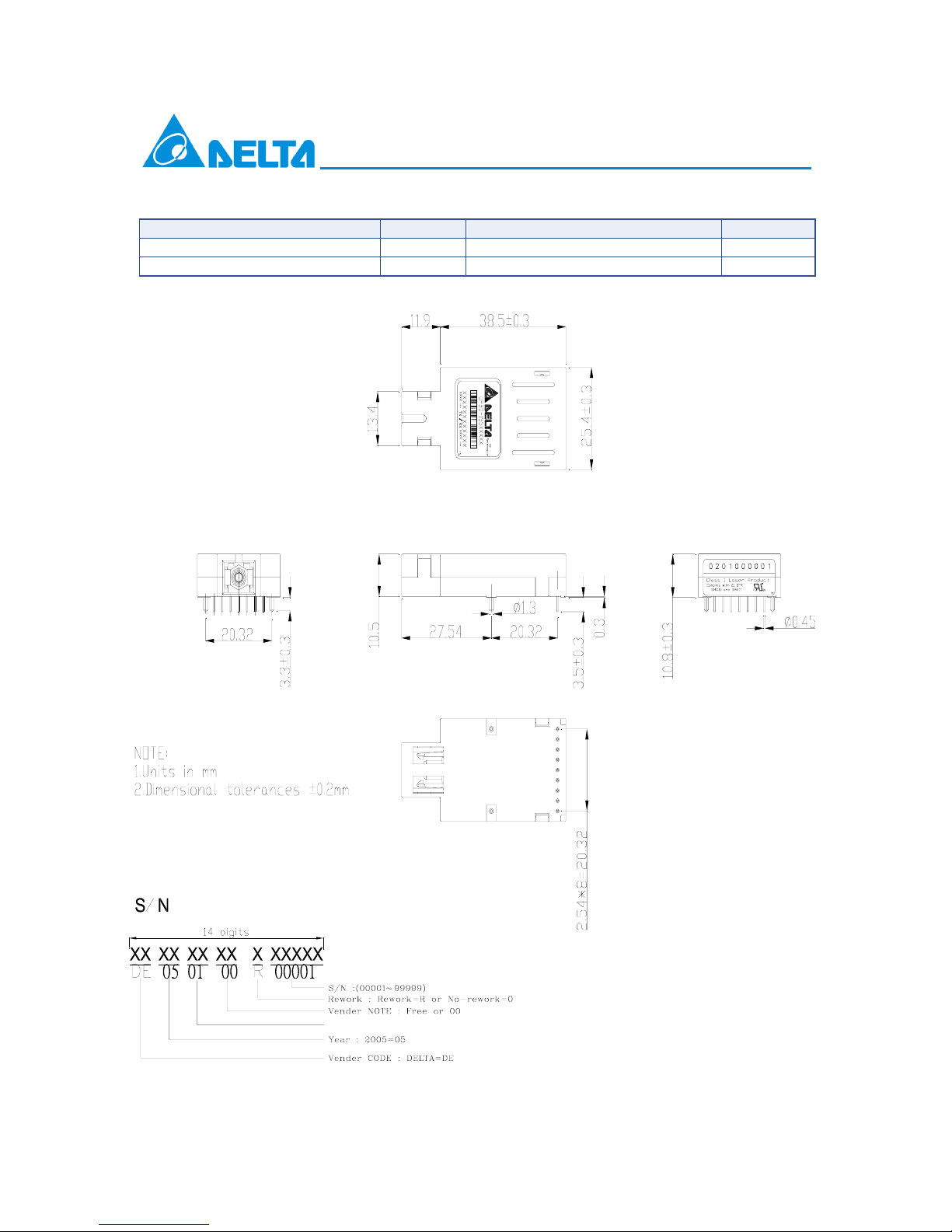

8. Outline Dimensions

Parameter Unit Description Note

Mechanical Dimensions mm 50.4x25.4x10.8

Connector Type - SC Receptacle Connector IEC-61754-4

Week (52Weeks/Year) : 1月2日=01

OPBD-155F1J1R

DELTA ELECTRONICS, INC.

7 Revision: S2

03/09/2007

www.deltaww.com

9. Regulatory Compliance

Feature Test Method Reference Performance

Human Body Model

(HBM)

MIL-STD-883E Method 3015.7

EIA-JESD22-A114

Electrostatic Discharge

(ESD) to the Electrical

Pins Machine Model (MM) EIA-JESD22-A115

Contact Discharge IEC/EN 61000-4-2Electrostatic Discharge

(ESD) to the Simplex

Receptacle Air Discharge IEC/EN 61000-4-2

Radio Frequency

Electromagnetic Field

Immunity

IEC/EN 61000-4-3

Electromagnetic

Interference (EMI)

FCC Part 15 Class B

EN 55022 Class B

(CISPR 22A)

(1) Satisfied with

electrical

characteristics of

product spec.

(2) No physical damage

Laser Eye Safety

FDA/CDRH

TUV

FDA 21CFR 1040.10, 1040.11

IEC/EN 60825-1

IEC/EN 60825-2

CDRH File # 0420993

TUV Certificate #

R50032471

Component Recognition

TUV

UL/CSA

IEC/EN 60950

UL 60950

UL File # E239394

Appendix A. Document Revision

Version No. Date Description

S0 2006-05-10 Preliminary datasheet

S1 2006-09-12 Add barcode on product label

S2 2007-03-09

Change the module height from 9.7±0.3mm to 10.8±0.3mm
