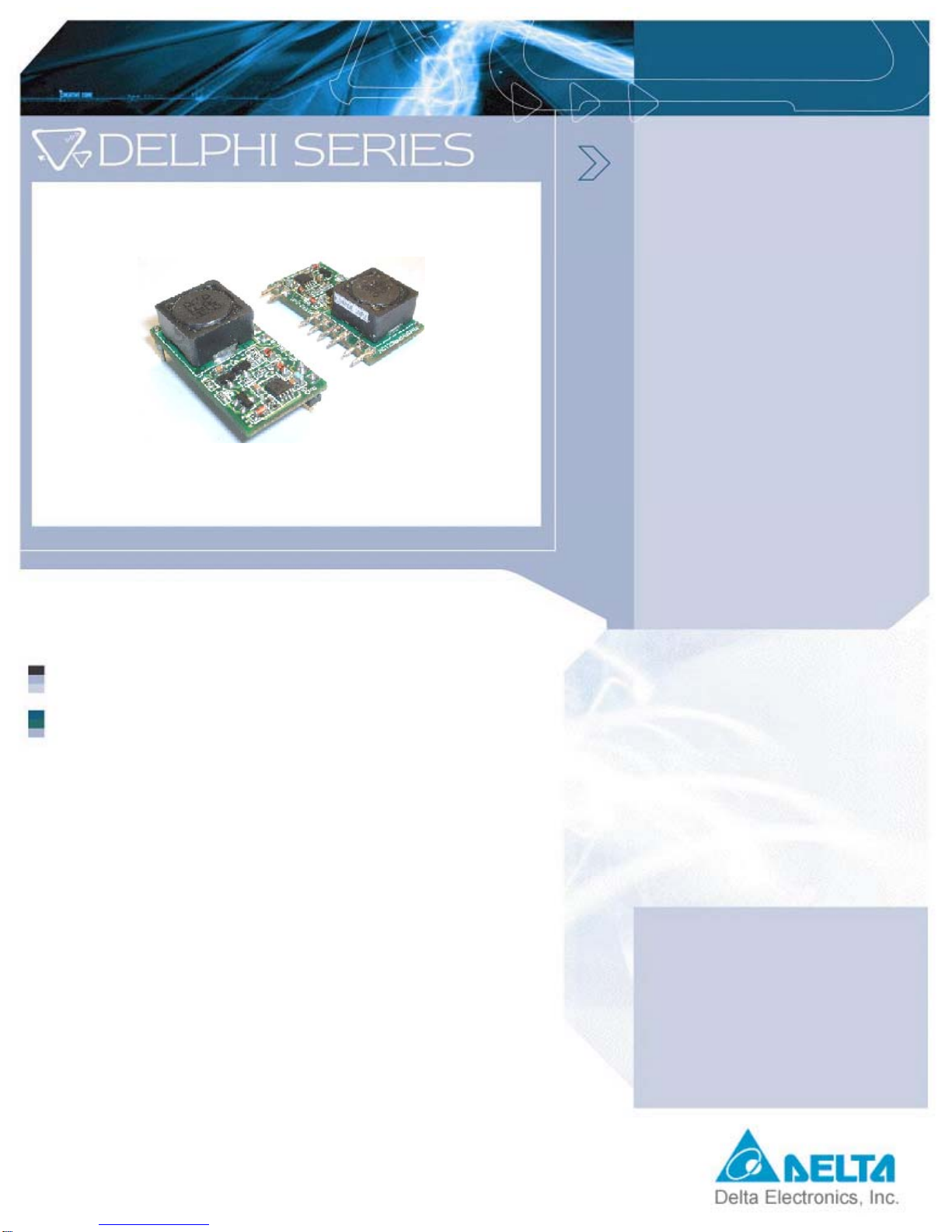

Delphi NC Series Non-Isolated Point of Load

DC/DC Power Modules: 12Vin, 0.9V-5.0Vout, 6A

The Delphi NC Series, 12V input, single output, non-isolated point of

load DC/DC converters are the latest offering from a world leader in

power systems technology and manufacturing -- Delta Electronics,

Inc. This product family provides up to 6A of power in a vertical or

horizontal mounted through-hole package. The NC12S0A0X06

presented in this datasheet will provide up to 6A of output current and

the output can be resistor- or voltage-trimmed from 0.9Vdc to 5.0Vdc.

It provides a very cost effective point of load solution. With creative

design technology and optimization of component placement, these

converters possess outstanding electrical and thermal performance,

as well as extremely high reliability under highly stressful operating

conditions.

APPLICATIONS

 DataCom

 Distributed power architectures

 Servers and workstations

 LAN/WAN applications

 Data processing applications

FEATURES

 High Efficiency:

91% @ 12Vin, 5V/6A out

 Voltage and resistor-based trim

 No minimum load required

 Output voltage programmable from

0.9Vdc to 5.0Vdc via external resistors

 Fixed frequency operation

 Input UVLO, output OCP, SCP

 Remote ON/OFF (Positive)

 ISO 9001, TL 9000, ISO 14001, QS9000,

OHSAS 18001 certified manufacturing

facility

 UL/cUL 60950 (US & Canada)

Recognized, and TUV (EN60950) Certified

DATABRIEF

DB_NC12S06A_02022007

SPECIFICATIONS

GENERAL SPECIFICATIONS OUTPUT SPECIFICATIONS

Input Voltage 10.2V~13.8V Output Voltages programmable 0.9V~5.0V

Switching Frequency Typical 300KHz Voltage Accuracy Typical ±3% of Vo

Operating Temperature Typical - 40°C ~ + 80°C Output Current Maximum 6A

MTBF 7.6M hours Ripple & Noise 0.9V~2.5V 40 mVp-p

Size (Vertical Version) (1.20”×0.61”×0.46”) 30.5x15.5x11.7mm 3.3V~5.0V 50 mVp-p

Size (Horizontal Version) (1.20”×0.61”×0.48”) 30.5x15.5x12.3mm Weight 7.1g

PART NUMBERING SYSTEM

NC 12 S 0A0 H 06 P N F A

Product

Series Input Voltage Number of

outputs Output

Voltage Mounting Output

Current ON/OFF

Logic Pin

Length Option

Code

NC-

Non-isolated

Converter

12- 10.2~13.8V

S- Single

output

0A0-

programmable H- Horizontal

V- Vertical 06- 6A

P- Positive

N-0.14”

R-0.118” F- RoHS 6/6

(Lead Free) A- Standard

Functions

MODEL LIST

Model Name Packaging Input Voltage Output Voltage Output Current Efficiency

12Vin @ 100% load

NC12S0A0V06PNFA Vertical 10.2~ 13.8Vdc 0.9 V~ 5.0Vdc 6A 91% (5.0V)

NC12S0A0H06PNFA Horizontal 10.2~ 13.8Vdc 0.9 V~ 5.0Vdc 6A 91% (5.0V)

MECHANICAL DRAWING

VERTICAL HORIZONTAL

CONTACT: www.delta.com.tw/dcdc

USA:

Telephone:

East Coast: (888) 335 8201

West Coast: (888) 335 8208

Fax: (978) 656 3964

Email: [email protected]

Europe:

Telephone: +41 31 998 53 11

Fax: +41 31 998 53 53

Email: [email protected]

Asia & the rest of world:

Telephone: +886 3 4526107 ext. 6220

Fax: +886 3 4513485

Email: [email protected]

WARRANTY

Delta offers a two (2) year limited warranty. Complete warranty information is listed on our web site or is available upon request from Delta.

Information furnished by Delta is believed to be accurate and reliable. However, no responsibility is assumed by Delta for its use, nor for any

infringements of patents or other rights of third parties, which may result from its use. No license is granted by implication or otherwise under any

patent or patent rights of Delta. Delta reserves the right to revise these specifications at any time, without notice.
