Delta Electronics SMT Power Inductor HCB1380 Instrucciones de instalación

7.0

13.5

XXX

7.0

UNIT : mm/inch

A = 13.50 / 0.531 Max.

B = 13.00 / 0.512 Max.

C = 8.00 / 0.315 Max.

D = 5.00 / 0.197

E = 2.50 / 0.098

Features

SMT Power Inductor

HCB1380 Type

Mechanical Dimension :

DELTA ELECTRONICS, INC.

(TAOYUAN PLANT CPBG) 252, SAN YING ROAD, KUEISAN INDUSTRIAL ZONE, TAOYUAN SHIEN, 333, TAIWAN, R.O.C.

TEL: 886-3-3591968; FAX: 886-3-3591991

http://www.deltaww.com

Electrical Characteristics : At 25 : 100KHz, 1V

118

RECOMMENDED PAD PATTERNS

1. Tolerance of inductance is 20%.

2. Isat is the DC current which cause the inductance drop approximately 20% of its nominal inductance without current.

3. Irms is the DC current which cause the surface temperature of the part increase less than 45 C.

4. Operating temperature : -20 C to 105 C ( including self-temperature rise ).

PART NO. Lo DCR Isat Irms

(nH) (m ) MAX (Adc) (Adc)

HCB1380-161 160 0.32 71 45

HCB1380-171 170 0.32 71 45

HCB1380-211 210 0.32 70 45

HCB1380-261 260 0.32 60 45

HCB1380-261H 260 0.53 11.3% 60 39

HCB1380-321 320 0.32 45 45

HCB1380H-321 320 0.32 60 60

HCB1380-361 360 0.32 40 45

HCB1380-361H 360 0.60 40 39

HCB1380-441 440 0.32 32 45

HCB1380-441D1 440 0.24 32 58

HCB1380-441D2 440 0.32 9.4% 32 45

RoHS compliant.

Low profile, SMD type.

High current.

Magnetic shielded.

High energy storage and low DCR.

Provided with embossed carrier tape packing.

Ideal for power source circuits, DC-DC converter, DC-AC inverters

inductor applications.

In addition to the standard versions shown here, customized inductors

are available to meet your exact requirements.

Otros manuales de Inductor de potencia de Delta Electronics

Delta Electronics

Delta Electronics SI415 Manual de usuario

Delta Electronics

Delta Electronics SMT Power Inductor HAH1340 Instrucciones de instalación

Delta Electronics

Delta Electronics SMT Power Inductor SIA3223 Manual de usuario

Delta Electronics

Delta Electronics SMT Power Inductor SIA3329 Manual de usuario

Delta Electronics

Delta Electronics THCN1510 Manual de usuario

Delta Electronics

Delta Electronics SMT Power Inductor SIL520 Manual de usuario

Delta Electronics

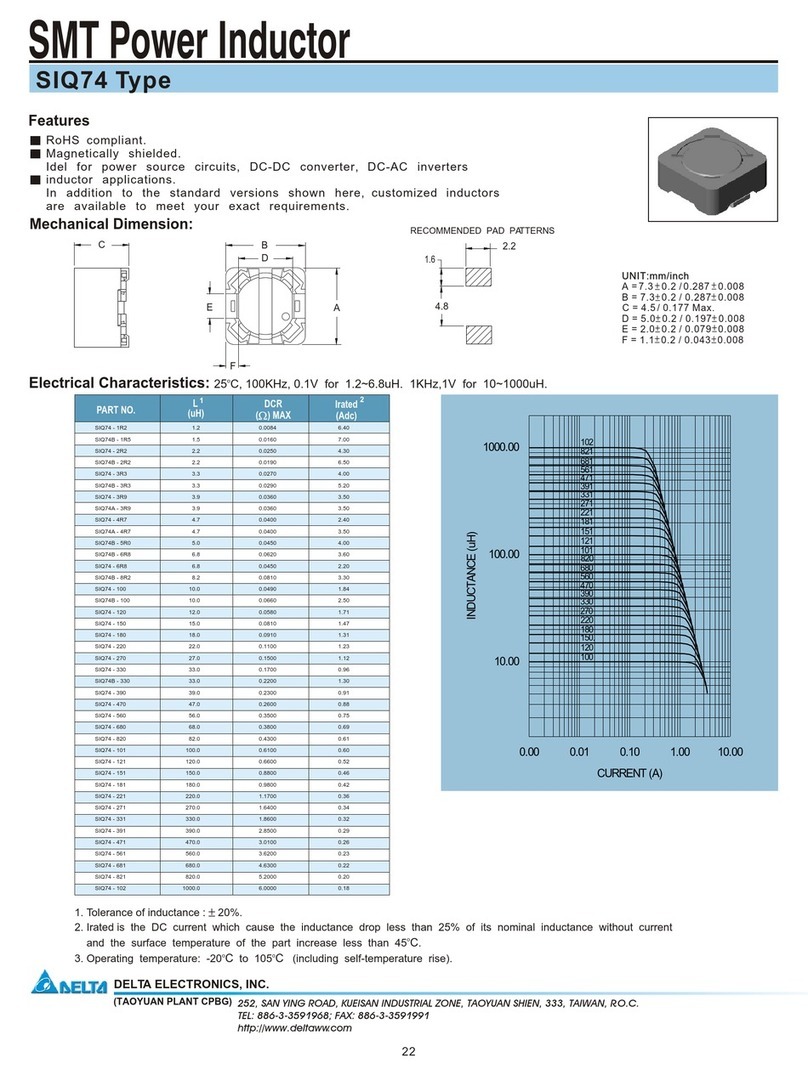

Delta Electronics SIQ74 Manual de usuario
