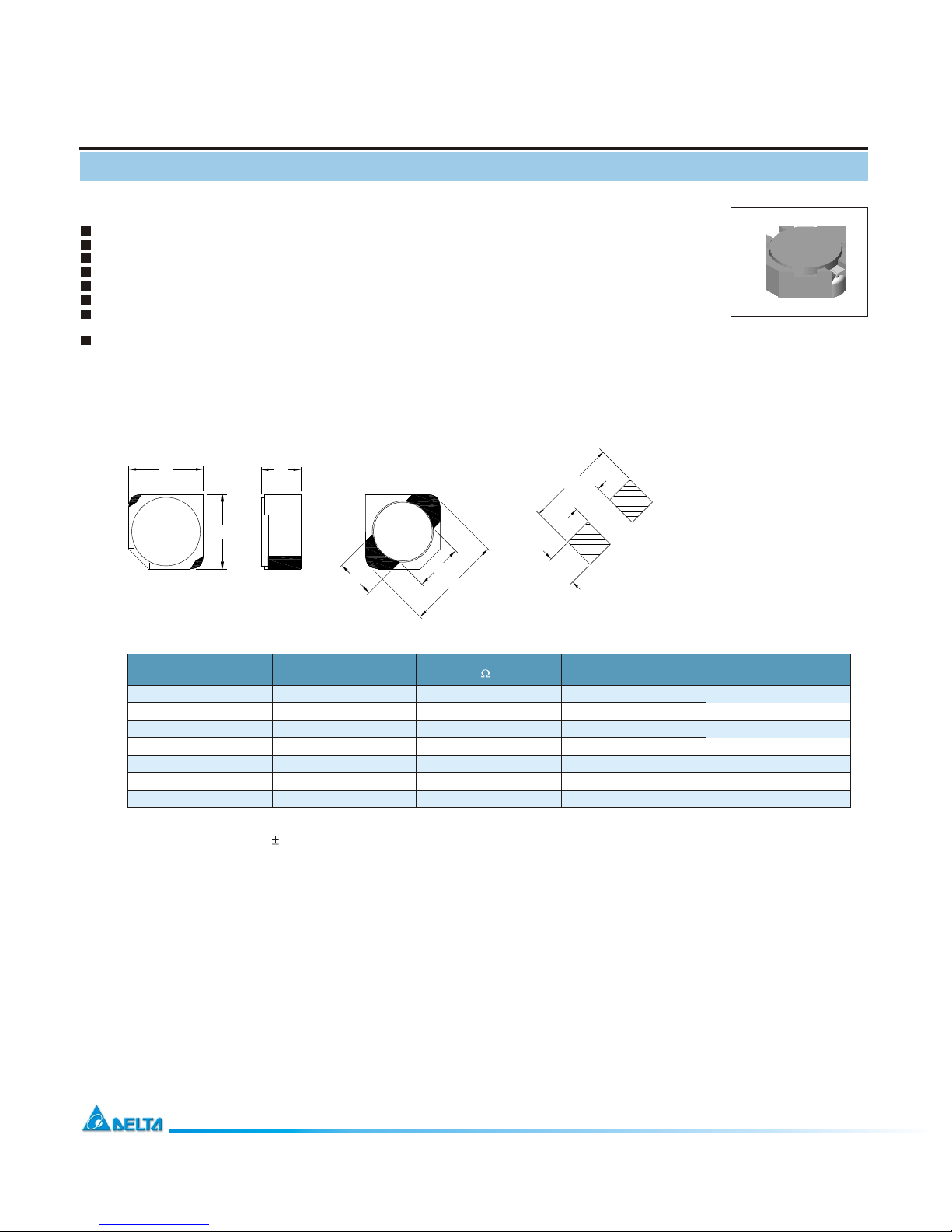

Delta Electronics SILM320A Manual de usuario

SMT Power Inductor

SILM320A Type

25 : 100KHz, 0.1V

Features

RoHS compliant.

Low profile (2.0mm max. height) SMD type.

Magnetically shielded, suitable for high density mounting.

Self-leads, suitable for high density mounting.

High energy storage and low DCR.

Provided with embossed carrier tape packing.

Ideal for power source circuits, DC-DC converter, DC-AC inverters

inductor applications.

In addition to the standard versions shown here, customized inductors

are available to meet your exact requirements.

Electrical Characteristics:

SILM320A - 1R7 1.7 44 1.85 2.20

SILM320A - 2R2 2.2 60 1.60 1.90

SILM320A - 3R3 3.3 86 1.45 1.55

SILM320A - 4R7 4.7 140 1.20 1.20

SILM320A - 6R3 6.3 160 1.05 1.15

SILM320A - 100 10.0 245 0.85 0.90

SILM320A - 150 15.0 345 0.70 0.64

(uH)

PART NO. m

DCR

( ) MAX (Adc)

Isat

(Adc)

1. Tolerance of inductance: 30%.

2. Isat is the DC current which cause the inductance drop 35% typical of its nominal inductance without current.

3. Ir is the DC current which cause the surface temperature of the part increase less than

4.Operating temperature : -20 to 105 (including self-temperature rise).

45 C.

C C

DELTA ELECTRONICS, INC.

(TAOYUAN PLANT CPBG) 252, SAN YING ROAD, KUEISAN INDUSTRIAL ZONE, TAOYUAN SHIEN, 333, TAIWAN, R.O.C.

TEL: 886-3-3591968; FAX: 886-3-3591991

http://www.deltaww.com

Mechanical Dimension:

UNIT:mm/inch

A =3.2 / 0.126Max.

B = 3.2/ 0.126 Max.

C = 2.0/ 0.079 Max.

D = 4.0/ 0.157 Max.

E = 2.2/ 0.087

F = 1.0/ 0.039

RECOMMENDED PAD PATTERNS

1.5

1.7

4.7
