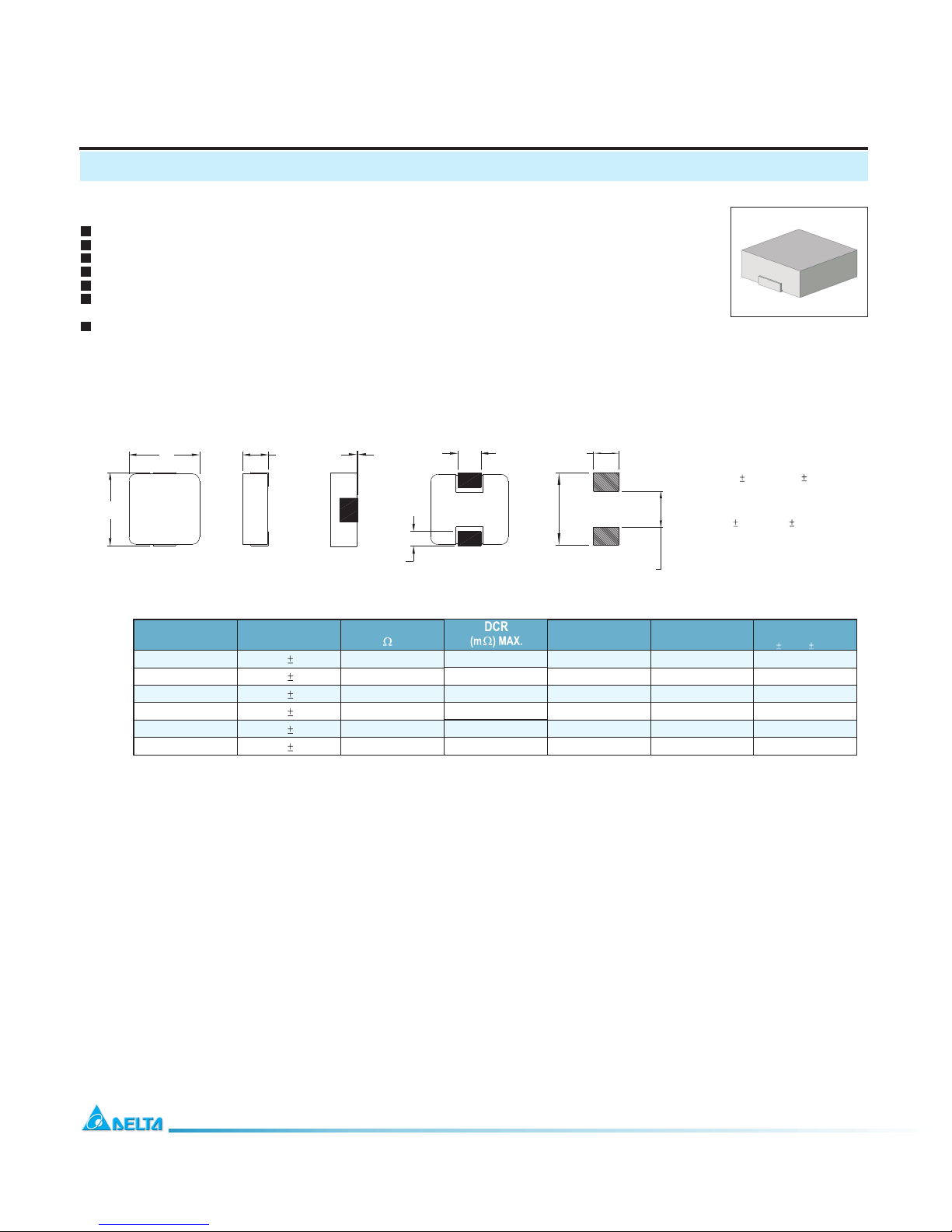

Delta Electronics MPL136 Manual de usuario

SMT Power Inductor (MOLDING TYPE)

MPL136 Type

Mechanical Dimension:

RoHS compliant.

Low profile (6.5mm max. hegiht ) high current(lsat up to 62A) SMD type.

Magnetically shielded, suitable for hight density mounting.

High energy storage and low DCR.

Provided with embossed carrier tape packing.

Ideal for power source circuits, DC-DC converter,

DC-AC inverters inductor application.

In addition to the standard versions shown here,

customized inductors are available to meet your exact requirements.

Features

Electrical Characteristics:

DELTA ELECTRONICS, INC.

(TAOYUAN PLANT CPBG)

At 25 : 100KHz, 0.25V

252, SAN YING ROAD, KUEISAN INDUSTRIAL ZONE, TAOYUAN SHIEN, 333, TAIWAN, R.O.C.

TEL: 886-3-3591968; FAX: 886-3-3591991

http://www.deltaww.com

145

(uH)

DCR

(m ) TYP.

Irms

(Adc)

Isat

(Adc)

PART NO.

Dimension "C"

mm / inch

0.5 / 0.02

UNIT : mm/inch

A =13.20 0.50 /0.520 0.020

B = 12.90/ 0.508 Max.

D = 6.50/ 0.256 Max.

E = 0.01/ 0.0004 Min.

F = 2.54 0.30 / 0.10 0.012

7.8/0.307

13.8/0.543

4.8/0.189

1. Lo is the initial inductance.

2. Isat is the DC current which cause the inductance drop approximately 20% of its nominal inductance without current.

3. Irms is the DC current which cause the surface temperature of the part increase approximately than 40 C.

4. Operating temperature : -55 C to 125 C ( including self-temperature rise ). Circuit design, component placement,

PWS trace size and thickness, airflow and other cooling component can affect the surface temperature of the part.

Please verify the temperature of the part in the end application.

RECOMMENDED PAD PATTERNS

MPL136-R56 0.56 20% 0.8 1.0 62 37 4.7 / 0.185

MPL136-1R0 1.00 20% 1.9 2.3 49 32 4.2 / 0.165

MPL136-1R5 1.50 20% 2.5 2.8 45 28 4.2 / 0.165

MPL136-2R2 2.20 20% 3.5 4.2 40 22 4.2 / 0.165

MPL136-3R3 3.30 20% 3.9 4.5 35 22 4.2 / 0.165

MPL136-4R7 4.70 20% 6.1 7.0 30 18 2.5 / 0.098
