Dell™S320/S320wi RS232 Protocol Document

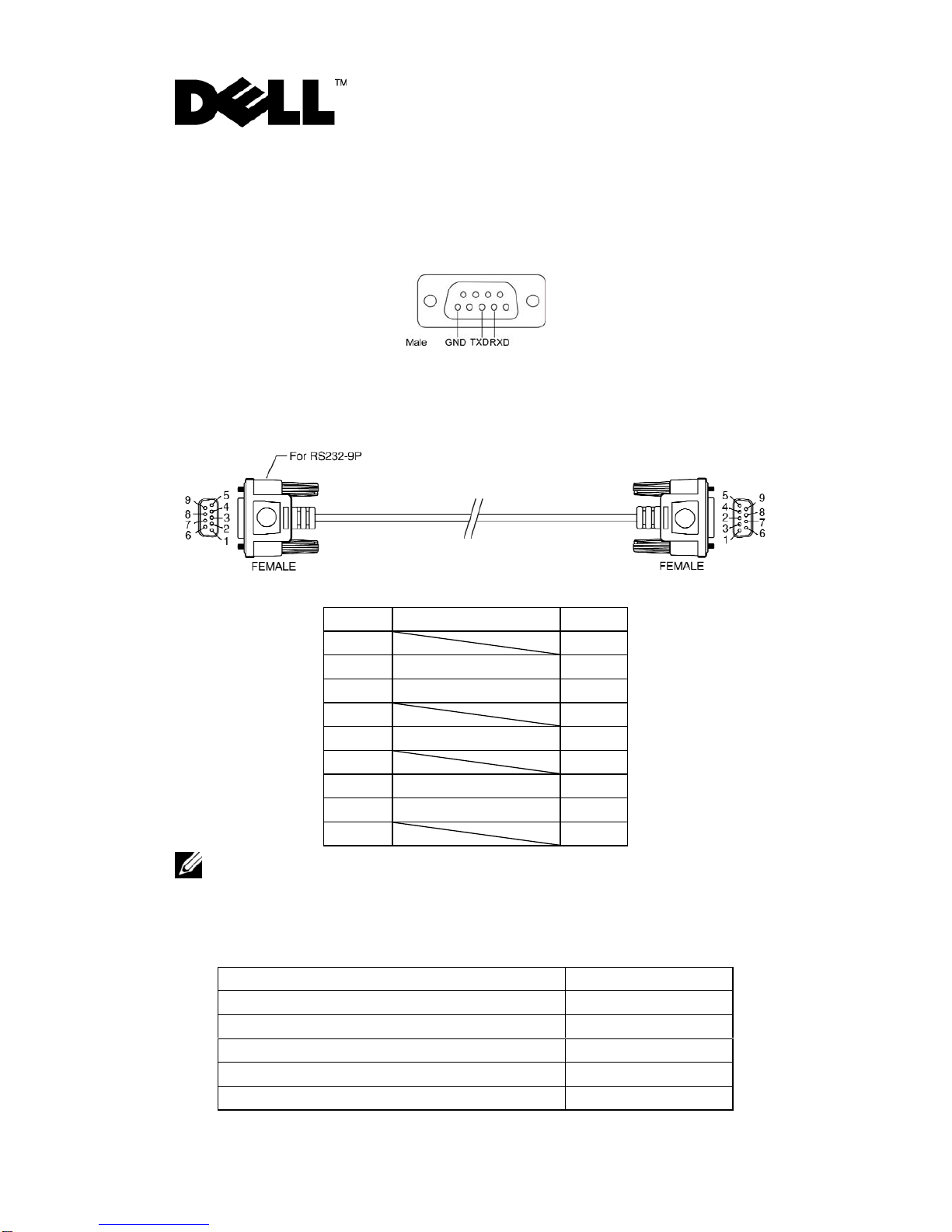

zRS232 Projector Pin Assignment (Facing Projector)

zRS232 Serial Communication Cable Pin Assignment (Facing

Cable)

Pin Assignments

RS232 PIN DESCRIPTION

RS232

2 TXD 3

3 RXD 2

5 GROUND 5

7 Not Used 7

8 Not Used 8

Note 1: The RS232 (pin2-3 swap) cable is not provided by Dell.

zRS232 Protocol

Communication Settings

Command Types

Connection Settings Value

Baud Rate 19200 bps

Data Bits 8 bits

Parity None

Stop Bits 1 bit

Flow control None

To display the OSD menu and adjust the settings.

Control Command Syntax (From PC to Projector)

[H][AC][SoP][CRC][ID][SoM][COMMAND]

[H][AC][SoP][CRC][ID][SoM][COMMAND][Value]

Example:Power On Command (Send Low Byte Firstly)

Enter the following code:

0xbe, 0xef, 0x10, 0x05, 0x00, 0xc6, 0xff, 0x11, 0x11, 0x01, 0x00, 0x01

Header [H] ==> Fixed, “be (Low Byte), ef (High Byte)”

Address Code [AC] ==> Fixed, “10”

Size of Payload [SoP] ==> Byte size from MsgID to Command Code, “05

(Low Byte), 00 (High Byte)” or Byte size from MsgID to Value, “06 (Low

Byte), 00 (High Byte)”.

CRC16 [CRC] ==> CRC value, “c6 (Low Byte), ff (High Byte)”

MsgID [ID] ==> Fixed, “11 11”

MsgSize [SoM] ==> Byte size of Command Code, “01 (Low Byte), 00 (High

Byte)” or Byte size of Command Code and Value, “02 (Low Byte), 00 (High

Byte)”

Command Code [COMMAND] ==> “Power On” Command, “01”

Projector Response Message Table

Byte0 value:

0x00: Success

0x01: Invalid Command (on the control command list but no valid)

0x02: Error Command (includes CRC error and unknown commands)

Projector Response System Status

Byte0, Byte1, Byte2

Byte0: 0x00 (Success)

Byte1: 0xff (the Command Code of System Status)

Byte2: Return status

Ex: When the projector is in standby mode, the return status will be 0x01.

Projector Response Lamp Hour

Byte0, Byte1, Byte2, Byte3

Byte0: 0x00 (Success)

Byte1: 0x2f (the Command Code of Lamp Hour)

Byte2: LSB (Hex)

Byte3: MSB (Hex)

Ex: 800 (3x256 + 2x16 = 800) hours --> 0x00, 0x2f, 0x20, 0x03

Firmware Version Response

Byte0, Byte1, Byte2, Byte3…Byte7

Byte0: 0x00 (Success)

Byte1: 0x30 (the Command Code of Firmware Version)

Byte2…Byte7

Firmware version: 6 Bytes ASCII Code: “M0RXXX”

XXX: 000-999

Ex: Version M0R001 Æ“M0R001” Æ0x4d, 0x30, 0x52, 0x30, 0x30, 0x31

(Success, the Command Code of FW Version, 6 Bytes ASCII Code:

“M0RXXX”)

Control Commands List

Command Description Header

(WORD) Address

Code

(BYTE)

Size Of

The

Payload

(WORD)

CRC16 For

The Entire

Packet

(WORD)

MsG ID

(WORD)

MsG Size

(WORD) Comman

d Code

(BYTE)

Value (BYTE) Comment

Power On 0xefbe 0x10 0x0005

0xffc6 0x1111 0x0001 0x01 See Note 2

Menu 0xefbe 0x10 0x0005

0xbfc7 0x1111 0x0001 0x02

Up 0xefbe 0x10 0x0005

0x7e07 0x1111 0x0001 0x03

Down 0xefbe 0x10 0x0005

0x3fc5 0x1111 0x0001 0x04

Left 0xefbe 0x10 0x0005

0xfe05 0x1111 0x0001 0x05

Right 0xefbe 0x10 0x0005

0xbe04 0x1111 0x0001 0x06

R-sync 0xefbe 0x10 0x0005

0x7fc4 0x1111 0x0001 0x07

Source Search 0xefbe 0x10 0x0005

0x3fc0 0x1111 0x0001 0x08

Volume + 0xefbe 0x10 0x0005

0xfe00 0x1111 0x0001 0x09

Volume – 0xefbe 0x10 0x0005

0xbe01 0x1111 0x0001 0x0a

Zoom In 0xefbe 0x10 0x0005

0x7fc1 0x1111 0x0001 0x0b

Zoom Out 0xefbe 0x10 0x0005

0x3e03 0x1111 0x0001 0x0c

Mute On 0xefbe 0x10 0x0005

0xffc3 0x1111 0x0001 0x0d

Freeze 0xefbe 0x10 0x0005

0xbfc2 0x1111 0x0001 0x0e

Hide 0xefbe 0x10 0x0005

0x7e02 0x1111 0x0001 0x0f

Video Mode 0xefbe 0x10 0x0005

0x3fca 0x1111 0x0001 0x10 Toggle

V. Keystone Up 0xefbe 0x10 0x0005

0x7fcb 0x1111 0x0001 0x13

V. Keystone Down 0xefbe 0x10 0x0005

0x3e09 0x1111 0x0001 0x14

Aspect Ratio

(Original/4:3/Wide) 0xefbe 0x10 0x0005

0x7e08 0x1111 0x0001 0x17 Toggle

Power Off 0xefbe 0x10 0x0005

0x3e0c 0x1111 0x0001 0x18

Source-VGA

Analog-A 0xefbe 0x10 0x0005

0xffcc 0x1111 0x0001 0x19

Source-S-Video 0xefbe 0x10 0x0005

0xbe1f 0x1111 0x0001 0x22

Source-Composite 0xefbe 0x10 0x0005

0x7fdf 0x1111 0x0001 0x23

Key Pad Lock On 0xefbe 0x10 0x0005

0x3e1d 0x1111 0x0001 0x24

Key Pad Lock Off 0xefbe 0x10 0x0005

0xffdd 0x1111 0x0001 0x25

Current Source 0xefbe 0x10 0x0005

0xbfdc 0x1111 0x0001 0x26

0x00: No Source

0x01: VGA-A

0x02: VGA-B

0x03: HDMI

0x04: S-Video

0x05: Composite

0x07: Wireless Display

0x08: USB Display

0x09: USB Viewer

V. Keystone Read 0xefbe 0x10 0x0005

0x3e18 0x1111 0x0001 0x28

Auto Keystone Write 0xefbe 0x10 0x0006

0x1b28 0x1111 0x0002 0x29 0x00~0x01 0x00: No. Off

0x01: Yes. On

Lamp-Mode-ECO 0xefbe 0x10 0x0005

0xbfd9 0x1111 0x0001 0x2a

Lamp-Mode-Normal 0xefbe 0x10 0x0005

0x7e19 0x1111 0x0001 0x2b

Auto Source On 0xefbe 0x10 0x0005

0x3fdb 0x1111 0x0001 0x2c

Auto Source Off 0xefbe 0x10 0x0005

0xfe1b 0x1111 0x0001 0x2d

Factory Reset 0xefbe 0x10 0x0005

0xbe1a 0x1111 0x0001 0x2e

Lamp-Hours 0xefbe 0x10 0x0005

0x7fda 0x1111 0x0001 0x2f

Firmware Version 0xefbe 0x10 0x0005

0x3e12 0x1111 0x0001 0x30

Auto Keystone Read 0xefbe 0x10 0x0005

0xffd2 0x1111 0x0001 0x31 0x00: No. Off

0x01: Yes. On

Aspect Ratio Read 0xefbe 0x10 0x0005

0xbfd3 0x1111 0x0001 0x32

Feedback:

0x00: Original(1:1)

0x01: 4:3

0x02: Wide(16:9)

Projector Mode

Write 0xefbe 0x10 0x0006

0x9ae3 0x1111 0x0002 0x33 0x01~0x04

0x01: Front

0x02: Front, Ceiling

0x03: Rear

0x04: Rear, Ceiling

Projector Mode Read 0xefbe 0x10 0x0005

0x3fd1 0x1111 0x0001 0x34

0x01: Front

0x02: Front, Ceiling

0x03: Rear

0x04: Rear, Ceiling

Brightness Write 0xefbe 0x10 0x0006

0x1ae1 0x1111 0x0002 0x35 0x00~0x64 Range (0x00~0x64)

Brightness Read 0xefbe 0x10 0x0005

0xbe10 0x1111 0x0001 0x36 Range (0x00~0x64)

Contrast Write 0xefbe 0x10 0x0006

0x9b20 0x1111 0x0002 0x37 0x00~0x64 Range (0x00~0x64)

Contrast Read 0xefbe 0x10 0x0005

0x3fd4 0x1111 0x0001 0x38 Range (0x00~0x64)

Color Temperature

Write 0xefbe 0x10 0x0006

0x1ae4 0x1111 0x0002 0x39 0x01~0x04

0x01: Low

0x02: Mid

0x03: High

0x04: Custom

Color Temperature

Read 0xefbe 0x10 0x0005

0xbe15 0x1111 0x0001 0x3a

0x01: Low

0x02: Mid

0x03: High

0x04: Custom

Saturation Write 0xefbe 0x10 0x0006

0x9b25 0x1111 0x0002 0x3b 0x00~0x64 Range (0x00~0x64)

Saturation Read 0xefbe 0x10 0x0005

0x3e17 0x1111 0x0001 0x3c Range (0x00~0x64)

Sharpness Write 0xefbe 0x10 0x0006

0x1b27 0x1111 0x0002 0x3d 0x00~0x1f Range (0x00~0x64)

Sharpness Read 0xefbe 0x10 0x0005

0xbfd6 0x1111 0x0001 0x3e Range (0x00~0x64)

Tint Write 0xefbe 0x10 0x0006

0x9ae6 0x1111 0x0002 0x3f 0x00~0x64 Range (0x00~0x64)

Enter 0xefbe 0x10 0x0005

0x3ff6 0x1111 0x0001 0x40

Tint Read 0xefbe 0x10 0x0005

0xfe36 0x1111 0x0001 0x41 Range (0x00~0x64)

Video Mode Read 0xefbe 0x10 0x0005

0xbe37 0x1111 0x0001 0x42

0x00: Presentation

Mode

0x01: Birght Mode

0x02: Movie Mode

0x03: sRGB Mode

0x04: Custom Mode

Color Space Write 0xefbe 0x10 0x0006

0x9b07 0x1111 0x0002 0x43 0x01~0x03 0x01: RGB

0x02: YCbCr

0x03: YPbPr

Color Space Read 0xefbe 0x10 0x0005

0x3e35 0x1111 0x0001 0x44 0x01: RGB

0x02: YCbCr

0x03: YPbPr

White Intensity

Write 0xefbe 0x10 0x0006

0x1b05 0x1111 0x0002 0x45 0x00~0x0a Range (0x00~0x0a)

White Intensity

Read 0xefbe 0x10 0x0005

0xbff4 0x1111 0x0001 0x46 Range (0x00~0x0a)

H. Position Write 0xefbe 0x10 0x0006

0x1b00 0x1111 0x0002 0x49 0x00~0x64 Range(0x00~0x64)

See Note 3

H. Position Read 0xefbe 0x10 0x0005

0xbff1 0x1111 0x0001 0x4a Range(0x00~0x64)

See Note 3

V. Position Write 0xefbe 0x10 0x0006

0x9ac1 0x1111 0x0002 0x4b 0xfb~0xff,

0x00 Range(0xfb~0x00)

See Note 3

V. Position Read 0xefbe 0x10 0x0005

0x3ff3 0x1111 0x0001 0x4c Range(0xfb~0x00)

See Note 3

Current Language

Write 0xefbe 0x10 0x0006

0x1ac3 0x1111 0x0002 0x4d 0x01~0x10

0x01: English

0x02: German

0x03: French

0x04: Italian

0x05: Spanish

0x06: Polish

0x07: Swedish

0x08: Dutch

0x09: Iberian

Portuguese

0x0a: Japanese

0x0b: T_Chinese

0x0c: S_Chinese

0x0d: Korean

0x0e: Russian

0x0f: Arabic

0x10:Turkish

Current Language

Read 0xefbe 0x10 0x0005

0xbe32 0x1111 0x0001 0x4e

0x01: English

0x02: German

0x03: French

0x04: Italian

0x05: Spanish

0x06: Polish

0x07: Swedish

0x08: Dutch

0x09: Iberian

Portuguese

0x0a: Japanese

0x0b: T_Chinese

0x0c: S_Chinese

0x0d: Korean

0x0e: Russian

0x0f: Arabic

0x10:Turkish

Volume Read 0xefbe 0x10 0x0005

0x7ff2 0x1111 0x0001 0x4f Range (0x00~0x14)

Source-HDMI 0xefbe 0x10 0x0005

0x3e3a 0x1111 0x0001 0x50

Audio Source Write 0xefbe 0x10 0x0006

0xdb09 0x1111 0x0002 0x54 0x01,04,07 0x01: Analog In

0x04: HDMI

0x07: Wireless/LAN

Audio Source Read 0xefbe 0x10 0x0005

0xfe39 0x1111 0x0001 0x55 0x01: Analog In

0x04: HDMI

0x07: Wireless/LAN

Password 0xefbe 0x10 0x0009

0xaaf9 0x1111 0x0005 0x56 0x30~0x39

0x41~0x5a 4byte: Original

Password

Change Password 0xefbe 0x10 0x000d

0x99fa 0x1111 0x0009 0x57 0x30~0x39

0x41~0x5a

4byte: Original

Password

4byte: New Password

H. Frequency 0xefbe 0x10 0x0005

0xfe3c 0x1111 0x0001 0x59 (KHz)

V. Frequency 0xefbe 0x10 0x0005

0xbe3d 0x1111 0x0001 0x5a (Hz)

H. Sync Polarity 0xefbe 0x10 0x0005

0x7ffd 0x1111 0x0001 0x5b 0x01: Negative

0x02: Postivite

V. Sync Polarity 0xefbe 0x10 0x0005

0x3e3f 0x1111 0x0001 0x5c 0x01: Negative

0x02: Postivite

Key Pad Lock State 0xefbe 0x10 0x0005

0xffff 0x1111 0x0001 0x5d 0x01: Key Pad Lock On

0x02: Key Pad Lock

Off

Mute Off 0xefbe 0x10 0x0005

0x7e3e 0x1111 0x0001 0x5f

Get Mute State 0xefbe 0x10 0x0005

0xffee 0x1111 0x0001 0x61 0x00: Mute Off

0x01: Mute On

Unfreeze 0xefbe 0x10 0x0005

0xbfef 0x1111 0x0001 0x62

Unhide 0xefbe 0x10 0x0005

0x3fed 0x1111 0x0001 0x64

Get Hide State 0xefbe 0x10 0x0005

0xfe2d 0x1111 0x0001 0x65 0x00: Unhide

0x01: Hide

OSD Transparancy

Write 0xefbe 0x10 0x0006

0x5adc 0x1111 0x0002 0x66 0x00~0x0f Range (0x00~0x0f)

OSD Transparancy

Read 0xefbe 0x10 0x0005

0x7fec 0x1111 0x0001 0x67 Range (0x00~0x0f)

Volume Write 0xefbe 0x10 0x0006

0xdb18 0x1111 0x0002 0x68 0x00~0x14 Range (0x00~0x14)

Source-VGA

Analog-B 0xefbe 0x10 0x0005

0xfe28 0x1111 0x0001 0x69

Temp Alert 0xefbe 0x10 0x0005

0xbe29 0x1111 0x0001 0x6a 0x00: Normal

0x01: Abnormal

Exit Lockup 0xefbe 0x10 0x0005

0xffeb 0x1111 0x0001 0x6d

Closed Captions 0xefbe 0x10 0x0006

0x7e2a 0x1111 0x0002 0x6f 0x00~0x04

0x00: Off

0x01: CC1

0x02: CC2

0x03: CC3

0x04: CC4

Power Saving 0xefbe 0x10 0x0006

0xfe66 0x1111 0x0002 0x81 0x00~0x78

0x00, 0x05, 0x0a,

0x0f, 0x14, 0x19, 0x1e,

0x23, 0x28, 0x2d,

0x32, 0x37, 0x3c,

0x41, 0x46, 0x4b,

0x50, 0x55, 0x5a,

0x5f, 0x64, 0x69,

0x6e, 0x73, 0x78

Quick Shutdown 0xefbe 0x10 0x0006

0xbe67 0x1111 0x0002 0x82 0x00~0x01 0x00: No

0x01: Yes

Lamp-Mode Read 0xefbe 0x10 0x0005

0x7fa7 0x1111 0x0001 0x83 0x00: Eco

0x01: Normal

Operating Hours 0xefbe 0x10 0x0005

0x3e65 0x1111 0x0001 0x84 Hours (2 byte)

Password Off 0xefbe 0x10 0x0005

0xffa5 0x1111 0x0002 0x85

Password Delete 0xefbe 0x10 0x0005

0xbfa4 0x1111 0x0002 0x86

Speaker 0xefbe 0x10 0x0005

0x7e64 0x1111 0x0002 0x87 0x00~0x01 0x00: Off

0x01: On

Speaker Status 0xefbe 0x10 0x0005

0x3e60 0x1111 0x0001 0x88 0x00: Off

0x01: On

Zoom Status 0xefbe 0x10 0x0005

0xffa0 0x1111 0x0001 0x89 Range (0x01~0x0a)

Power Saving Status 0xefbe 0x10 0x0006

0xbfa1 0x1111 0x0002 0x8a

Source-Wireless

Display 0xefbe 0x10 0x0005

0x7e61 0x1111 0x0001 0x8b

Source-Wireless Off 0xefbe 0x10 0x0005

0x3fa3 0x1111 0x0001 0x8c

Source-Wireless On 0xefbe 0x10 0x0005

0xfe63 0x1111 0x0001 0x8d

Source-USB Display 0xefbe 0x10 0x0005

0xbe62 0x1111 0x0001 0x8e

Source-USB Viewer 0xefbe 0x10 0x0005

0x7fa2 0x1111 0x0001 0x8f

System Status 0xefbe 0x10 0x0005

0x7e46 0x1111 0x0001 0xff

0x01: Standby

0x02: Warm Up

0x03: Power On

0x04: Cooling

0x05: Power Saving

Note 2: After power on the projector, wait for 5 seconds before sending next command.

Note 3: The range will depend on VGA input resolution.

Note 4: If sending multiple commands, check that a response has been received from the projector before sending

next command.

Information in this document is subject to change without notice.

Reproduction in any manner whatsoever without the written permission of Dell Inc. is strictly forbidden.

Trademarks used in this text: Dell and the DELL logo are trademarks of Dell Inc.

Other trademarks and trade names may be used in this document to refer to either the entities claiming the marks and names or

their products. Dell Inc. disclaims any proprietary interest in trademarks and trade names other than its own.

September 2012 Rev. A00

Otros manuales para S320

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Proyector de Dell

Dell

Dell 7700 FullHD Manual de usuario

Dell

Dell 7609WU - WUXGA DLP Projector Manual de usuario

Dell

Dell Mobile M900HD Manual de usuario

Dell

Dell S500 Guía de inicio rápido

Dell

Dell S518WL Manual de usuario

Dell

Dell 5100MP - SXGA+ DLP Projector Manual de usuario

Dell

Dell S520 Manual de usuario

Dell

Dell 1210S - DLP Projector - 2500 ANSI Lumens Manual de usuario

Dell

Dell M110 Manual de usuario

Dell

Dell 2400MP - XGA DLP Projector Manual de usuario

Dell

Dell 1420X Manual de usuario

Dell

Dell 1510X Manual de usuario

Dell

Dell 1510X Guía de inicio rápido

Dell

Dell S718QL Manual de usuario

Dell

Dell 2400MP - XGA DLP Projector Manual de usuario

Dell

Dell 1200MP Manual de usuario

Dell

Dell S320 Manual de instalación

Dell

Dell Vostro 1220 Manual de usuario

Dell

Dell M110 Manual de usuario

Dell

Dell M318WL Manual de usuario

Dell

Dell M209X Manual de usuario

Dell

Dell Mobile M115HD Manual de usuario

Dell

Dell 2200MP Manual de usuario

Dell

Dell 1100MP Manual de usuario

Manuales populares de Proyector de otras marcas

iEmmet

iEmmet MP-312 Manual de usuario

Epson

Epson VS400 Manual de usuario

Sony

Sony VPL-HS10 Marketing Specifications & Features Manual de usuario

Sony

Sony VPL-HW65ES Manual de servicio

Toshiba

Toshiba TLP-791U Manual de usuario

Philips

Philips LC1341 Guía de referencia

Panasonic

Panasonic PTL735NTU - LCD PROJECTOR-NETWORK IB Manual de usuario

NEC

NEC NP600S EDU Manual de usuario

BenQ

BenQ SH753P Manual de usuario

Eiki

Eiki EK-623U series Manual de usuario

Epson

Epson PowerLite Pro Cinema 6020UB Manual de usuario

Epson

Epson PowerLite Home Cinema 705HD Manual de usuario

Christie

Christie LHD700 Manual de usuario

Navitar

Navitar FX Manual de usuario

InFocus

InFocus LitePro 560 Manual de usuario

Sony

Sony SRX-R815P Manual de usuario

Vivitar

Vivitar DP1500 X Manual de usuario

Acer

Acer C20 Series Manual de usuario
