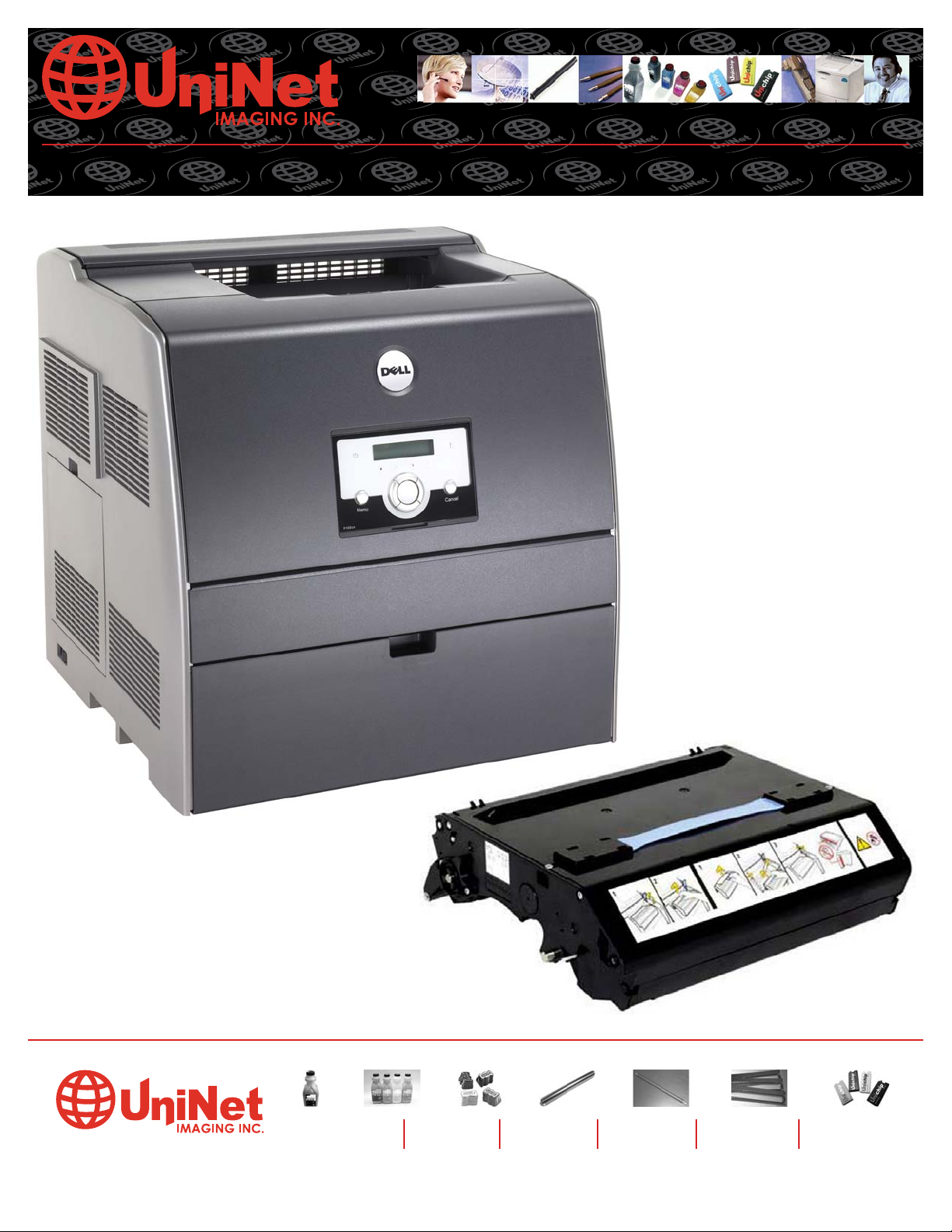

DELL 3000CN DRUM UNIT REMANUFACTURING INSTRUCTIONS

AbsoluteCOLOR®• AbsoluteBLACK®• UniDrums • UniRollers • UniParts • UniCoatings

11124 Washington Blvd., Culver City, California U.S.A. 90232 • [email protected]

All Trademark names are property of their respective owners. Product brand names mentioned are intended to show compatibility only. Uninet Imaging does not guarantee or warrant downloaded information.

USA

+1 310-280-9620

+1 310-838-7294

Ph:

Fx:

JAPAN

+81-3-44-55-2789

+1 310-838-7294

EUROPE

+34-93-757-1335

+34-93-741-4166

CHINA

+8610 6297 6428

+8610 6297 9584

BRAZIL

+55-11-4822-3033

+55-11-4822-3353

www.uninetimaging.com

ARGENTINA

+54-11-4571-2388

+54-11-4574-3706

UNINET IMAGING INC. •DELL 3000CN DRUM UNIT CARTRIDGE REMANUFACTURING INSTRUCTIONS

DISASSEMBLING THE OPC DRUM UNIT

1. Arrange the OPC drum unit as shown.

2. Turn the drum unit clockwise to commence disassembly on

the right side of the OPC drum.

3. Unscrew the plastic drum holder as shown.

Right-side of

drum unit

4. Drum holder removed.

11124 Washington Blvd., Culver City, California U.S.A. 90232 • [email protected]

USA

+1 310-280-9620

+1 310-838-7294

Ph:

Fx:

JAPAN

+81-3-44-55-2789

+1 310-838-7294

EUROPE

+34-93-757-1335

+34-93-741-4166

CHINA

+8610 6297 6428

+8610 6297 9584

BRAZIL

+55-11-4822-3033

+55-11-4822-3353

www.uninetimaging.com

ARGENTINA

+54-11-4571-2388

+54-11-4574-3706

UNINET IMAGING INC. •DELL 3000CN DRUM UNIT CARTRIDGE REMANUFACTURING INSTRUCTIONS

5. Turn to the left side of the OPC drum unit. 6. Using a pair of needle-nose pliers, grip the copper bearing

(shown) turning it clockwise to release the OPC drum.

7. Carefully separate the OPC drum from the waste hopper. 8. Separation complete.

11124 Washington Blvd., Culver City, California U.S.A. 90232 • [email protected]

USA

+1 310-280-9620

+1 310-838-7294

Ph:

Fx:

JAPAN

+81-3-44-55-2789

+1 310-838-7294

EUROPE

+34-93-757-1335

+34-93-741-4166

CHINA

+8610 6297 6428

+8610 6297 9584

BRAZIL

+55-11-4822-3033

+55-11-4822-3353

www.uninetimaging.com

ARGENTINA

+54-11-4571-2388

+54-11-4574-3706

UNINET IMAGING INC. •DELL 3000CN DRUM UNIT CARTRIDGE REMANUFACTURING INSTRUCTIONS

9. Slide off the copper and black bearings (shown) to access the

plastic drum axle support.

10. Unscrew the drum axle support as shown.

12. Axle support removed.

11. Carefully slide out.

11124 Washington Blvd., Culver City, California U.S.A. 90232 • [email protected]

USA

+1 310-280-9620

+1 310-838-7294

Ph:

Fx:

JAPAN

+81-3-44-55-2789

+1 310-838-7294

EUROPE

+34-93-757-1335

+34-93-741-4166

CHINA

+8610 6297 6428

+8610 6297 9584

BRAZIL

+55-11-4822-3033

+55-11-4822-3353

www.uninetimaging.com

ARGENTINA

+54-11-4571-2388

+54-11-4574-3706

UNINET IMAGING INC. •DELL 3000CN DRUM UNIT CARTRIDGE REMANUFACTURING INSTRUCTIONS

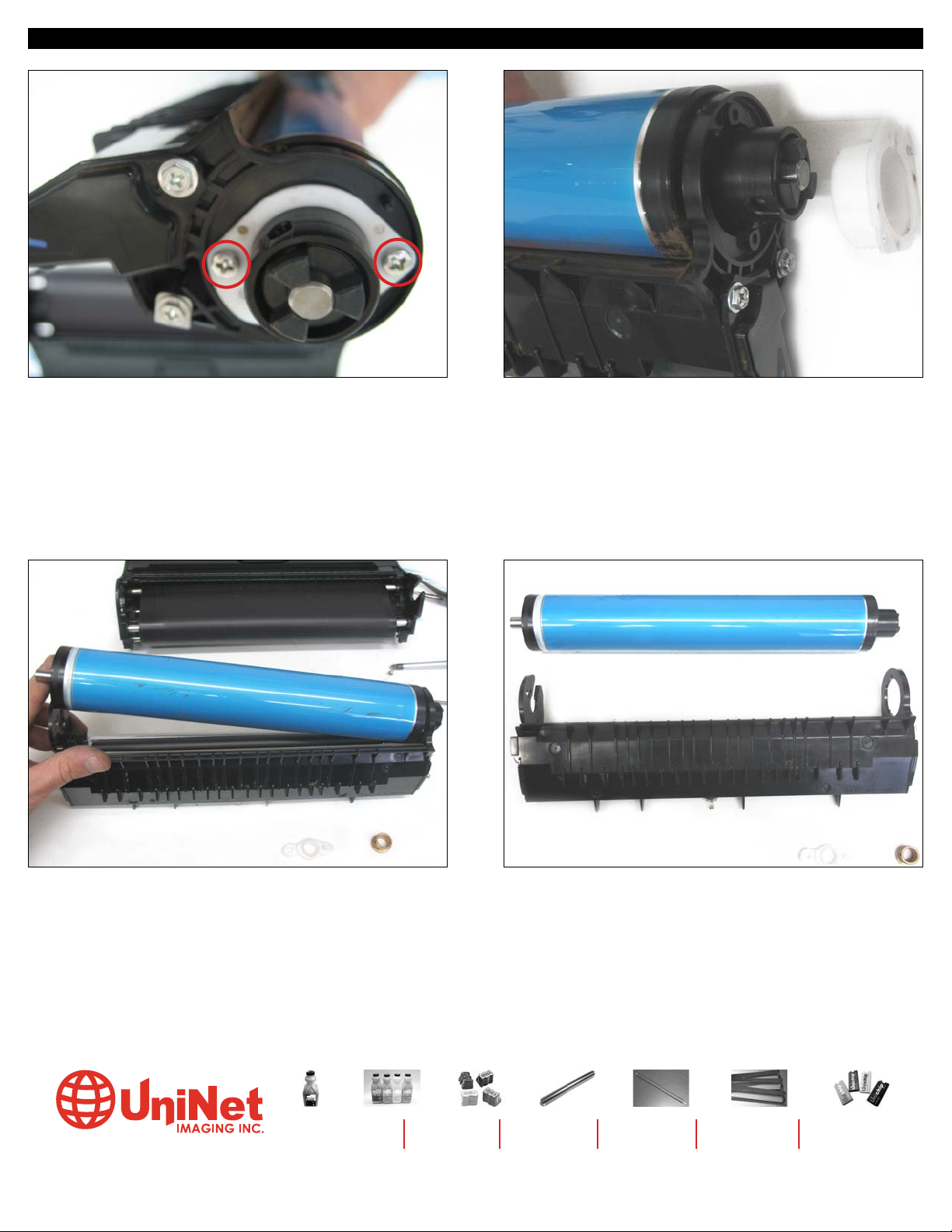

13. On the right side of the OPC drum, unscrew and remove the

plastic bearing (shown).

14. Plastic bearing removed.

15. Now lift the cylinder from the left side to remove. DRUM SUPPORT MAINTENANCE

16. Clean and vacuum the drum unit thoroughly.

Assemble following the disassembly steps in reverse.
