Dell™2330d/dn and 2350d/dn Laser Printer

User's Guide

To order ink or supplies from Dell:

Double-click the icon on your desktop.1.

Visit the Dell website, or order Dell printer supplies by phone.

www.dell.com/supplies

For the best service, ensure that you have the Dell printer Service Tag available.

Notes, Notices, and Cautions

NOTE: A NOTE indicates important information that helps you make better use of your printer.

NOTICE: A NOTICE indicates either potential damage to hardware or loss of data and tells you how to

avoid the problem.

CAUTION: A CAUTION indicates a potential for property damage, personal injury, or death.

Information in this document is subject to change without notice.

Reproduction of this document in any manner whatsoever without the written permission of Dell Inc. is strictly forbidden.

Trademarks used in this text: Dell, the DELL logo, and OpenManage are trademarks of Dell Inc. Microsoft and Windows are

registered trademarks of Microsoft Corporation in the United States and/or other countries. Windows Vista is either a trademark

or a registered trademark of Microsoft Corporation in the United States and/or other countries.

Linux is the registered trademark of Linus Torvalds in the U.S. and other countries. SuSE is a trademark of Novell, Inc. in the

United States and other countries. Red Hat is a trademark of Red Hat, Inc. Debian is a registered trademark of Software in the

Public Interest, Inc. and managed by the Debian project. Linspire is a trademark of Linspire, Inc. Ubuntu is a trademark of

Canonical Limited. Red Flag is a trademark of Red Flag Software Co., Ltd.

Macintosh and Mac OS are trademarks of Apple Inc., registered in the U.S. and other countries.

Other trademarks and trade names may be used in this document to refer to either the entities claiming the marks and names or

their products. Dell Inc. disclaims any proprietary interest in trademarks and trade names other than its own.

UNITED STATES GOVERNMENT RESTRICTED RIGHTS

This software and documentation are provided with RESTRICTED RIGHTS. Use, duplication or disclosure by the Government is

subject to restrictions as set forth in subparagraph (c)(1)(ii) of the Rights in Technical Data and Computer Software clause at

DFARS 252.227-7013 and in applicable FAR provisions: Dell Inc., One Dell Way, Round Rock, Texas, 78682, USA.

Model 2330d/dn and 2350d/dn

June 2010 SRV HX750 Rev. A03

Finding Information

Finding Information About the Printer

What are you looking for?

Find it here

How to set up my printer

Setting Up Your Printer poster

Safety information for preparing to operate

my printer

Regulatory information

Warranty information

Product Information Guide

Supported paper type and sizes

How to select and store print media

How to load printable media into my printer

How to configure printer settings

How to set up and use printer software

How to care for and maintain my printer

How to troubleshoot and solve problems

User's Guide

Software and Drivers-Certified drivers for

your printer and installers for Dell™ printer

software

Readme files-Last minute technical

changes, or advanced technical reference

material for experienced users or

technicians

Software and Documentation CD

NOTE: If you purchased your Dell computer and printer

at the same time, documentation and drivers for your

printer are already installed on your computer.

Express Service Code and Number

What are you looking for?

Find it here

How to identify your printer when you use

support.dell.com or contact support

How to find the Express Service Code to

direct your call when contacting support

These labels are located on your printer.

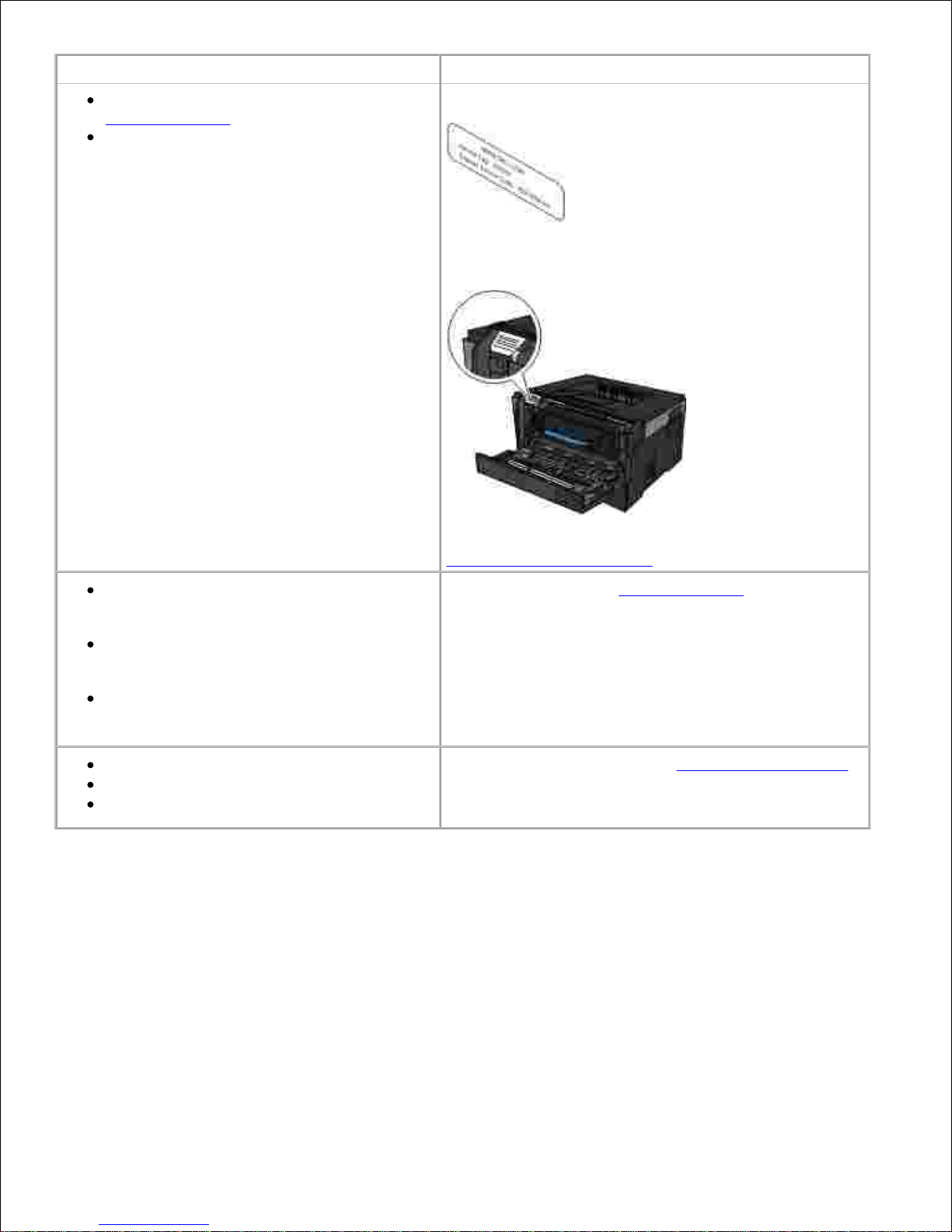

The illustration below shows the location of the label on

the printer.

For more information about their location, see

Understanding Printer Parts.

Solutions-Troubleshooting hints and tips,

frequently asked questions, documentation,

driver downloads, and product upgrades

Upgrades-Upgrade information for

components such as memory, network

cards, and optional equipment

Customer Care-Contact information,

service call and order status, warranty, and

repair information

Dell Support Website-support.dell.com

NOTE: Select your region or business segment to view

the appropriate support site.

Supplies for my printer

Accessories for my printer

Replacement toner and parts for my printer

Dell Printer Supplies Website-www.dell.com/supplies

You can purchase printer supplies online, by phone, or

in select retail stores.

How to identify your printer when you use

support.dell.com or contact support

How to find the Express Service Code to

direct your call when contacting support

These labels are located on your printer.

The illustration below shows the location of the label on

the printer.

For more information about their location, see

Understanding Printer Parts.

Solutions-Troubleshooting hints and tips,

frequently asked questions, documentation,

driver downloads, and product upgrades

Upgrades-Upgrade information for

components such as memory, network

cards, and optional equipment

Customer Care-Contact information,

service call and order status, warranty, and

repair information

Dell Support Website-support.dell.com

NOTE: Select your region or business segment to view

the appropriate support site.

Supplies for my printer

Accessories for my printer

Replacement toner and parts for my printer

Dell Printer Supplies Website-www.dell.com/supplies

You can purchase printer supplies online, by phone, or

in select retail stores.

About Your Printer

Understanding Printer Parts

Understanding the Operator Panel

Choosing the Right Cable

Understanding Printer Parts

Part

Description

Front exit

Slot from where the paper exits the printer.

Output bin extender

Support for the paper as it exits the printer.

Multipurpose feeder cover

Door to gain access to the multipurpose feeder.

Standard tray (Tray 1)

Standard paper tray that can hold 250 sheets of paper.

Optional 550-sheet drawer

(Tray 2)

Tray that can be purchased separately to increase the amount of blank

paper that your printer can hold.

Memory access door

Door to access the printer memory.

Door release button

Button to open the front cover of the printer.

Operator panel

Panel on the printer to control print jobs.

Multipurpose feeder

Tray to manually load various paper types such as envelopes.

Multipurpose feeder

tray

Support for the paper as it is loaded into the multipurpose feeder.

Extension tray

Additional support for print media other than paper, such as envelopes, to

prevent bending or wrinkling.

Width guides

Guides for the print media loaded into the multipurpose feeder.

Width guide tab

Slide the tab to adjust the width guides.

Part

Description

Express service

code

A series of numbers that identify your printer when you use support.dell.com or

contact technical support.

Enter the Express Service Code to direct your call when contacting technical

support.

NOTE: The Express Service Code is not available in all countries.

Supplies reorder

label

Information on where you can order toner cartridges or paper: visit

www.dell.com/supplies.

Part

Description

USB port

Slot into which you plug the USB cable (sold separately). The other end of the

USB cable plugs into your computer. Locally attaches printer to the computer.

Network port (for

network printers only)

Slot into which you plug the Ethernet cable (sold separately). The other end of

the Ethernet cable plugs into the network port. Attaches printer to the

network.

Parallel port

Slot into which you plug the parallel cable (sold separately). The other end of

the parallel cable plugs into your computer. Locally attaches printer to the

computer.

Power cord connector

Connects the printer to the power outlet using the supplied country-specific

power cord.

Power switch

Switch to turn the printer on or off.

Locking device

Security lock that provides physical security to your printer.

Rear exit

Door allows print jobs to exit the printer flat, such as those printed on

transparencies or cardstock.

Understanding the Operator Panel

The operator panel contains:

Power indicator light

Two-line LCD display

Six buttons

Use the

Icon

Display

View the number of copies to be printed as well as error codes.

Left arrow

button

Scroll through menus, submenus, or settings on the display.

Move to the previous or next option. Each press moves one item in the list

or to a different setting for a menu item.

Back button

Return to the previous screen.

Menu button

Open the menu. Pressing the menu button while in the menus will return the

user to the top level menu screen.

NOTE:

The menus are available only when the printer is in the Ready state.

Stop/Cancel

button

Cancel a print job in progress.

Exit a menu or submenu, and return to the default screen.

Right arrow

button

Scroll through menus, submenus, or settings on the display.

Move to the previous or next option. Each press moves one item in the list

or to a different setting for a menu item.

Select button

Select a menu or submenu item that appears on the display.

Submit a chosen value or setting for the printer.

Indicator light

Indicate the printer status:

Solid Green-The printer is idle or at Ready prompt.

Flashing Green-The printer is warming up, processing data, or

printing.

Solid Amber-Operator intervention needed.

Choosing the Right Cable

Your printer interconnection cable must meet the following requirements:

Connection

Cable certification

USB

USB 2.0

Parallel

IEEE-1284

10/100/1000 Ethernet

CAT-5E

Operator Panel Menus

Menu List

Paper Menu

Reports

Network/Ports

Settings

Menu List

Admin Menu

Paper Menu

Reports

Network/Ports

Settings

From the menu list, use the Arrow buttons to scroll the main menu.1.

Press the Select button .2.

Press the Right Arrow button until the heading you want appears on the display, and then press

the Select button .

Use the Arrow buttons to scroll through the available menu items.4.

When the setting you want appears on the display, press the Select button to save the setting.5.

Paper Menu
