Dell UltraSharp UP2516D Manual de usuario

Model: UP2516D/UP2716D

Regulatory model: UP2516Dt/UP2716Dt

Dell UltraSharp

UP2516D/UP2716D

User’s Guide

NOTE: A NOTE indicates important information that helps you make better use of

your computer.

CAUTION: A CAUTION indicates potential damage to hardware or loss of data if

instructions are not followed.

WARNING: A WARNING indicates a potential for property damage, personal

injury, or death.

Dell™ and the Dell logo are trademarks of Dell Inc. in the United States and/or other jurisdictions.

All other marks and names mentioned herein may be trademarks of their respective companies.

2015 – 09 Rev. A00

Contents

About Your Monitor ..................................... 5

Package Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Product Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Identifying Parts and Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Monitor Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Plug-and-Play . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

LCD Monitor Quality and Pixel Policy. . . . . . . . . . . . . . . . . . . . . . 22

Setting Up the Monitor.................................. 23

Attaching the Stand . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Using the Tilt, Swivel, and Vertical Extension . . . . . . . . . . . . . . . . . 26

Adjusting the Rotation Display Settings of Your System . . . . . . . . . . 27

Connecting Your Monitor. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Organizing Your Cables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31

Removing the Monitor Stand. . . . . . . . . . . . . . . . . . . . . . . . . . . .31

Wall Mounting (Optional) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Operating the Monitor .................................. 33

Turning on the Monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

Using the Front Panel Controls . . . . . . . . . . . . . . . . . . . . . . . . . 33

Using the On-Screen Display (OSD) Menu . . . . . . . . . . . . . . . . . . . 36

Troubleshooting .......................................54

Self-Test . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

Contents | 3

4| Contents

Built-in Diagnostics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56

Common Problems. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

Product Specific Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58

Mobile High-Definition Link (MHL) Specific Problems. . . . . . . . . . . . 59

Appendix ..............................................60

Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

FCC Notices (U.S. only) and Other Regulatory Information . . . . . . . . 60

Contacting Dell . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

Setting Up Your Monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61

Maintenance Guidelines. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62

About Your Monitor | 5

About Your Monitor

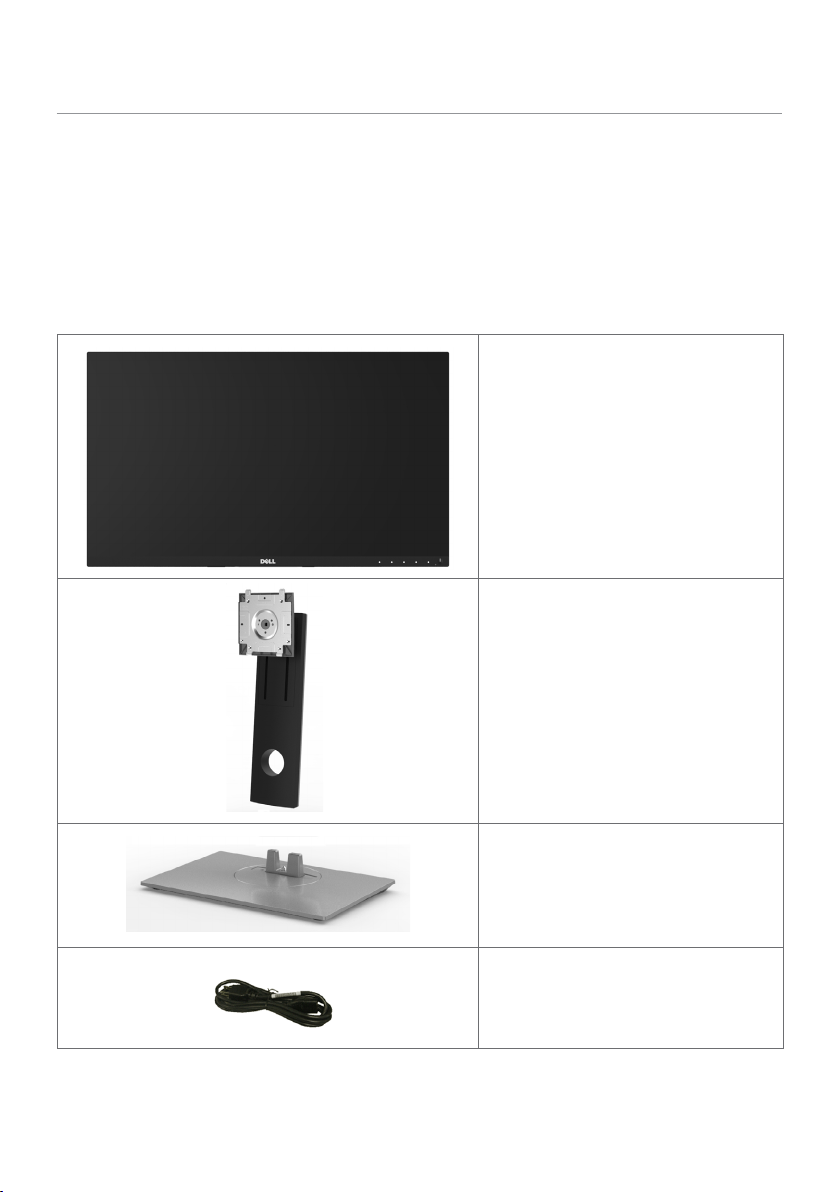

Package Contents

Your monitor ships with the components shown below. Make sure that you have

received all the components and contact Dell if something is missing.

NOTE: Some items may be optional and may not ship with your monitor.

Somefeatures or media may not be available in certain countries.

Monitor

Stand riser

Stand base

Power cable (varies by country)

6| About Your Monitor

USB 3.0 upstream cable (enables

the USB ports on the monitor)

DP cable (mDP to DP)

•Drivers and documentation media

•Quick Setup Guide

•Safety and Regulatory Information

•Factory Calibration Report

Product Features

The Dell UltraSharp UP2516D/UP2716D monitor has an active matrix, thinfilm transistor

(TFT), liquid crystal display (LCD), and LED backlight. The monitor features include:

• UP2516D: 63.44 cm (25-inch) active area display (Measured diagonally) 2560 x

1440 resolution, plus full-screen support for lower resolutions.

• UP2716D: 68.47 cm (27-inch) active area display (Measured diagonally) 2560 x

1440 resolution, plus full-screen support for lower resolutions.

• Tilt, swivel, pivot and vertical extension adjustment capabilities.

• Removable pedestal and Video Electronics Standards Association (VESA™) 100 mm

mounting holes for flexible mounting solutions.

• Ultra-thin bezel minimizes the bezel gap in multi-monitor usage, enabling easier

set up with an elegant viewing experience.

• Extensive digital connectivity with DP, mDP, HDMI (MHL), and USB 3.0 helps future-

proof your monitor.

• High Dynamic Contrast Ratio (2,000,000:1) .

• Supports major industry standards: 100% AdobeRGB, 100% sRGB, 100% REC709,

98% DCI-P3.

• Plug and play capability if supported by your system.

• On-Screen Display (OSD) adjustments for ease of set-up and screen optimization.

• Software and documentation media includes an information file (INF), Image

color Matching File (ICM), Dell Display Manager software application and product

documentation. Dell Display Manager included (comes in the CD attached with the

monitor).

• Security lock slot.

• Asset Management Capability.

• Energy Star Compliant.

• EPEAT Gold Compliant.

• RoHS compliant.

About Your Monitor | 7

• BFR/PVC Free monitor (excluding cables).

• TCO Certified Displays.

• Arsenic-Free glass and Mercury Free for Panel only.

• 0.3 W standby power when in the sleep mode.

• Energy Gauge shows the energy level being consumed by the monitor in real time.

Identifying Parts and Controls

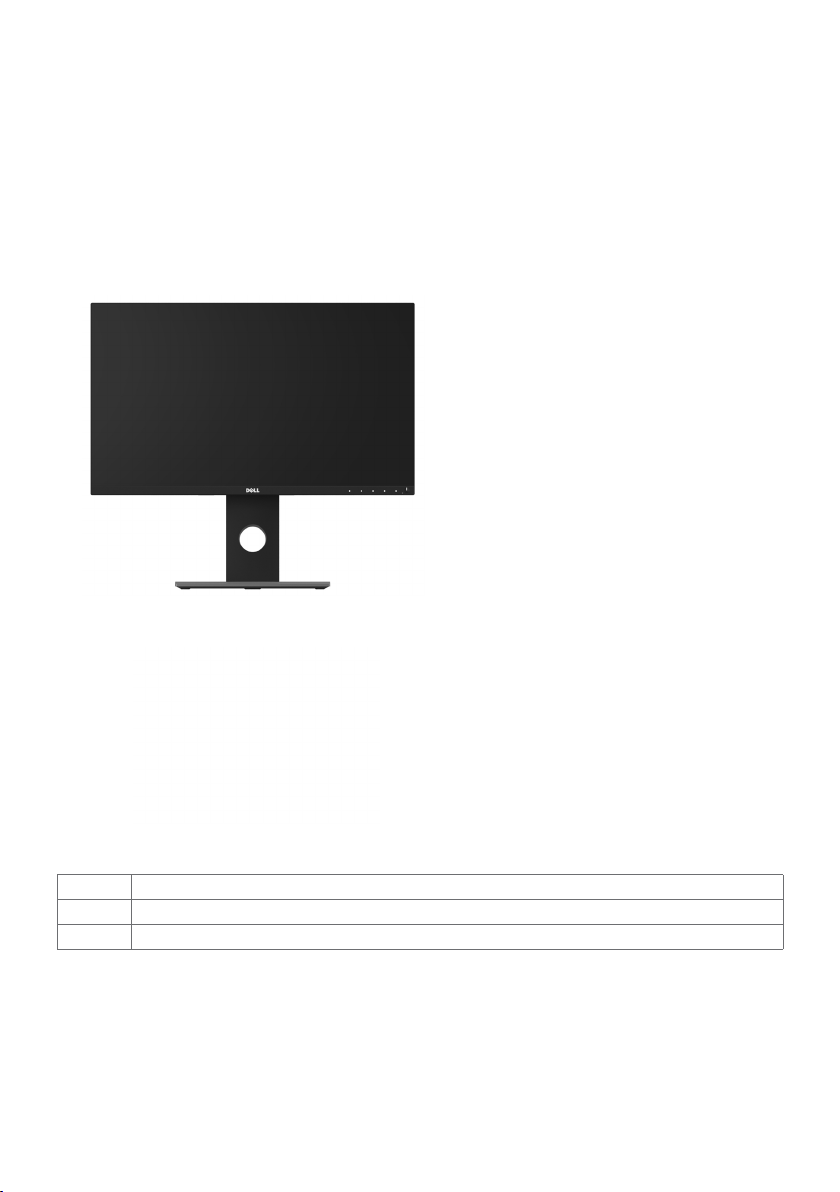

Front view

Front panel controls

Label Description

1Function buttons (For more information, see Operating the Monitor)

2Power on/off button (with LED indicator)

8| About Your Monitor

Back View

Label Description Use

1VESA mountiong holes (100 mm

x 100 mm-behind attached VESA

cover)

Wall mount monitor using VESA-

compatible wall mount kit (100 mm x 100

mm).

2Regulatory label Lists the regulatory approvals.

3Stand release button Release stand from monitor.

4Security lock slot Secures monitor with security cable lock

(sold separately).

5Barcode, serial number, and Service

Tag label

Refer to this label if you need to contact

Dell for technical support.

6Dell soundbar mounting slots Attaches the optional Dell soundbar.

NOTE: Please remove the plastic strip

covering the mounting slots before affixing

the Dell Soundbar.

Dell soundbar is sold separately.

7Cable management slot Use to organize cables by placing them

through the slot.

About Your Monitor | 9

Side View

Bottom View

Label Description Use

1AC power connector To connect the monitor power cable.

2a HDMI (MHL) 1 connector Connect your computer with HDMI cable or MHL

devices with MHL cable (optional).

2b HDMI (MHL) 2 connector

3DP connector (in) Connect your computer with DP cable.

4mDP connector (in) Connect your computer with mDP to DP cable.

5DP connector (out) DP output for MST (multi-stream transport) capable

monitor. DP 1.1 monitor can only be connected as

the last monitor in the MST chain. To enable MST,

refer to instruction on section “Connecting the

Monitor for DP MST Function”.

NOTE: Remove the rubber plug when use DP out

connector.

USB downstream port

Port with lightning icon is for BC 1.2

10 | About Your Monitor

6Audio line-out port Connect speakers to playback audio coming

through HDMI or DP audio channels.

Only supports 2-channel audio.

NOTE: The audio line-out port does not support

headphones.

7a USB upstream 1 port Connect the USB cable that comes with your

monitor to the computer. Once this cable is

connected, you can use the USB downstream

connectors on the monitor.

7b USB upstream 2 port

8USB downstream ports (2) Connect your USB device. You can only use this

connector after you have connected the USB cable

to the computer and USB upstream connector on

the monitor.

9Stand lock Lock the stand to the monitor using a M3 x 6 mm

screw (screw not included).

Monitor Specifications

Flat Panel Specifications

Model UP2516D UP2716D

Screen type Active matrix - TFT LCD Active matrix - TFT LCD

Panel type In-plane switching (IPS) In-plane switching (IPS)

Viewable image:

Diagonal 63.44 cm (25 inches) 68.47 cm (27 inches)

Active Area:

Horizontal 552.96 mm (21.77 inches) 596.74 mm (23.49 inches)

Vertical 311.04 mm (12.25 inches) 335.66 mm (13.21 inches)

Area 171992.68 mm2

(266.59 inches2)

200301.75 mm2

(310.47 inches2)

Pixel pitch 0.216 mm x 0.216 mm 0.2331 mm x 0.2331 mm

Viewing angle:

Horizontal 178° (typical) 178° (typical)

Vertical 178° (typical) 178° (typical)

Luminance output 300 cd/m² (typical) 300 cd/m² (typical)

Contrast ratio 1000 to 1 (typical)

2,000,000 to 1

(dynamic contrast on)

1000 to 1 (typical)

2,000,000 to 1

(dynamic contrast on)

Faceplate coating Anti-glare treatment of the

front polarizer (3H)

Anti-glare treatment of the

front polarizer (3H)

Backlight LED LED
