Dell U3014t Manual de usuario

Dell™ U3014 Flat Panel Monitor

User Guide

Setting the display resolution to 2560 x 1600 (maximum)

Information in this document is subject to change without notice.

Reproduction of these materials in any manner whatsoever without the written permission of Dell Inc. is strictly forbidden.

Trademarks used in this text: Dell and the DELL logo are trademarks of Dell Inc; Microsoft and Windows are either trademarks or registered trademarks of Microsoft Corporation in the United States and/or other countries, Intel is a

registered trademark of Intel Corporation in the U.S. and other countries; and ATI is a trademark of Advanced Micro Devices, Inc. ENERGY STAR is a registered trademark of the U.S. Environmental Protection Agency. As an ENERGY

STAR partner, Dell Inc. has determined that this product meets the ENERGY STAR guidelines for energy efficiency.

Other trademarks and trade names may be used in this document to refer to either the entities claiming the marks and names or their products. Dell Inc. disclaims any proprietary interest in trademarks and trade

names other than its own.

Model U3014t

October 2013 Rev. A03

Dell™ U3014 Flat Panel Monitor User's Guide

About Your Monitor

Setting Up the Monitor

Operating the Monitor

Troubleshooting

Appendix

Notes, Cautions, and Warnings

NOTE: A NOTE indicates important information that helps you make better use of your computer.

CAUTION: A CAUTION indicates either potential damage to hardware or loss of data and tells you how to avoid the problem.

WARNING: A WARNING indicates a potential for property damage, personal injury,or death.

Information in this document is subject to change without notice.

Reproduction of these materials in any manner whatsoever without the written permission of Dell Inc. is strictly forbidden.

countries, Intel is a registered trademark of Intel Corporation in the U.S. and other countries; and ATI is a trademark of Advanced Micro Devices, Inc. ENERGY STAR is a registered trademark of the U.S.

Environmental Protection Agency. As an ENERGY STAR partner, Dell Inc. has determined that this product meets the ENERGY STAR guidelines for energy efficiency.

names other than its own.

Model U3014t

October 2013 Rev. A03

Back to Contents Page

Setting Up Your Monitor

Dell™ U3014 Flat Panel Monitor

Setting the display resolution to 2560 x 1600 (maximum)

For maximum display performance with Microsoft®Windows®operating systems, set the display resolution to 2560 x 1600 pixels by performing the following steps:

In Windows Vista®, Windows®7 or Windows®8 / Windows®8.1:

1. For Windows®8 / Windows®8.1 only, select the Desktop tile to switch to classic desktop.

2. Right-click on the desktop and click Screen resolution.

3. Click the Dropdown list of the Screen resolution and select 2560 x 1600.

4. Click OK.

If you do not see the recommended resolution as an option, you may need to update your graphics driver. Please choose the scenario below that bestdescribes the computer system you are

using, and follow the given steps.

NOTE: If a tablet or DVD/Blu-Ray player is connected, the maximum output resolution may be limited to 1920 x 1080. In this case, please switch the video setting of the monitor OSD to 1:1

setting if the original tablet resolution is desired (Black bars may be inherent at the sides of the screen in this case).

NOTE: Depending on your graphics card, connections using HDMI may only support up to 2560 x 1600.

1: If you have a Dell™ desktop or a Dell™ portable computer with internet access.

2: If you have a non Dell™ desktop, portable computer, or graphics card.

Back to Contents Page

About Your Monitor

Dell™ U3014 Flat Panel Monitor User's Guide

Package Contents

Product Features

Identifying Parts and Controls

Monitor Specifications

Plug and Play Capability

Universal Serial Bus (USB) Interface

Card Reader Specifications

LCD Monitor Quality and Pixel Policy

Maintenance Guidelines

Package Contents

Your monitor ships with the components shown below. Ensure that you have received all the components and contact Dell if something is missing.

NOTE: Some items may be optional and may not ship with your Monitor. Some features or media may not be available in certain countries.

NOTE: To set up with anyother stand, please refer to the respective stand setup guide for setup instructions.

Monitor

Stand

Power Cable (varies by countries)

DisplayPort cable (Mini-DP to DP)

DVI-D Cable (Dual Link)

USB 3.0 upstream cable (enables the USB ports on the monitor)

Velcro cable tie

Drivers and Documentation Media

Quick Setup Guide

Product and Safety Information Guide

Factory Calibration Report

Product Features

The Dell U3014 flat panel display has an active matrix, Thin-Film Transistor (TFT), Liquid Crystal Display (LCD) and LED backlight. The monitor features include:

■29.77-inch (75.62 cm) diagonal viewable image size. 2560 x 1600 resolution, plus full-screen support for lower resolutions.

■Wide viewing angle to allow viewing from a sitting or standing position, or while moving from side-to-side.

■Tilt, swivel and vertical extension.

■Removable stand and Video Electronics Standards Association (VESA™) 100 mm mounting holes for flexible mounting solutions.

■Plug and play capability if supported by your system.

■On-Screen Display (OSD) adjustments for ease of set-up and screen optimization.

■Software and documentation media includes an Information File (INF), Image Color Matching File (ICM), Dell Display Manager software application, Color Calibration Software and product

documentation.

■Security lock slot.

■Asset Management Capability.

■Capability to switch from wide aspect to standard aspect ratio while maintaining the image quality.

■TCO-Certified Displays.

■

Dell Display Manager software included (comes in the CD shipped with the monitor).

■Arsenic-Free glass and Mercury-Free for the panel only.

■High Dynamic Contrast Ratio (2,000,000:1).

■BFR/PVC-reduced.

■Energy Gauge shows the energy level being consumed by the monitor in real time.

■EPEAT Gold Rating.

■Energy Saver feature for Energy Star compliance.

■Compatible with Adobe and sRGB color standards.

■Factory calibrated sRGB and Adobe RGB input source (to a delta E of less than 2) for brand new Dell U3014 monitor. Dedicated Custom Color Mode (6-axis Color-control) for Saturation , Hue, Gain

(RGB) and offset (RGB).

■12-bit internal processing HDMI with deep color (12-bit).

■12-bit internal processing with 14-bit LUT.

■USB 3.0 Card Reader (SD/Mini SD, MS/HSMD/MSPRO, MMC).

■Supports DVI-D, DisplayPort, Mini DisplayPort, HDMI, DP1.1a, DP 1.2 MST (also known as DP Daisy Chain) and HBR2 (Default out of factory setting is DP1.1a. To enable MST and HBR2, refer to instruction

on section "Connecting the Monitor for DP MST Function" ).

■Supports Picture by Picture (PBP) and Picture in Picture (PIP) Select mode.

Identifying Parts and Controls

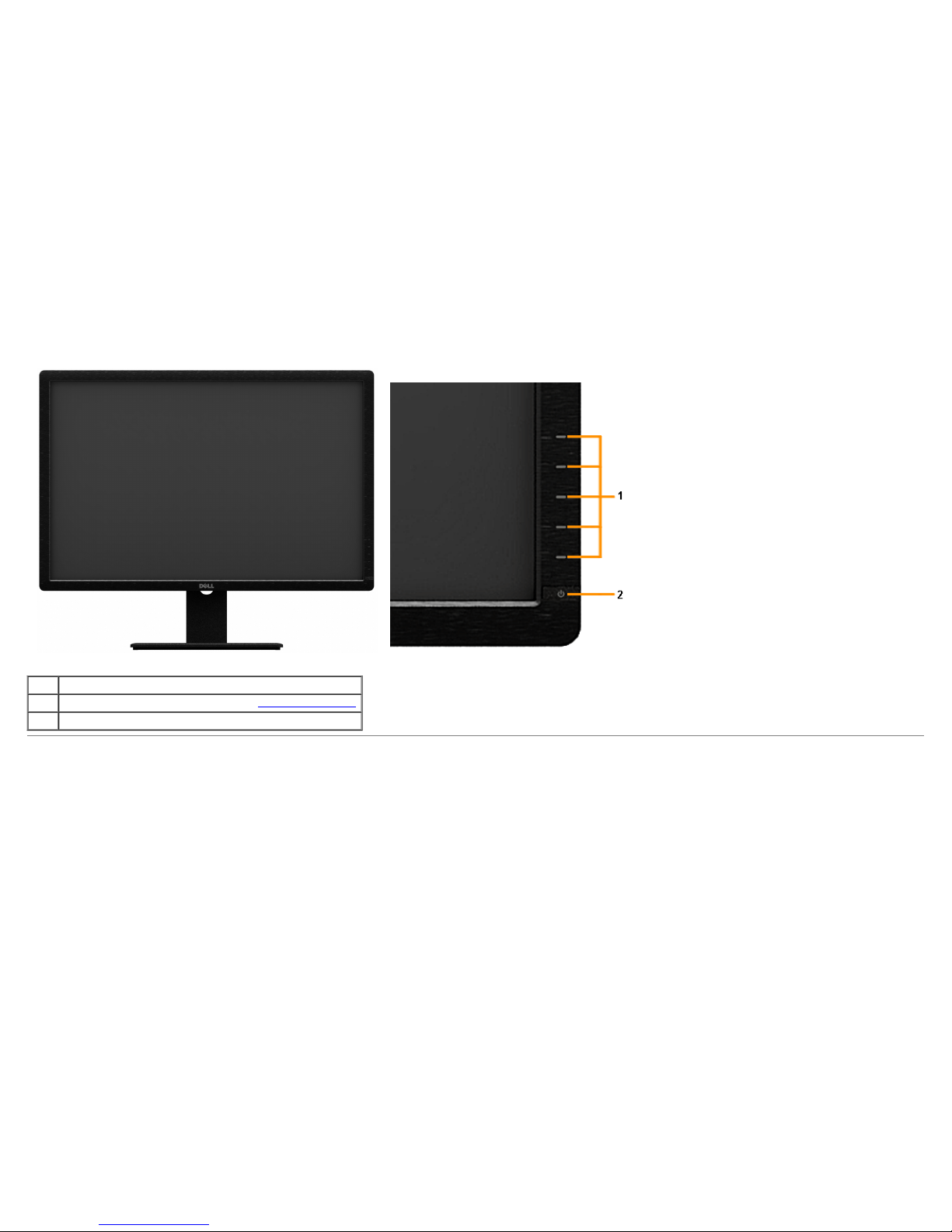

Front View

Front View Front panel controls

Label Description

1Function buttons (For more information, see Operating the Monitor)

2Power On/Off button (with LED indicator)

Back View

Back view Back view with monitor stand

Label Description Use

1VESA mounting holes (100 mm x 100 mm -

behind attached VESA Cover)Wall mount monitor using VESA-compatible wall mount kit (100 mm x 100 mm) .

2Regulatory label Lists the regulatory approvals.

3Stand release button Release stand from monitor.

4Security lock slot Secures monitor with security cable lock.

5Service tag label Refer to this label if you need to contact Dell for technical support.

6Barcode serial number label To contact Dell for technical support.

7Dell Soundbar mounting brackets Attaches the optional Dell Soundbar.

8Cable management slot For cable management. Route cables through the slot.

Side View

Left view Right view

Label Description Use

1Card Reader See Card Reader Specifications for more information.

2USB Down Stream Port Connect your USB devices.

3USB Down Stream Port Connect your USB devices.

This USB port supports BC 1.2 compliance charging devices, at 1.5A max for fast charging.
