About Your Monitor

Dell™U3011FlatPanelMonitorUser'sGuide

Package Contents

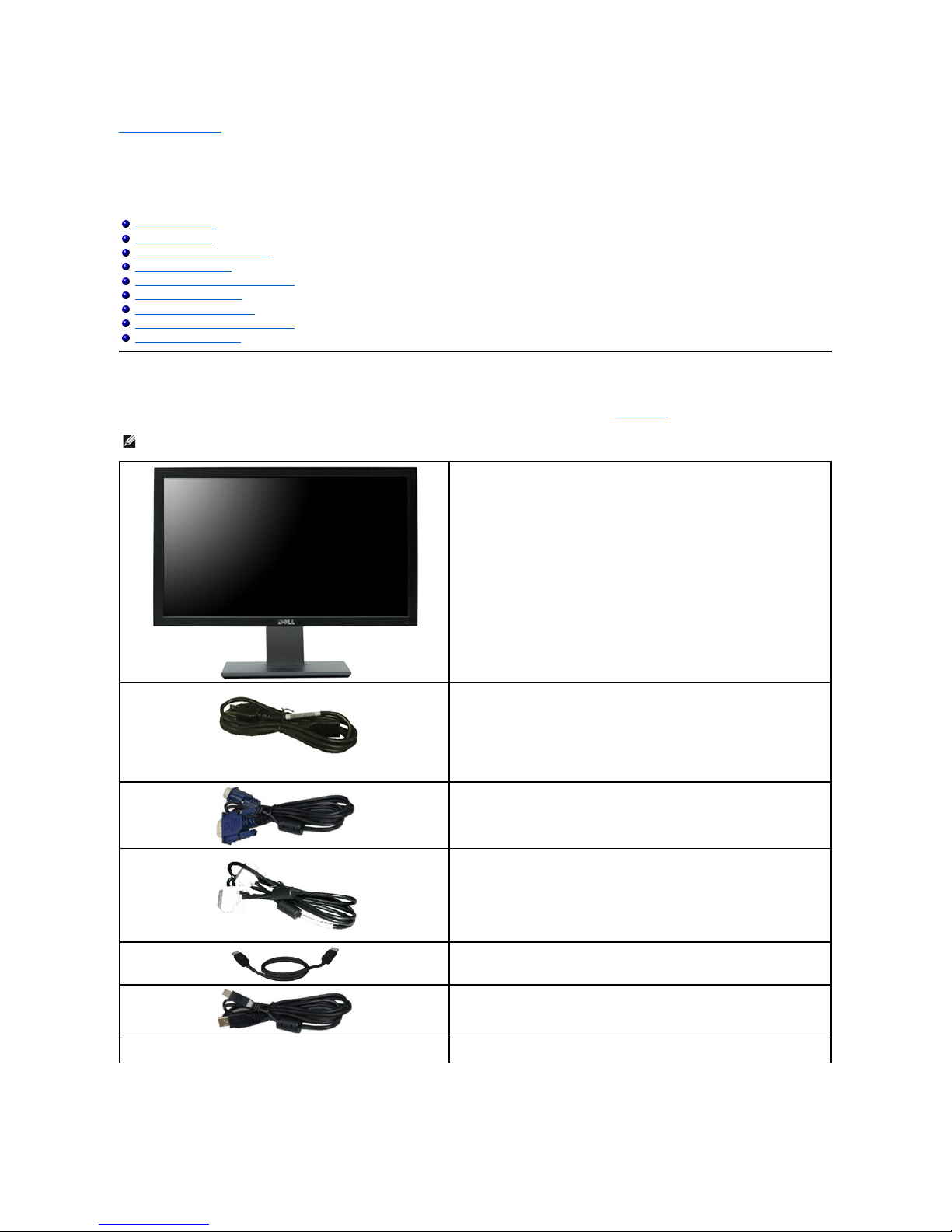

Your monitor ships with the components shown below. Ensure that you have received all the components and contact Dell if something is missing.



Package Contents

Product Features

Identifying Parts and Controls

Monitor Specifications

Universal Serial Bus (USB) Interface

Plug and Play Capability

Card Reader Specifications

LCD Monitor Quality and Pixel Policy

Maintenance Guidelines

NOTE: Some items may be optional and may not ship with your monitor. Some features or media may not be available in certain countries.

lMonitor with stand

lPower Cable

lVGA Cable

lDual-link DVI Cable (attached to the monitor)

lDisplayPort Cable

lUSB up stream cable (enables the USB ports and card reader on the monitor)



lDrivers and Documentation media

lQuick Setup Guide



Product Features

The U3011 flat panel display has an active matrix, thin-film transistor (TFT), liquid crystal display (LCD). The monitor features include:

■756.23 mm (30 inches) viewable area display (measured diagonally).

■2560 x 1600 resolution, plus full-screen support for lower resolutions.

■Wideviewingangle(178°/178°)andsuperbgrayscaletrackingminimizescolordeviationsatbiasedanglesofviewing(sitting,standing,ormovingside-to-

side) which ensures ultra-smooth color gradation.

■Tilt, swivel and vertical extension adjustment capabilities.

■Removable stand and Video Electronics Standards Association (VESA™) 100 mm mounting holes for flexible mounting solutions.

■Plug and play capability if supported by your system.

■On-Screen Display (OSD) adjustments for ease of set-up and screen optimization.

■Software and documentation media includes an information file (INF), Image color Matching File (ICM), and product documentation.

■Security lock slot.

■Compatible with xvYCC, Adobe RGB and sRGB color standards.

■Factory calibrated to an average delta E of < 5 under sRGB and Adobe RGB input source for brand-new Dell monitor U3011. Dedicated Custom Color Mode (6-

axis Color-control) for Saturation, Hue, Gain (RGB) and offset (RGB).

■12-bit internal processing which tested HDMI1.3 with deep color (12-bit).

■7-in-1 USB 2.0 Card Reader (xD, SD/Mini SD, MS/HSMD/MSPRO, MMC).

■Supports VGA, DVI-D, DisplayPort, HDMI and Component video signals.

■SupportsPicturebyPicture(PBP)Selectmode.

Identifying Parts and Controls

Front View

lColor calibration datasheet

lProduct and Safety Information Guide

Front View

Front panel controls

Label

Description

Shortcut Key 1 -Preset Modes (Default)

Shortcut Key 2 -Brightness/Contrast (Default)

Back View

Side View

Shortcut Key 3 -Input Source (Default)

Exit

Power (with power light indicator)

NOTE: 1~5 are capacitive touch sensor keys, which are activated by placing your finger on the blue LED.

Back view

Back view with monitor stand

Label

Description

Use

VESA mounting holes (100 mm x 100

mm -behind attached VESA Plate)

Wall mount monitor using VESA-compatible wall mount

kit (100 mm x 100 mm).

Security lock slot

To help secure your monitor.

Barcode serial number label

To contact Dell for technical support.

Dell Soundbar mounting brackets (2)

To attach the optional Dell Soundbar.

Regulatory label

Lists the regulatory approvals.

Service tag label

Refer to this label if you need to contact Dell for

technical support.

Cable management hole

Helps organize cables by placing them through the hole.

Left view

Right view

Label

Description

Card reader: for details, see Card Reader Specifications.

USB downstream port.

USB downstream port (support up-to 1.5 A charging current).

NOTE: To use the USB connectors on your monitor, connect the USB cable to your computer and the USB upstream connector to your monitor.

Bottom View

Monitor Specifications

Flat Panel Specifications



Bottom view

Bottom view with monitor stand

Label

Description

Use

AC power cord connector

Connect the power cable.

DC power connector for Dell Soundbar

Connect the power cord for the soundbar (optional).

Audio connectors

Connect the HDMI 2.0 channel or DisplayPort 2.0 channel or 5.1 channel

audio output devices.

Connectthefrontleft/rightchanneloutputtothegreenconnector.Usethis

connector for 2.0/2.1 channel audio connection.

Connect the rear left/right channel output to the black connector. Use this

connector for 5.1 channel audio connection.

Connectthecenter/subwooferchanneloutputtotheorangeconnector.Use

this connector for 5.1 channel audio connection.

DisplayPort connector

Connect your computer DisplayPort cable.

DVI connector

Connect your computer DVI (Dual link) cable.

VGA connector

Connect your computer VGA cable.

HDMI connector

Connect devices such as a DVD player or set-top box.

Component video connectors

Connect devices such as a DVD player, set-top box, or cable TV box.

USB upstream port

Connect the USB cable that came with your monitor to the monitor and the

computer. Once this cable is connected,you can use the USB connectors on

the side and bottom of the monitor.

USB downstream ports

Connect your USB devices. You can only use this connector after you have

connected the USB cable to the computer and USB upstream connector on

the monitor.

Model

U3011

Screen type

Active matrix - TFT LCD

Panel type

IPS

Screen dimensions

756.23 mm (30 inches)

Preset display area:

641.28 mm x 400.80 mm

Horizontal

641.28 mm (25.25 inches)

Vertical

400.80 mm (15.78 inches)

Pixel pitch

0.2505mm

Pixel per Inch

101

Viewing angle

178°(vertical)typical,178°(horizontal)typical

Luminance output

370 cd/m²(typical)

Contrast ratio

1000 to 1 (typical), 100,000 to 1 (max, Dynamic Contrast on)

Faceplate coating

Antiglare with hard-coating 3H

Backlight

Direct Light Type_18 CCFL

Response Time

GTG AVR 7 ms / GTG_MAX 17 ms

*U3011 color gamut (typical) is based on CIE1976 (117%) and CIE1931 (102%) test standards.

Resolution Specifications

Analog signal input

Digital signal Input (DVI dual link and DisplayPort and HDMI)

Supported Video Modes

Preset Display Modes

Electrical Specifications

Color depth

1.07 billion colors

Color Gamut

117%* NTSC typical / 100% sRGB, 99% Adobe RGB

Horizontal scan range

30 kHz to 99 kHz

Vertical scan range

56Hzto86Hz

Optimal preset resolution

2048 x 1280 at 60 Hz

Highest preset resolution

2048 x 1280 at 60 Hz

Horizontal scan range

30 kHz to 112.5 kHz

Vertical scan range

56Hzto86Hz

Optimal preset resolution

2560 x 1600 at 60 Hz

(DVI/DisplayPort input sources)

1920 x 1200 at 60 Hz (HDMI

input source)

Highest preset resolution

2560 x 1600 at 60 Hz

(DVI/DisplayPort input sources)

1920 x 1200 at 60 Hz (HDMI

input source)

Video display capabilities (HDMI

playback)

480i/480p/576i/576p/720p/1080i/1080p

Video display capabilities (Component

playback)

480i/480p/576i/576p/720p/1080i/1080P

Display Mode

Horizontal Frequency

(kHz)

Vertical Frequency (Hz)

Pixel Clock (MHz)

Sync Polarity

(Horizontal/Vertical)

VESA, 720 x 400

31.47

70.0

28.322

-/+

VESA, 640 x 480

31.47

60.0

25.175

-/-

VESA, 640 x 480

37.5

75.0

31.5

-/-

VESA, 800 x 600

37.88

60.0

+/+

VESA, 800 x 600

46.88

75.0

49.5

+/+

VESA, 1024 x 768

48.36

60.0

65.0

-/-

VESA, 1024 x 768

60.02

75.0

78.75

+/+

VESA, 1152 x 864

67.5

75.0

108

+/+

VESA, 1280 x 800

49.7

60.0

83.5

-/+

VESA, 1280 x 1024

64.0

60.0

108

+/+

VESA, 1280 x 1024

80.0

75.0

135

+/+

VESA, 1600 x 1200

75.0

60.0

162

+/+

VESA, 1920 x 1200

74.6

60.0

193.5

-/+

VESA, 2048 x 1280

78.82

60.0

174.25

+/-

VESA, 2560 x 1600

98.71

60.0

268.5

+/-

Video input signals

Analog RGB, 0.7 Volts +/-5%, positive polarity at 75

ohm input impedance

Digital DVI-D TMDS, 600mV for each differential line,

positive polarity at 50 ohm input impedance

HDMI TMDS, 600 mV for each differential line,

positive polarity at 50 ohm input impedance or 100

Ohm per differential pair

DisplayPort 1.1a signal input support

Component, Y 0.7 volt, Pb, Pr are all 0.7 volt(p-p),

Physical Characteristics

Environmental Characteristics

sync(H+V) 0.3 volt, 75 ohm input impedance

Synchronization input signals

Separate horizontal and vertical synchronizations,

polarity-free TTL level, SOG (Composite SYNC on

green)

AC input voltage/frequency/current

100 to 240 VAC / 50 Hz/60 Hz +/-3 Hz / 2.5 A

(Max.)

Inrush current

120 V: 42 A (Max.) at 0 oC

220 V: 80 A (Max.) at 0 oC

Connector type

15-pin D-subminiature, blue connector; DVI-D,

white connector; HDMI/DisplayPort, black

connector; Component

Signal cable type

DVI: Detachable, DVI-D, Solid pins, shipped

attached to the monitor

DisplayPort: Detachable, DisplayPort, Solid pins,

shipped detached from the monitor

Analog: Detachable, D-Sub, 15 pins, shipped

detached from the monitor

High Definition Multimedia Interface: Detachable,

HDMI, 19 pins

Component

NOTE: The component, and HDMI cables are not

included with the monitor.

Dimensions (with stand)

Height (Compressed)

481.3 mm (18.95 inches)

Height (Extended)

571.3 mm (22.50 inches)

Width

694.5 mm (27.34 inches)

Depth

211.3 mm (8.32 inches)

Dimensions (without stand)



Height

453.3 mm (17.85 inches)

Width

694.5 mm (27.34 inches)

Depth

94.4 mm (3.72 inches)

Stand dimensions



Height (Compressed)

323.2 mm (12.72 inches)

Height (Extended)

413.2 mm (16.27 inches)

Width

349.4 mm (13.76 inches)

Depth

211.3 mm (8.32 inches)

Weight



Weight with packaging

15.3 kg (33.76 lb)

Weight with stand assembly and cables

12.6 kg (27.72 lb)

Weight without stand assembly

(For wall mount or VESA mount considerations -

no cables)

9.3 kg (20.40 lb)

Weight of stand assembly

2.6 kg (5.69 lb)

Temperature



Operating

5°to35°C(41°to95°F)

Non-operating

Storage: -20°to60°C(-4°to140°F)

Shipping: -20°to60°C(-4°to140°F)

Humidity



Operating

10% to 80% (non-condensing)

Non-operating

Storage: 5% to 90% (non-condensing)

Shipping: 5% to 90%(non-condensing)

Altitude



Power Management Modes

IfyouhaveVESA'sDPM™compliancedisplaycardorsoftwareinstalledinyourPC,themonitorcanautomaticallyreduceitspowerconsumptionwhennotin

use. This is referred to as Power Save Mode*. If the computer detects input from keyboard, mouse, or other input devices, the monitor automatically resumes

functioning. The following table shows the power consumption and signaling of this automatic power saving feature:

The OSD will only function in the normal operation mode. When any button is pressed in Active-off mode, one of the following messages will be displayed:

* Zero power consumption in OFF mode can only be achieved by disconnecting the main cable from the monitor.

** Maximum power consumption with max luminance, Dell Soundbar, and USB active.

Pin Assignments

VGA Connector

Operating

3,657.6 m (12,000 ft) max

Non-operating

12,192 m (40,000 ft) max

Thermal dissipation

853.6 BTU/hour (maximum)

375.59 BTU/hour (typical)

VESA Modes

Horizontal Sync

Vertical Sync

Video

Power Indicator

Power Consumption

Normal operation (with Dell Soundbar and USB active)

Active

Blue

250 W (maximum)**

Normal operation

Active

Blue

110 W (typical)

Active-off mode

Inactive

Blanked

Amber

Less than 2 W

Switch off

Off

Less than 1 W

NOTE: While using the DisplayPort connector at 230V/50Hz, the DisplayPort consumes approximately 0.25 W more than the VGA or DVI-

D while in sleep mode.

NOTE: This monitor is ENERGY STAR®-compliant.

Pin Number

15-pin Side of the Connected Signal Cable

Video-Red

Video-Green

Video-Blue

GND

Self-test

GND-R

GND-G

GND-B

+5V

DDC-GND

GND

DVIConnector

20-pinDisplayPortConnector



DDC-SDA

H-sync

V-sync

DDC-SCL

NOTE: Pin 1 is at the top left.

Pin Number

24-pin Side of the Connected Signal Cable

T.M.D.S. Data 2-

T.M.D.S. Data 2+

T.M.D.S. Data 2/4 Shield

T.M.D.S. Data 4-

NT.M.D.S. Data 4+

DDC Clock

DDC Data

No Connect

T.M.D.S. Data 1-

T.M.D.S. Data 1+

T.M.D.S. Data 1/3 Shield

T.M.D.S. Data 3-

T.M.D.S. Data 3+

+5V Power

Self Test

Hot Plug Detect

T.M.D.S. Data 0-

T.M.D.S. Data 0+

T.M.D.S. Data 0/5 Shield

T.M.D.S. Data 5-

T.M.D.S. Data 5+

T.M.D.S. Clock Shield

T.M.D.S. Clock +

T.M.D.S. Clock -

Pin Number

20-pin Side of the Connected Signal Cable

ML0(p)

GND

ML0(n)

ML1(p)

19-pinHDMIConnector



Component Video Connector

GND

ML1(n)

ML2(p)

GND

ML2(n)

ML3(p)

GND

ML3(n)

GND

AUX(p)

GND

AUX(n)

HPD

DP_PWR Return

+3.3V DP_PWR

Pin Number

19-pin Side of the Connected Signal Cable

(Cable not included)

TMDS DATA 2+

TMDS DATA 2 SHIELD

TMDS DATA 2-

TMDS DATA 1+

TMDS DATA 1 SHIELD

TMDS DATA 1-

TMDS DATA 0+

TMDS DATA 0 SHIELD

TMDS DATA 0-

TMDS CLOCK

TMDS CLOCK SHIELD

TMDS CLOCK-

Floating

DDC CLOCK (SDA)

DDC DATA (SDA)

GROUND

+5V POWER

HOT PLUG DETECT

Otros manuales para U3011

Tabla de contenidos

Otros manuales de Monitor de Dell

Dell

Dell UltraSharp 1800FP Manual de usuario

Dell

Dell P3424WEB Manual de usuario

Dell

Dell G2723HN Manual de usuario

Dell

Dell E228WFP Manual de usuario

Dell

Dell S1909WNf Manual de usuario

Dell

Dell UltraSharp U2711 Manual de usuario

Dell

Dell AW2721DB Instrucciones de uso

Dell

Dell E770S - 17" CRT Display Manual de usuario

Dell

Dell S3222HN Manual de usuario

Dell

Dell S2309W - 23" LCD Monitor Manual de usuario

Dell

Dell 1708FP - UltraSharp - 17" LCD Monitor Manual de usuario

Dell

Dell E178FP Manual de usuario

Dell

Dell E1715S Instrucciones de instalación

Dell

Dell D1901N Manual de usuario

Dell

Dell E2020HB Manual de usuario

Dell

Dell D1626HT - UltraScan 1600HS - 21" CRT Display Manual de usuario

Dell

Dell S2421HN Manual de usuario

Dell

Dell SR2220L Manual de usuario

Dell

Dell P2016 Manual de usuario

Dell

Dell 1504FP - UltraSharp - 15" LCD Monitor Manual de usuario

Dell

Dell IN2020 Manual de usuario

Dell

Dell UltraSharp 27 Manual de usuario

Dell

Dell E1713S Manual de usuario

Dell

Dell E170S - 17" LCD Monitor Manual de usuario

Manuales populares de Monitor de otras marcas

Linear Acoustic

Linear Acoustic LQ-1000 Manual de usuario

AOC

AOC I2579V Manual de usuario

Gateway

Gateway FPD1520 Manual de usuario

Furuno

Furuno Mu 120c Manual de usuario

Asus

Asus VB171D - 17" LCD Monitor Manual de usuario

Philips

Philips 107C64 Manual de usuario

EverFocus

EverFocus EN-7517E Manual de usuario

Panasonic

Panasonic TH152UX1 - 152" PLASMA TV Manual de usuario

LG 50PM1M - - 50" Plasma Panel Manual de usuario

Bosch

Bosch DDU 9 Manual de usuario

Acer

Acer A231HL Manual de usuario

Philips

Philips 86BDL4152T Manual de usuario

NEC

NEC AccuSync LCD5V Manual de usuario

Emay

Emay SleepO2 Manual de usuario

IBM

IBM 6360 Instrucciones de instalación

LG M1950D-PZ Manual de usuario

Sceptre

Sceptre D40 Manual de usuario

Hunt Electronic

Hunt Electronic HCD-15AH Manual de usuario
