About Your Monitor

Dell™U2211H/U2311HMonitorUser'sGuide

Package Contents

Your monitor ships with the components shown below. Ensure that you have received all the components and contact Dell if something is missing.



Package Contents

Product Features

Identifying Parts and Controls

Monitor Specifications

Plug and Play Capability

Universal Serial Bus (USB) Interface

LCD Monitor Quality and Pixel Policy

Maintenance Guidelines

NOTE: Some items may be optional and may not ship with your Monitor. Some features or media may not be available in certain countries.

NOTE: To set up with anyother stand, please refer to the respective stand setup guide for setup instructions.

lMonitor

lStand

lPower Cable



Product Features

The U2211H / U2311H flat panel display has an active matrix, thin-film transistor (TFT), liquid crystal display (LCD). The monitor features include:

■546.1 mm (21.5-inch)viewableareadisplay(Measureddiagonally).1920 x 1080 resolution, plus full-screen support for lower resolutions.

■584.2 mm (23-inch)viewableareadisplay(Measureddiagonally).1920 x 1080 resolution, plus full-screen support for lower resolutions.

■Wide viewing angle to allow viewing from a sitting or standing position, or while moving from side-to-side.

■Tilt, swivel, vertical extension and rotate adjustment capability.

■Removable pedestal and Video Electronics Standards Association (VESA™) 100 mm mounting holes for flexible mounting solutions.

■Plug and play capability if supported by your system.

■On-Screen Display (OSD) adjustments for ease of set-up and screen optimization.

■Software and documentation media includes an information file (INF), Image color Matching File (ICM), and product documentation.

■Energy Saver feature for Energy Star compliance.

■Security lock slot.

■Asset Management Capability.

■Capability to switch from wide aspect to standard aspect ratio while maintaining the image quality.

■EPEAT Silver Rating.

■Halogen Reduced.

Identifying Parts and Controls

Front View

lVGA Cable (attached to the monitor)

lDVI Cable

lUSB up stream cable (enables the USB ports on the monitor)



lDrivers and Documentation media

lQuick Setup Guide

lProduct and Safety Information Guide

Back View

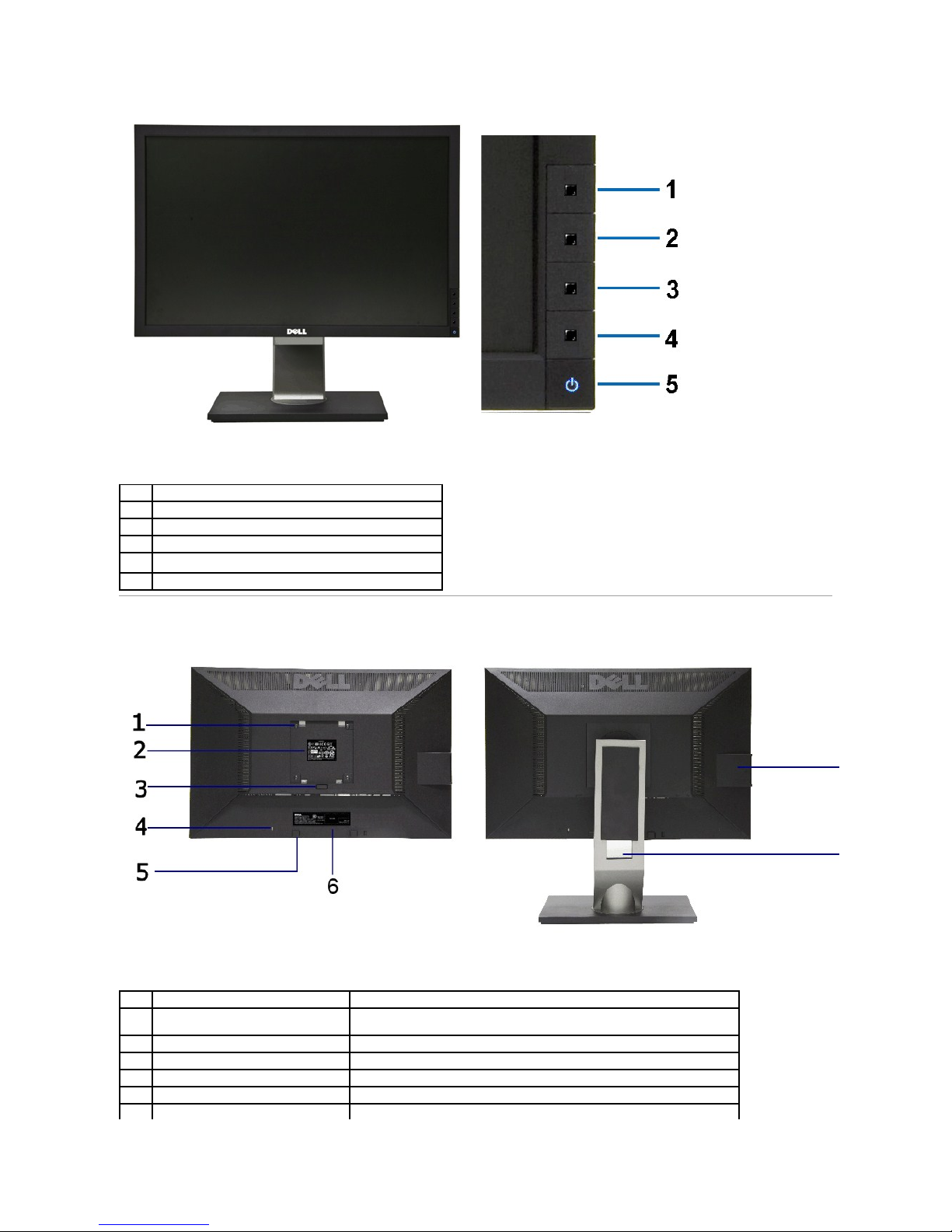

Front View

Front panel controls

Label

Description

Preset Modes (default, but configurable)

Brightness & Contrast (default, but configurable)

Exit

Power (with power light indicator)

Back view

Back view with monitor stand

Label

Description

Use

VESA mounting holes (100 mm x 100 mm -

behind attached VESA Plate)

Wall mount monitor using VESA-compatible wall mount kit (100 mm x 100 mm)

Regulatory label

Lists the regulatory approvals.

Stand release button

Release stand from monitor.

Security lock slot

Secures monitor with security cable lock

Dell Soundbar mounting brackets

Attaches the optional Dell Soundbar.

Barcode serial number label

Refer to this label if you need to contact Dell for technical support.

Side View

Bottom View

USB downstream ports

Connect your USB devices.

Cable management slot

Use to organize cables by placing them through the slot.

Left view

Right view

Bottom view

Bottom view with monitor stand

Label

Description

Use

AC power cord connector

Connect the power cable

DC power connector for Dell Soundbar.

Connect the power cord for the soundbar (optional)

DisplayPort connector

Connect your computer DP cable

DVI connector

Connect your computer DVI cable

VGA connector

Connect your computer VGA cable

USB upstream port

Connect the USB cable that came with your monitor to the monitor and the

computer. Once this cable is connected,you can use the USB connectors on

the side and bottom of the monitor.

USB downstream ports

Connect your USB devices. You can only use this connector after you have

connected the USB cable to the computer and USB upstream connector on

the monitor.

Stand lock feature

To lock the Stand to the Monitor

Monitor Specifications

Flat Panel Specifications

*[U2211H] color gamut (typical) is based on CIE1976 (82%) and CIE1931 (72%) test standards.

*[U2311H] color gamut (typical) is based on CIE1976 (82%) and CIE1931 (72%) test standards.

Resolution Specifications

Supported Video Modes

Preset Display Modes

U2211H

Model

U2211H

U2311H

Screen type

Active matrix - TFT LCD

Panel type

IPS

Screen dimensions

546.1 mm (21.5-inches viewable image size)

584.2 mm (23-inches viewable image size)

Preset display area:

475.2 (H) X 267.3 (V) mm

509.2 (H) X 286.4 (V) mm

Horizontal

475.2 mm (18.7 inches)

509.2 mm (20.05 inches)

Vertical

267.3 mm (10.5 inches)

286.4 mm (11.28 inches)

Pixel pitch

0.2475 mm

0.265 mm

Viewing angle

178°(vertical)typical

178°(horizontal)typical

178°(vertical)typical

178°(horizontal)typical

Luminance output

250 CD/m²(typical)

300 CD/m²(typical)

Contrast ratio

1000 to 1 (typical), 10000 to 1 (typical Dynamic Contrast

On)

1000 to 1 (typical), 10000 to 1 (typical Dynamic Contrast On)

Faceplate coating

Antiglare with hard-coating 3H

Backlight

2-CCFL edgelight system

4-CCFL edgelight system

Response Time

8 ms gray-to-gray (typical)

Color depth

16.7 million colors

Color Gamut

82%*

Model

U2211H

U2311H

Horizontal scan range

30 kHz to 83 kHz

(automatic)

30 kHz to 83 kHz

(automatic)

Vertical scan range

56Hzto75Hz

(automatic)

56Hzto75Hz

(automatic)

Maximum preset

resolution

1920 x1080 at 60 Hz

Model

U2211H

U2311H

Video display capabilities (DVI & DP playback)

480p, 576p, 720p, 1080p,

480i, 576i, 1080i

480p,

576p,

720p,

1080p,

480i,

576i,

1080i

Display Mode

Horizontal Frequency

(kHz)

Vertical Frequency (Hz)

Pixel Clock (MHz)

Sync Polarity (Horizontal/Vertical)

VESA, 720 x 400

31.5

70.0

28.3

-/+

VESA, 640 x 480

31.5

60.0

25.2

-/-

VESA, 640 x 480

37.5

75.0

31.5

-/-

U2311H

Electrical Specifications

Physical Characteristics

VESA, 800 x 600

37.9

60.3

40.0

+/+

VESA, 800 x 600

46.9

75.0

49.5

+/+

VESA, 1024 x 768

48.4

60.0

65.0

-/-

VESA, 1024 x 768

60.0

75.0

78.8

+/+

VESA, 1152 x 864

67.5

75.0

108.0

+/+

VESA, 1280 x 1024

64.0

60.0

108.0

+/+

VESA, 1280 x 1024

80.0

75.0

135.0

+/+

VESA, 1600 x 1200

75.0

60.0

162.0

+/+

VESA, 1920 x 1080

67.5

60.0

148.5

+/+

Display Mode

Horizontal Frequency

(kHz)

Vertical Frequency (Hz)

Pixel Clock (MHz)

Sync Polarity (Horizontal/Vertical)

VESA, 720 x 400

31.5

70.0

28.3

-/+

VESA, 640 x 480

31.5

60.0

25.2

-/-

VESA, 640 x 480

37.5

75.0

31.5

-/-

VESA, 800 x 600

37.9

60.3

40.0

+/+

VESA, 800 x 600

46.9

75.0

49.5

+/+

VESA, 1024 x 768

48.4

60.0

65.0

-/-

VESA, 1024 x 768

60.0

75.0

78.8

+/+

VESA, 1152 x 864

67.5

75.0

108.0

+/+

VESA, 1280 x 1024

64.0

60.0

108.0

+/+

VESA, 1280 x 1024

80.0

75.0

135.0

+/+

VESA, 1600 x 1200

75.0

60.0

162.0

+/+

VESA, 1920 x 1080

67.5

60.0

148.5

+/+

Model

U2211H / U2311H

Video input signals

Analog RGB, 0.7 Volts +/-5%, positive polarity at 75 ohm input

impedance

Digital DVI-D TMDS, 600mV for each differential line, positive polarity at

50 ohm input impedance

DP 1.1a signal input support

Synchronization input signals

TTL levels required and separate syncs (including Trigger points), SOG

(Composite SYNC on green)

AC input

voltage/frequency/current

100 to 240 VAC / 50 or 60 Hz +3 Hz / 1.5 A (Typical)

Inrush current

120 V : 30 A (Max.)

240 V : 60 A (Max.)

Model

U2211H

U2311H

Connector type

15-pin D-subminiature, blue connector;

DVI-D, white connector; DP, black

connector.

15-pin D-subminiature, blue connector;

DVI-D, white connector; DP, black

connector.

Signal cable type

Digital: Detachable, DVI-D, Solid pins,

shipped detached from the monitor

Analog: attachable, D-Sub, 15pins,

shipped attached to the monitor

Digital: Detachable, DVI-D, Solid pins,

shipped detached from the monitor

Analog: attachable, D-Sub, 15pins,

shipped attached to the monitor

Dimensions (with stand)

Height (extended)

447.6 mm (17.62 inches)

456.16 mm (17.96 inches)

Height (compressed)

347.6 mm (13.69 inches)

356.16 mm (14.02 inches)

Width

514.4 mm (20.25 inches)

547.97 mm (21.57 inches)

Depth

184.1 mm (7.25 inches)

Dimensions (without stand)

Height

305.9 mm (12.04 inches)

325.07 mm (12.80 inches)

Environmental Characteristics

Power Management Modes

IfyouhaveVESA'sDPM™compliancedisplaycardorsoftwareinstalledinyourPC,themonitorcanautomaticallyreduceitspowerconsumptionwhennotin

use. This is referred to as Power Save Mode*. If the computer detects input from keyboard, mouse, or other input devices, the monitor automatically resumes

functioning. The following table shows the power consumption and signaling of this automatic power saving feature:

U2211H

U2311H

The OSD will only function in the normal operation mode. When any button is pressed in Active-off mode, one of the following messages will be displayed:

Width

514.4 mm (20.25 inches)

547.97 mm (21.57 inches)

Depth

65.00 mm (2.56 inches)

Stand dimensions

Height (extended)

363.60 mm (14.31 inches)

370.47 mm (14.59 inches)

Height (compressed)

323.50 mm (12.74 inches)

331.32 mm (13.04 inches)

Width

279.90 mm (11.02 inches)

Depth

184.10 mm (7.25 inches)

Weight

Weight with packaging

16.85 lbs (7.65 kg)

18.14 lbs (8.23 kg)

Weight with stand assembly and cables

14.22 lbs (6.45 kg)

15.45 lbs (7.01 kg)

Weight without stand assembly

(For wall mount or VESA mount considerations -

no cables)

9.97 lbs (4.52 kg)

10.34 lbs (4.69 kg)

Weight of stand assembly

3.88 lbs (1.76 kg)

4.06 lbs (1.84 kg)

Model

U2211H

U2311H

Temperature

Operating

0°to40°C

Non-operating

Storage: -20°to60°C(-4°to140°F)

Shipping: -20°to60°C(-4°to140°F)

Storage: -20°to60°C(-4°to140°F)

Shipping: -20°to60°C(-4°to140°F)

Humidity

Operating

10% to 80% (non-condensing)

Non-operating

Storage: 5% to 90% (non-condensing)

Shipping: 5% to 90% (non-condensing)

Storage: 5% to 90% (non-condensing)

Shipping: 5% to 90% (non-condensing)

Altitude

Operating

4,850 m (15,902 ft) max

Non-operating

12,192 m (40,000 ft) max

Thermal dissipation

187.67 BTU/hour (maximum)

75.07 BTU/hour (typical)

235.44 BTU/hour (maximum)

112.60 BTU/hour (typical)

VESA Modes

Horizontal Sync

VerticalSync

Video

Power Indicator

Power Consumption



Normal

operation

Active

Active

Active

Blue

55W (maximum) **

22W (typical)

Active-off mode

Inactive

Inactive

Blanked

Amber

Less than 1.0 W

Switch off

-

-

-

Off

Less than 1.0 W

VESA Modes

Horizontal Sync

VerticalSync

Video

Power Indicator

Power Consumption



Normal operation

Active

Active

Active

Blue

69W (maximum) **

33W (typical)

Active-off mode

Inactive

Inactive

Blanked

Amber

Less than 1.0 W

Switch off

-

-

-

Off

Less than 1.0 W

Activate the computer and the monitor to gain access to the OSD.

* Zero power consumption in OFF mode can only be achieved by disconnecting the main cable from the monitor.

** Maximum power consumption with max luminance, Dell Soundbar, and USB active.

Pin Assignments

VGA Connector

DVIConnector

NOTE: This monitor is ENERGY STAR®-compliant.

Number

15-pin Side of the Connected Signal Cable

Video-Red

Video-Green

Video-Blue

GND

Self-test

GND-R

GND-G

GND-B

Computer 5V/3.3V

GND-sync

GND

DDC data

H-sync

V-sync

DDC clock

DisplayPort Connector

Number

24-pin Side of the Connected Signal Cable

TMDS RX2-

TMDS RX2+

TMDS Ground

Floating

DDC Clock

DDC Data

Floating

TMDS RX1-

TMDS RX1+

TMDS Ground

Floating

+5V/+3.3V power

Selftest

Hot Plug Detect

TMDS RX0-

TMDS RX0+

TMDS Ground

Floating

TMDS Ground

TMDS Clock+

TMDS Clock-

Number

20-pin Side of the Connected Signal Cable

ML0(p)

GND

ML0(n)

ML1(p)

GND

ML1(n)

ML2(p)

GND

ML2(n)

ML3(p)

GND

ML3(n)

GND

AUX(p)

GND

AUX(n)

HPD

Otros manuales para U2211H

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Monitor de Dell

Dell

Dell P2421 Manual de usuario

Dell

Dell E2723H Manual de usuario

Dell

Dell P2210Hc Manual de usuario

Dell

Dell P2419HC Manual de usuario

Dell

Dell E2010H Manual de usuario

Dell

Dell UltraSharp 25 Series Manual de usuario

Dell

Dell E151FPb Manual de usuario

Dell

Dell 2707WFP - UltraSharp - 27" LCD Monitor Manual de usuario

Dell

Dell 2707WFP - UltraSharp - 27" LCD Monitor Manual de usuario

Dell

Dell E153FPc Manual de usuario

Dell

Dell E2011H Manual de usuario

Dell

Dell S2421HS Manual de usuario

Dell

Dell P2422HE Manual de usuario

Dell

Dell E1913S Manual de usuario

Dell

Dell 1708FP - UltraSharp - 17" LCD Monitor Manual de usuario

Dell

Dell 1708FP - UltraSharp - 17" LCD Monitor Manual de usuario

Dell

Dell E2010H - 20" LCD Monitor Manual de usuario

Dell

Dell P2419HCB Manual

Dell

Dell E152FPc Manual de usuario

Dell

Dell S3423DWC Manual de usuario

Dell

Dell P1911 Manual de usuario

Dell

Dell UltraSharp U2424HB Manual de usuario

Dell

Dell E207WFP Manual de usuario

Dell

Dell G2524H Manual de usuario

Manuales populares de Monitor de otras marcas

Linear Acoustic

Linear Acoustic LQ-1000 Manual de usuario

AOC

AOC I2579V Manual de usuario

Gateway

Gateway FPD1520 Manual de usuario

Furuno

Furuno Mu 120c Manual de usuario

Asus

Asus VB171D - 17" LCD Monitor Manual de usuario

Philips

Philips 107C64 Manual de usuario

EverFocus

EverFocus EN-7517E Manual de usuario

Panasonic

Panasonic TH152UX1 - 152" PLASMA TV Manual de usuario

LG 50PM1M - - 50" Plasma Panel Manual de usuario

Bosch

Bosch DDU 9 Manual de usuario

Acer

Acer A231HL Manual de usuario

Philips

Philips 86BDL4152T Manual de usuario

NEC

NEC AccuSync LCD5V Manual de usuario

Emay

Emay SleepO2 Manual de usuario

IBM

IBM 6360 Instrucciones de instalación

LG M1950D-PZ Manual de usuario

Sceptre

Sceptre D40 Manual de usuario

Hunt Electronic

Hunt Electronic HCD-15AH Manual de usuario
