Dell ST2010B Manual de usuario

Dell™ST2010B Flat Panel Monitor User's Guide

Notes, Notices, and Cautions



Information in this document is subject to change without notice.

©2009DellInc.Allrightsreserved.

Reproduction of these materials in any manner whatsoever without the written permission of Dell Inc. is strictly forbidden.

Trademarks used in this text: Dell and the DELLlogoaretrademarksofDellInc;Microsoft and Windows are either trademarks or registered trademarks of

Microsoft Corporation in the United States and/or other countries. ENERGY STAR is a registered trademark of the U.S. Environmental Protection Agency. As an

ENERGY STAR partner, Dell Inc. has determined that this product meets the ENERGY STAR guidelines for energy efficiency.

Other trademarks and trade names may be used in this document to refer to either the entities claiming the marks and names or their products. Dell Inc.

disclaims any proprietary interest in trademarks and trade names other than its own.

Model ST2010f

November 2009 Rev. A00



About Your Monitor

Setting Up the Monitor

Operating the Monitor

Troubleshooting

Appendix



NOTE: A NOTE indicates important information that helps you make better use of your computer.

NOTICE: A NOTICE indicates either potential damage to hardware or loss of data and tells you how to avoid the problem.

CAUTION: A CAUTION indicates a potential for property damage, personal injury, or death.

Back to Contents Page



About Your Monitor

Dell™ST2010B Flat Panel Monitor User's Guide

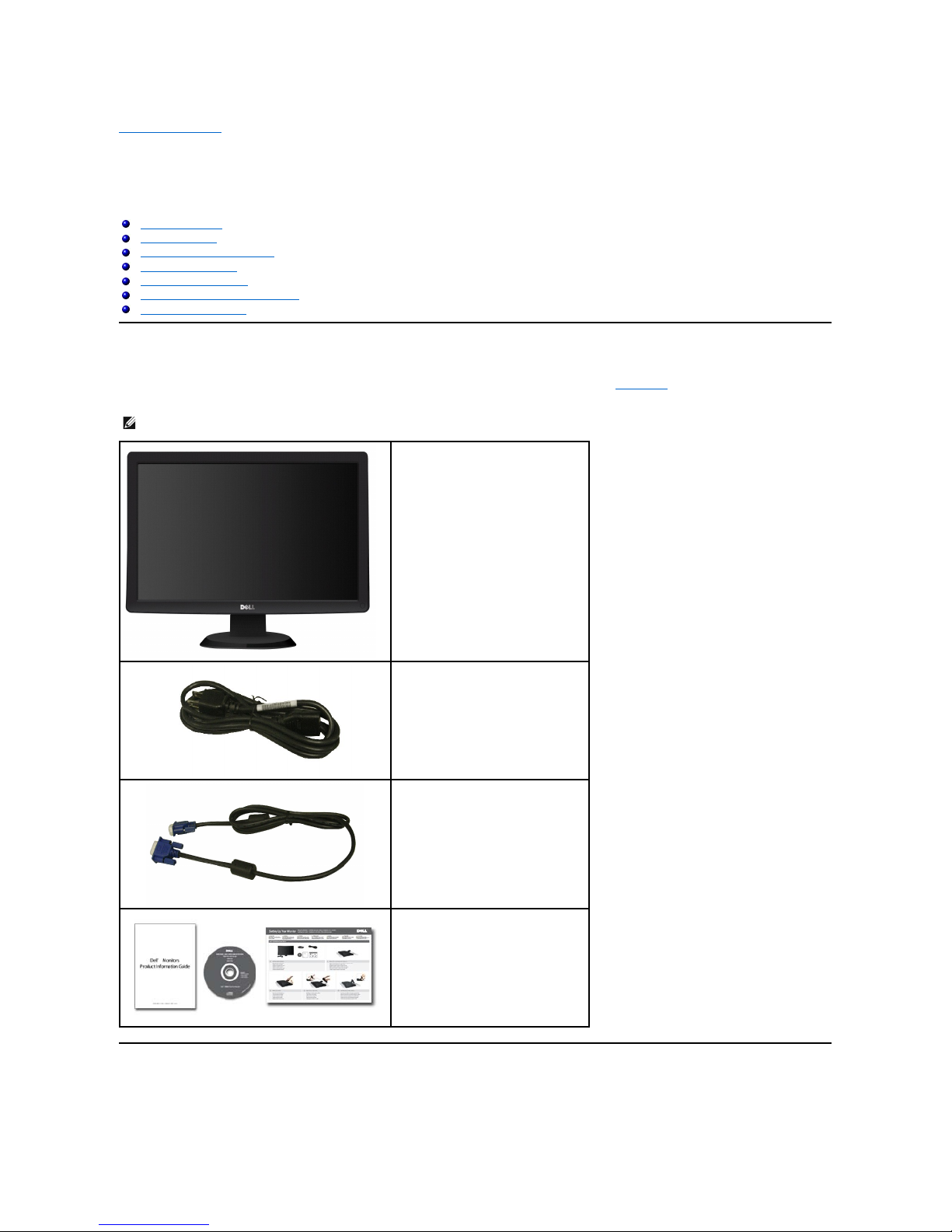

Package Contents

Your monitor ships with the components shown below. Ensure that you have received all the components and contact Dell if something is missing.



Product Features

The ST2010B flat panel display has an active matrix, thin-film transistor (TFT), liquid crystal display (LCD). The monitor features include:

Package Contents

Product Features

Identifying Parts and Controls

Monitor Specifications

Plug and Play Capability

LCD Monitor Quality and Pixel Policy

Maintenance Guidelines

NOTE: Some items may be optional and may not ship with your Monitor. Some features or media may not

be available in certain countries.

lMonitor with stand

lPower Cable

lVGA Cable (attached to the monitor)

lDrivers and Documentation media

lQuick Setup Guide

lSafety Information

■20-inch ( 444.8*251.1 mm)viewable area display (Measured diagonally) .

■1600 x 900 resolution, plus full-screen support for lower resolutions.

■Tilt capability.

■Plug and play capability if supported by your system.

■On-Screen Display (OSD) adjustments for ease of set-up and screen optimization.

■Software and documentation media includes an information file (INF), Image color Matching File (ICM), and product documentation.

■Energy Saver feature for Energy Star compliance.

■Security lock slot.

Identifying Parts and Controls

Front View

Back View





Front View

On screen control and buttons on Mid Frame

Label

Description

1-2

Shortcut keys

*The default settings are Preset Modes select, Brightness/Contrast select1

1. Preset Modes Select

2. Brightness/Contrast Select

OSD menu select

EXIT

Power button (with power light indicator)

Back view with monitor stand

Side View



Bottom View



Label

Description

Use

Barcode serial number label

To contact Dell for technical support.

Security lock slot

To help secure your monitor.

Regulatory rating label

Lists the regulatory approvals.

Dell Soundbar mounting brackets

To attach the optional Dell Soundbar.

Right view

left view



Bottom view



Label

Description

AC power cord connector

HDMI connector

VGA connector

Monitor Specifications

Thefollowingsectionsgiveyouinformationaboutthevariouspowermanagementmodesandpinassignmentsforvariousconnectorsforyourmonitor.

Flat Panel Specifications

Screen type

Active matrix - TFT LCD

Panel type

*[ST2010B] color gamut (typical) is based on CIE1976 (83%) and CIE1931 (72%) test standards.

Screen dimensions

20 inches (20-inch viewable image size)

Preset display area:

442.8 mm (W) X 249.1 mm (H)

Horizontal

442.8 mm (17.43 inches)

Vertical

249.1 mm (9.81 inches)

Pixel pitch

0.2768(H) X 0.2768(W)

Viewing angle

160°(vertical)typical,160°(horizontal)typical

Luminance output

250 cd/m²(typical)

Contrast ratio

1000 to 1 (typical)

Faceplate coating

Anti-Glare

Backlight

2-CCFL edgelight system

Response Time

5ms panel typical

Color depth

16.7 million colors

Color Gamut

83%*

Resolution Specifications

Supported Video Modes

Horizontal scan range

30 kHz to 83 kHz (automatic)

Vertical scan range

56Hzto76Hz(automatic)

Maximum preset resolution

1600x900 at 60 Hz

Video display capabilities (HDMI

playback)

480p, 576p, 720p, 1080p, 480i, 576i, 1080i.

Preset Display Modes

Display Mode

Horizontal Frequency (kHz)

Vertical Frequency (Hz)

Pixel Clock (MHz)

Sync Polarity

(Horizontal/Vertical)

VESA, 720 x 400

31.5

70.0

28.3

-/+

VESA, 640 x 480

31.5

60.0

25.2

-/-

VESA, 640 x 480

37.5

75.0

31.5

-/-

VESA, 800 x 600

37.9

60.7

40.0

+/+

VESA, 800 x 600

46.9

75.0

49.5

+/+

VESA, 1024 x 768

48.4

60.0

65.0

-/-

VESA, 1024 x 768

60.0

75.0

78.8

+/+

VESA, 1152 x 864

67.5

75.0

108.0

+/+

VESA, 1280 x 1024

64.0

60.0

108.0

+/+

VESA, 1280 x 1024

80.0

75.0

135.0

+/+

VESA, 1600 x 900

55.5

60.0

97.75

+/-

Electrical Specifications

Video input signals

Analog RGB, 0.707 Volts +/-5%, positive polarity at 75 ohm input impedance

HDMI, 600mV for each differential line, 100 ohm input impedance per differential pair

Synchronization input signals

Separate horizontal and vertical synchronizations, polarity-free TTL level, SOG (Composite SYNC on

green)

AC input voltage/frequency/current

100 to 240 VAC/50 or 60 Hz +3 Hz/1.5A (Max.)

Inrush current

120 V: 30 A (Max.)

240 V: 60 A (Max.)

Physical Characteristics

Connector type

15-pin D-subminiature, blue connector

19-pin HDMI ,black connector

Signal cable type

Analog: Detachable, D-Sub, 15pins, shipped attached

to the monitor

Dimensions (with stand)

Height

362.3 mm (14.27 inches)

Width

491.0 mm (19.33 inches)

Depth

193.5 mm (7.62 inches)

Dimensions (without stand)

Height

297.4 mm (11.70inches)

Width

491.02 mm (19.29 inches)

Depth

80.4 mm (3.17 inches)

Stand dimensions

Height

127.9 mm (5.01 inches)

Width

193.5 mm (7.62 inches)

Depth

193.5 mm (7.62 inches)

Weight

Weight with packaging

5.475kg ( 12.07 lb)

Weight with stand assembly and cables

4.598kg( 10.14 lb)

Weight without stand assembly

(For wall mount or VESA mount

considerations -no cables)

4.07 kg ( 8.97 lb)

Weight of stand assembly

0.308 kg (0.68 lb)

Environmental Characteristics

Temperature



Operating

0°to40°C

Non-operating

Storage: -20°to60°C

Shipping: -20°to60°C

Humidity

Operating

10% to 80% (non-condensing@5°to35°C)

Non-operating

Storage: 5% to 90% (non-condensing@-20°to60°C)

Shipping: 5% to 90% (non-condensing@-20°to60°C)

Altitude

Operating

3,657.60 m (12,000 ft) max

Non-operating

12,192 m (40,000 ft) max

Thermal dissipation

256.08 BTU/hour (maximum)

119.50 BTU/hour (typical)

Power Management Modes

IfyouhaveVESA'sDPM™compliancedisplaycardorsoftwareinstalledinyourmonitor,themonitorcanautomaticallyreduceitspowerconsumptionwhen

not in use. This is referred to as Power Save Mode*. If the computer detects input from keyboard, mouse, or other input devices, the monitor automatically

resumes functioning. The following table shows the power consumption and signaling of this automatic power saving feature:

Activate the computer and the monitor to gain access to the OSD.

VESA Modes

Horizontal Sync

Vertical Sync

Video

Power Indicator

Power Consumption

Normal operation

Active

White

20 W (typical)

Active-off mode

Inactive

Blanked

Amber

Less than 0.5 W

Switch off

-

-

-

Off

Less than 0.5 W

* Zero power consumption in OFF mode can only be achieved by disconnecting the main cable from the monitor



NOTE: This monitor is ENERGY STAR®-compliant .

Back to Contents Page



Appendix

Dell™ST2010BFlatPanelMonitorUser'sGuide

Safety Instructions

FCC Notice (U.S. Only) and Other Regulatory Information

Contacting Dell





CAUTION: Safety Instructions

For information on safety instructions, see the Product Information Guide.

FCC Notices (U.S. Only) and Other Regulatory Information

For FCC notices and other regulatory information, see the regulatory compliance website located at www.dell.com\regulatory_compliance.

Contacting Dell

For customers in the United States, call 800-WWW-DELL (800-999-3355).

Dell provides several online and telephone-based support and service options. Availability varies by country and product, and some services may not be

available in your area. To contact Dell for sales, technical support, or customer service issues:



Back to Contents Page

CAUTION: Use of controls, adjustments, or procedures other than those specified in this documentation may result in exposure to shock,

electrical hazards, and/or mechanical hazards.

NOTE: If you do not have an active Internet connection, you can find contact information on your purchase invoice, packing slip, bill,

or Dell product catalog.

Visit support.dell.com.

Verify your country or region in the Choose A Country/Region drop-downmenuatthebottomofthepage.

Click Contact Us on the left side of the page.

Select the appropriate service or support link based on your need.

Choose the method of contacting Dell that is convenient for you.

Back to Contents Page

Setting Up Your Monitor

Dell™ST2010BFlatPanelMonitor

IfyouhaveaDell™desktoporaDell™portablecomputerwithinternetaccess

1. Go to http://support.dell.com,enteryourservicetag,anddownloadthelatestdriverforyourgraphicscard.

2. After installing the drivers for your Graphics Adapter, attempt to set the resolution to 1600x900 again.

Back to Contents Page

NOTE:

Ifyouareunabletosettheresolutionto1600x900,pleasecontactDell™toinquireaboutaGraphicsAdapterthatsupportstheseresolutions.
