Dell™SP2009W Flat Panel Monitor User's Guide

Notes, Notices, and Cautions

Information in this document is subject to change without notice.

©2008DellInc.Allrightsreserved.

Reproduction in any manner whatsoever without the written permission of Dell Inc. is strictly forbidden.

Trademarks used in this text: DELL and the DELLlogoaretrademarksofDellInc;Microsoft, Windows, and Windows Vista are either registered trademarks or trademarks of

Microsoft Corporation in the United States and/or other countries; ENERGY STAR is a registered trademark of the U.S. Environmental Protection Agency. As an ENERGY STAR partner,

Dell Inc. has determined that this product meets the ENERGY STAR guidelines for energy efficiency.

Other trademarks and trade names may be used in this document to refer to either the entities claiming the marks and names or their products. Dell Inc. disclaims any

proprietary interest in trademarks and trade names other than its own.

Model SP2009Wc

May2008Rev.A00



About Your Monitor

Setting Up the Monitor

Operating the Monitor

Troubleshooting

Appendix

NOTE: A NOTE indicates important information that helps you make better use of your computer.

NOTICE: A NOTICE indicates either potential damage to hardware or loss of data and tells you how to avoid the problem.

CAUTION: A CAUTION indicates a potential for property damage, personal injury, or death.



Back to Contents Page

About Your Monitor

Dell™SP2009W Flat Panel Monitor User's Guide

Package Contents

Your monitor comes with all the items shown below. Ensure that you have all the items. If something is missing, contact Dell.



Package Contents

Product Features

Identifying Parts and Controls

Monitor Specifications

Universal Serial Bus (USB) Interface

Plug and Play Capability

Camera -MIC Specifications

Maintenance Guidelines

NOTE: Some items may be optional and may not ship with your Monitor. Some features or media may not be available in

certain countries.



lMonitor with stand

lPower cable

lVGA cable

lDVI cable

lUSB up stream cable (enables the USB ports on the

monitor)

lUSB down stream cable (optional)



Product Features



The SP2009Wflat panel display has an active matrix, thin-film transistor (TFT), liquid crystal display (LCD). The monitor features include:

■20 inches(511mm) diagonal.

■1680x1050resolution,plusfull-screen support for lower resolutions.

■Wide viewing angle to allow viewing from a sitting or standing position, or while moving from side-to-side.

■Tilt adjustment capabilities.

■Removable pedestal and Video Electronics Standards Association (VESA) 100 mm mounting holes for flexible mounting solutions.

■Plug and play capability if supported by your system.

■On-Screen Display (OSD) adjustments for ease of set-up and screen optimization.

■Software and documentation media which includes an information file (INF), Image color Matching File (ICM), and product documentation.

■Energy Saver feature for Energy Star compliance.

■Security lock slot.

■Asset management capable.

■2.0 Mega pixel internal webcam with integrated microphone.

Identifying Parts and Controls

Front View

Back View

lDocumentation (Safety information, Quick Start Guide

and CD)

Front View

Label

Description

Power button

Capacitive touch buttons (For more information, see Operating the Monitor)

Webcam

Microphone



Side View



Bottom View

Back view

Back View with monitor stand

Label

Description

Use

VESA mounting holes (100mm)

(Behind attached VESA plate)

To mount the monitor.

Barcode serial number label

To contact Dell for technical support.

Security lock slot

To help secure your monitor.

Dell soundbar mounting brackets

To attach the optional Dell Soundbar.

Regulatory rating label

Lists the regulatory approvals.

Cable management slot

To organize cables by placing them through the slot.

Leftview

Right view

Label

Description

USB downstream port



Bottom view

Label

Description

AC power cord connector

DC power connector for Dell Soundbar

DVI connector

VGA connector

USB upstream port

USB downstream ports(2).

Monitor Specifications

The following sections give you information about the various power management modes and pin assignments for various connectors of your monitor.

Power Management Modes

If you have VESA's compliance display card or software installed in your PC, the monitor can automatically reduce its power consumption when not in use. This is referred to as

If the computer detects input from keyboard, mouse, or other input devices, the monitor automatically resumes functioning. The following table shows the power consumption and signaling of this

automatic power saving feature:

Activate the computer and 'wake up' the monitor to gain access to the OSD.

* Zero power consumption in OFF mode can only be achieved by disconnecting the main cable from the monitor.

VESA Modes

Horizontal Sync

Vertical Sync

Video

Power Indicator

Power Consumption

Normal operation (with Dell Soundbar and USB active)

Active

White

75 W (maximum)

Normal operation

Active

White

45 W (typical)

Active-off mode

Inactive

Blanked

Amber

Less than 2 W

Switch off

-

-

-

Off

Less than 1 W

NOTE: The OSD only functions in the 'normal operation' mode. One of the following messages appears when the menu button is pressed in Active

mode.

NOTE: This monitor is ENERGY STAR®-compliant.

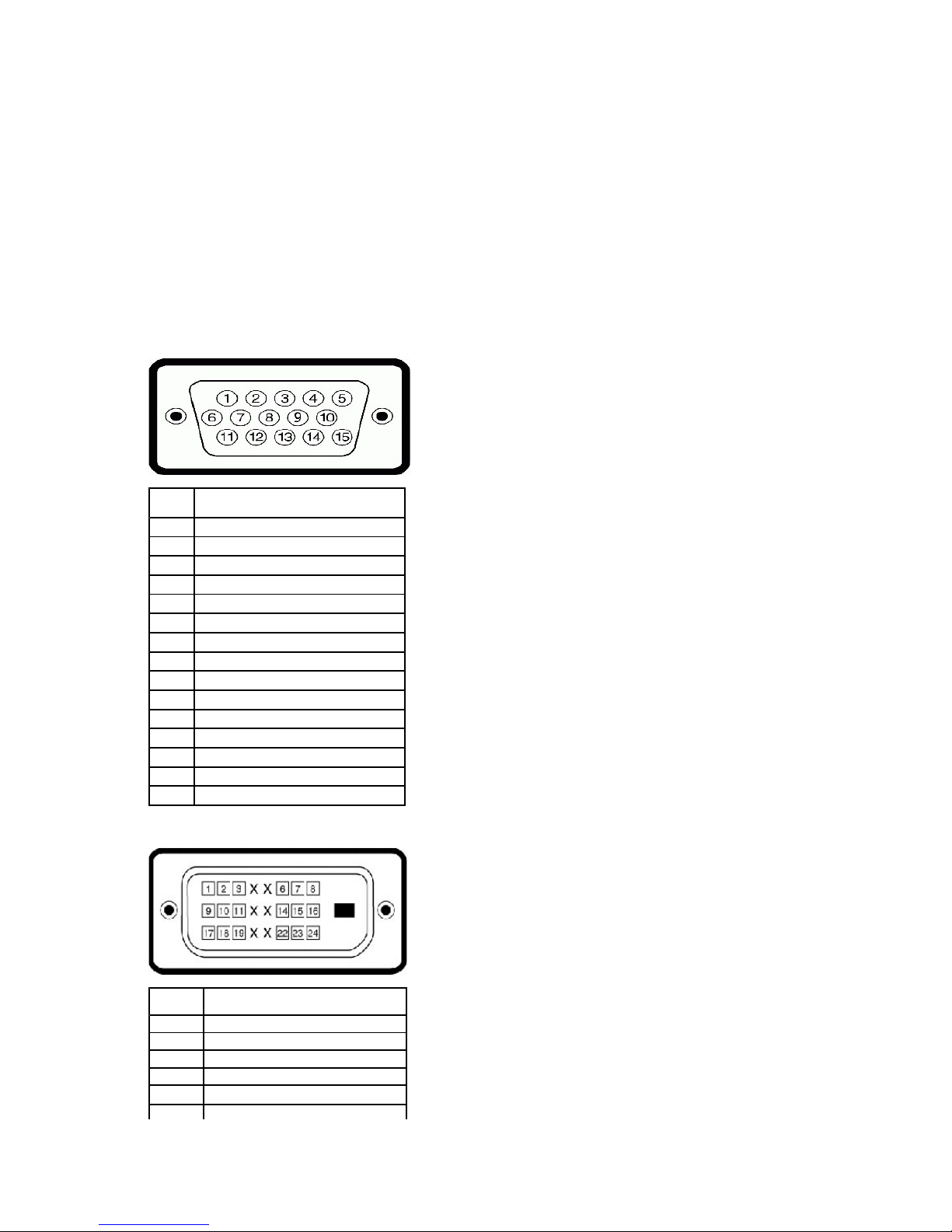

Pin Assignments

VGA Connector

DVIConnector

Number

15-pin Side of the Connected Signal Cable

Video-Red

Video-Green

Video-Blue

GND

Self-test

GND-R

GND-G

GND-B

Computer 5V

GND-sync

GND

DDC data

H-sync

V-sync

DDC clock

Number

24-pin Side of the Connected Signal

Cable

TMDS RX2-

TMDS RX2+

TMDS Ground

Floating

DDC Clock

DDC Data

Floating

TMDS RX1-

TMDS RX1+

TMDS Ground

Floating

+5V power

Selftest

Hot Plug Detect

TMDS RX0-

TMDS RX0+

TMDS Ground

Floating

TMDS Ground

TMDS Clock+

TMDS Clock-
