Dell SE2717H Manual de usuario

Model No.: SE2717H/SE2717HX

Regulatory model: SE2717Hc

User’s Guide

Dell SE2717H/SE2717HX

Notes, cautions, and warnings

NOTE: A NOTE indicates important information that helps you make better

use of your computer.

CAUTION: A CAUTION indicates potential damage to hardware or loss of

data if instructions are not followed.

WARNING: A WARNING indicates a potential for property damage, personal

injury or death.

_________________________

Information in this document is subject to change without notice.

Reproduction of these materials in any manner whatsoever without the written permission

of Dell Inc. is strictly forbidden.

Trademarks used in this text: Dell and the DELL logo are trademarks of Dell Inc.; Microsoft

and Windows are either trademarks or registered trademarks of Microsoft. Corporation in

the United States and/or other countries, Intel is a registered trademark of Intel Corporation

in the U.S. and other countries; and ATI is a trademark of Advanced Micro Devices, Inc.

ENERGY STAR is a registered trademark of the U.S. Environmental Protection Agency. As an

ENERGY STAR partner, Dell Inc. has determined that this product meets the ENERGY STAR

guidelines for energy efficiency.

Other trademarks and trade names may be used in this document to refer to either the

entities claiming the marks and names or their products. Dell Inc. disclaims any proprietary

interest in trademarks and trade names other than its own.

2016 - 07 Rev. A00

Contents | 3

Contents

About your monitor ................................................................ 5

Package contents ..................................................................................5

Product features ....................................................................................6

Identifying parts and controls ............................................................. 7

Monitor specifications ........................................................................10

Plug and play capability...................................................................... 17

LCD monitor quality and pixel policy .............................................. 17

Maintenance guidelines...................................................................... 17

Setting up the monitor ......................................................... 18

Connecting the stand .........................................................................18

Connecting your monitor ..................................................................18

Organizing cables ................................................................................19

Removing the stand ........................................................................... 20

Operating your monitor....................................................... 21

Power on the monitor.........................................................................21

Using the control buttons..................................................................21

Using the on-screen display (OSD) menu .......................................23

Setting up your monitor .....................................................................36

Using tilt.................................................................................................38

Troubleshooting....................................................................39

Self-Test.................................................................................................39

Built-in diagnostics ............................................................................ 40

Common problems..............................................................................41

Product-specific problems ................................................................43

Appendix .................................................................................44

FCC notices (U.S. Only) and other regulatory information......... 44

Contacting Dell ................................................................................... 44

About your monitor | 5

About your monitor

Package contents

Your monitor ships with the components shown below. Ensure that you have

received all the components and see Contacting Dell for more information if

something is missing.

NOTE: Some items may be optional and may not ship with your monitor. Some

features or media may not be available in certain countries.

NOTE: To set up with any other stand, please refer to the respective stand setup

guide for setup instructions.

∞ Monitor

∞ Stand riser

∞ Stand base

∞ Power Cable (Varies by

Countries)

∞ VGA Cable (for SE2717H)

6| About your monitor

∞ HDMI Cable (for SE2717HX)

Dell

SE2717H/SE2717HX Monitor

∞ Drivers and Documentation

Media

∞ Quick Setup Guide

∞ Safety and Regulatory

Information

Product features

The Dell SE2717H/SE2717HX flat panel display has an active matrix, Thin-Film

Transistor (TFT), Liquid Crystal Display (LCD), anti-static, and LED backlight. The

monitor features include:

∞ SE2717H/SE2717HX: 68.6 cm (27 inch) viewable area display (measured

diagonally). 1920 x 1080 resolution, plus full-screen support for lower

resolutions.

∞ Wide viewing angle to allow viewing from a sitting or standing position, or while

moving from side-to-side.

∞ VGA and HDMI connectivity makes it simple and easy to connect with legacy

and new systems.

∞ Plug and play capability if supported by your system.

∞ On-Screen Display (OSD) adjustments for ease of set-up and screen

optimization.

∞ Software and documentation media includes an Information File (INF), Image

Color Matching File (ICM), and product documentation.

∞ Dell Display Manager Software included (in the CD shipped with the monitor).

∞ Energy Saver feature for Energy Star compliance.

∞ Security-lock slot.

∞ EPEAT Silver Rating.

∞ BFR/PVC-reduced.

∞ TCO-Certified Displays.

∞ Arsenic-Free glass and Mercury-Free for the panel only.

∞ High Dynamic Contrast Ratio (8,000,000:1).

∞ 0.3 W standby power when in the sleep mode.

∞ Energy Gauge shows the energy level being consumed by the monitor in real

time.

∞ Supports AMD FreeSync™ technology.

∞ Optimize eye comfort with a flicker-free screen and ComfortView feature which

minimizes blue light emission.

About your monitor | 7

Identifying parts and controls

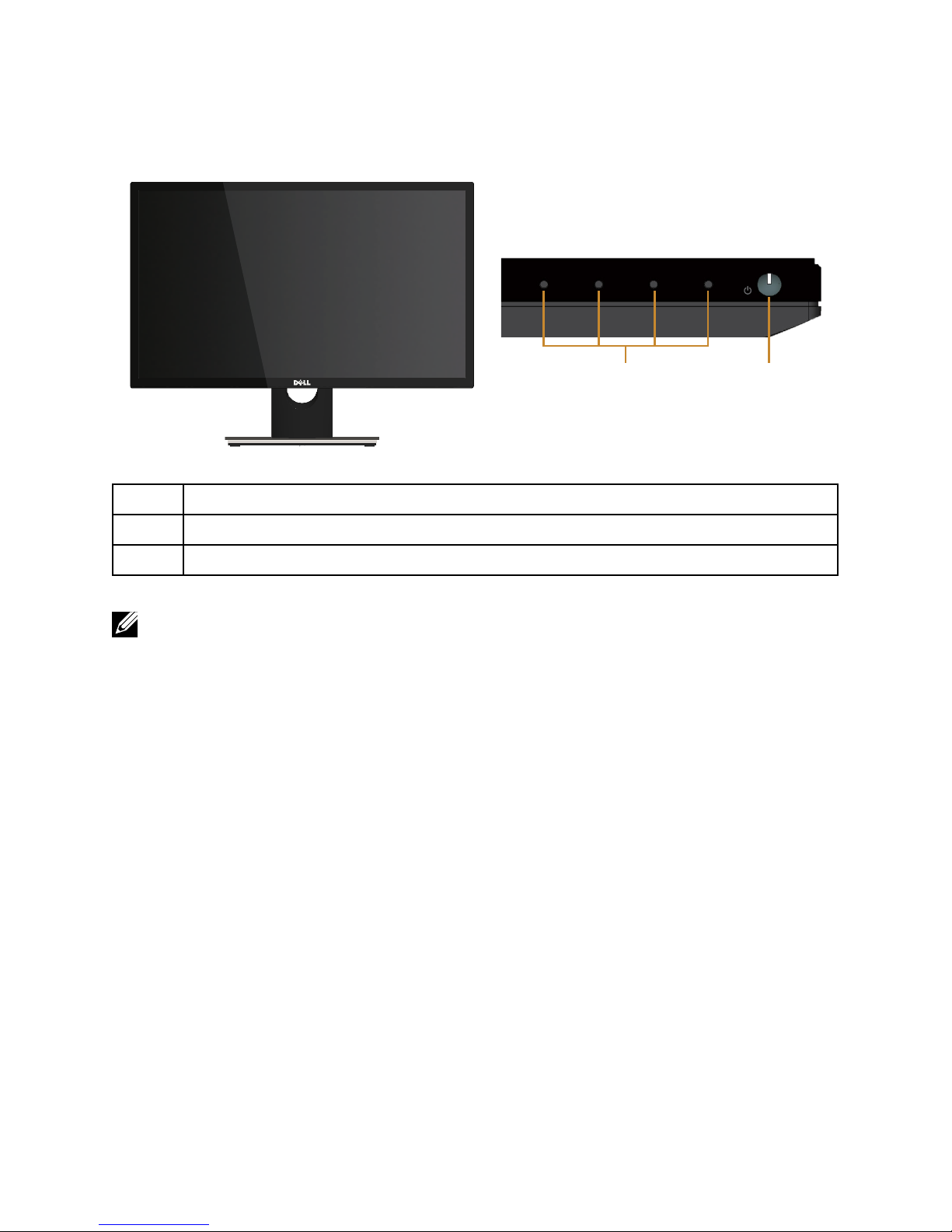

Front view

Control buttons

1 2

Label Description

1Function buttons (For more information, see Operating your monitor)

2Power On/Off button

NOTE: For displays with glossy bezels the user should consider the placement of

the display as the bezel may cause disturbing reflections from surrounding light

and bright surfaces.

8| About your monitor

Back view

Date of Mfg/

TPVElectronics(Fujian) Co., Ltd.

080-200-3800

S/N: CN-12MWY-

64180-341-001L

-A00

SVC Tag:

xxxxxxx

Express Service

Code:

xxx xxx xxx x

Date of Mfg/⭕ӝᰛᵕ⭕⭘ᰛᵕ: May. 2015

XXXXX

R33037

RoHS

XXXXXXX-XXXXX

MSIP-REM-TPF-SE2717Hc

㐔㷡㢬ڊ㥐㦤㣄ڕ

TPVElectronics(Fujian) Co., Ltd.

080-200-3800

[

XXXXXX-XX

Consumode energía: xx.x Wh

Consumode energía en modo de espera: x.x Wh

Удельнаямощность рабочего режима - x.xxx Вт/см²

Потребляемаямощность изделием в режиме ожидания - x.xx Вт

Потребляемаямощность изделием в выключенном режиме - x.xx Вт

䆜䃔ֵ⭞䚄ᓜᚆۭᇩ㿌࣑

䊂

SE2717H/SE2717HX

SE2717Hc

SE2717H/SE2717HX

SE2717Hc

1.5A

CANICES-3(B)/BMB-3(B)

Apparatetmå lkoples jordet skkontakt.

Apparatenskall anslutas ll jordat uag.

Laiteon liiteävä suojakoskemilla varusteuun pistorasiaan.

Apparatetsskprop skal lslues en skkontakt med jord,

somgiver forbindelse l skproppens jord.

Date of Mf

TPVElectro

nics(Fu

ujian)Co.,Ltd.ujian)Co.,Ltd.

080-20

200-3800

-2

Back View with monitor stand

Label Description Use

1Security-lock slot Secures monitor with security lock

(security lock not included).

2Barcode serial number and Service

Tag label

Refer to this label if you need to

contact Dell for technical support.

The Dell service tag is used for Dell

warranty and customer service

management purposes and for

records of the base system.

3Regulatory label Lists the regulatory approvals.

4Stand release button Releases stand from monitor.

5Cable management slot Uses to organize cables by placing

them through the slot.

Back View without monitor stand

About your monitor | 9

Side view

Bottom view

2 3

Bottom view without monitor stand

Label Description Use

1Power port Connect the power cable.

2HDMI port Connect your computer with HDMI cable.

3VGA port Connect your computer with VGA cable.

10 | About your monitor

Monitor specifications

Model SE2717H/SE2717HX

Screen type Active matrix-TFT LCD

Panel type In-Plane Switching

Viewable image

Diagonal

Horizontal, Active Area

Vertical, Active Area

Area

686.00 mm (27 in)

597.89 mm (23.54 in)

336.31 mm (13.24 in)

2010.76 cm² (311.67 in²)

Pixel pitch 0.3114 mm

Viewing angle 178° (vertical) typical

178° (horizontal) typical

Luminance output 300 cd/m² (typical)

Contrast ratio 1000 to 1 (typical)

8,000,000 to 1 (Dynamic Contrast)

Faceplate coating Anti-glare with 3H hardness

Backlight LED light bar system

Response time 6 ms typical (G to G)

Color depth 16.7 million colors

Color gamut CIE 1976 (84%), CIE 1931 (72%)

FreeSync support frame

frequency (HDMI port only)

48-75 Hz

Dell display manager

compatibility

Yes

Connectivity 1xHDMI (ver 1.4)

1xVGA

Border width (edge of monitor to

active area)

11.60 mm (Top)

11.60 mm(Left/Right)

21.10 mm(Bottom)

Security Security lock slot (cable lock sold separately)

Adjustability Tilt (5°/21°)
