Dell SE2219H/SE2219HX

Dell Display Manager

User’s Guide

Monitor Model: SE2219H/SE2219HX

Regulatory model: SE2219Hf

NOTE : A NOTE indicates important information that helps you make better

use of your product.

trademarks of Dell Inc. or its subsidiaries. Other trademarks may be trademarks of their respective

owners.

2018 – 09

Rev. A01

Contents | 3

Contents

Overview ............................................................................ 4

Using the Quick Settings Dialog ............................................ 5

Setting Basic Display Functions ............................................ 6

Assigning Preset Modes to Applications ............................... 7

Organizing Windows with Easy Arrange ................................. 8

Managing Multiple Video Inputs............................................10

Applying Energy Conservation Features .................................14

Troubleshooting .................................................................15

Restoring Application Positions ............................................12

4 | Overview

SE2219H/SE2219HX

NOTE: Dell Display Manager uses DDC/CI channel to communicate

with your monitor. Ensure that DDC/CI is enabled in the menu as

below.

Overview

Dell Display Manager is a Microsoft Windows application used to manage a monitor

or a group of monitors. It enables manual adjustment of the displayed image,

assignment of automatic settings, energy management, window organization,

image rotation, and other features on selected Dell monitors. After installation, Dell

Display Manager runs each time the system starts and places its icon in the

notification tray. Information about monitors connected to the system is available

when hovering over the notification tray icon.

The Quick Settings dialog box also provides access to Dell Display Manager's

advanced user interface that is used to adjust basic functions, configure auto

mode and access other features.

Click the Dell Display Manager’s notification tray icon to open the Quick

Settings dialog box. When more than one supported Dell model is connected

to the computer, a specific target monitor can be selected using the menu. The

Quick Settings dialog box enables convenient adjustment of the monitor’s

brightness and contrast levels. You can select Manual Mode or Auto Mode,

and the screen resolution can be changed.

Using the Quick Settings Dialog

SE2219H/SE2219HX

Setting Basic Display Functions

You can select Manual Mode that enables you to manually select a preset mode

or select Auto Mode that applies a preset mode based on the active application.

An on-screen message displays the current preset mode whenever it changes.

The selected monitor's Brightness and Contrast can also be directly adjusted

from the Basic tab.

6 |

SE2219H/SE2219HX

NOTE: When multiple Dell monitors are connected, select “Enable

display matrix control” to apply brightness, contrast and color

presets controls to all monitors.

Setting Basic Display Functions

SE2219H/SE2219HX

Assigning Preset Modes to Applications | 7

Assigning Preset Modes to Applications

The Auto Mode tab allows you to associate a specific Preset Mode with a specific

application, and apply it automatically. When Auto Mode is enabled, Dell Display

Manager automatically switches to the corresponding Preset Mode whenever the

associated application is activated. The Preset Mode assigned to a particular

application may be the same on each connected monitor, or it can vary from one

monitor to another.

Dell Display Manager is pre-congured for many popular applications. To add a new

application to the assignment list, simply drag the application from the desktop,

Windows Start Menu or elsewhere, and drop it onto the current list.

NOTE: Preset Mode assignments for batch files scripts, loaders, and

non-executable files such as zip archives or packed files, are not

supported.

SE2219H/SE2219HX

You can also configure the Game preset mode to be used whenever a Direct3D

application runs in full-screen mode. To prevent an application from using mode,

assign a different preset mode to it.

8 | Organizing Windows with Easy Arrange

Organizing Windows with Easy Arrange

SE2219H/SE2219HX

For Windows 10, you can apply different window layouts for each of the virtual

desktops.

If you often use Windows snap feature, select the “Hold down the SHIFT key

to enable zone positioning”. This gives Windows snap priority over Easy

Arrange. You will then need to press the Shift key to use Easy Arrange

positioning.

Easy Arrange helps you to effectively organize your application windows on the

desktop. You first choose a pre-defined layout pattern which suits your work,

then you just need to drag the application windows into the defined zones.

Press “>” or use Page Up/Page Down key to find more layouts. To create a

custom layout, arrange the open windows and then click Save.

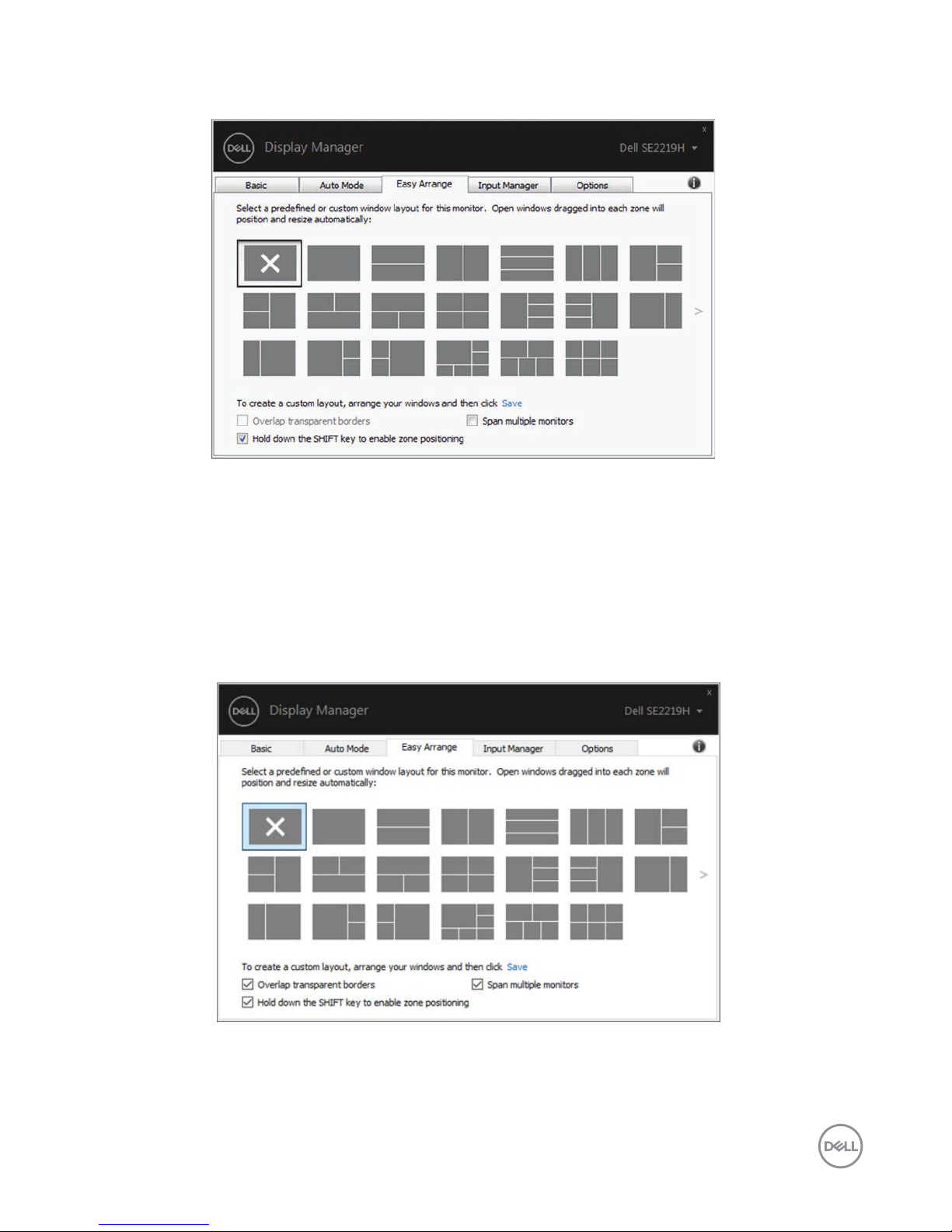

Organizing Windows with Easy Arrange | 9

SE2219H/SE2219HX

If you are using multiple monitors in an array or matrix, Easy Arrange layout

can be applied across to all the monitors as one desktop. Select “Span

multiple monitors” to enable this feature. You need to align your monitors

properly to use it effectively.

10 | Managing Multiple Video Inputs

Managing Multiple Video Inputs

The Input Manager tab provides convenient ways for you to manage multiple

video inputs connected to your Dell monitor. It makes it easy to switch

between inputs while you work with multiple computers.

All video input ports available to your monitor are listed. You can give each input a

name as you like. Save your changes after editing.

You can a shortcut key to quickly switch to your favorite input and another

shortcut key to quickly switch between two inputs if you often work between them.

SE2219H/SE2219HX
