Dell P2018H Manual de usuario

Monitor Model: P2018H

Regulatory Model: P2018Hc

Dell P2018H

User’s Guide

trademarks are trademarks of Dell Inc. or its subsidiaries. Other trademarks may be trademarks of their

respective owners.

2020 – 11

Rev. A04

NOTE: A NOTE indicates important information that helps you make

better use of your computer.

CAUTION: A CAUTION indicates potential damage to hardware or loss

of data if instructions are not followed.

WARNING: A WARNING indicates a potential for property damage,

personal injury, or death.

│3

Contents

About your monitor ......................... 6

Package contents . . . . . . . . . . . . . . . . . . . . . . 6

Product features . . . . . . . . . . . . . . . . . . . . . . .8

Identifying parts and controls . . . . . . . . . . . . . . . .9

Front View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

Back View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Side View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Bottom View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Monitor specifications . . . . . . . . . . . . . . . . . . . 13

Resolution specifications . . . . . . . . . . . . . . . . . . . . . . 14

Supported video modes . . . . . . . . . . . . . . . . . . . . . . . 14

Preset display modes . . . . . . . . . . . . . . . . . . . . . . . . 15

Electrical specifications. . . . . . . . . . . . . . . . . . . . . . . 15

Physical characteristics. . . . . . . . . . . . . . . . . . . . . . . 17

Environmental characteristics . . . . . . . . . . . . . . . . . . . 18

Pin assignments . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Universal serial bus (USB) interface . . . . . . . . . . . 22

Plug and play capability . . . . . . . . . . . . . . . . . . 25

LCD monitor quality and pixel policy . . . . . . . . . . . 25

Maintenance guidelines . . . . . . . . . . . . . . . . . . 25

Cleaning your monitor. . . . . . . . . . . . . . . . . . . . . . . . . . 25

Setting up the monitor..........................26

4 │

Attaching the stand . . . . . . . . . . . . . . . . . . . . . . 26

Connecting your monitor . . . . . . . . . . . . . . . . . . . 28

Organizing cables . . . . . . . . . . . . . . . . . . . . . . . 30

Disconnecting the monitor stand . . . . . . . . . . . . . . . 31

Wall mounting (optional). . . . . . . . . . . . . . . . . . . .32

Operating your monitor .........................33

Power on the monitor . . . . . . . . . . . . . . . . . . . . . 33

Language options . . . . . . . . . . . . . . . . . . . . . . . 33

Using the front panel controls . . . . . . . . . . . . . . . . . 34

OSD controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Using the on-screen display (OSD) menu . . . . . . . . . . .36

Accessing the Menu System . . . . . . . . . . . . . . . . . . . . . . 36

OSD warning messages . . . . . . . . . . . . . . . . . . . . . . . 48

When you adjust the Brightness level for the first time, the following

message appears:. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

Setting up your monitor . . . . . . . . . . . . . . . . . . . . 52

Setting the maximum resolution . . . . . . . . . . . . . . . . . . . . 52

Using the Tilt, Swivel, and Vertical Extension . . . . . . . . .53

Tilt, Swivel. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

Vertical Extension . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

Rotating the Monitor . . . . . . . . . . . . . . . . . . . . . . . . . . 54

Troubleshooting ...............................56

Self-test . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56

Built-in diagnostics. . . . . . . . . . . . . . . . . . . . . . .58

Common problems . . . . . . . . . . . . . . . . . . . . . . . 59

Product-specific problems . . . . . . . . . . . . . . . . . . .61

│5

Universal serial bus (USB) specific problems . . . . . . . . . 61

Appendix ....................................62

Safety Instructions. . . . . . . . . . . . . . . . . . . . . 62

FCC notices (U.S. Only) and other regulatory information62

Contacting Dell. . . . . . . . . . . . . . . . . . . . . . . 63

6 │About your monitor

About your monitor

Package contents

Your monitor ships with the components shown in the table below. If any

component is missing, contact Dell technical support. For more information see

Contacting Dell.

NOTE: Some items may be optional and may not ship with your monitor.

Some features or media may not be available in certain countries.

Monitor

Stand riser

Stand base

Power cable (varies by country)

About your monitor │7

VGA cable

DP Cable

USB 3.0 Upstream Cable

(Enables the USB Ports on the

Monitor)

∞Quick Setup Guide

∞Safety and Regulatory

Information

8 │About your monitor

Product features

The Dell P2018H flat panel display has an active matrix, Thin-Film Transistor (TFT),

Liquid Crystal Display (LCD), and LED backlight. The monitor features include:

∞P2018H: 49.5 cm (19.5 inch) viewable area display (measured diagonally).

1600 x 900 resolution, plus full-screen support for lower resolutions.

∞Plug and play capability if supported by your system.

∞VGA, HDMI and DisplayPort connectivity.

∞Equipped with 1 USB upstream port and 2 USB2.0 / 2 USB3.0 downstream

ports.

∞On-Screen Display (OSD) adjustments for ease of set-up and screen

optimization.

∞Security-cable slot.

∞Tilt,swivel,height and rotate adjustment capabilities.

∞Removable stand and Video Electronics Standards Association (VESA™) 100

mm mounting holes for flexible mounting solutions.

∞≤0.3 W in the Standby Mode.

∞Optimize eye comfort with a flicker-free screen.

∞The possible long-term effects of blue light emission from the monitor

may cause damage to the eyes, including eye fatigue or digital eye strain.

ComfortView feature is designed to reduce the amount of blue light emitted

from the monitor to optimize eye comfort.

WARNING:If provided with a 3-pin attachment plug on the power

cord, plug the cord into a grounded (earthed) 3-pin outlet. Do not

disable the power cord grounding pin, for example, by attaching a 2-pin

adapter. The grounding pin is an important safety feature.

WARNING:Please confirm the distribution system in building

installation shall provide the circuit breaker rated 120/240V, 20A

(maximum).

About your monitor │9

Identifying parts and controls

Front View

Front panel controls

Label Description

1Function buttons

(For more information, see Operating your monitor)

2Power On/Off button

(with power-status light)

10 │About your monitor

Back View

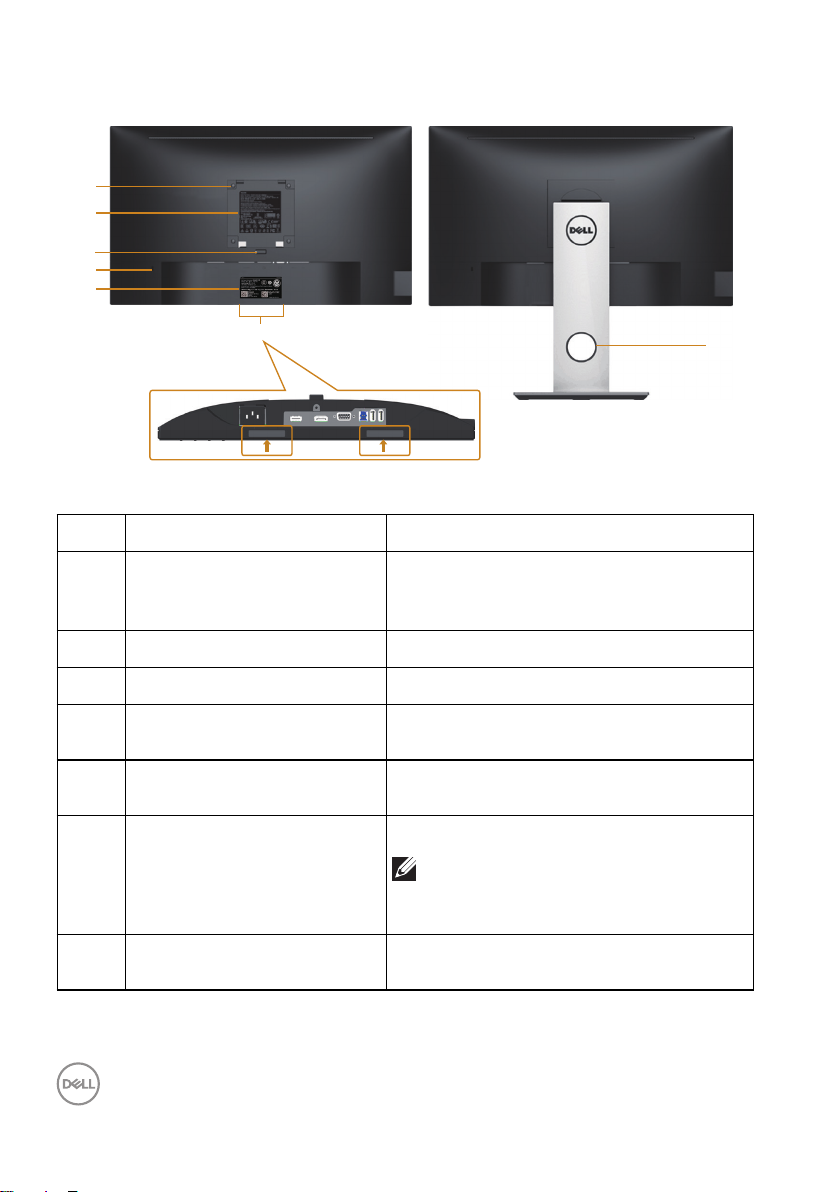

Back View without monitor stand Back View with monitor stand

Label Description Use

1VESA mounting holes (100

mm x 100 mm - behind

attached VESA Cover)

Wall mount monitor using VESA-

compatible wall mount kit (100 mm x 100

mm).

2Regulatory label Lists the regulatory approvals.

3Stand release button Release stand from monitor.

4Security lock slot Secures monitor with security lock(sold

separately).

5Barcode, serial number, and

Service Tag label

Refer to this label if you need to contact

Dell for technical support.

6Dell Soundbar mounting slots Attaches the optional Dell Soundbar.

NOTE: Please remove the plastic

strip covering the mounting slots

before affixing the Dell Soundbar.

7Cable management slot Use to organize cables by placing them

through the slot.
