Dell E2219HN Manual de usuario

Monitor Model: E2219HN

Regulatory Model: E2219HNo

E2219HN

User’s Guide

are trademarks of Dell Inc. or its subsidiaries. Other trademarks may be trademarks of their respective

owners.

2019 – 08

Rev. A04

NOTE: A NOTE indicates important information that helps you make

better use of your computer.

CAUTION: A CAUTION indicates potential damage to hardware or loss

of data if instructions are not followed.

WARNING: A WARNING indicates a potential for property damage,

personal injury, or death.

│3

Contents

About Your Monitor ......................... 5

Package Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

Product Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

Identifying Parts and Controls . . . . . . . . . . . . . . . . . . . . . . 7

Monitor Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Plug and Play Capability . . . . . . . . . . . . . . . . . . . . . . . . 16

LCD Monitor Quality & Pixel Policy . . . . . . . . . . . . . . . . . . . 16

Maintenance Guidelines . . . . . . . . . . . . . . . . . . . . . . . . . 16

Setting Up the Monitor ......................17

Attaching the Stand . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Connecting Your Monitor . . . . . . . . . . . . . . . . . . . . . . . . 18

Organizing Your Cables . . . . . . . . . . . . . . . . . . . . . . . . . 19

Removing the Monitor Stand . . . . . . . . . . . . . . . . . . . . . . 19

Wall Mounting (Optional) . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Operating the Monitor .......................21

Power On the Monitor. . . . . . . . . . . . . . . . . . . . . . . . . . 21

Using the Front-Panel Controls. . . . . . . . . . . . . . . . . . . . . 21

Using the On-Screen Display (OSD) Menu . . . . . . . . . . . . . . . 22

Setting the Maximum Resolution . . . . . . . . . . . . . . . . . . . . 34

Using the Tilt . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

4 │

Troubleshooting ............................37

Self-Test . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Built-in Diagnostics . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Common Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

Product-Specific Problems . . . . . . . . . . . . . . . . . . . . . . . 42

Dell Soundbar Problems. . . . . . . . . . . . . . . . . . . . . . . . . 43

Appendix................................. 45

Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

FCC Notices (U.S. Only) and Other Regulatory Information . . . . . 45

Contact Dell . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

About Your Monitor │5

About Your Monitor

Package Contents

Your monitor ships with all the components shown below. Ensure that you have received

all the components and Contact Dell if anything is missing.

NOTE: Some items may be optional and may not ship with your monitor. Some

features or media may not be available in certain countries.

• Monitor

• Stand Riser

• Stand base

• VESA™ Screw Cover

• Power Cable (varies with countries)

• HDMI Cable

• VGA Cable (Japan)

6 │About Your Monitor

• Quick Setup Guide

• Safety and Regulatory Information

Product Features

The Dell E2219HN flat-panel display has an active matrix, Thin-Film Transistor, Liquid

Crystal Display and LED backlight. The monitor’s features include:

• E2219HN: 54.61 cm (21.5 inches) diagonal viewable image size, 1920 x 1080

resolution, plus full-screen support for lower resolutions.

• Tilt adjustment capability.

• Removable pedestal and Video Electronics Standards Association (VESA) 100 mm

mounting holes for flexible mounting solutions.

• Plug and play capability if supported by your system.

• On-Screen Display (OSD) adjustments for ease of set-up and screen optimization.

• Software and documentation media which includes an information file (INF), Image

Color Matching File (ICM), and product documentation.

• Dell Display Manager Software.

• Security lock slot.

• Asset Management Capability.

• CECP (for China).

• RoHS compliant.

• TCO Certified Displays.

• Energy Gauge shows the energy level being consumed by the monitor in real time.

• Optimize eye comfort with a flicker-free screen.

• The possible long-term effects of blue light emission from the monitor may cause

damage to the eyes, including eye fatigue or digital eye strain. ComfortView feature

is designed to reduce the amount of blue light emitted from the monitor to optimize

eye comfort.

About Your Monitor │7

Identifying Parts and Controls

Front view

Label Description

1Function buttons (For more information, see Operating the Monitor)

2 Power On/Off button (with LED indicator)

Back view

Back View with Monitor Stand

Label Description Use

1 VESA mounting holes (100mm) To mount the monitor.

2 Regulatory rating label Lists the regulatory approvals.

3 Security lock slot Secures monitor with security lock

(security lock not included).

4 Barcode serial number label Refer to this label if you need to contact

Dell for technical support.

5 Cable management slot Use to organize cables by placing them

through the slot.

8 │About Your Monitor

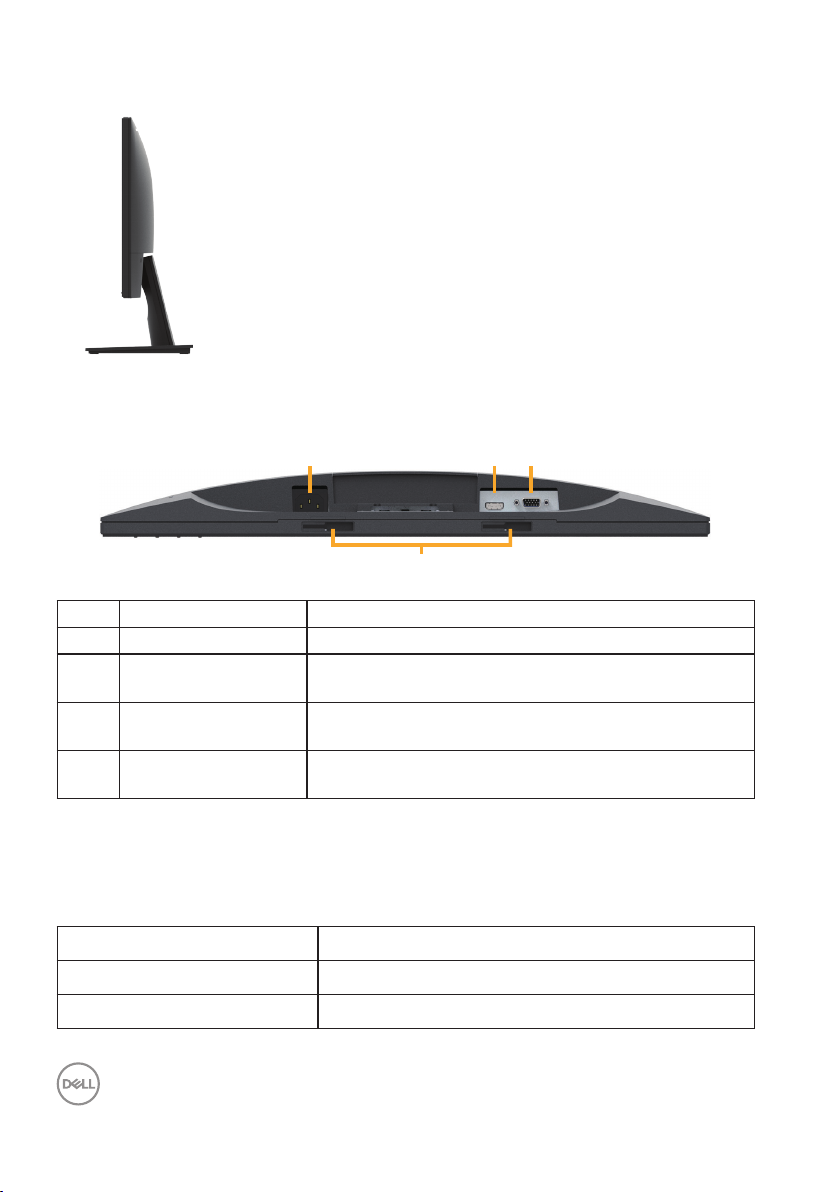

Side view

Right side

Bottom View

123

Label Description Use

1 AC power connector To connect the monitor power cable.

2 HDMI connector To connect your computer to the monitor using a HDMI

cable.

3 VGA connector To connect your computer to the monitor using a VGA

cable.

4 Dell soundbar

mounting slots

To attach the optional Dell Soundbar.

Monitor Specifications

Flat-Panel Specifications

Model number E2219HN

Screen type Active matrix - TFT LCD

Panel type In-Plane Switching Technology

About Your Monitor │9

Viewable image

Diagonal

Horizontal Active Area

Vertical Active Area

Area

546.1 mm (21.5 inches)

476.64 mm (18.77 inches)

268.11 mm (10.56 inches)

127802.67 mm²(198.21 inches²)

Pixel pitch 0.248 x 0.248 mm

Pixel per inch (PPI) 102

Viewing angle

Horizontal

Vertical

178° (typical)

Brightness 250 cd/m² (typical)

Contrast ratio 1000 to 1 (typical)

Display screen coating Antiglare with hard-coating 3H

Backlight White LED edgelight system

Response Time 5 ms (gray to gray - fast mode)

8 ms (typical - normal mode)

Color Depth 16.7 mil colors

Color Gamut 84 % (typical) *

Backlight Lamp Life

(to half initial brightness) 30K hours (typical)

Built-in devices N/A

Connectivity 1 x HDMI 1.4, 1 x VGA

Border width (edge of monitor

to active area)

17.80 mm (Top/Bottom/Left/Right)

Adjustability

Height adjustable stand

Tilt

Swivel

Pivot

N/A

-5° to 21°

N/A

Dell Display Manager

Compatibility

Yes

Security Security lock slot (cable lock sold separately)

* E2219HN color gamut (typical) is based on CIE1976 (84 %) and CIE1931 (72 %) test

standards.

10 │About Your Monitor

Resolution Specifications

Model number E2219HN

Scan range

• Horizontal

• Vertical

30 kHz to 83 kHz (automatic)

50 Hz to 75 Hz (automatic)

Maximum preset resolution 1920 x 1080 at 60 Hz

Supported Video Modes

Model number E2219HN

Video display capabilities

(VGA & HDMI playback)

480i, 480p, 576i, 576p, 720p, 1080i, 1080p

Preset Display Modes

The following table lists the preset modes for which Dell guarantees image size and

centering:

Display Mode

Horizontal

Frequency

(kHz)

Vertical

Frequency

(Hz)

Pixel Clock

(MHz)

Sync Polarity

(Horizontal/

Vertical)

VESA, 720 x 400 31.5 70.1 28.3 -/+

VESA, 640 x 480 31.5 59.9 25.2 -/-

VESA, 640 x 480 37.5 75.0 31.5 -/-

VESA, 800 x 600 37.9 60.3 40.0 +/+

VESA, 800 x 600 46.9 75.0 49.5 +/+

VESA, 1024 x 768 48.4 60.0 65.0 -/-

VESA, 1024 x 768 60.0 75.0 78.8 +/+

VESA, 1152 x 864 67.5 75.0 108.0 +/+

VESA, 1280 x 1024 64.0 60.0 108.0 +/+

VESA, 1280 x 1024 80.0 75.0 135.0 +/+

VESA, 1600 x 900 60.0 60.0 108.0 +/+

VESA, 1920 x 1080 67.5 60.0 148.5 +/+
