Dell Embedded Box PC 5000

Technical Guidebook

Notes, cautions, and warnings

NOTE: A NOTE indicates important information that helps you make better use of your product.

CAUTION: A CAUTION indicates either potential damage to hardware or loss of data and tells you how to avoid the

problem.

WARNING: A WARNING indicates a potential for property damage, personal injury, or death.

the Dell logo are trademarks of Dell Inc. in the United States and/or other jurisdictions. All other marks and names mentioned herein

may be trademarks of their respective companies.

2016 - 07

Rev. A00

Contents

1 Overview.......................................................................................................................................6

Top view....................................................................................................................................................................6

CANbus connector mapping..............................................................................................................................7

VGA connector mapping.................................................................................................................................... 8

12-26V DC power port (barrel connector).......................................................................................................... 8

+12-26V DC power connector............................................................................................................................ 9

Bottom view..............................................................................................................................................................9

GPIO-in connector mapping.............................................................................................................................10

GPIO-out connector mapping.......................................................................................................................... 10

RS232 connector mapping............................................................................................................................... 11

RS422 connector mapping............................................................................................................................... 11

RS485 connector mapping............................................................................................................................... 12

2 Installation and configuration................................................................................................. 13

Setting up the Embedded Box PC........................................................................................................................... 13

Mounting the Embedded Box PC on the wall...................................................................................................14

Mounting the Embedded Box PC on a DIN rail................................................................................................ 16

Mounting the Embedded Box PC on the wall (VESA).......................................................................................17

Setting up your operating system...........................................................................................................................18

Ubuntu Desktop................................................................................................................................................18

Windows OS.....................................................................................................................................................20

Activating your mobile broadband service.............................................................................................................22

Setting up the ZigBee dongle................................................................................................................................. 23

Connector kits.........................................................................................................................................................23

Remote power connector.................................................................................................................................23

12-26V DC power connector.............................................................................................................................24

GPIO-in connector............................................................................................................................................24

GPIO-out connector......................................................................................................................................... 24

3 System configurations..............................................................................................................26

Component types.................................................................................................................................................... 26

Operating systems.................................................................................................................................................. 26

Processors..............................................................................................................................................................27

CPU...................................................................................................................................................................27

Platform Controller Hub....................................................................................................................................27

Memory...................................................................................................................................................................27

Drives and removable storage................................................................................................................................27

Graphics/video controller.......................................................................................................................................27

External ports and connectors............................................................................................................................... 28

Communications—Wireless WAN......................................................................................................................... 28

Communications—Wireless LAN...........................................................................................................................28

Communications—Bluetooth................................................................................................................................. 28

Security...................................................................................................................................................................28

Environmental.........................................................................................................................................................29

Software................................................................................................................................................................. 29

Service and support................................................................................................................................................29

4 Detailed engineering specifications...................................................................................... 30

Dimensions and weight.......................................................................................................................................... 30

Product dimensions and weight.......................................................................................................................30

Packaging dimensions and weight.................................................................................................................. 30

Mounting dimensions.......................................................................................................................................30

VESA mounting dimensions............................................................................................................................. 30

Environmental and operating conditions................................................................................................................30

Environmental conditions.................................................................................................................................31

Operating conditions........................................................................................................................................31

Power......................................................................................................................................................................31

Power adaptor (optional)................................................................................................................................. 31

3.0 V CMOS coin-cell battery........................................................................................................................... 32

Remote power connector.................................................................................................................................32

Communications—Ethernet................................................................................................................................... 33

Communications—Wireless WAN......................................................................................................................... 33

Wireless WAN DW5812/DW5813 specifications............................................................................................. 33

DW5580 specifications.....................................................................................................................................34

Communications—WWAN antenna................................................................................................................ 35

Communications—Wireless LAN...........................................................................................................................38

Communications—WLAN antenna..................................................................................................................40

Communications—Antenna 4-in-1......................................................................................................................... 41

Communications—Serial ports.............................................................................................................................. 43

Graphics..................................................................................................................................................................43

PCI/PCIe..................................................................................................................................................................44

Hard drives—HDD.................................................................................................................................................. 44

Hard drives—SSD...................................................................................................................................................45

CANBus port........................................................................................................................................................... 45

BIOS defaults..........................................................................................................................................................46

General.............................................................................................................................................................46

System configuration (BIOS level 1).................................................................................................................47

Video.................................................................................................................................................................48

Security (BIOS level 1)......................................................................................................................................48

Secure boot......................................................................................................................................................49

Intel software guard extensions...................................................................................................................... 49

Performance.....................................................................................................................................................50

Power management......................................................................................................................................... 50

POST behavior..................................................................................................................................................50

Virtualization support (BIOS level 1).................................................................................................................50

Wireless........................................................................................................................................................... 51

Maintenance.................................................................................................................................................... 51

System logs...................................................................................................................................................... 51

5 Regulatory and environmental compliance..........................................................................52

6 Appendix.....................................................................................................................................53

Programming the CANBus......................................................................................................................................53

Programming the GPIO........................................................................................................................................... 53

Sample code—Controlling GPO registers........................................................................................................54

Sample code—Read GPI status.......................................................................................................................54

Overview

This chapter provides an overview of the Embedded Box PC.

Top view

Features

1 PCI slot one Install a PCI card or a PCIe card and PCIe riser card.

Maximum supported card size: Height 111.15 mm (4.38

inches), length 167.65 mm (6.6 inches)

NOTE: For more information about supported PCI/PCIe

configurations, see PCI/PCIe specifications.

2 PCIe (x16) slot or PCI slot two Install a PCIe card or a PCI card and PCI riser card.

Maximum supported card size: Height 111.15 mm (4.38

inches), length 167.65 mm (6.6 inches)

NOTE: For more information about supported PCI/PCIe

configurations, see PCI/PCIe specifications.

3 Power switch Turn on or off the Embedded Box PC.

4 Remote power switch 1Install a remote power switch.

5 Hard reset Using a pin, press the button located in the pin hole to

restart the Embedded Box PC.

6 Network port one Connect an Ethernet (RJ45) cable for network access.

Provides data transfer speeds up to 10/100/1000 Mbps.

7 USB 3.0 ports (4) Connect USB enabled devices. Provides data transfer

speeds up to 5 Gbps.

8 Network port two Connect an Ethernet (RJ45) cable for network access.

Provides data transfer speeds up to 10/100/1000 Mbps.

9 DisplayPort two Connect a monitor or another DisplayPort enabled device.

Provides video and audio output.

Features

NOTE: For more information about the display options,

see Display Options.

10 DisplayPort one Connect a monitor or another DisplayPort enabled device.

Provides video and audio output.

NOTE: For more information about the display options,

see Display Options.

11 HDMI port Connect a monitor or another HDMI‑in enabled device.

Provides video and audio output.

12 CANbus port (optional) Connect to a CANbus port enabled device or dongles. For

more information, see CANbus connector mapping.

13 VGA port Connect a monitor or another VGA enabled device. Provides

video output. For more information, see VGA connector

mapping.

14 12-26V DC power port (barrel connector) Connect a 12-26V DC power cable for supplying power to

your Embedded Box PC. For more information, see 12-26V

DC power port (barrel connector).

15 Audio ports (3) Connect a speaker, a headphone, a microphone, or a

headset (headphone and microphone combo).

NOTE: Connect the headset to the Line Out port.

16 +12-26V DC power connector Connect a 12-26V DC power connector for supplying power

to your Embedded Box PC. For more information, see

+12-26V DC power connector.

1 Connections made to these ports must use SELV circuits and the wire (26 AWG-18 AWG) must have Double Insulation (DI) or Reinforced Insulation (RI) to

protect it from all hazardous voltages. Torque the screws at 2.88 kg-cm (2.5 lb-in) to secure the wire to the connector.

CANbus connector mapping

Pin Signal Pin Signal

1 NC 6 NC

2 CAN_L 7 CAN_H

3 GND 8 NC

4 NC 9 NC

5 NC

VGA connector mapping

Pin Signal Pin Signal Pin Signal

1 RED 6 GND 11 NC

2 GREEN 7 GND 12 DDCDAT

3 BLUE 8 GND 13 HSYNC

4 NC 9 +5V 14 VSYNS

5 GND 10 GND 15 DDCCLK

12-26V DC power port (barrel connector)

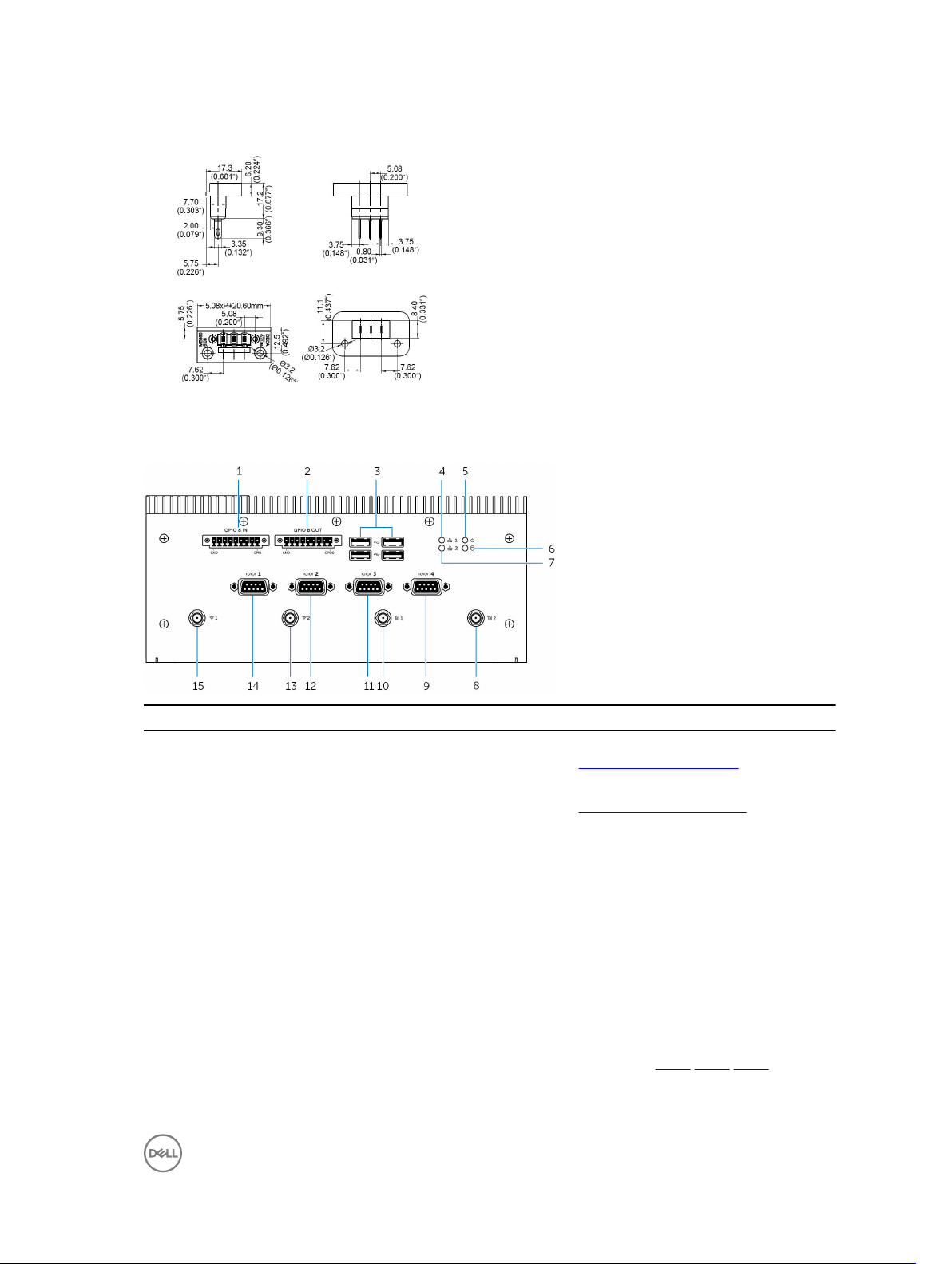

+12-26V DC power connector

Bottom view

Features

1 GPIO-in 8-pin port 1, 2, 4 Connect to a GPIO-out enabled device or dongle. For more

information, see GPIO-in connector mapping.

2 GPIO-out 8-pin port 2, 3, 4 Connect to a GPIO-in enabled device or dongle. For more

information, see GPIO-out connector mapping.

3 USB 2.0 ports (4) Connect USB enabled devices. Provides data transfer

speeds up to 480 Mbps.

4 Network status light one Indicates the network activity of network port one.

5 Power status light Indicates the power‑state of the Embedded Box PC.

6 Hard-drive activity light Turns on when the Embedded Box PC reads from or writes

to the internal storage device.

7 Network status light two Indicates the network activity of the network port two.

8 Mobile broadband antenna port two Connect a mobile broadband antenna to increase the range

and strength of the mobile broadband signals.

9 RS232/RS422/RS485 port four (configurable in

the BIOS)

Connect an RS232/RS422/RS485 cable to the Embedded Box

PC. For more information, see RS232/RS422/RS485

connector mapping.

Features

10 Mobile broadband antenna port one Connect a mobile broadband antenna to increase the range

and strength of mobile broadband signals.

11 RS232/RS422/RS485 port three (configurable in

the BIOS)

Connect an RS232/RS422/RS485 cable to the Embedded Box

PC. For more information, see RS232/RS422/RS485

connector mapping.

12 RS232/RS422/RS485 port two (configurable in

the BIOS)

Connect an RS232/RS422/RS485 cable to the Embedded Box

PC. For more information, see RS232/RS422/RS485

connector mapping.

13 Wireless antenna port two Connect a wireless antenna to increase the range and

strength of wireless signals.

14 RS232/RS422/RS485 port one (configurable in

the BIOS)

Connect an RS232/RS422/RS485 cable to the Embedded Box

PC. For more information, see RS232/RS422/RS485

connector mapping.

15 Wireless antenna port one Connect a wireless antenna to increase the range and

strength of wireless signals.

1 The GPIO-in port has 9 pins. Pin labels are GND and GP10 through GP17.

2 Connections made to these ports must use SELV circuits and the wire (26 AWG-18 AWG) must have Double Insulation (DI) or Reinforced Insulation (RI) to
