(3) INSTALLATION
The Formatic D12,000 is delivered as a complete unit. Castors allow ease of mobility. Ensure
the unit is placed on a level floor and the brakes on the braked castors are locked on prior to
lowering the four stabilising feet. The feet should be lowered and locked in the desired
position. Ensure that the machine is level and stable.
Pre Operation Checks
Check the machine for transport damage and report any immediately to Deighton
Manufacturing Ltd.
Remove any packaging material.
Position the selected drum onto the drum shaft ensuring that the keyways on the drum shaft
and the drum are aligned, push the drum completely home (if the forms are not fully extended
you will need to lift the ejector set over the cam). Fit the paper cam/guard over the drum on
the end of the shaft and secure with spanner.
Repeat the procedure for both drums.
Locate the front conveyor platform (denoted by width of ledge on underside of platform),
onto the pivot shaft positioned to the bottom right of the drum (as shown over). With the
conveyor nose roller assembly rotated upwards slip the conveyor belt onto the nylon drive
roller and around the platform nose roller. Set the nose roller assembly down, lock in place
using the hand knob provided. The tension of the belt can be altered by moving the nose
roller shaft, use the shaft end locks, spanner required, this is to be done when the nose roller

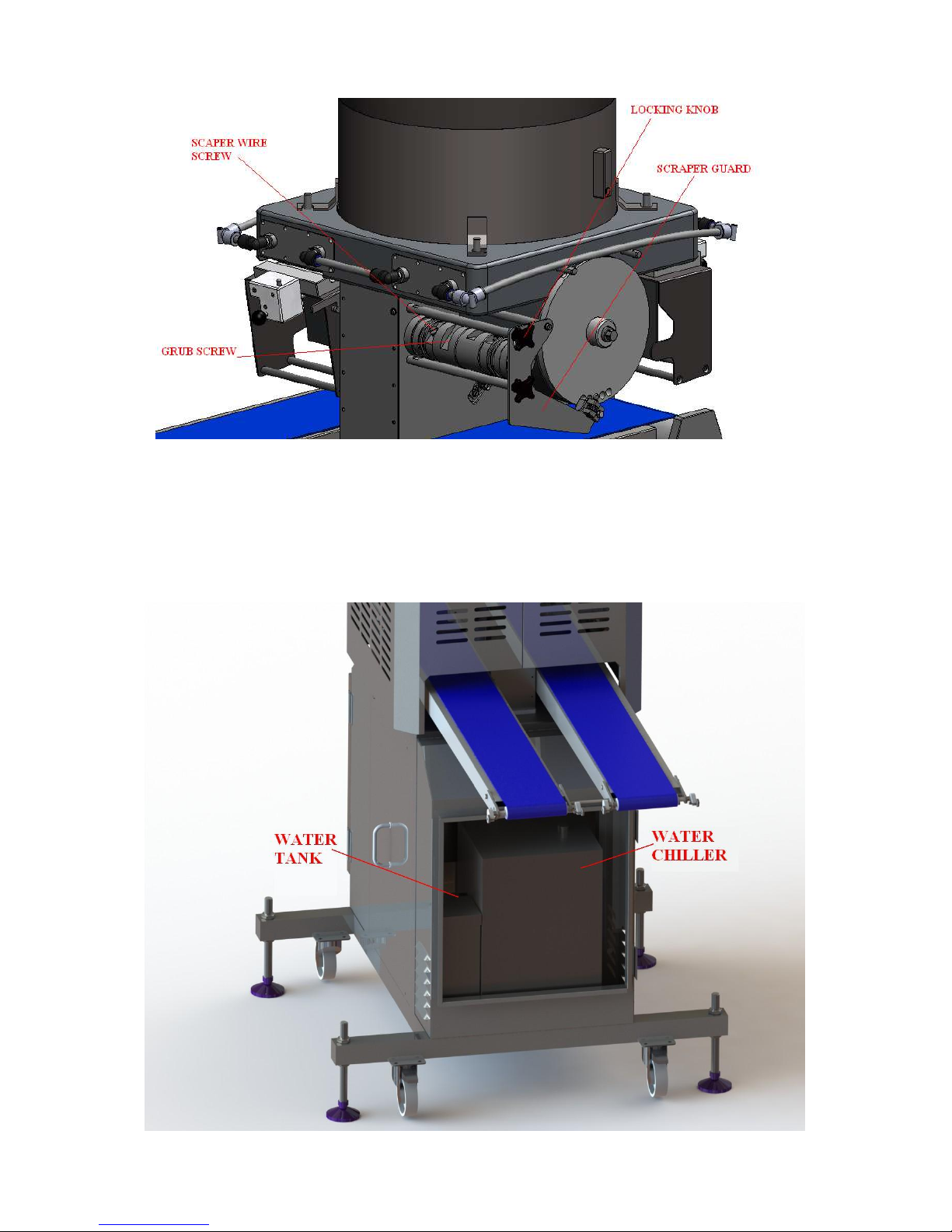

assembly is in the raised position. Fit the scraper wire assembly into the support brackets on
the nose of the conveyor and adjust the tension.
Repeat the procedure for the back conveyor platform.
