QUICK START GUIDE
QUICK START GUIDE
•What’s in the delivery?
•Getting started
•The first steps
•PC utility software
Document no.: 4189340624B
SW version 3.0X.X or later
Multi Differential Relay, MDR-2
MDR-2 Quick Start Guide
DEIF A/S Page 2 of 16
Table of contents
1. ABOUT THIS DOCUMENT ................................................................................................... 3
GENERAL PURPOSE...................................................................................................................... 3
INTENDED USERS ......................................................................................................................... 3
CONTENTS/OVERALL STRUCTURE..................................................................................................3
2. WARNINGS AND LEGAL INFORMATION........................................................................... 4
LEGAL INFORMATION AND RESPONSIBILITY.....................................................................................4
ELECTROSTATIC DISCHARGE AWARENESS .....................................................................................4
SAFETY ISSUES............................................................................................................................4
DEFINITIONS ................................................................................................................................4
3. WHAT’S IN THE DELIVERY?............................................................................................... 5
STANDARD DELIVERY....................................................................................................................5
OPTIONAL DELIVERY..................................................................................................................... 6
4. GETTING STARTED ............................................................................................................. 7
CONNECTING THE DEVICES...........................................................................................................7
BASIC WIRING............................................................................................................................... 8
5. THE FIRST STEPS..............................................................................................................11
BASIC AC VALUES......................................................................................................................11
6. PC UTILITY SOFTWARE....................................................................................................13
INSTALLATION ............................................................................................................................ 13
GETTING CONNECTED TO THE UNIT .............................................................................................14
READ PARAMETERS FROM THE DEVICE ........................................................................................15
BASIC CONFIGURATION OF A DEVICE USING THE UTILITY SOFTWARE ..............................................16
MDR-2 Quick Start Guide
DEIF A/S Page 3 of 16
1. About this document
General purpose
This document is the Quick Start Guide for the Multi-line 2 product MDR-2. The general purpose
of the document is to help the user with the first steps of installing and using the unit.
Intended users
This Quick Start Guide is mainly intended for the panel builder in charge. On the basis of this
document, the panel builder designer will give the electrician the information he needs in order
to get started to install the unit. For detailed electrical drawings, the Designer’s Reference
Handbook must be used.
Contents/overall structure
This document is divided into chapters, and in order to make the structure simple and easy to
use, each chapter will begin from the top of a new page.
Please make sure that you also read the Designer’s Reference Handbook
before starting to work with the Multi-line 2 controller and the gen-set to be
controlled. Failure to do this could result in human injury or damage to the
equipment.
MDR-2 Quick Start Guide
DEIF A/S Page 4 of 16
2. Warnings and legal information
This chapter includes important information about general legal issues relevant in the handling
of DEIF products. Furthermore, some overall safety precautions will be introduced and
recommended. Finally, the highlighted notes and warnings, which will be used throughout this
document, are presented.
Legal information and responsibility
DEIF takes no responsibility for installation or operation of the generator set. If there is any
doubt about how to install or operate the generator controlled by the unit, the company
responsible for the installation or the operation of the set must be contacted.
Electrostatic discharge awareness
Sufficient care must be taken to protect the terminals against static discharges during the
installation. Once the unit is installed and connected, these precautions are no longer
necessary.
Safety issues
Installing the unit implies work with dangerous currents and voltages. Therefore, the installation
of the unit should only be carried out by authorised personnel who understand the risks involved
in the working with live electrical equipment.
Definitions
Throughout this document a number of notes with helpful user information will be presented. To
ensure that these are noticed, they will be highlighted in order to separate them from the
general text.
Note symbol
Warnings
Be aware of the hazardous live currents and voltages. Do not touch any AC
measurement inputs as this could lead to injury or death.
The notes provide general information which will be helpful for the reader to
bear in mind.
The warnings indicate a potentially dangerous situation which could result in
death, personal injury or damaged equipment if certain guidelines are not
followed.
The units are not to be opened by unauthorised personnel. If opened anyway, the
warranty will be lost.
MDR-2 Quick Start Guide
DEIF A/S Page 5 of 16
3. What’s in the delivery?
Standard delivery
The main unit
Standard display unit, DU-2
MDR-2 Quick Start Guide
DEIF A/S Page 6 of 16
Optional delivery
Display cable, 3 m (option J1)
Display cable, 6 m (option J2)
Display cable, 1 m (option J6)
MDR-2 Quick Start Guide
DEIF A/S Page 7 of 16
4. Getting started
Connecting the devices
Connecting the display to the main unit
Connect the SUB-D display cable to the main unit and the display unit as shown in the below
picture.
MDR-2 Quick Start Guide
DEIF A/S Page 8 of 16
Basic wiring
AC wiring
MDR-2 Quick Start Guide
DEIF A/S Page 9 of 16
AC wiring – option C4
Only -/1A CTs can be used with option C4.
MDR-2 Quick Start Guide
DEIF A/S Page 10 of 16

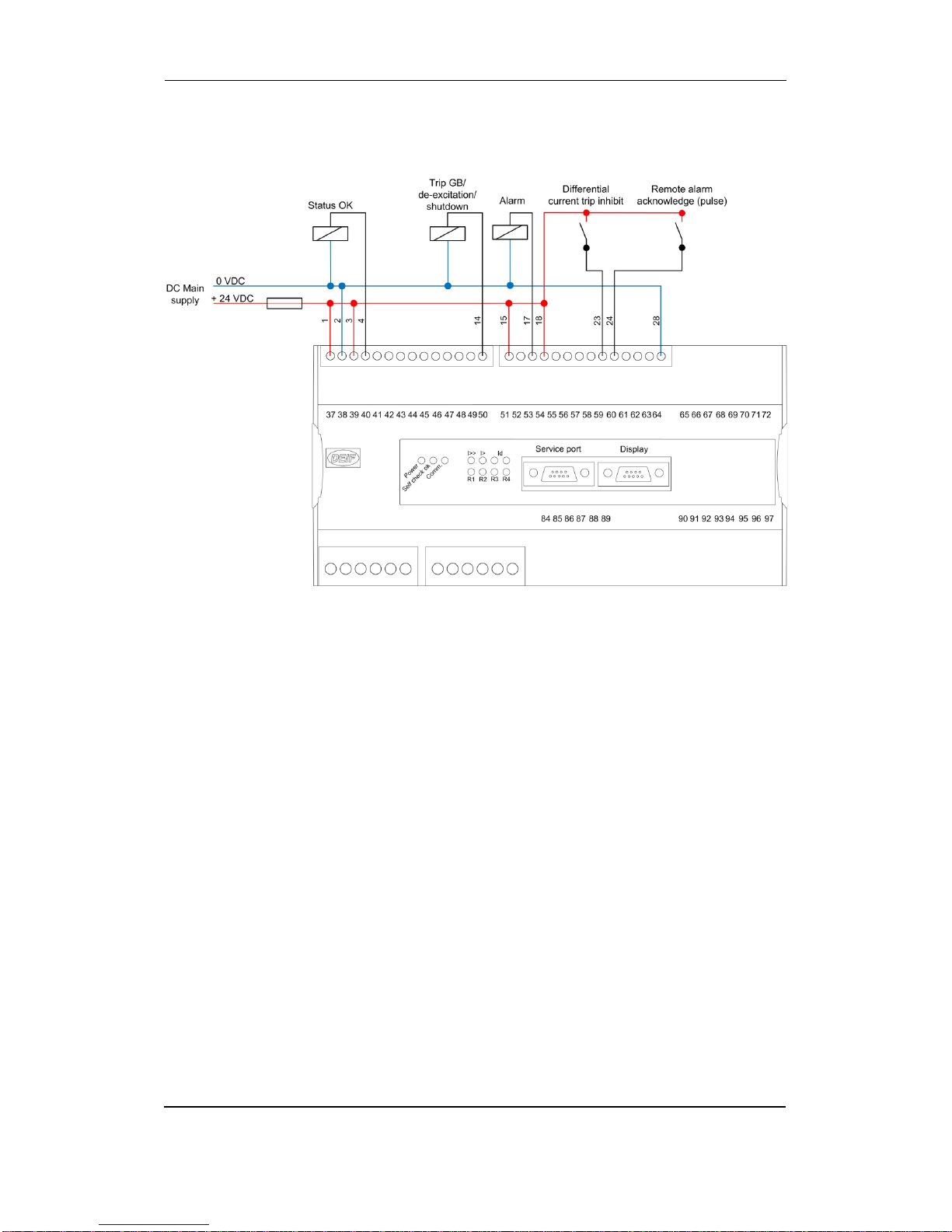

DC wiring
