Alliance A1 Mix Machine
Motor and Timer Information
Installa�on of the
motor to the power
supply and other
electrical connec�ons
must conform to all
federal, state, and local
regula�ons and must
be performed by a fully
qualified electrician.
The motor and �mer
are both U.L and CSA
approved.
It is recommended to have each Alliance A1
Mix Machine hard wired to its own electric
circuit within its loca�on. Please contact your
local cer�fied electrician for more informa�on.
Alliance Intrinsically Safe Timer
Alliance Mixing Machine Motor
Alliance electric motors are ½ hp, single phase, 115 volt, 60 Hz with
FLA of 6.8 amps (782 Wa�s).
Motors are explosion-proof, rated for Class 1, Div. 1, Group D, hazardous
loca�ons.
The motor is controlled by an intrinsically safe electronic �mer that
operates on 5 volts DC. (See below)
There are two wires coming out of the motor which must be hard wired to
the power supply by a cer�fied electrician.
+
-

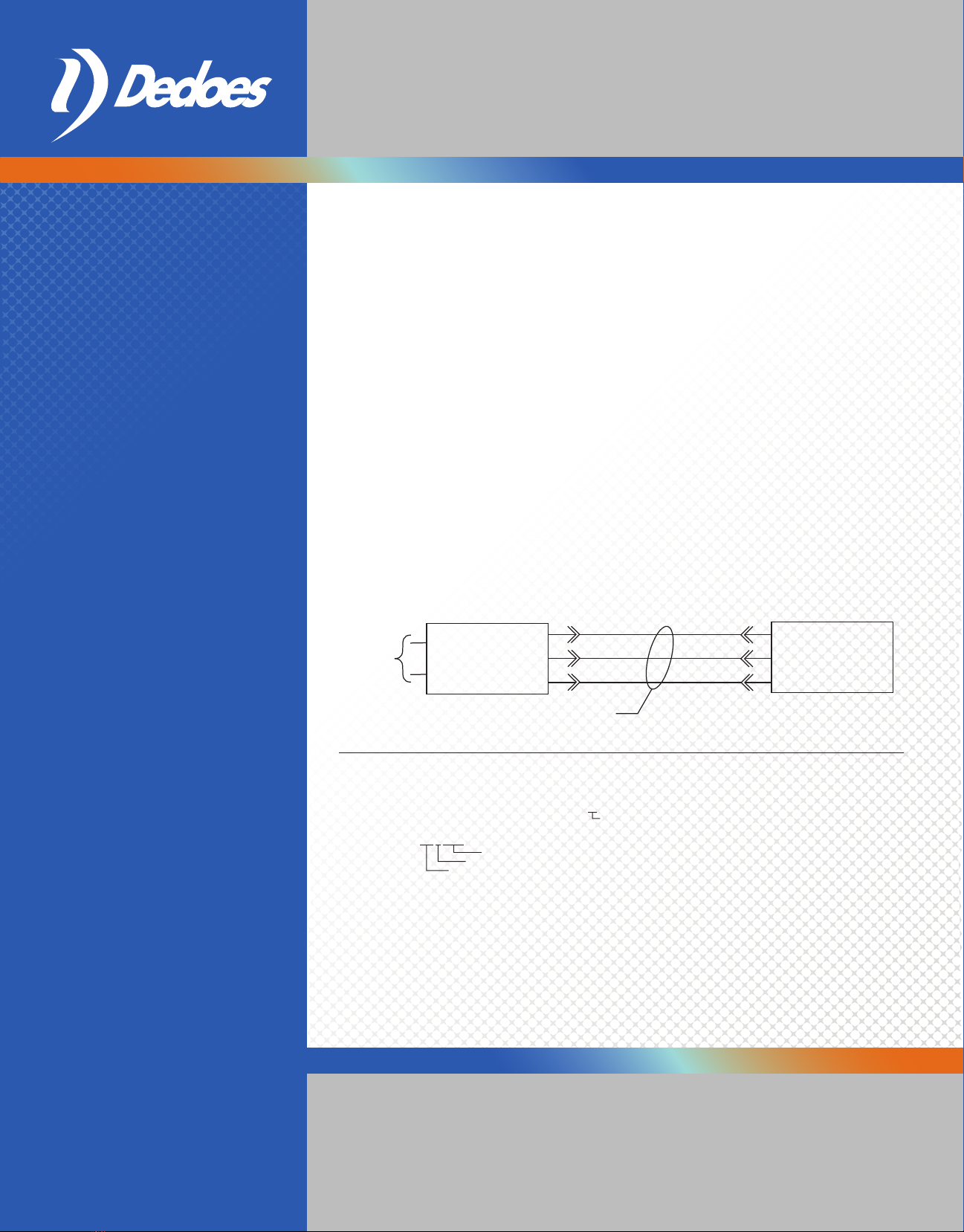

RLY
BLUFFTON MOTOR
SEE NOTES BELOW
115 OR 230
VAC INPUT
+
-
RLY
DIGITAL TIMER
CONTROL MODELS:
223450914
223450924
223450925
223450927
223450929
POTENTIALLY FLAMMABLE ATMOSPHERE
(CLASS I, GROUP D)
753-9000-104
CABLE P/N - - 753-9000-106
2235151XX (SEE NOTE 1 IN “NOTES FOR CABLE SECTION” BELOW)
SYSTEM MUST BE INSTALLED IN ACCORDANCE WITH THE NATIONAL ELECTRICAL CODE OR CANADIAN ELECTRIC CODE AS APPLICABLE
NOTES FOR MOTOR
1.) MOTOR VOLTAGE SWITCH MUST BE SET
ACCORDING TO LINE VOLTAGE USED IN THE
FINAL APPLICATION.
2.) MOTOR HAS BEEN DIELECTRIC TESTED AND
GROUND CONTINUITY TESTED PER UL674.
3.) EXPLOSION PROOF MODELS;
111 OR 112 X X X X X X
01 - 99
1 OR4
00 OR 01
FAN COOLED/NON-VENTILATED; THERMALLY
PROTECTED; 56 FRAME; FOR USE IN CLASS I GROUP
D HAZARDOUS LOCATIONS; RATED 115/230v: 3/4
HP MAX. WITH 80° C MAXIMUM WINDING RISE BY
RESISTANCE AT 40° C AMBIENT; WITH
INTRINSICALLY SAFE POWER SUPPLY BOARD ASSY
850-9522-032, (223450928), AS DESCRIBED IN FILE
E481969 VOLUME 1, SECTION 2.
NOTES FOR CABLE
1.) CABLE MUST BE P/N ONE OF THE FOLLOWING.
753-9000-104
753-9000-106
2235151XX
01-99 (CABLE LENGTH IN INCHES)
SUBSTITUTION MAY IMPAIR INTRINSIC SAFETY.
2.) THIS CABLE CONTAINS INTRINSICALLY SAFE
CIRCUITS AND SHALL BE INSTALLED IN
ACCORDANCE WITH NEC ANSI/NFPA 70
ARTICLE 504 OR CEC PART 1 APPENDIX F AS
APPLICABLE.
NOTES FOR TIMER
1.) DIGITAL TIMER CONTROL MUST ONLY
BE USED WITH CABLE AND MOTOR
MODELS SHOWN.
2.) DIGITAL TIMER BOX MODEL 223450929
CONTAINS THE INTRINSICALLY SAFE
TIMER CONTROL BOARD ASSEMBLY
910-9522-033 AS DESCRIBED IN FILE
E481969 VOLUME 1, SECTION 1. TIMER
MODELS 223450914, 223450924,
223450925 AND 223450927 ALL
CONTAIN INTRINSICALLY SAFE TIMER
BOARD ASSEMBLY 223440901.
