Flat solar panels
NEO 2.1 / SUN 211
Installation, User
and Service
Manual
Roof-Surface
Installation
Terrace mounting
300020210-001-B
Contents
1 Introduction ................................................................................................4
1.1 Used symbols .......................................................4
1.2 General ..................................................................4
1.2.1 Manufacturer's liability .............................................4
1.2.2 Installer's liability .....................................................5
2Safety instructions and recommendations ..............................................6
2.1 Safety instructions ...............................................6
2.2 Recommendations ................................................6
3Description ..................................................................................................8
3.1 Operating principle ...............................................8
3.2 Technical characteristics .....................................8
4Installation ..................................................................................................9
4.1 Regulations governing installation .....................9
4.1.1 All installation system ..............................................9
4.1.2 Roof-Surface Installation .........................................9
4.1.3 Terrace mounting ..................................................10
4.2 Package list .........................................................11
4.2.1 Package for an assembly on the roof ....................11
4.2.2 Anchorage fittings for roof mounting .....................12
4.2.3 Terrace assembly kit .............................................13
4.3 Main dimensions .................................................14
4.4 Installation diagrams ..........................................15
4.5 Assembling the solar collectors .......................17
4.5.1 Warning .................................................................17
4.5.2 Tools required .......................................................18
4.5.3 Dimensions ...........................................................18
4.5.4 Fitting the hooks ....................................................20
4.5.5 Vertical assembly, juxtaposed ...............................23
4.5.6 Horizontal assembly, superposed (only on
roof) .......................................................................29
105/10/09 - 300020210-001-B
4.6 Solar collector temperature sensor ..................35
4.7 Passing Pipes and Cable through the
Roof ......................................................................36
4.8 Hydraulic connections .......................................37
4.8.1 Connection dimensions .........................................37
4.8.2 Connecting ............................................................37
4.8.3 Pipe insulation .......................................................38
4.9 Filling the system ...............................................38
5 Commissioning ........................................................................................40
5.1 Check points before commissioning ................40
5.2 Commissioning ...................................................40
6 Checking and maintenance .....................................................................41
6.1 General instructions ...........................................41
7 Warranty ....................................................................................................42
7.1 General ................................................................42
7.2 Warranty terms ...................................................42
Contents NEO 2.1 / SUN 211
205/10/09 - 300020210-001-B
305/10/09 - 300020210-001-B
1 Introduction
1.1 Used symbols
In these instructions, various danger levels are employed to draw the
user's attention to particular information. In so doing, we wish to
safeguard the user's safety, obviate hazards and guarantee correct
operation of the appliance.
DANGER
Risk of a dangerous situation causing serious physical
injury.
WARNING
Risk of a dangerous situation causing slight physical
injury.
CAUTION
Risk of material damage.
Signals important information.
¼ Signals a referral to other instructions or other pages in the
instructions.
Caution: Risk of being burnt.
Zone susceptible to snow.
Zone susceptible to windy conditions.
1.2 General
1.2.1. Manufacturer's liability
Our products are manufactured in compliance with the essential
requirements of the various Directives applicable. They are therefore
delivered with [ marking and all relevant documentation.
K
)
K
)
K
)
NEO 2.1 / SUN 211 1. Introduction
05/10/09 - 300020210-001-B 4
In the interest of customers, we are continuously endeavouring to
make improvements in product quality. All the specifications stated in
this document are therefore subject to change without notice.
Our liability as the manufacturer may not be invoked in the following
cases:
4Incorrect use of the appliance.
4Faulty or insufficient maintenance of the appliance.
4Incorrect installation of the appliance.
1.2.2. Installer's liability
The installer is responsible for the installation and inital start up of the
appliance. The installer must respect the following instructions:
4Read and follow the instructions given in the manuals provided
with the appliance.
4Carry out installation in compliance with the prevailing legislation
and standards.
4Perform the initial start up and carry out any checks necessary.
4Explain the installation to the user.
4Warn the user of the obligation to check the appliance and
maintain it in good working order.
4Give all the instruction manuals to the user.
1. Introduction NEO 2.1 / SUN 211
505/10/09 - 300020210-001-B
2 Safety instructions and
recommendations
2.1 Safety instructions
DANGER
The permissible roof load of the building must not at any
time be exceeded. If necessary, a structural engineer
should be consulted before commencing work.
WARNING
All electrical work must be carried out by a qualified
electrician and must conform to the applicable standards,
specifications, safety regulations and the requirements of
the local electricity supplier.
CAUTION
Do not neglect to service the appliance. Contact a qualified
professional or take out a maintenance contract for the
annual servicing of the appliance.
2.2 Recommendations
WARNING
4Any operation on the installation must be performed
by a qualified technician respecting professional
regulations and in accordance with this document.
4When making the connections, it is imperative that
the standards and corresponding local directives are
respected.
4The flat solar panels and fittings should be handled carefully during
transportation and storage. If the packing has nevertheless been
damaged during transit, the damage must be reported
immediately to and claimed against the carrier.
4The contents of the assembly kit must be checked before
installation against the list which accompnaies each kit.
4When installing the panels, take note of the safety instructions in
this document.
4The packing material should be properly disposed of after
installation.
4Insulate the pipes in rooms that are not heated (cellars and lofts).
4Check regularly that the installation contains water and is
pressurised.
NEO 2.1 / SUN 211 2. Safety instructions and recommendations
05/10/09 - 300020210-001-B 6
4Service the appliance regularly to ensure that it operates correctly.
2. Safety instructions and recommendations NEO 2.1 / SUN 211
705/10/09 - 300020210-001-B

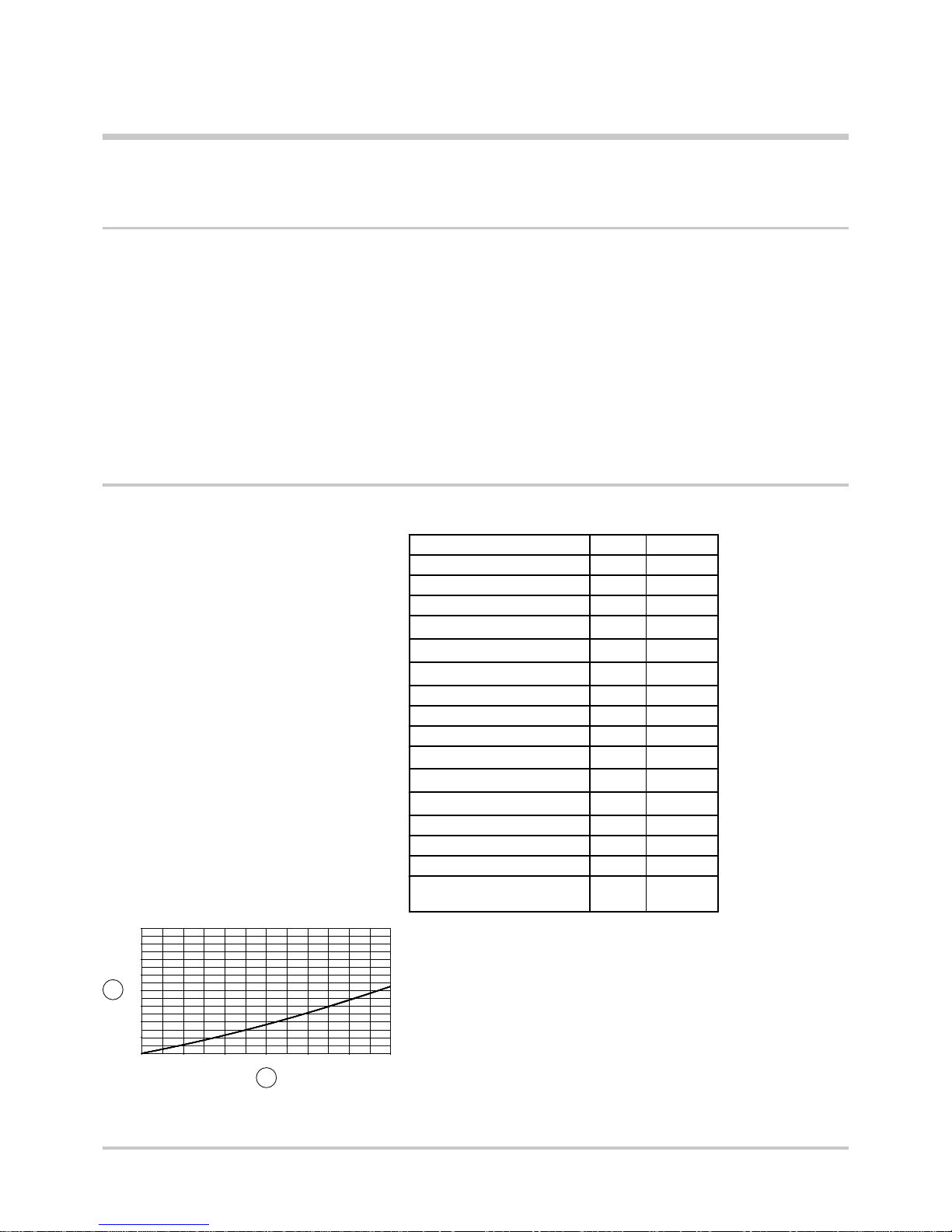

3 Description
3.1 Operating principle
The short-wave solar radiation (sunlight) striking the solar panel is
converted into heat by the selective coating on the absorber. From
there it is transferred by heat conduction to the absorber pipe and
carried by the heat-transporting fluid to the calorifier. The solar-panel
fluid heats the calorifier by means of the energy absorbed from the
sun and cools down itself in the process.. The cooled heat-
transporting fluid then flows back to the solar panel in order to collect
more solar energy. An intelligent control system ensures that the
circulation system is only active when there is sufficient solar
radiation, thus optimising the collection of solar energy.
3.2 Technical characteristics
Length mm 1960
Width mm 1060
Height mm 70
Weight kg 34.45
Gross collector area AGm22,1
Inlet surface Aa m21,88
Absorber surface AAm21,90
Water content litres 1,2
Maximum operating pressure bar 10
Testing pressure bar 15
Optical efficiency ηo 0,773
Loss rating a1W/m2.K 3,676
Loss rating a2W/m2.K 0,0143
Stagnation temperature °C 180
Hydraulic connections mm 12
Pressure drop mbar See below
Fitted tilt angle
minimum/maximum
° 20 to 65
Load loss curve
APressure drop (mbar)
ZMass flow (Kg/h)
0
50
100
150
200
250
300
350
400
0 50 100 150 200 250 300
1
2M002031-A
NEO 2.1 / SUN 211 3. Description
05/10/09 - 300020210-001-B 8
4 Installation
4.1 Regulations governing installation
4.1.1. All installation system
CAUTION
4The installation and maintenance of the appliance
must be carried out by a qualified professional in
compliance with the statutory texts of the codes of
conduct in force.
4Solar installations must be earthed to protect them
against lightning.
4Protection of the environment: Place a container of
sufficient volume under the drain pipe and the valve
discharge pipe.
4The installation should therefore not be flushed or filled when the
collectors are hot (in strong sunshine).
4The solar system must at all times be filled with : heat transporting
fluidTyfocor L or LS.
4.1.2. Roof-Surface Installation
CAUTION
Before installation, make sure that the framework is solid
and strong enough to comply with the static requirements.
4The roof-integral installation set is designed specifically as a
mounting system for the NEO 2.1 / SUN 211 flat solar panels and
may only be used in accordance with their building regulations
approval.
M001788-A
M001707-A
4. Installation NEO 2.1 / SUN 211
905/10/09 - 300020210-001-B
