EN GUIDE TO INSTALLATION AND USE

Cooking Hob

Dear valued customer,

To discover a De Dietrich product is to experience the range of unique emotions

which only high-value items can produce.

The attraction is immediate, from the moment you set eyes on the product. The sheer

quality of the design shines through thanks to the timeless style and outstanding

finishes which make each appliance an elegant and refined little masterpiece in its

own right, each in perfect harmony with the others.

Next, comes the irresistible urge to touch it. De Dietrich's design makes extensive use

of robust and prestigious materials. The accent is placed firmly upon authenticity.

By combining state-of-the-art technology with top quality materials, De Dietrich

produces beautifully crafted products to help you get the most from the culinary arts,

a passion shared by all lovers of cooking and fine food.

We hope that you enjoy using this new appliance and we would love to receive your

suggestions and to answer any questions you may have. Please feel free to contact

our customer service department via our website.

To benefit from the many advantages offered by the brand, we recommend that you

Thank you for choosing a De Dietrich product.

De Dietrich

You can find a full range of information about the brand at www.de-dietrich.com

Visit the De Dietrich Gallery, 6 rue de la Pépinière (Paris eighth district)

Open from Tuesday to Saturday from 10 am to 7 pm

Customer service department: 0892 02 88 04

In the unlikely event of there being a problem with your appliances please call the number below

quoting the model number of your appliance - this can be found on the rating plate. Our trained

staff are available to advise or book a service call with one of our authorized service agents.

CONTENTS

1 / INSTALLING YOUR APPLIANCE

• Installation _________________________________________________________ 4

• Connection _________________________________________________________ 5

2 / USING YOUR APPLIANCE

• The induction principle _______________________________________________ 6

• Description of your top _______________________________________________ 7

• Using a cooking zone ________________________________________________ 11

• Additional functions _________________________________________________ 11

Boil

Independent timer

Delayed cooking

Switch

Preselected power settings

Child safety

Clean lock

• Safety features when operating ________________________________________ 14

3 / MAINTAINING YOUR APPLIANCE ______________________________________ 15

4 / SPECIAL MESSAGES, DIFFICULTIES __________________________________ 16

5 / AFTER- SALES SERVICE __________________________________________ 17

We are constantly improving our products; for this reason we reserve the right to make all

modifications to their technical, functional or aesthetic characteristics, originating from tech-

nical developments.

Warning

This product is not foreseen for sale in the USA

Before installing and using your appliance please read this installation and use the guide

carefully - it will help you familiarise yourself very rapidly with its operation.

•

CHOOSING THE POSITION

The distance between the edge of your appliance

and the side and rear walls (or partitions) must be at

least four centimetres (zone A).

Your appliance may be built in without any restric-

tion. Check, however, that the air intake and outlet

are free of obstruction.

The building-in method opposite is recommended

for use above an oven or a built-in appliance.

BUILDING-IN

Follow the diagram above.

Glue the foam seal underneath your appliance, follo-

wing the perimeter of the hole in the worktop, upon

which your appliance will rest. This will ensure a

good seal against the worktop.

Attach the clips to the hob

(depending on the

model

4 cm

Entrée d'air

Sortie d'air

4 cm

ventilation space

•

l’ L’

6,4

Above an oven

MIN 4 mm

Above a cabinet

with a door or drawer

Tip

If your hob is located above your oven, the hob’s thermal safety devices can impede the

simultaneous use of the hob and the oven’s pyrolysis program.

Your hob is equipped with an anti-overheating safety system.

This safety device can trigger, for example, when the hob is installed over an oven that is not suf-

ficiently insulated. If this occurs, a series of small lines appears on the control panel. In such cir-

cumstances we recommend that you increase the hob’s ventilation by creating an opening in the

side of the cabinet, (8 x 5 cm), and/or installing an oven insulation kit available from the after-sales

(Ref . 75X1652)

You can also install your hob above a dishwasher.

In this case, your worktop must be at least 900mm high in order to ensure proper ventilation to

your hob and you could also fit the dishwasher insulation kit that is available from the After-Sales

Service (Ref. 77X7781).

Air outlet

Air intake

1 / INSTALLING YOUR APPLIANCE

Your appliance should be positioned so that the mains switch is accessible.

These hobs must be connected to the mains using a socket in compliance with publication CEI

60083 or an all-pole circuit-breaker device in compliance with the installation rules in force.

When power is first supplied to your hob, or after an extended power cut, an indicator light will

appear on the control panel. This information will disappear after 30 seconds.

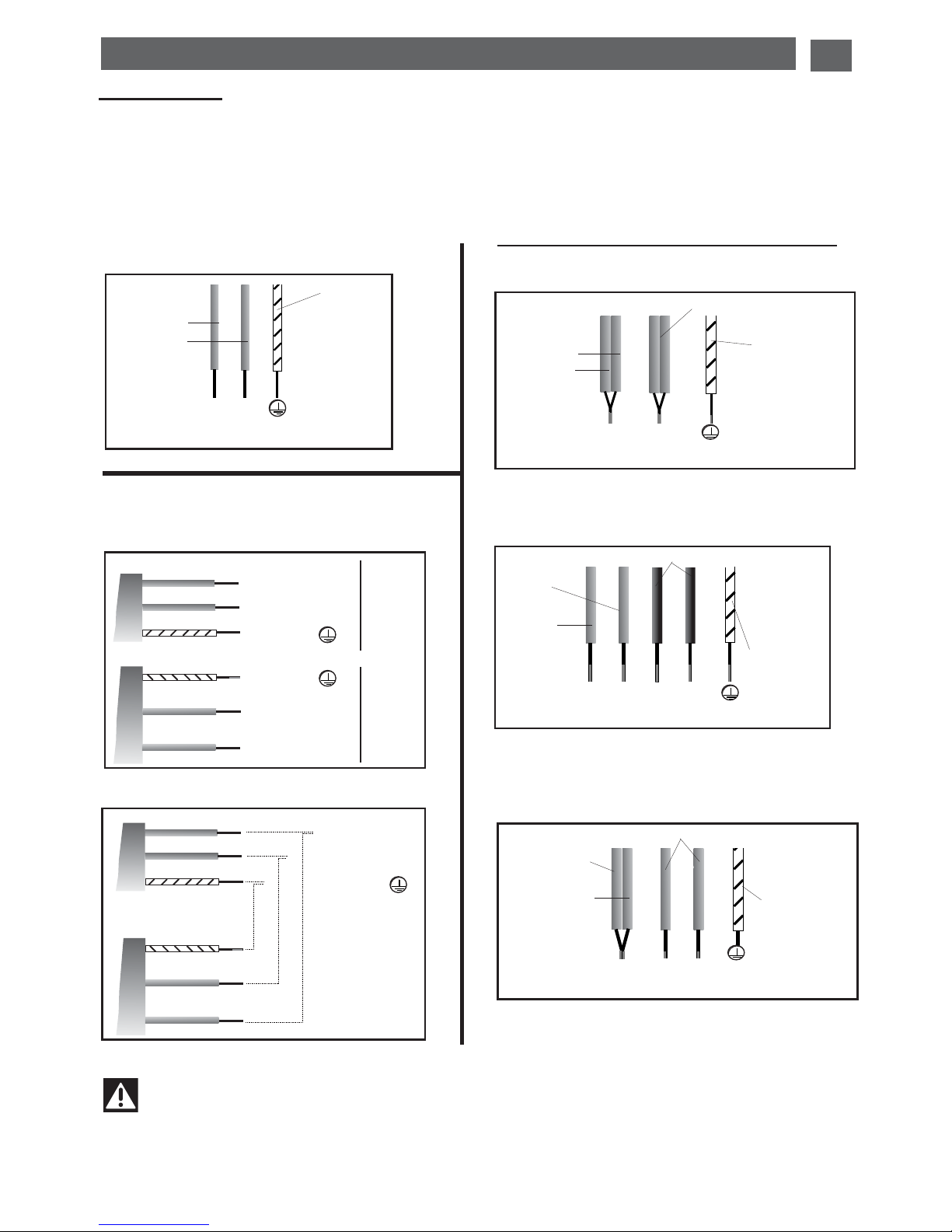

Connection

•

Hook-up of 220-240V

(DTI11177X -DTI1137X - DTI1047C et GC)

Warning

If the cable is damaged it must be replaced by the manufacturer, its after-sales serv-

ice or a person with a similar qualification to prevent danger.

Green/yellow

Blue

Brown

32A

Earth

Neutral Phase

Neutral

Phase

Green/yellow

Blue

Brown

•

220-240 V monophase

hook-up(DTI1177X)

Earth

Bleu

Brown

Green/yellow Earth

Phase L

20 A

32 A

Green/yellow

Blue

Brown

Earth

Blue

Brown

Green/yellow

Neutral N

Phase L

32 amp fuses.

63 amp fuse.

Neutral N

Separate the 2 phase wires L1 and L2 before

connection

Green/yellow

Blue

Black - grey

Brown

Neutral Earth

Phase

NL1 L2

Blue Green/yellow

Black - grey

Brown

•

220-240V

With hook-up of 400 V 2N three phase, verify

that the neutral wie is properly connected

•

400V 2N

~ -

16A

32A

Separate the wires before connection

Neutral Earth

Phase

N1 L1 L2

Blue

Green/yellow

Black - grey

Brown

•

2x230V 2L+2N

~ -

16A

Earth

Neutral Phase

Connection DTI1043XE - DTI1167XE

2 / USING YOUR APPLIANCE

•Choosing a cooking area

• The induction principle

The principle of induction is based on a mag-

netic effect.

When you place your cookware on a cooking

zone and you turn it on, the electronic circuits

in your cooking hob produce “induced” cur-

rents in the bottom of the cookware which

instantly raise its temperature. This heat is

then transmitted to the food

To help you choose, a list of cookware is pro-

vided with this guide.

We have designed this cooking hob for use by private individuals in their homes.

These cooking hobs are intended exclusively for cooking beverages and foodstuffs and do not

contain any asbestos-based materials.

This appliance is not intended to be used by persons (including children) with reduced physical, sen-

sory or mental abilities, or persons lacking experience or awareness, unless using it with the help of

a person reponsible for their safety, or under supervision and with prior instruction in its use.

Children should be supervised to ensure that they do not play with the appliance.

• Cookware

Most cookware is compatible with induction.

To verify that your cookware is suitable, place

it on a heating area on power 4.

- If the display remains on, your cookware is

compatible.

- If the display flashes, your cookware cannot

be used with induction cooking.

You can also use a magnet to test the cook-

ware.

If a magnet “sticks” to the bottom of the cook-

ware, it is compatible with induction.

Only glass, terra cotta, aluminium without a

special finish on the bottom, copper and some

non-magnetic stainless steels do not work

with induction cooking. We recommend that

you select cookware with a thick, flat bottom.

A- Induction plate

B- Electronic circuit

C- Induced currents

Cooking

area

Diameter of base

of cookware

16 cm 10 ..... 18 cm

23 cm 12 ..... 26 cm

28 cm 12 .....32 cm

Front or rear

CONTINUUM 12 .....20 cm

Complete

CONTINUUM 18 ..... oval, fish kettle

2 / USING YOUR APPLIANCE

DTI1137X

00328

28 cm

4600 W

Description of the top

Overall dimensions (L x l) -

DTI1137X : 65 x 51.3

Cut-out Recess (L’ x l’)

DTI1137X : 56 x 49

16 cm

2200 W

18 cm

2800 W

•

Selector buttons

Buttons A, B and C are used to select cooking

zones and turn them on and off. When a zone

is selected, you will see it light up, and you can

adjust its settings.

If there is no cookware on the selected zone, your adjustments will delete automatically after a

few moments.

Indicator for

selected zone

Power

display

Timer display

For a selected zone

•

Adjustment buttons

These buttons allow you to adjust power,

timer, programmer... for each of the selected

zones.

OIL

function

I power preselection

J recommended timer

LAPSED

IME

function

locking - unlocking - Clean lock

WITCH

function

power slider

O timer slider

KLM

2 / USING YOUR APPLIANCE

DTI1117X

Overall dimensions (L x l) -

DTI1117X : 65 x 51.3

Cut-out Recess (L’ x l’)

DTI1117X : 56 x 49

00310

18 cm

2800 W 22 cm

4000 W

16 cm

2200 W

18 cm

2800 W

•

Adjustment buttons

These buttons allow you to adjust power,

timer, programmer... for each of the selected

zones.

OIL

function

I power preselection

J recommended timer

LAPSED

IME

function

locking - unlocking - Clean lock

WITCH

function

power slider

O timer slider

If there is no cookware on the selected zone, your adjustments will delete automatically after a

few moments.

•

Selector buttons

Buttons A, B and C are used to select cooking

zones and turn them on and off. When a zone

is selected, you will see it light up, and you can

adjust its settings.

Indicator for

selected zone

Power

display

Timer display

For a selected zone

KLM

2 / USING YOUR APPLIANCE

DTI1047GC - DTI1167XE

Overall dimensions (L x l) -

DTI1047C - DTI1047GC : 65 x 51

DTI1167XE : 78.2 x 50.7

Cut-out Recess (L’ x l’)

DTI1047C - DTI1047GC : 56 x 49

DTI1167XE : 75x49.6

00325

For DTI1167XE

3600 W

23 cm

3100 W

16 cm

2200 W

For DTI1047C et GC

4600 W

If there is no cookware on the selected zone, your adjustments will delete automatically after a

few moments.

•

Adjustment buttons

These buttons allow you to adjust power,

timer, programmer... for each of the selected

zones.

OIL

function

I power preselection

Jrecommended timer

LAPSED

IME

function

locking - unlocking - Clean lock

WITCH

function

power slider

O timer slider

•

Selector buttons

Use these buttons to select, turn on and turn

off the cooking zones. When a zone is selec-

ted, you will see it light up, and you can adjust

its settings.

Afront CONTINUUM zone

B rear Continuum zone

Ccomplete CONTINUUM zone

E16 cm zone.

Fzone 23 cm.

Indicator for

selected zone

Power

display

Timer display

For a selected zone

KLM

2 / USING YOUR APPLIANCE

•

Adjustment buttons

These buttons allow you to adjust power,

timer, programmer... for each of the selected

zones.

OIL

function

I power preselection

J recommended timer

LAPSED

IME

function

locking - unlocking - Clean lock

WITCH

function

power slider

O timer slider

If there is no cookware on the selected zone, your adjustments will delete automatically after a

few moments.

DTI1177X

Overall dimensions (L x l) -

DTI1117X : 93 x 51

Cut-out Recess (L’ x l’)

DTI1117X : 90 x 49

00327

4600 W

23 cm

3100 W

16 cm

2200 W

28 cm

4600 W

•

Selector buttons

Use these buttons to select, turn on and turn

off the cooking zones. When a zone is selec-

ted, you will see it light up, and you can adjust

its settings.

Afront CONTINUUM zone

Brear CONTINUUM zone

Ccomplete CONTINUUM zone

D28 cm zone.

E23 cm zone.

F16 cm zone.

Indicator for

selected zone

Power

display

Timer display

For a selected zone

KLM

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Quemador de DeDietrich

DeDietrich

DeDietrich G30 Manual de usuario

DeDietrich

DeDietrich DTG764X Guía de inicio rápido

DeDietrich

DeDietrich Cooking hob Hoja de especificaciones

DeDietrich

DeDietrich DPE3601X Guía de inicio rápido

DeDietrich

DeDietrich DPV7550B Manual de usuario

DeDietrich

DeDietrich DPG7549 Series Manual de usuario

DeDietrich

DeDietrich DPI7686XS Manual de usuario

DeDietrich

DeDietrich dpi7688xt Manual de usuario

DeDietrich

DeDietrich DTI1053X Guía de inicio rápido

DeDietrich

DeDietrich DHD491XE1 Manual de usuario

DeDietrich

DeDietrich "Le Piano" Manual de usuario

DeDietrich

DeDietrich DTI701 Guía de inicio rápido

DeDietrich

DeDietrich DTi1053 Manual de usuario

DeDietrich

DeDietrich G30 Manual de usuario

DeDietrich

DeDietrich DPI7698G Manual de usuario

DeDietrich

DeDietrich DTI1049X Guía de inicio rápido

DeDietrich

DeDietrich DPI7572 Series Manual de usuario

DeDietrich

DeDietrich DTI716X Guía de inicio rápido

DeDietrich

DeDietrich G30 Guía de inicio rápido

DeDietrich

DeDietrich KIP711W Guía de inicio rápido

DeDietrich

DeDietrich DTG1008 Series Guía de inicio rápido

DeDietrich

DeDietrich "Le Piano" Manual de usuario

DeDietrich

DeDietrich DPE7610 Series Guía de inicio rápido

DeDietrich

DeDietrich Cooking hob Guía de inicio rápido

Manuales populares de Quemador de otras marcas

Siemens

Siemens EX875KYV1E Hoja de especificaciones

AEG

AEG CERAMIC HOB 6010 K Manual de usuario

VALERA

VALERA CT 70A Manual de usuario

Zanussi

Zanussi ZGF 6420 Manual de usuario

Gaggenau

Gaggenau CI 273 Manual de usuario

G3 Ferrari

G3 Ferrari Energy Manual de usuario

Pkm

Pkm IN4B Manual de usuario

Award

Award H903BG Manual de usuario

Zanussi

Zanussi VCH 5005 RZ Manual de usuario

Miele

Miele KM 523 Manual de usuario

Hotpoint

Hotpoint IS67V8CCXT/E Manual de usuario

AEG

AEG HK854870XB Manual de usuario

Cookology

Cookology SEP600BK Manual de usuario

Bauknecht

Bauknecht Hob Manual de usuario

Zanussi

Zanussi ZGM 782 Manual de usuario

dipo INDUCTION

dipo INDUCTION DIBK218S Manual de usuario

Miele

Miele KM 5987 Manual de usuario

Miele

Miele KM 360 G Manual de usuario
