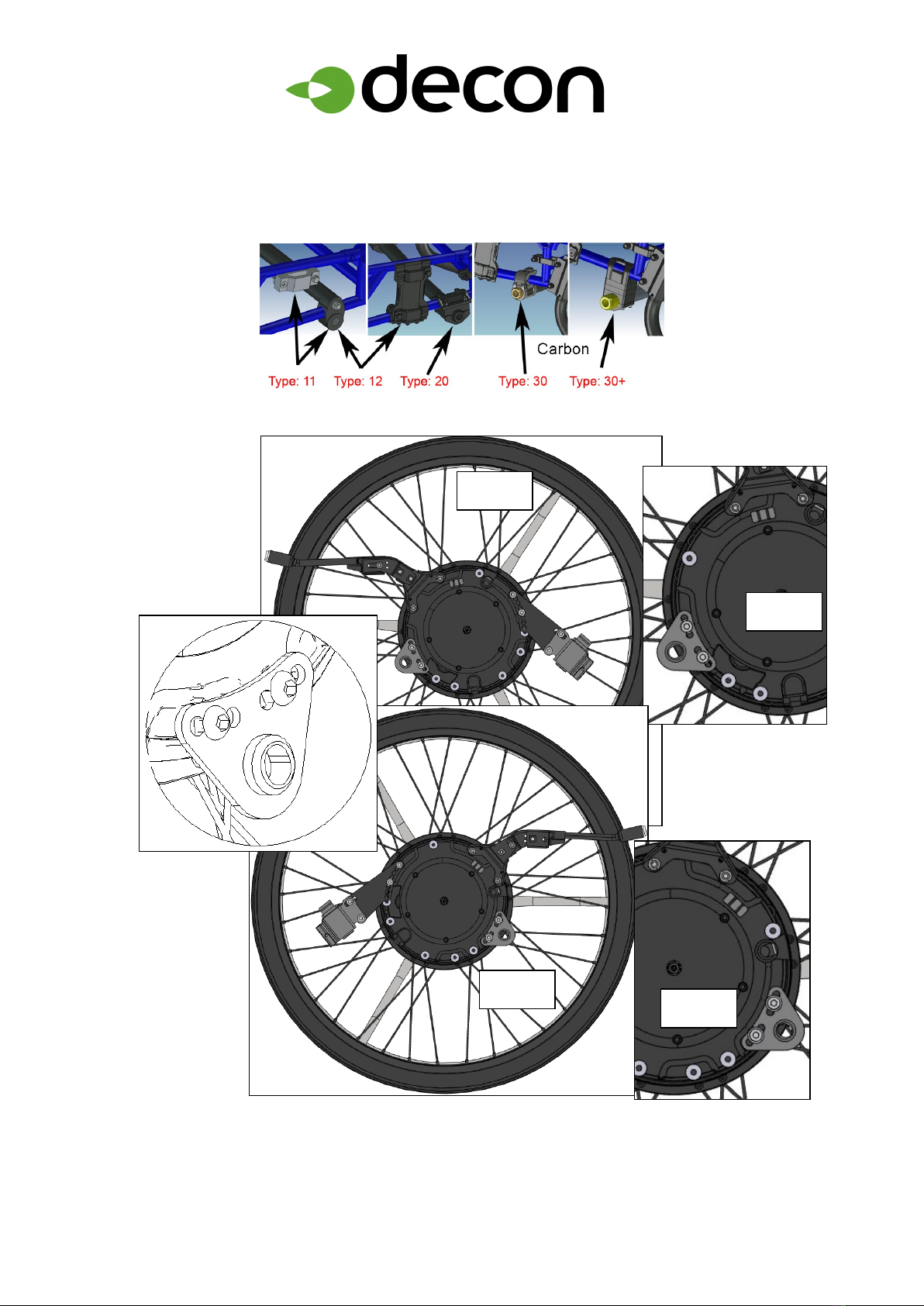

Assembly instructions for Panthera
S2/U2, S2-/S3- Swing, S3/U3, Bambino
MEM6003-30 and MEM6004-30
Type 30
1. Check that you have the correct model.
2. Remove the wheels.
3. Check the correct placement for the eMove, and that it is mounted Ø12,7 x 46 axle
with Part Number: XOE-2530E-00.
S3/U3
S2/U2
2
S3/U3
S2/U2
2
2023-11-21
Page: 2

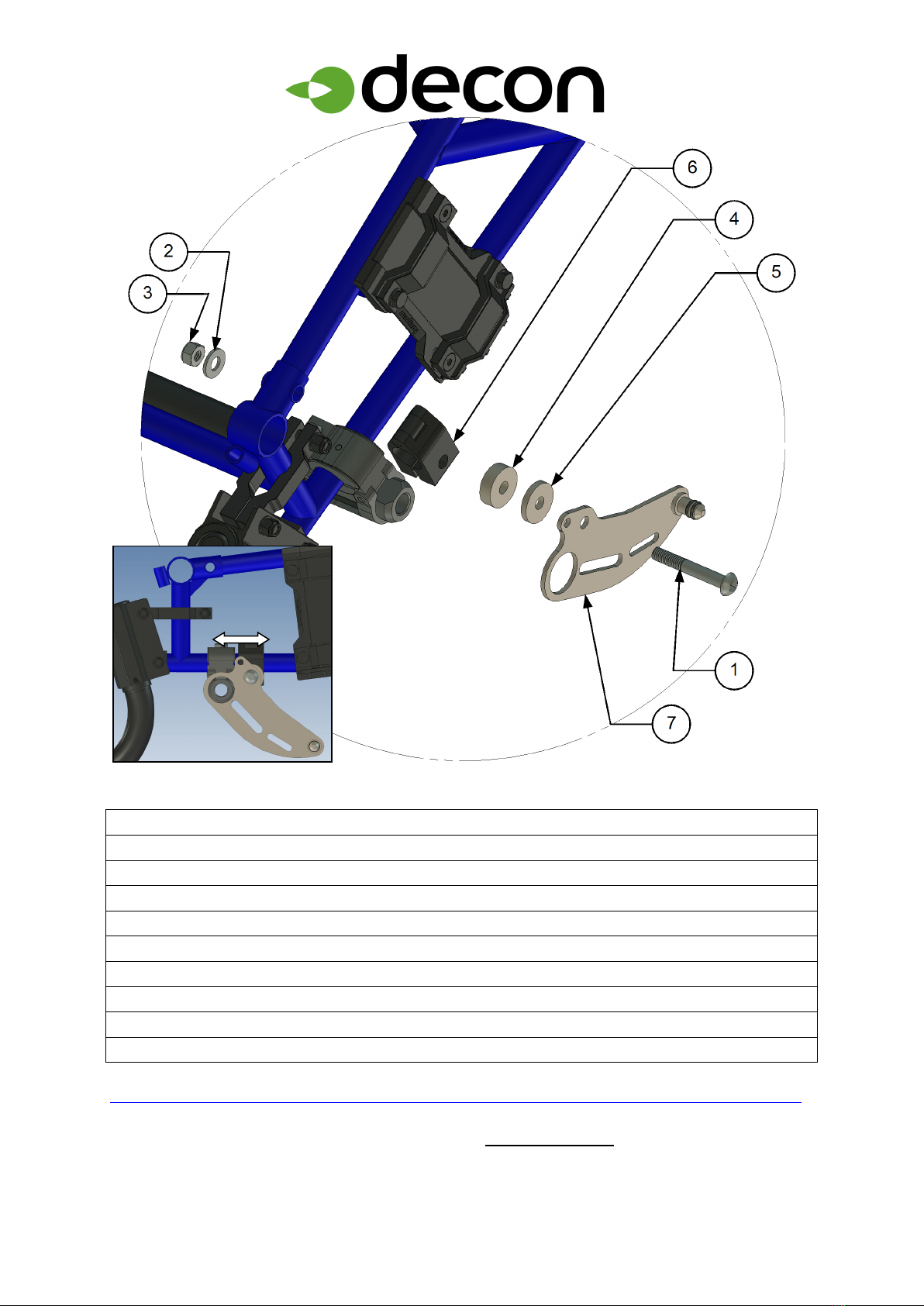

4. Assembly the plate (right side) according to pictures above.
Parts for right side mounting:
Item No. Part Number Qty Description
1 XSM8X55 1 Screw Round M8 x 55
2 XSM8BR 1 Washer Plain M8
3 XSM8ML 1 Lock Nut M8
4 100 400 013 1 Spacer (*only with the Carbon rear axle +1,5)
5 100 400 011 1 Spacer
6 290010 1 Clamp
7 300036 1 Right Bracket
8 350070 1 Clamp tipping lever S3/U3
8 350073 1 Clamp tipping lever S2/U2
*If you do not now with rear axle you have, see the link bellow.
http://www.panthera.se/panthera/documentation/montering/eng/montering_bakaxel_kolfiber_eng.pdf
Note! If you only order the mounting set, the axle it’s not included, for replacement see the
service manual.
2023-11-21
Page: 3

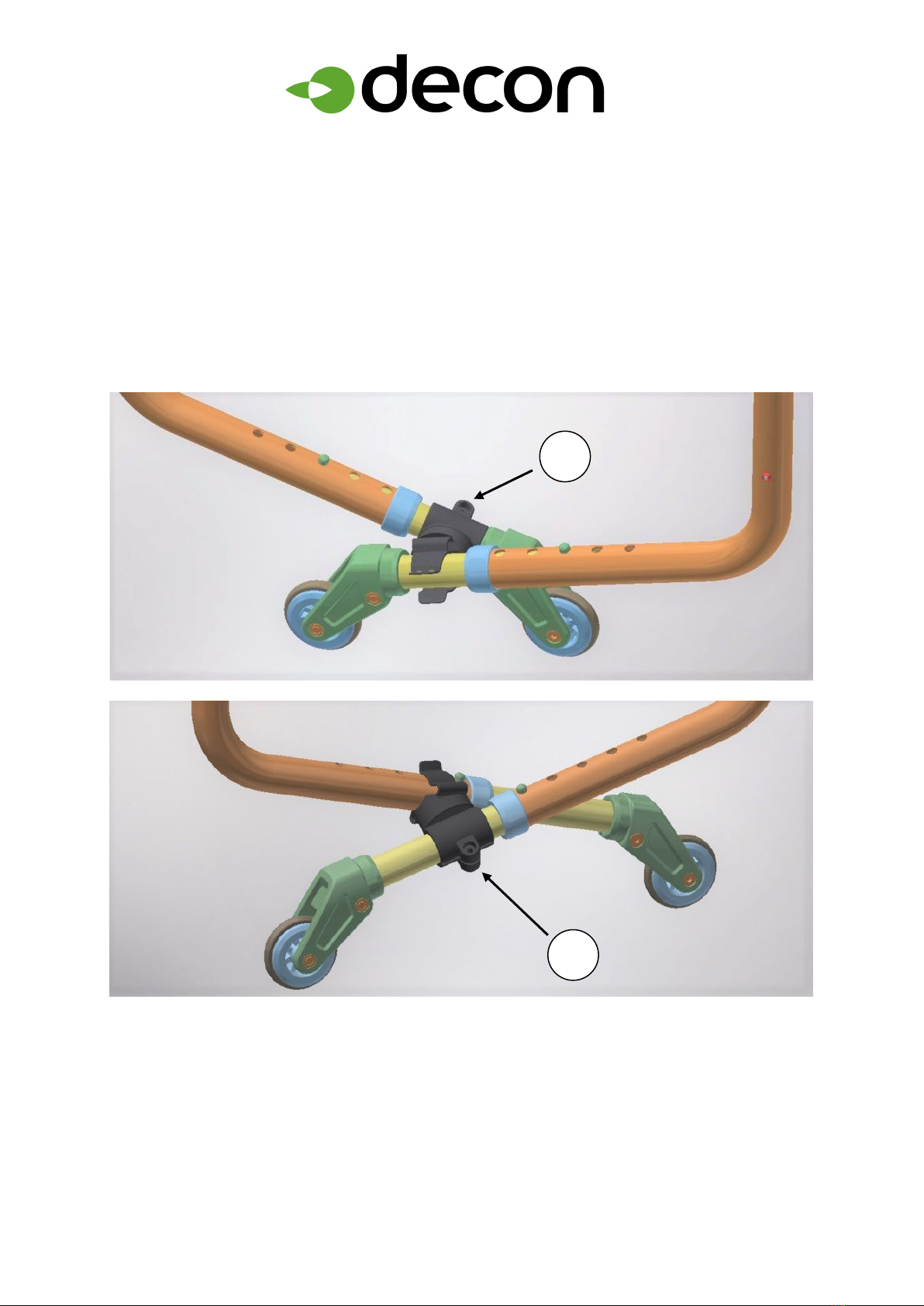

5. Assemble the under placed battery bag or if have order a Lithium battery place the
battery holder as the picture for the right model.
NOTE!
Keep in mind that the hinged battery bag and the battery box placed under the seat might
interfere with the tipping levers. This can be solved by ordering a back mounted battery case
instead of the standard bag or use the plastic clamp to attach the tipping levelers to each other,
see the picture below. The mounting of the clamp may need to be adjusted to match the actual
seat width. Below are pictures of two mounting examples.
8
8
2023-11-21
Page: 4

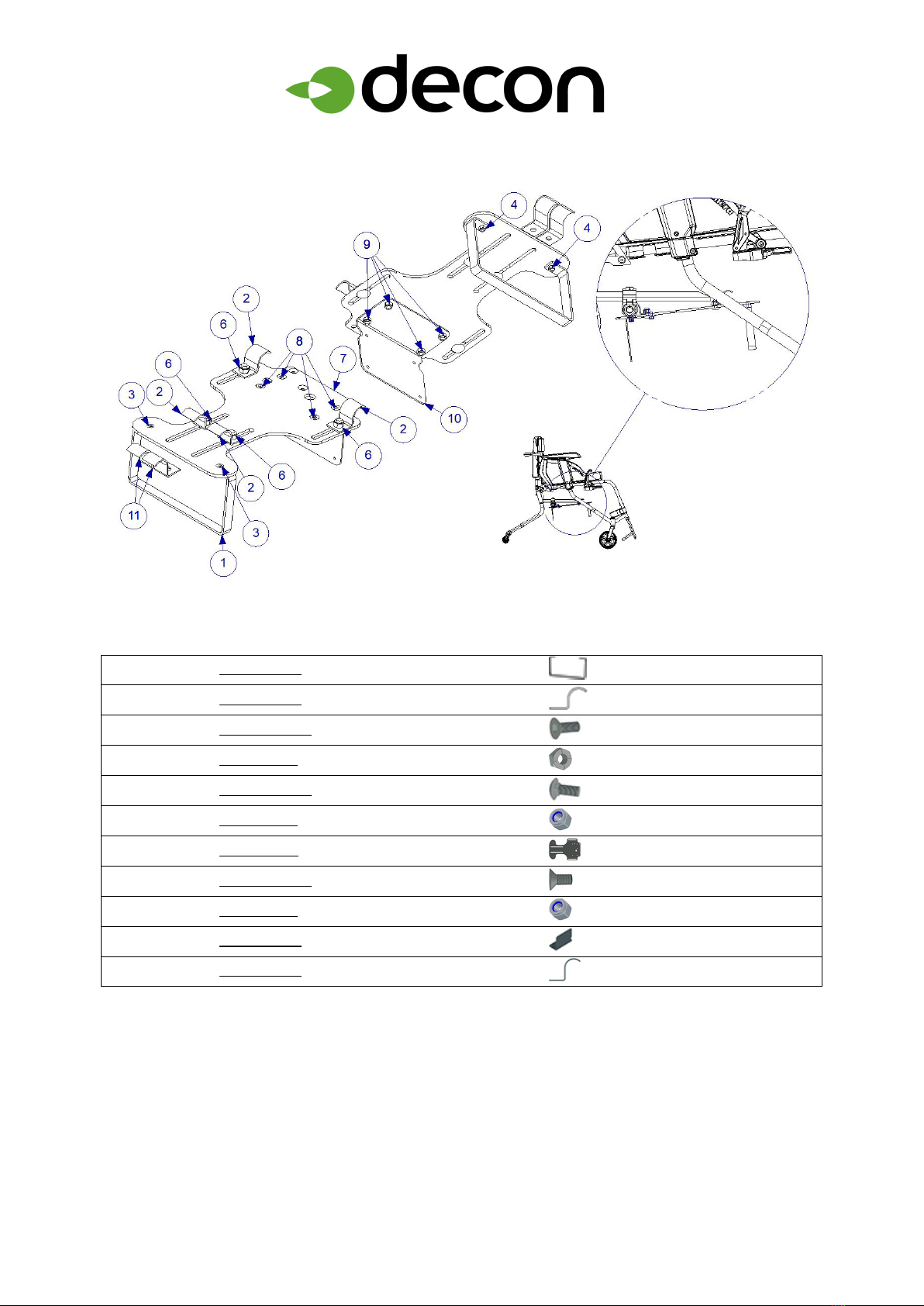

MEM5014
1 MEM5002 1
2 MEM5003 4
3 XSFM5X12 2
4 XSM5ML 2
5 XSSM8X16 4
6 XSM8ML 4
7 MED5001 1
8 XSFM6X12 4
9 XSM6ML 4
10 MEM5011 1
11 MEM5004 2
Note! Bambino is not included.
2023-11-21
Page: 5

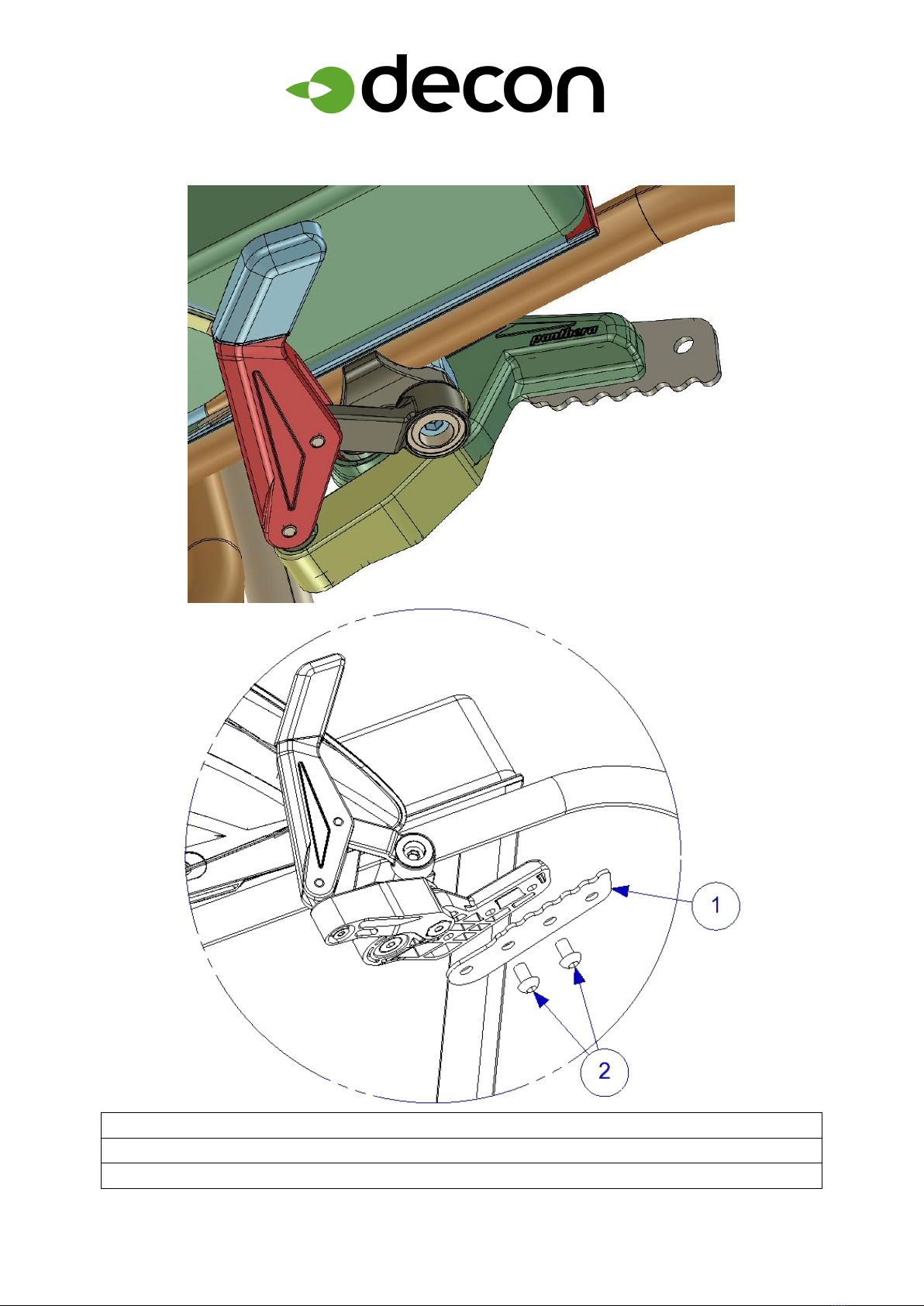

Assemble instructions for S3/ U3 Brake Blades
Item No. Part Number Qty Description
1 300200 1 Brake blade
2 XSM6X10 2 Screw Round M6 x 10
2023-11-21
Page: 6

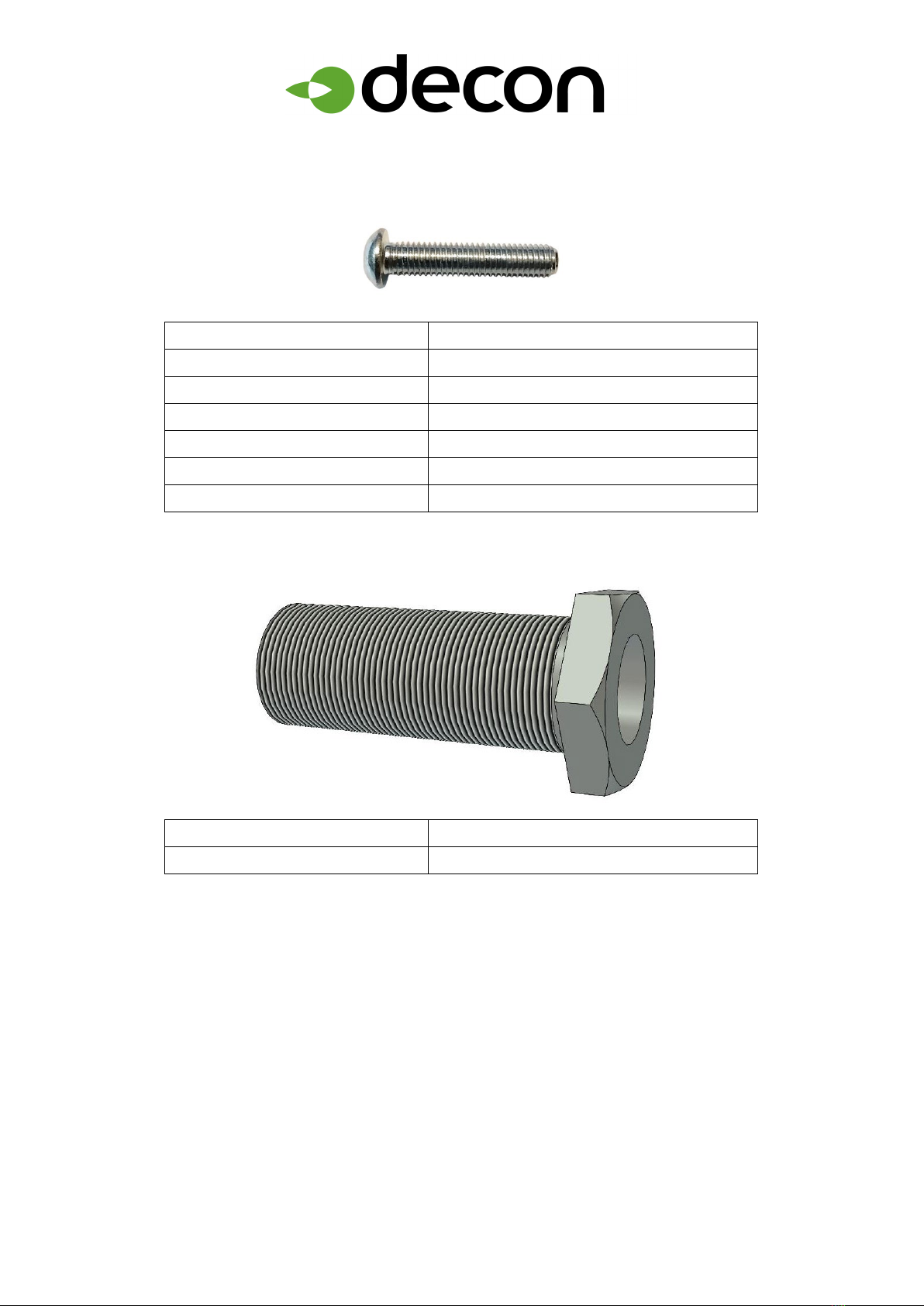

M3
1,2 Nm
M4
3 Nm
M5
6 Nm
M6
10 Nm
M8
25 Nm
M10
50 Nm
M12
85 Nm
M16x1
30 Nm
M18x1
40 Nm
