Decon wheel OlympicHopper Manual de usuario

2021-07-12

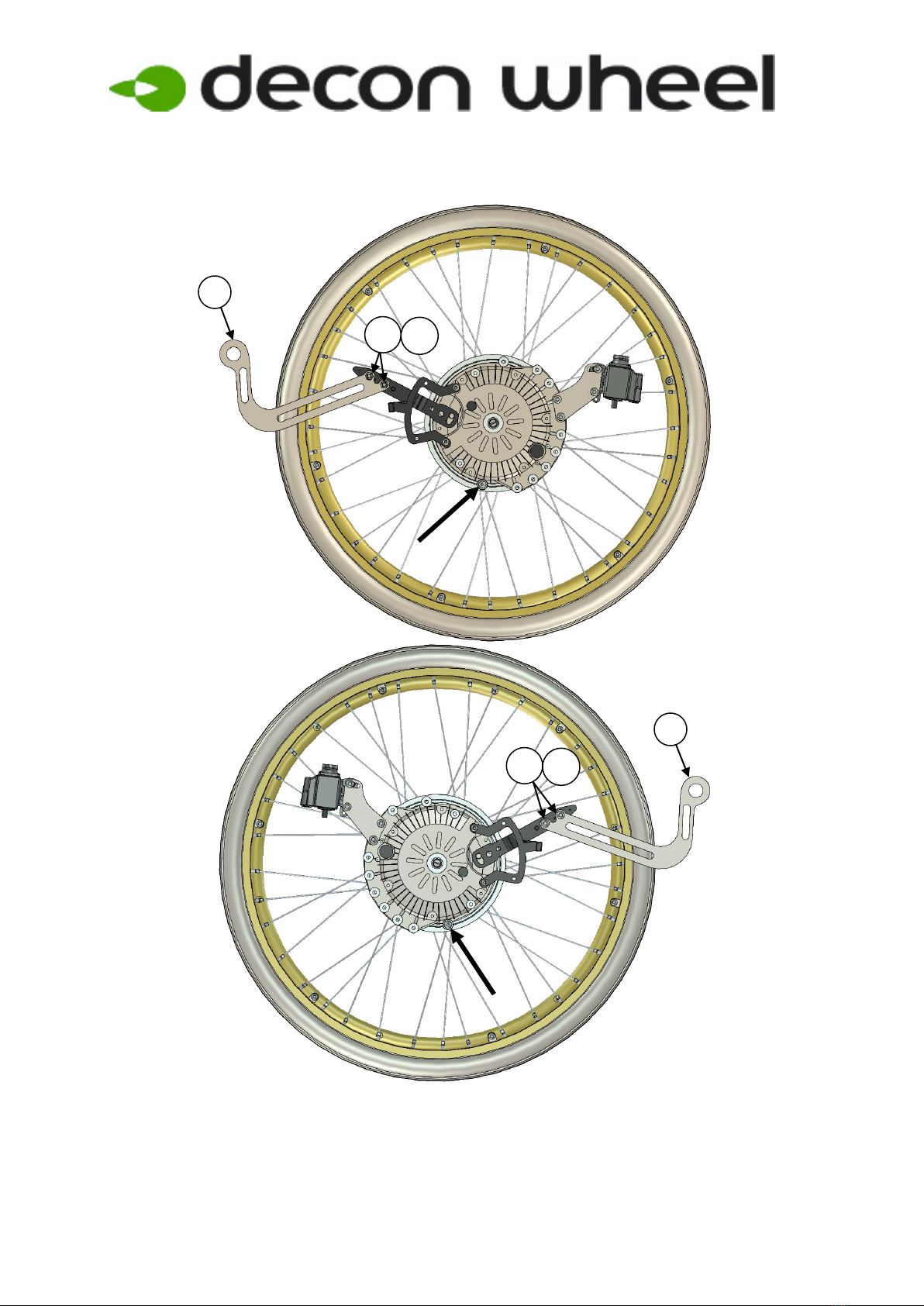

Assembly instructions for OlympicHopper

MED3122

1. Remove wheels on both sides.

2. Check the correct placement for the stop pin, and that the anti-tip devices are removed

and replace handle with MED4010.

2021-07-12

3. Assembly the plate (right side) according to picture.

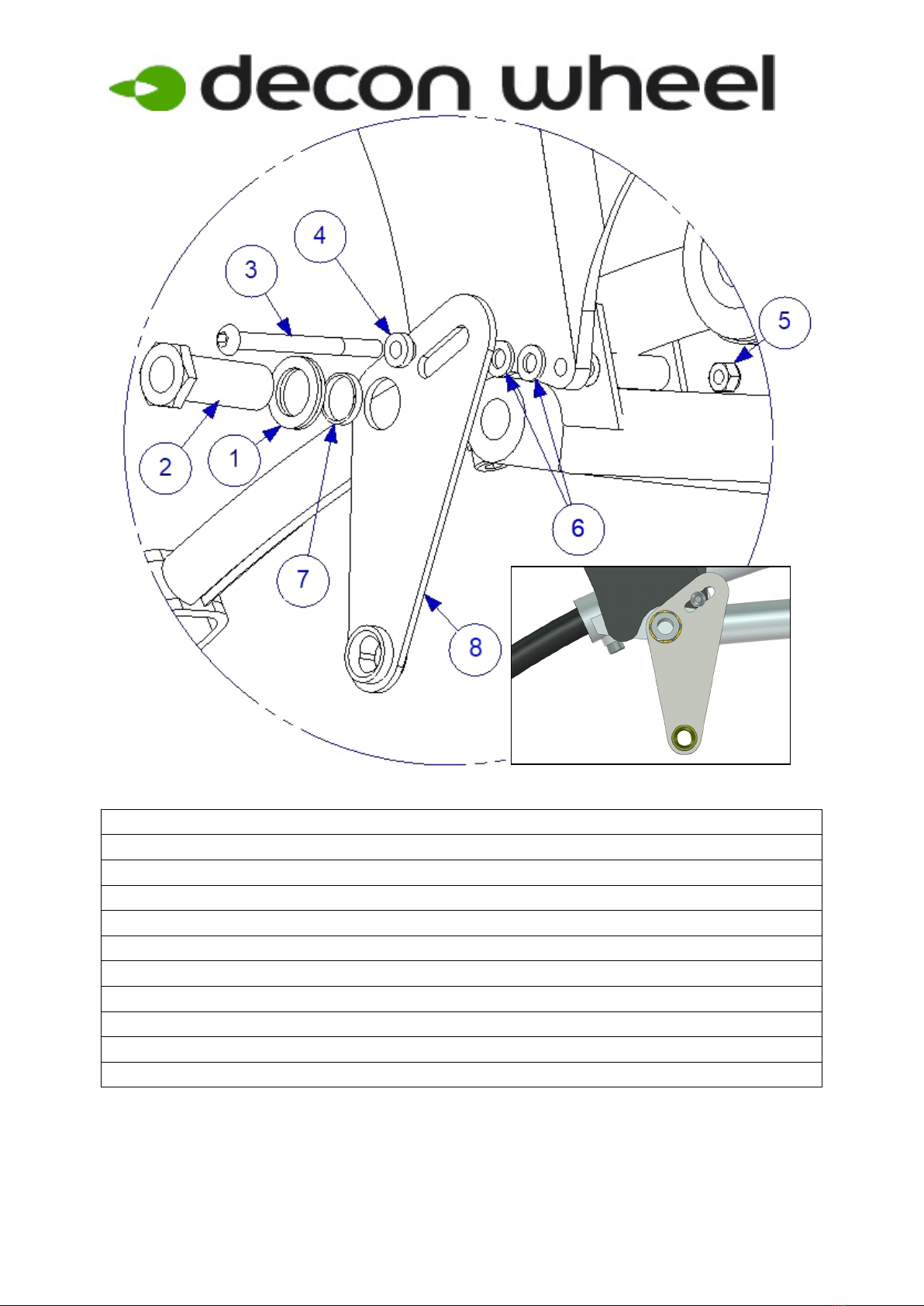

4. Parts pair mounting set:

Item No. Part Number Qty Description

1 405239 1 Nordlock Washer M16

2 HW069 1 Sleeve M16x1

3 XSM6X70 1 Screw Round M6 x 70

4 100 400 020 1 Spacer

5 XSM6ML 3 Nut Self-Locking M6

6 XSM6BR 2 Washer Plain M6

7 100 400 017 1 Spacer

8 MED1684 1 Bracket

9 MED4010 1 Handle

10 XSM6X12 1 Screw M6 x 12

5. Adjust the parking brakes.

6. Assemble the under placed battery bag.

2021-07-12

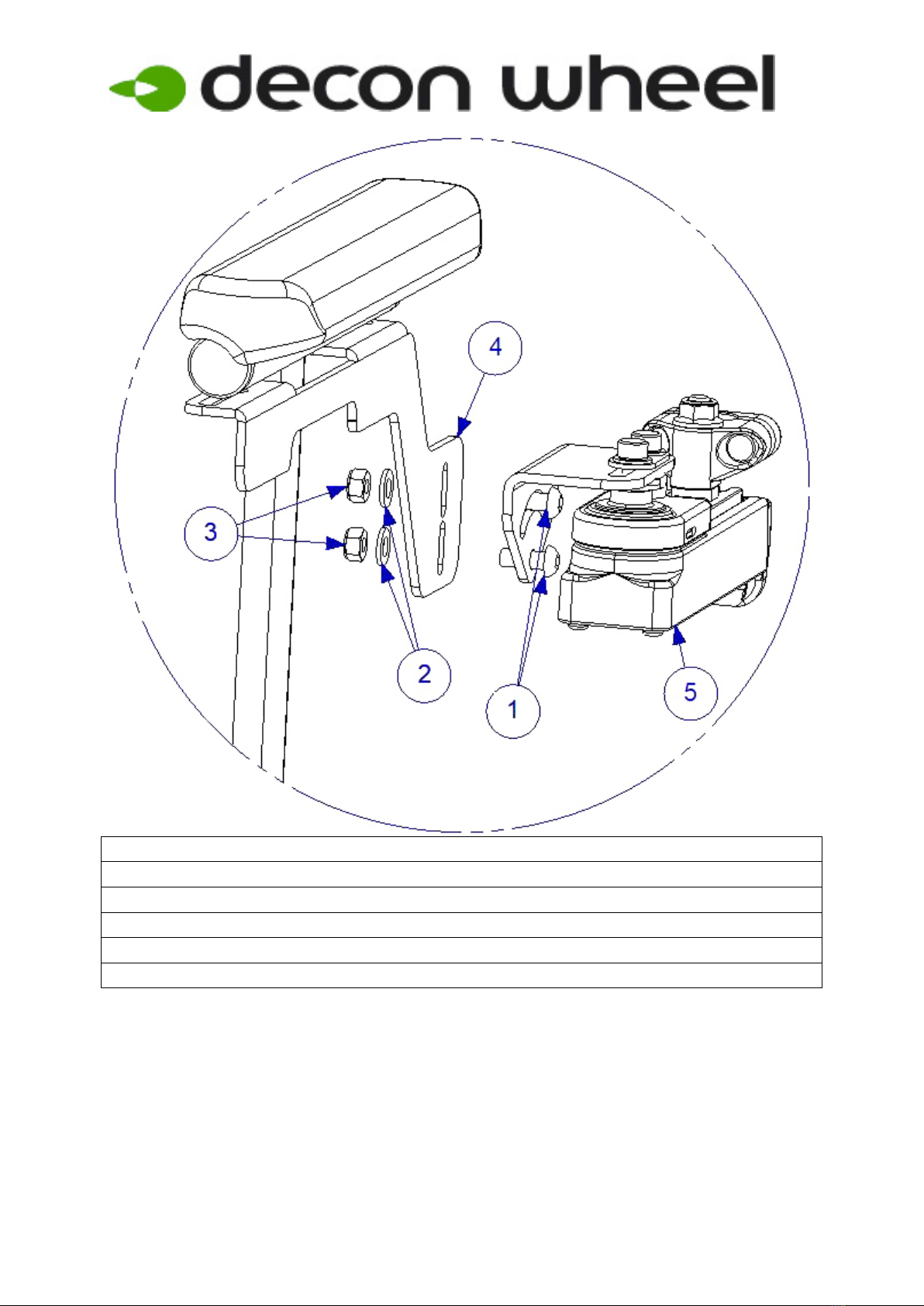

Assembly of joystick on right side

Item No. Part Number Qty Description

1 X0F-48160-D00 1 Bracket with SwingAway

2 XSM6X16 2 Screw Round M6 x 16

3 XSM6BR 2 Plain Washer M6

4 XSM6ML 2 Lock Nut M6

5 MED1500 1 Bracket Right side

Note! For left side use MED1300 instead of MED1500

2021-07-12

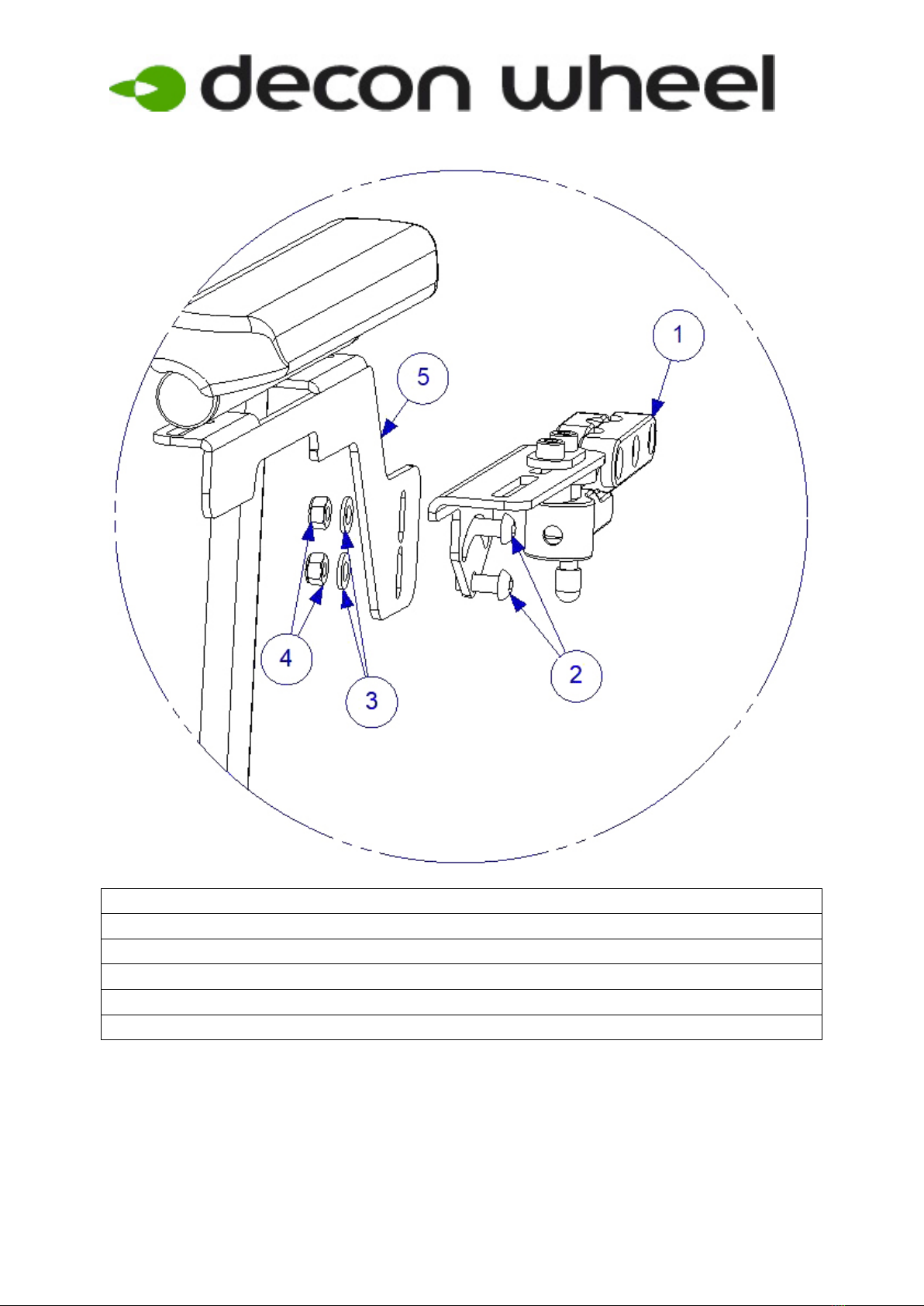

Item No. Part Number Qty Description

1 XSM6X16 2 Screw - Round - M6 x 16

2 XSM6BR 2 Plain Washer M6

3 XSM6ML 2 Locknut M6

4 MED1500 1 Bracket

5 X0F-48160-D00 1 Parallel Bracket

Note! For left side use MED1300 instead of MED1500

2021-07-12

MED1682

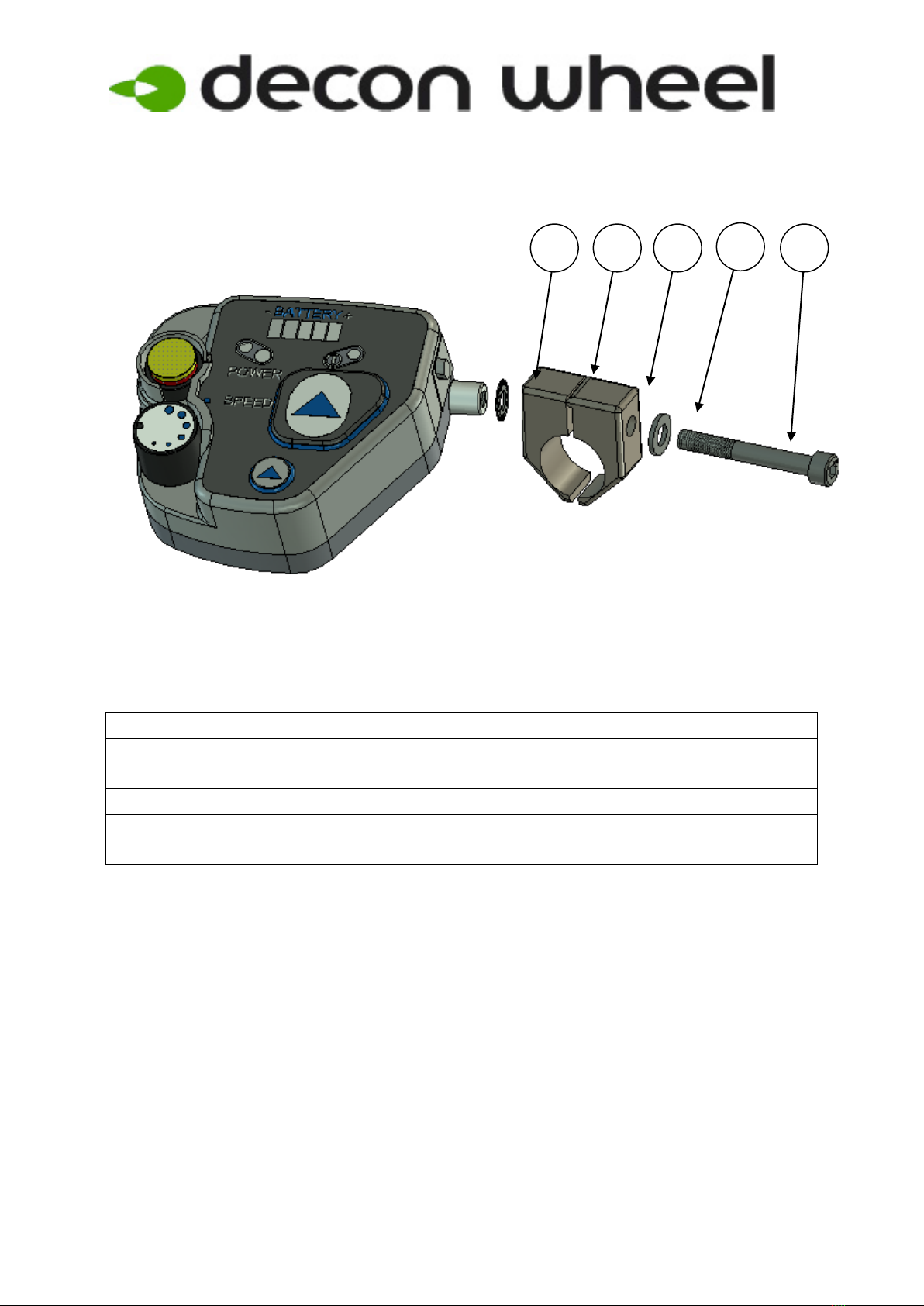

Alternate attendant control (Only on Right side)

7. For the attendant control unit, you need these parts.

Item number. Part Number Qty Description

1 XSM6TG 1 Serrated washer

2 XOD2612K-00 1 Clamp with hole

3 XOD2612E-00 1 Clamp with hole

4 XSM6BR 1 Plain washer 6,4

5 XSM6X50 1 Screw M6x50

2021-07-12

Åtdragningsmoment / Tightening torque

Metriska grovgängor, stål.

Metric coarse threads, steel.

Gänga / Thread

Åtdragningsmoment / Tightening

torque

1,2 Nm

3 Nm

6 Nm

10 Nm

25 Nm

M10

50 Nm

M12

85 Nm

Navhylsor.

Sleeves.

Gänga / Thread

Åtdragningsmoment / Tightening

torque

M16x1

30 Nm

M18x1

40 Nm
