Decon wheel Helium Manual de usuario

2021-12-22

Assembly instructions for Helium, Nitrum (Not Pro rear axle)

MED3348

For Std rear axle

1. Remove wheels on both sides.

2. Remove the sleeve buy loosen the screw 1 and pull out the sleeve 2.

3. Check the correct placement for the stop pin and check that MED1510 is mounted.

MED1510

Only STD rear axle.

Not PRO rear axle or

short COG rear axle.

2021-12-22

4. Assembly the plate (right side) according to picture.

Parts pair mountingset:

Item No. Part Number Qty Description

1 HW087 1 Wheel Hub

2 MED2000 1 Bracket

3 XSM8X16 1 Screw Round - M8 x 16

4 XSTM6X12 1 Stop Screw - M6 x 12

5 MED1510 1 Handle

5. First you take stop screw 7 and add Loctite onto the screw. Place the screw in the Hub

sleever 1, only aprox. 1-1,5 mm will be left of the head. Now you can try it in the rear

axle tub, adjust the stop screw if hub sleever is not fit in the tube or if the hub sleever

is turning.

Only STD rear axle.

Not PRO rear axle or

short COG rear axle.

2021-12-22

6. Adjust the gap to 2-3 mm for the rear axle according to the picture above. When you

have the right gap tighten the rear axle screw or screws 1 on both sides, when the hub

sleeve is so far in as possible. Now you can assemble the rest of the parts and

remember to use Loctite on all screws.



Only STD rear axle.

Not PRO rear axle or

short COG rear axle.

2021-12-22

For Short COG rear axle

1. Remove wheels on both sides.

2. Remove the sleeve buy loosen the screw 1 and pull out the sleeve 2.

3. Kontrollera att stopp pinnen sitter enligt bilder ovan.

Only short COG rear axle.

Not PRO rear axle or STD

rear axle.

2021-12-22

4. Montera nu fästet se bilderna ovan som visar montering av fästet på höger sida.

För montering på en sida, så skall följande ingå.

Item No. Part Number Qty Description

1 HW087 1 Sleeve

2 MED2000 1 Bracket

3 XSM8X16 1 Screw Rounded M8 x 16

4 XSTM6X12 1 Stop Screw M6 x 12

Only short COG rear axle.

Not PRO rear axle or STD

rear axle.

2021-12-22

MED1674

Item No. Part Number Qty Description

1 XOD-2612E-00 2 Clamp

2 XA2-2612K-00 2 Clamp with thread

3 XSM6X35 2 Screw Round M6 x 35

4 X0C-48160-D0 1 Swing Away Bracket

2021-12-22

MED1675

Item No. Part Number Qty Description

1 XOD-2612E-00 2 Clamp

2 XA2-2612K-00 2 Clamp with thread

3 XSM6X30 2 Screw Round M6 x 30

4 MED1320 1 Bracket

5 X0F-48160-D00 1 Parallel Bracket

2021-12-22

MED1676

Item No. Part Number Qty Description

1 XSM6X16 1 Screw - Round - M6 x 16

2 XSM6ML 2 Locknut M6

3 XSM6X12 1 Screw - Round - M6 x 12

4 XSM6BR 1 Plain Washer M6

5 MED1500 Rev6 1 Bracket

6 X0C-48160-D0 1 Swing Away Bracket

2021-12-22

MED1677

Item No. Part Number Qty Description

1 XSM6X16 1 Screw Round M6 x 16

2 XSM6ML 2 Locknut M6

3 XSM6X12 1 Screw Round M6 x 12

4 XSM6BR 1 Plain Washer M6

5 MED1500 Rev6 1 Bracket

6 X0F-48160-D00 1 Parallel Bracket

2021-12-22

Brake adjustment

Item No. Part Number Qty Description

1 XSM6X70 2 Screw Round M6 x 70

2 XSM6ML 2 Locknut M6

3 100 400 044 2 Spacer

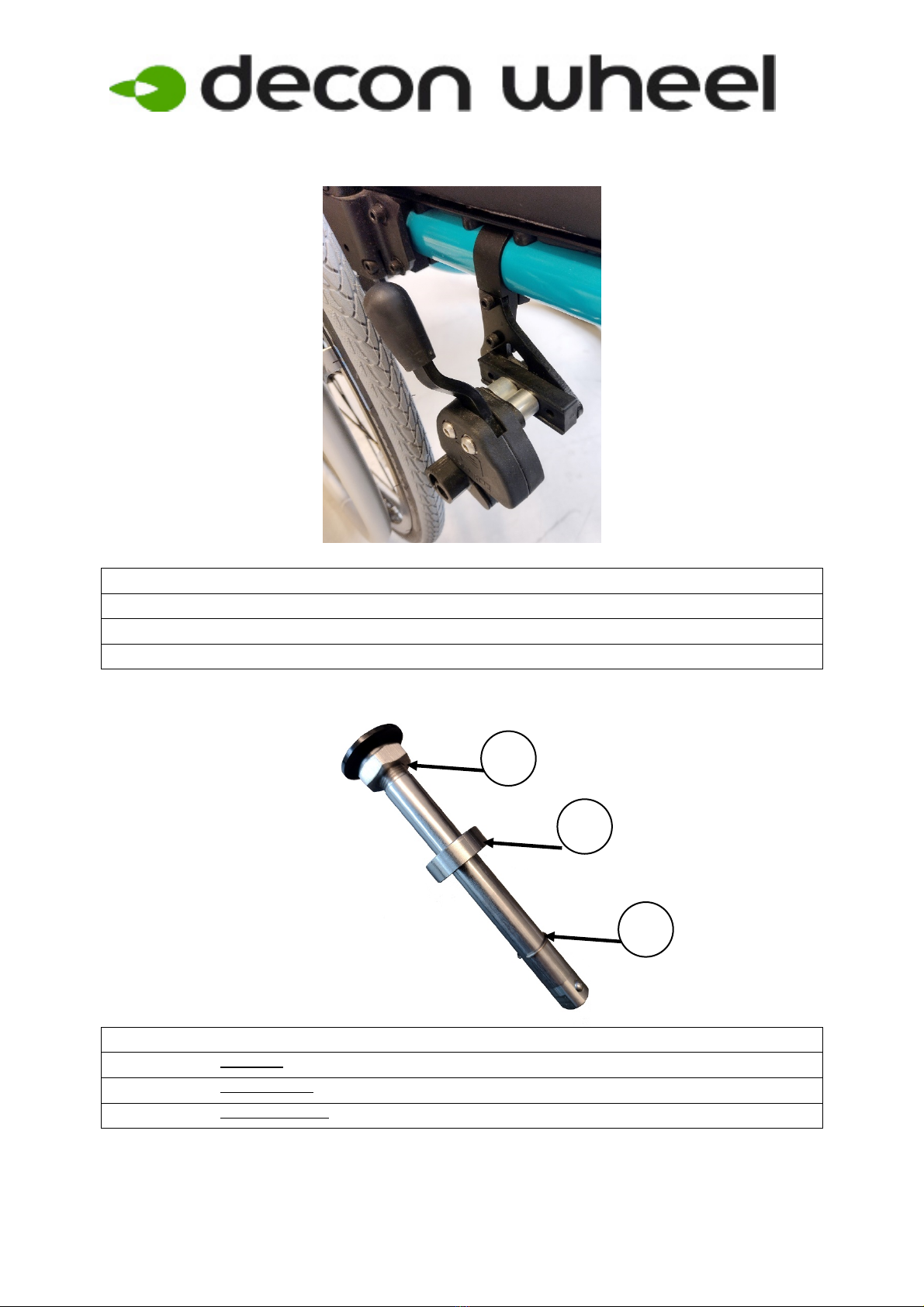

QR-axle set for standard wheels (Not Included)

Item No. Part Number Qty Description

1 QR1272 1 QR axle

2 100 400 113 1 Spacer

3 93440-120520 1 Circlip
