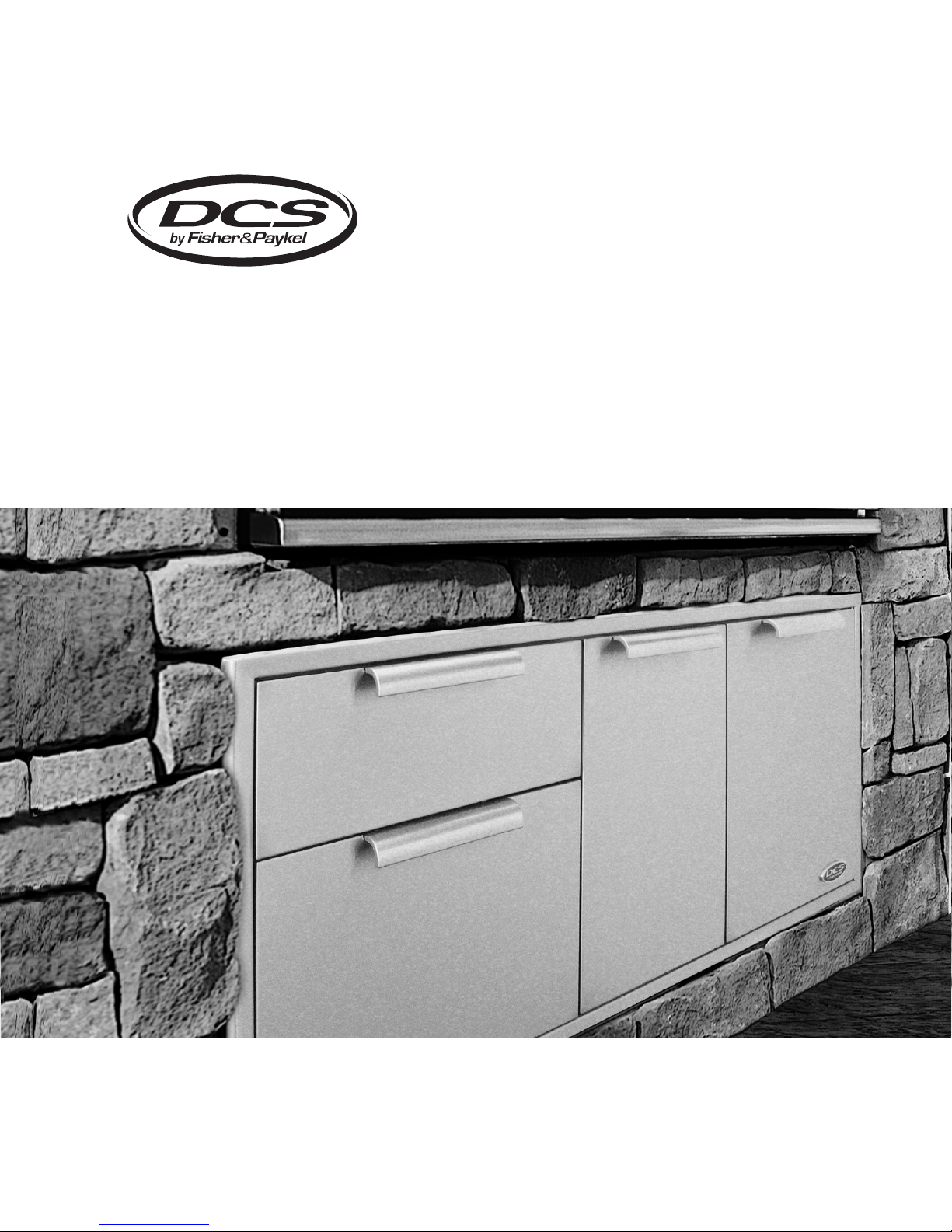

DCS ADR24 Manual de usuario

THE PROFESSIONAL ACCESS DRAWERS

Installation Guide

MODELS:

ADR48 ADR30

ADR36 ADR24

Thank you for selecting these DCS by Fisher & Paykel Professional Access Drawers. Because of this product’s

unique features we have developed this Installation Guide. It contains valuable information on how to properly

install and maintain your new Professional Access Drawers for years of safe and enjoyable use.

To help serve you better, please fill out and submit your Product Registration by visiting our website at

www.dcsappliances.com and selecting “Customer Care” on the home page and then select “Product

Registration”. In addition, keep this guide handy, as it will help answer questions that may arise as you use your

new Access Drawers.

For your convenience, product questions can be answered by a DCS by Fisher & Paykel Customer Care Represen-

tative by phone at 1-888-936-7872, or email: customer[email protected].

FOR YOUR SAFETY

.Do not allow children or pets to play in or around the Access Drawers.

.Clean the Access Drawers regularly using a mild dish washing liquid and

water.

.To maintain the exterior appearance, apply a stainless steel polish to the

outside surfaces on a regular basis.

.Sanitize the Access Drawers surfaces each season as necessary.

.To prevent the formation of mold or mildew, do not store cloth napkins

or tablecloths in the Access Drawers for long periods.

.Cooking utensils that are stored in the Access Drawers should be stored

in sealable plastic bags and/or washed each time before re-use.

.Topreventpersonal injuryor damage to the drawers, do not overload

them. The maximum rating per drawer is 75 pounds.

AMESSAGE TO OUR CUSTOMERS

WARNING

.Do Not store or use gasoline or other flammable vapors and liquids inside or in the vicinity of this or any other

appliance.

An LP cylinder not connected for use shall not be stored inside or in the vicinity of this unit.

•Closing drawers may cause injury to

your hands or fingers.

• Always close or open drawers using

their handles.

• Be sure to keep hands away from

drawer edges when opening or

closing drawers.

WARNING

NOTE: Please write the Model, Code, and Serial Numbers on this page for references (located on the inside, top

right of the back wall. See Fig. 02.)

MODEL NUMBER CODE SERIAL NUMBER

NOTE: Inspect the product to verify that there is no shipping damage. If any damage is detected, call the shipper

and initiateadamage claim. DCS by Fisher & Paykel is not responsible for shipping damage.

DO NOT discard any packing material (box, pallet, straps) until the unit has been inspected.

TABLE OF CONTENTS

SAFETY PRACTICES AND PRECAUTIONS

1. Begin by insuring proper installation and servicing.

2. Follow the installation instructions in this manual.

3. Toextend the service life of your product, be sure to follow the use and care guidelines in this manual.

WARNING:

Do not store items of interest to children above or on the inside of any appliance. Children could be seriously injured

if they should climb ontoor into the appliance to reach these items.

SAFETY PRACTICES & PRECAUTIONS 2

MODEL IDENTIFICATION & DIMENSIONS 3

SHIPPING INSPECTION 3

INSTALLATION

Make Cutout and Installing Support Structure 4

Removing Drawers 5

Slide in Access Drawers and Mount to Support Structure 5

Re-installing Drawers 6-7

CARE & MAINTENANCE 8

WARRANTY 9-10

MODEL IDENTIFICATION & DIMENSIONS

SHIPPING INSPECTION

Fig. 1

Fig. 2

1. Inspect the Access Drawers to verify that there is no

shipping damage.

2. Ifany damage is detected, call the shipper and initiate

adamage claim. DCS by Fisher & Paykel is not

responsible for shipping damage.

NOTE: Donot discard any packing material (box, pallet,

straps) until the unit has been inspected.

■Operate the drawers to be sure they glide smoothly.

■Examine the drawer fronts tobe sure there are no

dents or scratches.

DIMENSIONS

MODEL D W H F

ADR48 24-1/4” 48” 22” 1-1/2”

ADR36 24-1/4” 36” 22” 1-1/2”

ADR30 24-1/4” 30” 22” 1-1/2”

ADR24 24-1/4” 24” 22” 1-1/2”

Fig. 1a

model and serial

number tag

INSTALLATION

MAKE CUTOUT AND INSTALL SUPPORT STRUCTURE

1. Make a cut-out in your cabinet or island with the following dimensions (Fig. 3):

2. Place 2 X 4s to provide support for the Access Drawers structure in the locations indicated in the figure below

(Fig. 4).

3. Board lengths are provided in the table below (Fig. 5).

Fig. 5

90º

Vent*

Optimal support

locations

Fig. 4

8-3/4” 8-3/4”

CUTOUT DIMENSIONS

MODEL A

(+0,-1/8)

(+1/8,-0) C

ADR48 46” 20”

24-1/2” min.

(all models)

ADR36 34” 20”

ADR30 28” 20”

ADR24 22” 20”

Note:

The cutout of each corner should be 90º for the Access Drawers to fit properly.

SUPPORTBOARD DIMENSIONS

MODEL A B C

48” 44” 1-1/2” 3-1/2”* min.

36” 32” 1-1/2” 3-1/2”* min.

30” 26” 1-1/2” 3-1/2”* min.

24” 20” 1-1/2” 3-1/2”* min.

Toensure proper drawer operation, be sure your

supportboards areflat&level.

* Island installation to use minimum of 3 vents

providing 10 sq. in. per vent (typical).

Optimal support locations.

*Dependent on application.

Fig. 6

4. When installing your support boards,

be sure they are level.

5. Check to be certain that the top

edges of your boards are level with

the bottom edge of the cut-out

(Fig. 6).

For proper support &

drawer operation, insure

that support boards are

level front to back & side

to side.

Support Board (typical) Support Boards (typical)

Front View (typical) End View (typical)

Fig. 3

INSTALLATION

Fig. 7

REMOVING DRAWERS

1. Once the unit has been inspected, remove the left drawers by pulling them out until their slider latch is visible.

Carefully push the latch down on the left side while pulling up on the right side and pull the drawers completely

out of the frame (Fig. 7).

2. To remove the LP tank drawer on the right, pull the drawer out and lift the end by the handle to disengage the

rollers (Fig. 8).

3. To prevent damage to surfaces, place the drawers on a stable surface on a protective towel or tablecloth.

SLIDE IN FRAME AND MOUNT TO SUPPORT STRUCTURE

1. With the help of an assistant, lift the unit off of the pallet and slide it into the cabinet cutout. Adjust for level and

fit.

2Locate mounting holes on the frame (Fig. 9 and views). Secure the unit using screws suited for the type of

cabinet material.

NOTE: Depending on the wall thickness and location of mounting holes, an additional board may be required to properly

receive the screws.

Fig. 9

Slider latch

Fig. 8

Lift

3/16"

TO 1/2"

VIEW SHOWING HOLES ON

LEFT AND RIGHT SIDES

AVAILABLEFOR MOUNTING

3/4"

VIEW SHOWING HOLES ON TOP AND BOTTOM

OF FRAMEAVAILABLE FOR ADDITIONAL SUPPORT

MOUNTING SCREWS

(not provided)

LOCATIONS

INSTALLATION

Fig. 10 Fig. 11

Fig. 12

3. While holding the drawer up by the handle, pull the glides from the drawer cavity out over the drawer glide until

they click (Fig. 12).

4. As you push the drawers in, you will encounter moderate resistance. Continue to push the drawer all the way in

to completethe engagement process. The drawer will now glide smoothly in & out with light effort (Fig. 13).

Drawer Cavity Glide

Drawer Glide properly Engaged.

RE-INSTALLING DRAWERS

1. Re-install the drawers by extending their guides as shown in fig. 10.

2. While holding the drawer parallel to the cabinet, carefully align & engage the ends of the glides. Slide the drawer

about an inch so that the glides are supporting the back of the drawer (Fig. 11).

Fig. 13

INSTALLATION

7. When connecting the LP tank to the gas line be certain that the gas pipe is routed through the recess provided

on the top of the rightside (Fig.15). Do not route the gas pipe through the opening in the back of the Access

Drawers. Once gas connections are made, test for gas leaks.

8. On models so equipped,install the two(2) racks provided intothe opening bysliding them onto the rollers on

the sidewalls of the center cavity(Fig. 16).

Fig. 14

Tank Receptacle

6. Your LP tank will be installed in the recess provided in the bottom of the right compartment (Fig. 14).

Fig. 15 Fig.16

Drain drawer

Rack & Rack Cover

Gas Pipe Recess

All parts of the Professional Access Drawers can be cleaned with hot soapy water, rinsed, dried and buffed to a shine

with a soft, heavy cloth. Always try this first, as it is the mildest cleaning procedure.

1. Use the mildest cleaning procedure first. Some brands of cleaners of the same type are harsher than others, read

their directions. A scent or a propellant can make a difference in the product, read the ingredients. Try on a small

area first.

2. To avoid marring the surface always rub metal finishes in the direction of the stainless steel polish lines (grain). The

cleaner will be more effective when used in the direction of the polish lines.

3. Use only clean sponges, soft cloths, paper towels, plastic non-metal soap pads for cleaning or scouring as

recommended in this section. (Use only soap pads with soap still in them. An empty pad can scratch.)

4. Be sure to rinse all parts thoroughly and to wipe dry to avoid water marks.

BRAND NAME CLEANERS

In this section on cleaning, the use of name brands is intended only to indicate a type of cleaner. This does not

constitute an endorsement. The omission of any name brand cleaner does not imply its adequacy or inadequacy.

Many products are regional in distribution and can be found in local markets and department stores.

MAINTENANCE

After cleaning, use a stainless steel polish, such as Stainless Steel

Magic® applied to the drawer and handle surfaces.

To maintain the smooth operation of the drawers, spray the

bearing areas with silicone spray lubricant annually .

(Fig. 17).

FREEZER PACK (OPTIONAL, KIT #70696A)

Proper Handling:

1. Placefreezer pack in freezer,layit flat.

2. Freeze overnight or a minimum of 8 hours.

3. Place frozen Freezer Pack in the steel tray on the second shelf, in

appropriate cavity of Access Drawer (Fig. 18).

The Freezer Pack is dishwasher safe. Or wash with warm soapy

water, rinse and air dry. Store flat in dry storage or in freezer.

Fig. 17

Lubrication points

(Use silicone spray

annually)

CARE & MAINTENANCE

Freezer Pak (optional)

Kit # 70696A

Fig.18
