MagellanTM 9800i

Scanner and Scanner-Scale with Imaging Technology

Quick Reference Guide

Datalogic ADC, Inc.

959 Terry Street

Eugene, OR 97402

USA

Telephone: (541) 683-5700

Fax: (541) 345-7140

therein may be reproduced or transmitted in any form or by any means without prior written permission of Datalogic

ADC, Inc. or its subsidiaries or affiliates ("Datalogic" or “Datalogic ADC”). Owners of Datalogic products are hereby granted

a non-exclusive, revocable license to reproduce and transmit this documentation for the purchaser's own internal busi-

ness purposes. Purchaser shall not remove or alter any proprietary notices, including copyright notices, contained in this

documentation and shall ensure that all notices appear on any reproductions of the documentation.

Should future revisions of this manual be published, you can acquire printed versions by contacting your Datalogic repre-

sentative. Electronic versions may either be downloadable from the Datalogic website (www.datalogic.com) or provided

on appropriate media. If you visit our website and would like to make comments or suggestions about this or other Dat-

alogic publications, please let us know via the "Contact Datalogic" page.

Disclaimer

Datalogic has taken reasonable measures to provide information in this manual that is complete and accurate, however,

Datalogic reserves the right to change any specification at any time without prior notice.

Datalogic and the Datalogic logo are registered trademarks of Datalogic S.p.A. in many countries, including the U.S.A. and

the E.U. All other brand and product names may be trademarks of their respective owners.

Magellan is a registered trademark of Datalogic ADC, Inc. in many countries, including the U.S.A. and All-Weighs, First-

Strike, SmartSentry and SurroundScan are registered trademarks of Datalogic ADC, Inc. in the U.S.A. OmegaTek, Produce

Rail, Productivity Index Reporting, and ScaleSentry are all trademarks of Datalogic ADC, Inc.

Patents

See www.patents.datalogic.com for patent list.

This product is covered by one or more of the following patents:

See the Regulatory Addendum included with your product

for additional regulatory, safety and legal information.

Quick Reference Guide 1

Introduction

The MagellanTM 9800i is a multi-plane imaging bar code scanner with an optional

integrated scale, designed to serve in supermarket peripheral lanes. This manual

describes its basic operation. For more detailed information about setup, instal-

lation and programming, see the Product Reference Guide for this product. These

manuals are provided in Portable Document Format (PDF) for viewing and print-

ing from the website listed on the back cover of this manual. Additionally, printed

manuals can be ordered from your dealer/distributor.

Operation

CAUTION

If applicable, apply power to the EAS Controller box

before powering on the scanner.

2MagellanTM 9800i

Certification Label

At the time the local scale regulatory authority certifies the scanner/scale for use,

a certification label is affixed to the unit. Depending upon the size and shape of

the label, placement can be made in one of the locations shown in Figure 1.

Figure 1. Affixing the Scale Certification Label

5 6

1 Left end of scanner bonnet 4 Remote Display Post

2 Right end of scanner bonnet 5

Atop the Bonnet underneath the Platter

3 Back of Remote Display Head 6

Quick Reference Guide 3

Scanning Items

Slide or push items through the SurroundScanTM scan zone in a right-to-left or

left-to-right movement. The scanner is equally efficient at scanning items in

either direction. It is unnecessary to shift the position of the bar code, as the

scanner can “read” it from the bottom, top, left, right, front and back side of an

item, as long as it is fully within the scan zone.

Figure 2. Scan Zones

For best scanning results...

• Keep items in their natural orientation. Don’t favor any of the scan win-

dows.

• Push or slide items instead of lifting them. Avoid unnecessary hand and

wrist movements such as rotation, gripping or twisting, as this can cause

repetitive motion injuries. This helpful technique can also allay the possi-

bility of lifting thousands of pounds per day

1 Scan Zone for Main Scanner

2Optional Top Down Reader (TDR) Scan

Zone

3Slide items over the center of the hori-

zontal window for best scan coverage.

NOTE

If a POS terminal holds the scanner in a dis-

abled state, the scanner enters limited scan-

ning mode which allows reading of

programming labels but ‘chirps’ other labels.

4MagellanTM 9800i

Scan Motion

The SurroundScan™ scan pattern and advanced FirstStrike™ decoding software

ensures the scanner will read most hard-to-read codes quickly and without a

need to particularly reorient items.

It is important to verify that the platter has been installed flush with the counter-

top to enhance slide-through scanning (see Figure 1). If the platter is not flush

with the counter, contact the installer or your technical support team for assis-

tance.

Figure 3. Verify Flush Installation

Scanner Mounted Flush — Correct

Scanner Mounted

Above Flush — Incorrect

Scanner Mounted

Below Flush — Incorrect

Quick Reference Guide 5

Cleaning

Exterior surfaces and scan windows exposed to spills, smudges or debris accu-

mulation require periodic cleaning to assure best performance during scanning

and weighing operations. Use a clean, lint-free cloth or paper towel dampened

with a nonabrasive, mild, water-based window cleaner to wipe away stains,

smudges, fingerprints, spills, etc. from the scan window and exterior surfaces

(Figure 4a).

Figure 4. Cleaning the Scanner

Daily, clean the debris chutes between the platter and the outer housing

(Figure 4b). Most items can be cleared from the debris chutes by carefully run-

ning a thin, stiff object like a credit card along all sides of the weighing surface. If

necessary, remove the platter (Figure 4c) to clean the debris chutes and drip rail.

(Models vary)

CAUTION

DO NOT spray

cleaners directly

on the scanner!

CAUTION

DO NOT use abrasive cleaning agents or abrasive pads

to clean this product. Harsh chemicals, disinfectants,

and cleansers can cause damage which will adversely

affect scanning and weighing performance.

6MagellanTM 9800i

Weighing Items (Scale Models)

The unique platter design allows you to place items anywhere on its surface,

including leaning atop its vertical section, to be weighed accurately. In addition,

the Produce RailTM allows items to rest above the counter and other non-weigh-

ing surfaces. See Figure 5.

Once weighed items have been positioned, enter PLU (price Look-Up) data as

described in your POS system instructions. Item weight is displayed on the

Remote Display and/or the host display.

Figure 5. Weighing Items

Scale SentryTM Option

The optional ScaleSentry feature monitors items placed on the platter to detect

and indicate if they are overhanging non-weighing surfaces. If the system’s infra-

red (IR) beams sense items encroaching past the sides of the weigh platter, the

speaker will sound a unique tone and/or the ScaleSentry LED indicator will illumi-

nate to indicate a ScaleSentry error condition. A scale transaction cannot be com-

pleted until the item(s) are repositioned to rest fully on the platter (move them

towards the center), clearing the condition. Reference the PRG for more

ScaleSentry options and details.

Quick Reference Guide 7

Top Down Reader (TDR) Option

The scanner’s exclusive Top Down Reader (TDR) is an optional feature of the

scanner, and is available in two different heights in order to provide flexibility for

installations. The TDR can perform multiple functions:

• The TDR contributes significantly to the overall bar code read zone by

scanning items from a unique top-down angle.

• The eCommerce option allows customers to use the TDR to conveniently

scan coupons and other bar codes presented ...even those displayed on

their cell phone. Depending upon the way this feature is programmed

into the scanner, coupons are either simply presented to the customer-

facing E-commerce scanner as shown in Figure 6, or the sales associate

must push the E-commerce button to read a coupon as it is presented to

that screen.

• The TDR also has an optional ability to take pictures. The scanner must

be configured for TDR image capture and a microSD card must be

installed in the card slot provided for it. Position the photo subject within

the field of view of the downward-facing TDR imager, then use the Cam-

era button located on the Control Panel to take the picture. The scanner’s

speaker will sound a “shutter click” sound and/or the Camera indicator

LED will light to indicate image capture. Photos are stored on the

microSD card and automatically numbered from image000 to image999.

Figure 6. Scanning a Bar Code from a Cell Phone

Your

Coupon

8MagellanTM 9800i

Electronic Article Survellance (EAS) Deactivation Options

Deactivation of Sensormatic® or Checkpoint® EAS tags is an optional function.

The scanner must be expressly enabled to perform in either capacity.

Sensormatic Coupled Mode

When the scanner is configured to use Coupled EAS Deactivation Mode, deactiva-

tion of a given item happens automatically following its bar code being success-

fully read.

Sensormatic Decoupled Mode

When in Decoupled Mode, the sales associate must press the Manual EAS Deac-

tivation button in order to deactivate an item. In this mode, deactivation is inde-

pendent of the scanning function.

Controls and Indicators

The scanner features two prominent LED indicator bars on top of its vertical

“bonnet” (item #2 in Figure 7) as well as (optionally) another highly visible LED

indicator for indicating E-commerce reading activities atop the Top Down Reader

(if a TDR is present) which is item #1 in Figure 7.

As Figure 8 illustrates, two panels on either side of the vertical scan windows

contain control buttons and more LED indicators. Additionally, a configurable

speaker is used to sound scanning, weighing and EAS deactivation indications.

See the LED and Beeper Indications section for more details.

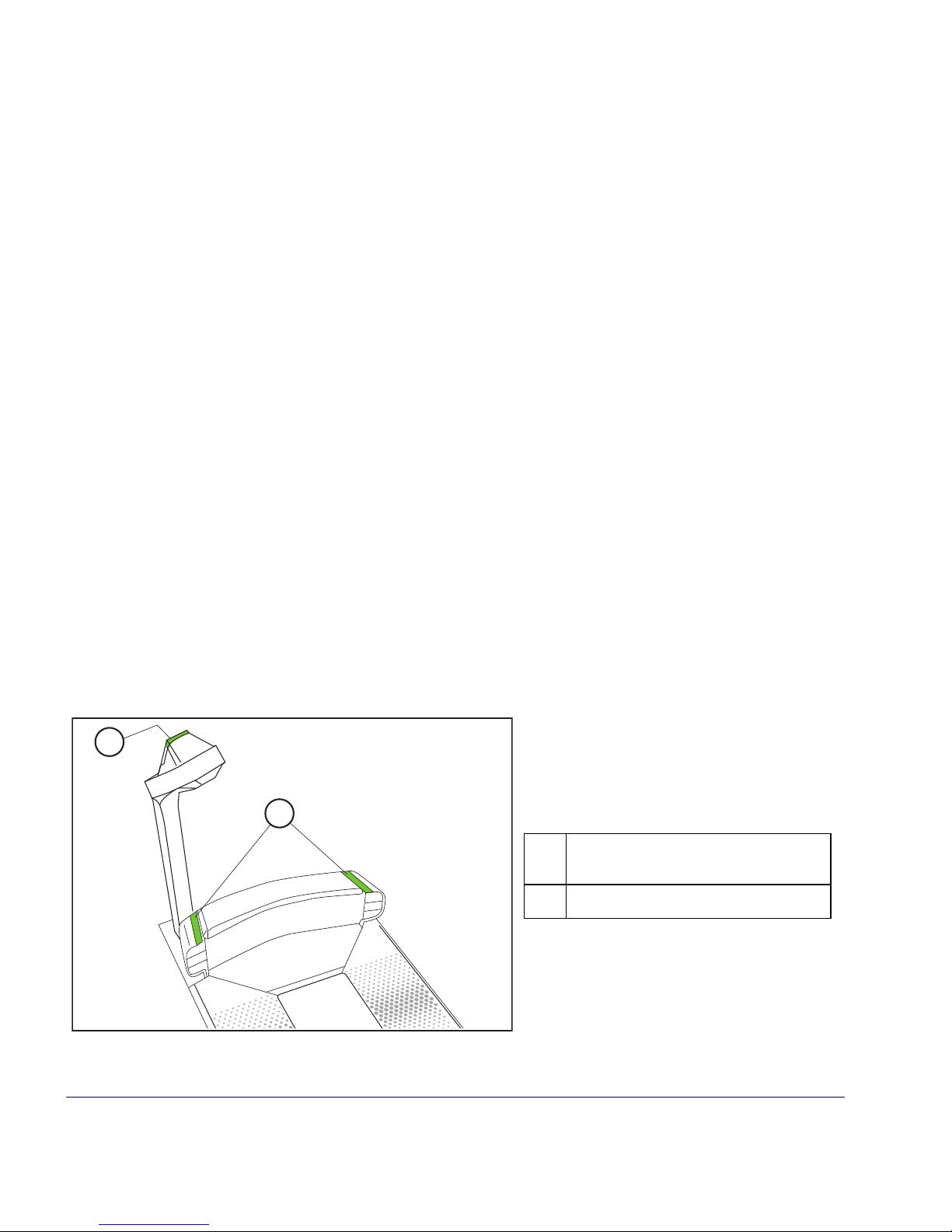

Figure 7. Top Side LED Indicators

1E-commerce LED Indicator located

on TDR (optional feature)

2LEDIndicator“Bars”
