Using the Charger

The 4-Station Charger can be used to charge from one to four Battery Packs simultaneously.

1. Plug the AC Adapter into the bottom of the charger, then plug the cable from the AC Adapter

into a power outlet that is appropriate to the charger’s power rating (this will vary in different

countries).

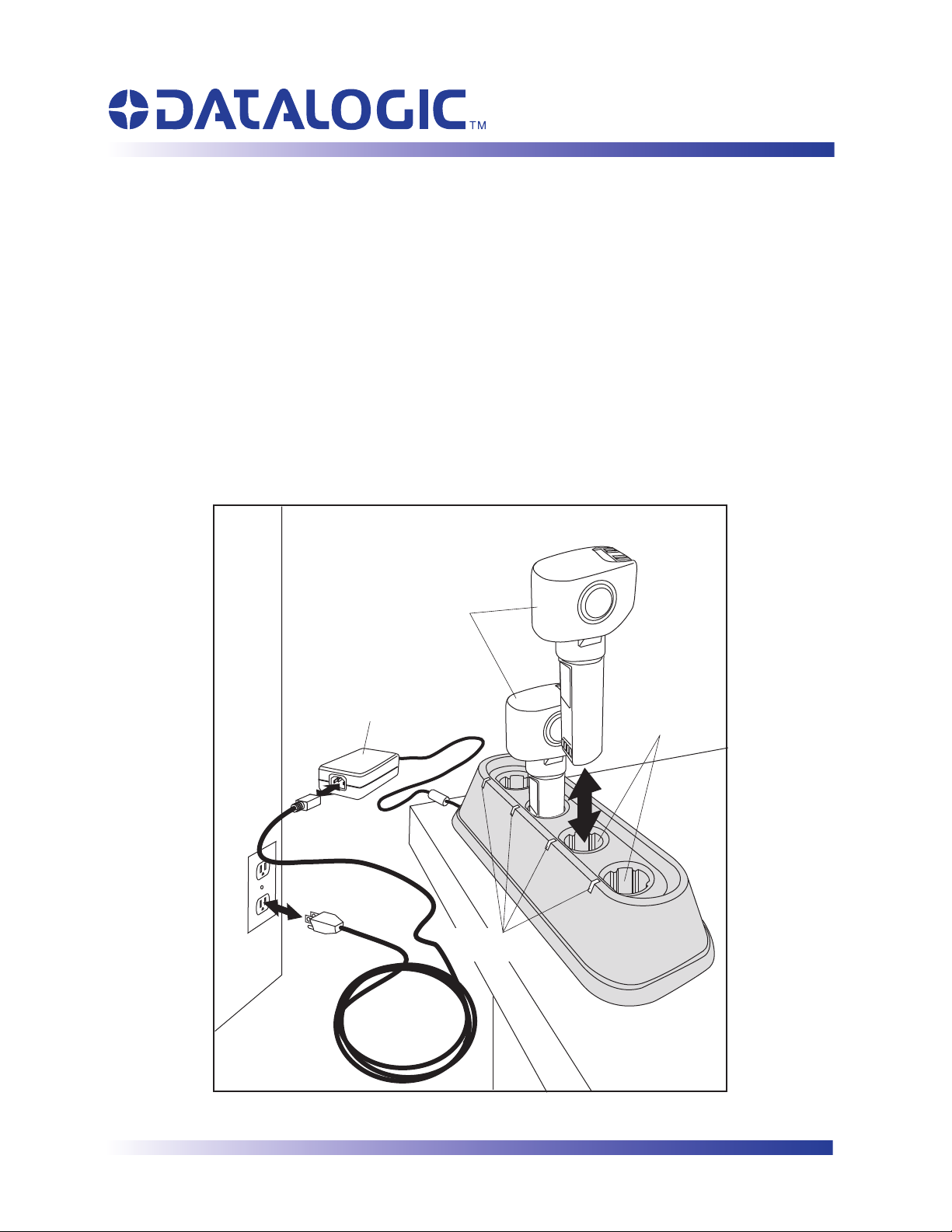

2. Insert the Battery Pack(s) into the ‘D’-shaped charging bays as shown below, making sure to

fully engage the contacts on each.

LEDs

Charging

Bays

Battery

Packs

AC Adapter

Instructions

4 Station Charger

PowerScan 7000BT

© 2006 - 2007 Datalogic Scanning, Inc. R44-2669 (Rev. X1) 3/07

3. Full charge should be achieved in less than four hours.

4. The LED associated with each charging bay in the Battery Pack indicates functions as follows:

5. A charging error is indicated when the amber LED flashes or remains steady amber when a Bat-

tery Pack has been inserted into the corresponding bay. This can mean...

• the Battery Pack is too cold or too hot — do not attempt to charge batteries that are not

between 0°C (30°F) to 50°C (122°F) in temperature. Placing such Battery Packs in the

charger can present a safety hazard and can curtail charging of other batteries present in the

unit.

• the Battery Pack is not fully seated with its contacts — remove and reseat as needed.

• damaged/worn contacts on either the Battery Pack or the charger — try an alternate charging

bay and/or known-good Battery Pack to troubleshoot the problem.

6. If there are no LED indications on the charger, check to see that the power supply is fully

plugged in, and that the power outlet is working and provides adequate power.

Charger LED Indications

FUNCTION LED INDICATION

No battery in the bay Amber on steady

Charge in progress Flashing green at 500ms on/500ms off

Charge complete Green on steady

Charging error Flashing amber at 500ms on/500ms off
