QUICK REFERENCE GUIDE

MAGELLAN™ 1500i

Omnidirectional Imaging Scanner

BSR idware GmbH

Jakob-Haringer-Str.3

A-5020 Salzburg

https://www.bsr.at

sales@bsr.at

Datalogic S.r.l.

Via S. Vitalino, 13

40012 Calderara di Reno — Italy

Tel. +39 051 3147011

Fax +39 051 3147205

tation may be reproduced, stored in or introduced into a retrieval system, or transmitted

in any form or by any means, or for any purpose, without the express written permission

of Datalogic S.p.A. and/or its affiliates.

Owners of Datalogic products are hereby granted a non-exclusive, revocable license to

reproduce and transmit this documentation for the purchaser's own internal business

purposes. Purchaser shall not remove or alter any proprietary notices, including copyright

notices, contained in this documentation and shall ensure that all notices appear on any

reproductions of the documentation.

Electronic versions of this document may be downloaded from the Datalogic website

(www.datalogic.com). If you visit our website and would like to make comments or sug-

gestions about this or other Datalogic publications, please let us know via the "Contact"

page.

Disclaimer

Datalogic has taken reasonable measures to provide information in this manual that is

complete and accurate, however, Datalogic shall not be liable for technical or editorial

errors or omissions contained herein, nor for incidental or consequential damages result-

ing from the use of this material. Datalogic reserves the right to change any specification

at any time without prior notice.

Trademarks

Datalogic and the Datalogic logo are registered trademarks of Datalogic S.p.A. in many

countries, including the U.S.A. and the E.U.

Patents

See www.patents.datalogic.com for patent list.

ORIGINAL VERSION

See the Regulatory Addendum included with your product

for additional regulatory, safety and legal information.

QUICK REFERENCE GUIDE

III

TABLE OF CONTENTS

Quick Reference ............................................................... 1

Features .......................................................................... 1

German GS Safety Certification ...............................................3

Installation ....................................................................... 3

Optional Stand/Riser..................................................................... 4

Removing the Stand/Bottom Cover ........................................4

Magnetic Base Mounting.............................................................. 4

How to Scan ..................................................................... 5

Handheld Scanning Mode............................................................. 5

Center Zone Qualification ............................................................. 6

Scanner Button ............................................................................. 6

Scanner Button Functions .......................................................6

LED and Beeper Indicators................................................ 8

Programming ................................................................. 10

Service Port Mode .................................................................10

Using Barcodes........................................................................... 10

Interface Selection ...................................................................... 11

Good Read Green Spot Duration................................................ 12

Cell Phone Mode ......................................................................... 13

Cell Mode Frequency .................................................................. 14

Troubleshooting.............................................................. 15

Error Codes ................................................................................. 16

Cleaning......................................................................... 17

Manufacturer Approved Cleaning Materials.............................. 18

Warranty ........................................................................ 19

MAGELLAN™ 1500I

NOTES

QUICK REFERENCE GUIDE

MAGELLAN™ 1500i

QUICK REFERENCE

This guide is provided to help get your scanner up and running quickly

and efficiently. For more details, including additional programming

information, reference the Product Reference Guide (PRG), which is

available from the Datalogic website.

FEATURES

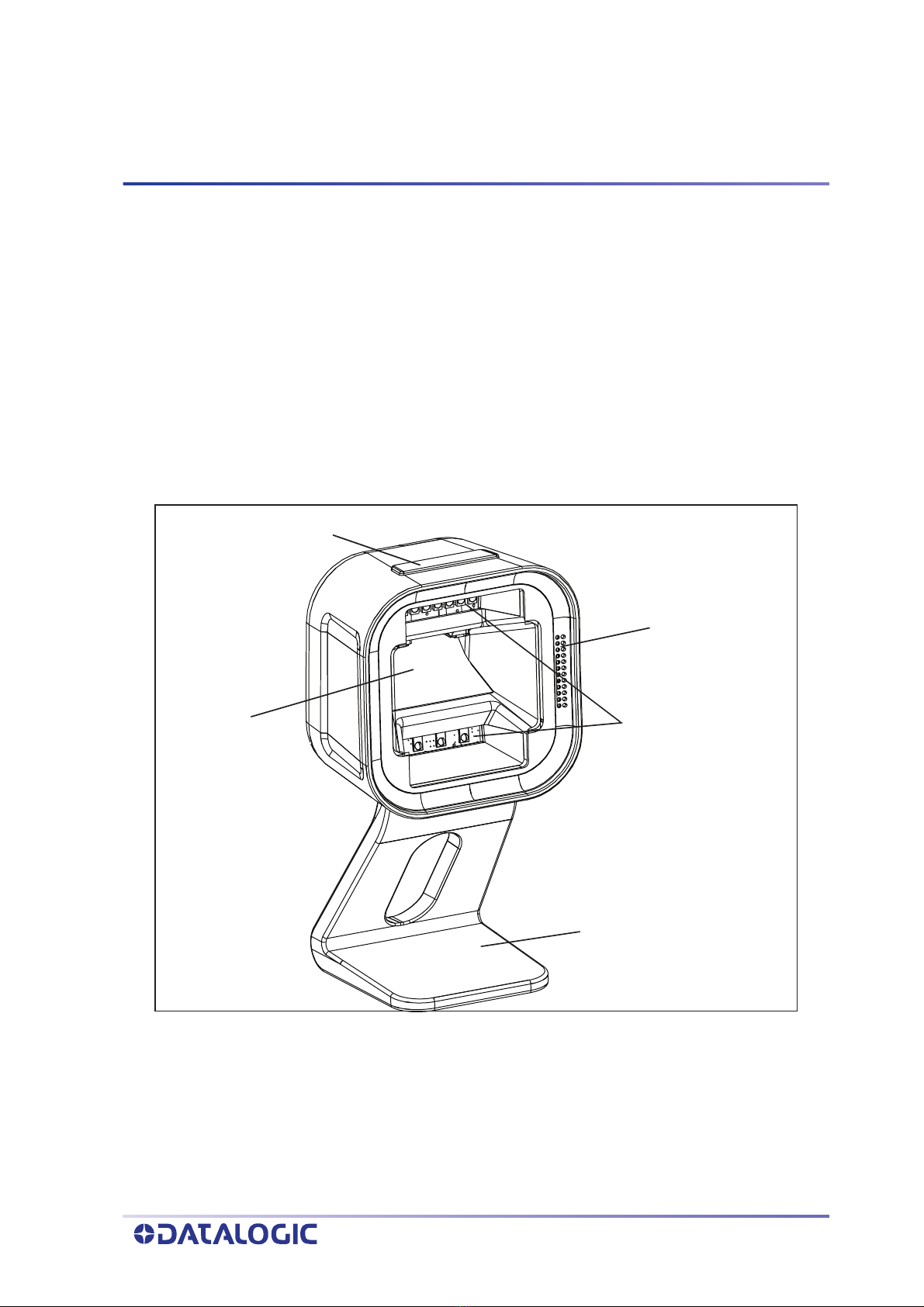

Figure 1. Scanner Features - Front View

Tilting Stand

Good Read Light Pipe/

Scan

Window

Beeper Grille

Illumination LEDs

Scanner Button

MAGELLAN™ 1500I

Figure 2. Scanner Features - Bottom View

Figure 3. Labeling

NOTE

Remove the stand/cover to view the Regulatory

Labeling, as described on page 4. Labels are shown

to illustrate their location only. Please view the

labels on your product for actual details.

Power/Interface

Power/interface Cable

Latch Release Hole

Stand

Regulatory

Label (under

Regulatory

Label (under

Serial Number bottom cover)

bottom cover)

QUICK REFERENCE GUIDE

German GS Safety Certification

The following statement is required for the German GS safety

certification:

INSTALLATION

Route the interface cable from the terminal or host. Plug the AC adapter

(if one is used) into a wall outlet and the interface (I/F) cable, then route

and attach the I/F cable to the scanner. Verify operation by presenting

known-good bar codes to the scanner. The unit should beep1and/or

flash its good read LED and send the bar code data to the host or

terminal. If not, refer to the Troubleshooting section of this guide.

The Magellan 1500i uses intelligent illumination technology to optimize

light levels for a variety of bar code scanner functions including

automatic reading of bar codes from printed surfaces, mobile devices

and image capture in variable contrast enviro+nments.

This product is not intended for use in the immediate or direct visual

field of the display work place. To avoid disturbing reflections on

the display work place, this product shall not be placed in the

immediate or direct field of vision.

1. Beeper and LED behavior is selectable and may have been disabled by a pre-

vious user.

Connect

Here

I/F Cable

To Host/Terminal

A/C Adapter

(if needed)

MAGELLAN™ 1500I

Optional Stand/Riser

An optional stand / riser is available for the scanner. The stand and riser

have anti-skid pads on the bottom and can rest on any desired

horizontal surface or countertop. The scanner (along with the stand/

riser) can be easily repositioned on the counter or lifted for portable

use.

Removing the Stand/Bottom Cover

1. Unplug the Power Interface Cable by inserting a paper clip or

similar object into the latch release hole as shown in Figure 2 on

page 2.

2. After removing the Interface Cable, pull the bottom of the Stand

forward (in the direction of the Front Window) to detach it from

the unit. It will snap free easily if oriented correctly.

Magnetic Base Mounting

The magnetic swivel base can be used to semi-permanently attach a

scanner to a flat surface (vertical or horizontal), using the provided

adhesive or screw. Both the stand and riser options mount onto the

CAUTION

Do not attempt to remove the Stand without first

unplugging the Cable as described. Doing so may

result in damage to the scanner.

Front Window

Stand

QUICK REFERENCE GUIDE

magnetic swivel base and are held magnetically in place. The scanner

can easily be rotated to a desired orientation. The scanner (along with

the riser or stand) can be detached for portable use by lifting the entire

unit as shown in Figure 4 on page 5.

HOW TO SCAN

Bar codes can be presented to the scanner while it is resting on the

counter or in the optional stand, or the scanner can be picked up for

targeted scanning.

Figure 4. Scanning Methods

Handheld Scanning Mode

To read a barcode using Handheld Scanning Mode:

1. Pick up the scanner- the aimer LED will illuminate automatically.

2. With the aimer over the barcode to be read, press and release

the button.

Upon a successful read, the button will blink bright green and the

GreenSpot™ will illuminate, highlighting the decoded barcode.

Scan Button/

PRESENTATION MODE

Good Read

HANDHELD MODE

Indicator

MAGELLAN™ 1500I

Center Zone Qualification

The configurable Center Zone can be set to limit the scan area to allow

Targeted Scanning of pick lists or other special items. Bar codes will read

in any orientation. The scanner will return to full pattern Presentation

Mode when set back down, after a configurable time has elapsed.

Scanner Button

The Scanner Button performs multiple functions, depending on how

long it is pressed:

Scanner Button Functions

NOTE

The Scanner Button functions shown below are

operational only when the Scanner is stationary. When

in Hand/Portable mode, the button acts as a trigger to

enable the reading of a barcode label.

PRESS

DURATION FUNCTION COMMENT

Momentary (when

scanner is asleep)

Wakes scanner from

Sleep Mode

Alternatively, the scanner can

be awakened by moving an

object through the scan zone.

Momentary (when

scanner is awake) Increments volume

Press the button momentarily

to increase speaker volume.

When the loudest volume is

reached, a repeated press of the

button cycles volume back to

the lowest setting, then volume

increases on subsequent

press(es). Five volume levels

are available.

Hold, then release

when the beeper

sounds

Increments tone

Press the button for

approximately 2 seconds, then

release. Each time this is done,

the beeper will sound at one of

three tones. Stop when the

desired tone (high, medium or

low) is sounded.
