Datalogic GFC-800 Manual de usuario

GFC-800 Accessory

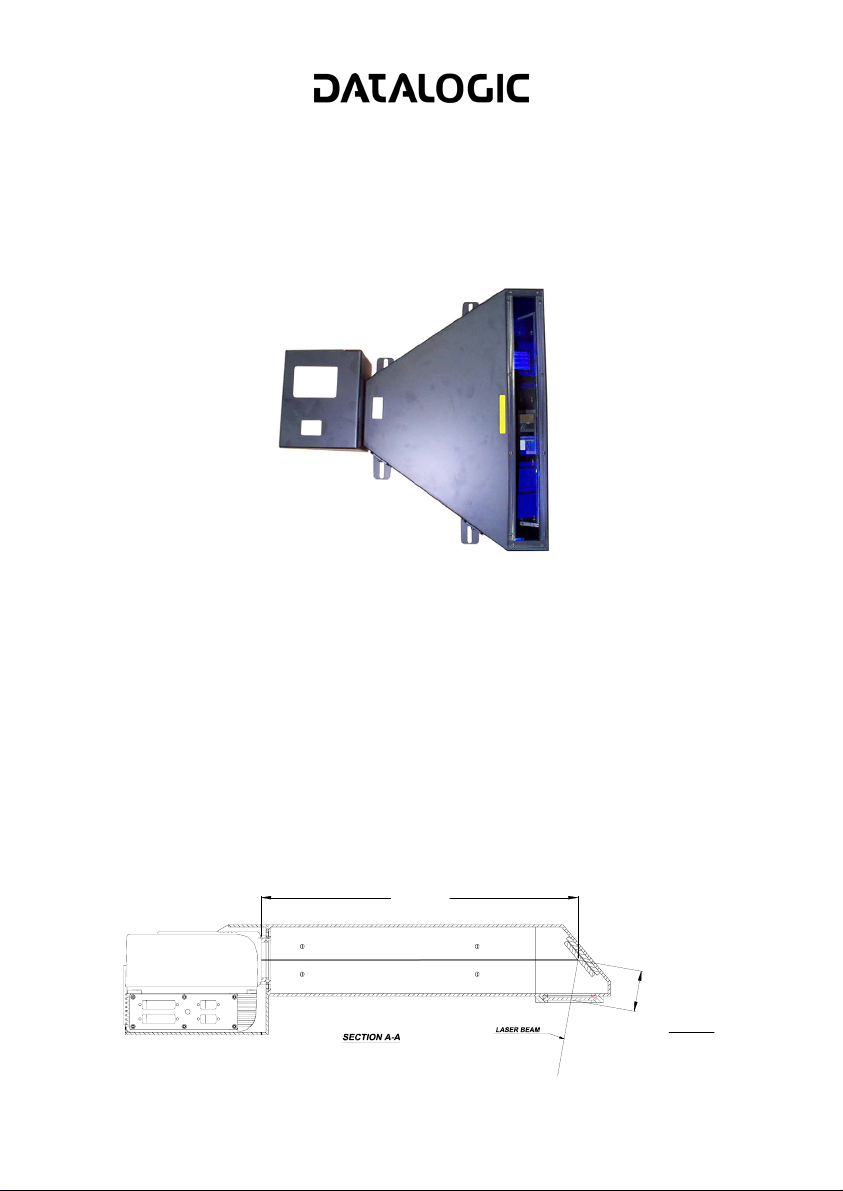

The GFC-800 is a 80° deflection mirror used for reading barcodes at close distances with

the new DS8100A Series Scanners.

It assures that the minimum skew angle is maintened to avoid direct light reflection which

can degarde reding performance.

The reading distance of the DS8100A scanner with the GFC-800 is shifted by 451 mm

towards the scanner because of the internal optical path between the scanner and the

GFC-800 output window. Take into account the length of the internal optical path when

referring to the scanner reading diagrams to determine the mounting position.

[2.01]

inch

400

[15.74]

821000880 (Rev. 01)

The overall dimensions are provided in the figure below and can be used for proper

installation.

31°

100

[3.94]

[0.12]

175

[6.89]

220

[8.66]

[1.38]

180

[7.09]

610

[24.02]

172

[6.77]

226

[8.90]

222

[8.74]

[0.32]

[1.18]

[0.32]

[1.18]

[1.77] N°4

[0.35] N°4

162

[6.40]

[1.18]

162

[6.40]

[1.18]

[3.54]

10°

[1.98]

125

[4.91]

[0.10] 135

[5.31]

180

[7.09]

130

[5.10]

139

[5.45]

inch

670

[26.37]

The following procedure describes how to mount the GFC-800.

1. Prepare the DS8100A scanner to be inserted in the GFC-800 holding bracket. The

scanner should be oriented so that the output window is in front of the holding bracket.

Then, align the scanner mounting side to the holding bracket as indicated below:

2. Insert the scanner into to the GFC-800 holding bracket paying attention to the insertion

side (see step 1). Carefully push the scanner towards the internal rubber protection:

3. Fix the scanner by tightening the two screws on the holding bracket side while keeping

it pushed towards the internal rubber protection. This will guarantee an hermetic

sealing:

4. Mount the GFC-800 to the supporting frame using four bolts as indicated below:

5. Connect the DS8100A scanner according to the procedures listed in the scanner

installation manual. Although the scanner is ready to read codes after installation,

reading performance can be optimized by setting some software configuration

parameters. For information on these procedures contact Datalogic.

Internal Rubber

Protection

Mounting Screws

Connector Panel

Bolts

Mounting Side

Connector Panel

Output Window

Mounting Holes
