SP75 Printer Guide

559455-001 Rev. A

March 2005

Information resources for the SP75 Printer

SP75 Printer

Guide The Printer Guide (this document) contains operating information for the

printer.

SP75 Quick

Install Guide The Quick Install Guide, packed at the top of the printer carton, shows

you the steps to install the printer.

For detailed installation information, see

e-Guide/SP Series/SP_Info_Central.chm on the driver CD-ROM.

Message Help If you see a message, click Help on the message box. Really! Help topics

are short and to the point.

SP Series Info

Central and

e-Guide

For in-depth information about using the printer, install SP Info Central on

a Windows PC, then click the icon on the desktop. (Insert the Smart

Driver CD-ROM and choose User Information to install SP Info Central.)

FAQs Service and Support FAQs at www.datacard.com provide answers to questions about the printer.

Dealer For help with questions not addressed by other SP Series printer information, contact your dealer.

Customer Care Contact the Datacard Customer Care Center at 1.800.328.3996 (U.S. & Canada) or

1.952.988.2316 (worldwide).

539409-001 Rev. A Page iii

Contents

About the printer . . . . . . . . . . . . . . . . . . . . .1

Loading cards . . . . . . . . . . . . . . . . . . . . . . .5

Loading print ribbon . . . . . . . . . . . . . . . . . .7

Loading laminator supply material . . . . . . .9

Status light . . . . . . . . . . . . . . . . . . . . . . . .11

Check the PC connection . . . . . . . . . . . . .13

Power on the printer . . . . . . . . . . . . . . . . .14

The LCD panel . . . . . . . . . . . . . . . . . . . . .15

Opening Properties or Printing Preferences 17

Open the Printer Toolbox . . . . . . . . . . . . .19

Cleaning the printer . . . . . . . . . . . . . . . . .21

Getting the most out of your printer . . . . .23

Printer supplies . . . . . . . . . . . . . . . . . . . .25

Color print ribbon . . . . . . . . . . . . . . . .25

Monochrome and Topcoat ribbon . . .25

Monochrome print ribbon . . . . . . . . . .26

Laminator supply materials . . . . . . . .26

Cleaning supplies . . . . . . . . . . . . . . . .28

Printer Installation . . . . . . . . . . . . . . . . . . .29

Printer LCD settings . . . . . . . . . . . . . . . . .30

LCD menu system . . . . . . . . . . . . . . .31

View status settings . . . . . . . . . . . . . . . . .32

View the Serial Number . . . . . . . . . . .32

View the Firmware Revision . . . . . . . .33

View Card Counts . . . . . . . . . . . . . . .33

View the Network Address Mode, IP

Addresses, and MAC Address . .35

View the Ribbon Type . . . . . . . . . . . .37

View the Laminator Values . . . . . . . .37

Change settings . . . . . . . . . . . . . . . . . . . .39

Set LCD Backlighting . . . . . . . . . . . . .39

Set the Address Mode . . . . . . . . . . . .40

Set the IP Address, Subnet Mask,

and Gateway Address . . . . . . . . .42

Set the Laminator Heater Temperature 44

Page iv

Run diagnostics commands . . . . . . . . . . .45

Run a printer cleaning card . . . . . . . .45

Run a laminator cleaning card . . . . . .47

Troubleshooting . . . . . . . . . . . . . . . . . . . .49

Site requirements . . . . . . . . . . . . . . . . . . .51

Operating environment . . . . . . . . . . .51

Electrical requirements . . . . . . . . . . .51

Physical requirements . . . . . . . . . . . .51

Printer messages . . . . . . . . . . . . . . . .52

DM-00760 Duplex Error . . . . . . . . . . .53

DM-00762 Duplex Jam . . . . . . . . . . .54

DM-00767 Duplex Jam . . . . . . . . . . .55

DM-00768 Lower Duplex Jam . . . . . .56

DM-00769 Lower Duplex Error . . . . .57

DM-00770 Lower Duplex Jam . . . . . .58

IS-01206 No Card Picked . . . . . . . . .59

SY-01305 Data Error . . . . . . . . . . . . .60

SY-01306 Data Error . . . . . . . . . . . . .61

SY-01310 Flash Error . . . . . . . . . . . .62

SY-01314 Flash Error . . . . . . . . . . . .63

SY-01317 Memory Error . . . . . . . . . .64

SY-01325 Data Error . . . . . . . . . . . . .65

SY-01327 Data Error . . . . . . . . . . . . .67

SY-01331 Comm Error . . . . . . . . . . . .68

SY-01332 Hardware Error . . . . . . . . .69

MS-01401, MS-01402, MS-01403

Mag Stripe Data . . . . . . . . . . . . . .70

MS-01404, MS-01405, MS-01406

Mag Stripe Error . . . . . . . . . . . . .71

MS-01407, MS-01408, or MS-01409

Mag Stripe Error . . . . . . . . . . . . .72

MS-01410 Mag Stripe Error . . . . . . . .73

MS-01413 Mag Stripe Error . . . . . . . .74

MS-01417, MS-01418, MS-01419,

MS-01420, MS-01421 Card Jam .75

MS-01424 Mag Stripe Error . . . . . . . .77

MS-01425 Mag Stripe Error . . . . . . . .79

MS-01426 EEPROM Error . . . . . . . . .80

MS-01427 Mag Stripe Error . . . . . . . .81

MS-01429 Mag Stripe Data . . . . . . . .82

Page v

MS-01430 Mag Stripe Error . . . . . . . .83

MS-01431 EEPROM Error . . . . . . . .84

MS-01435 No Mag Stripe . . . . . . . . .85

OP-01604, OP-01654 L1 or L2

Heater Error . . . . . . . . . . . . . . . .86

OP-01611, OP-01661 Roller Error . .87

OP-01612, OP-01662 Card Jam . . . .89

OP-01613, OP-01663 L1 or L2

Supply Error . . . . . . . . . . . . . . . .91

OP-01614, OP-01664 Supply Break .93

OP-01615, OP1665 L1 or L2

Supply Out . . . . . . . . . . . . . . . . .95

OP-01616 Lam EEPROM Error . . . . .97

OP-01619 Comm Error . . . . . . . . . . .98

OP-01620 Wait for Temp . . . . . . . . . .99

OP-01621, OP-01671 Supply Low .100

OP-01622, OP-01672 Supply Error .101

OP-01623 Lam Hardware Error . . . .102

OP-01624, OP-01674 Card Jam . . .103

OP-01651 No L2 Laminator . . . . . . .105

PR-01703 Printhead Error . . . . . . . .106

PR-01705, PR-01706 Card Jam . . .107

PR-01710 EEPROM Error . . . . . . . .109

PR-01715 Cover Open . . . . . . . . . . .110

PR-01718 Printhead Temp . . . . . . .111

PR-01719 Printhead Error . . . . . . . .112

PR-01720 Ribbon Error . . . . . . . . . .113

PR-01721 EEPROM Error . . . . . . . .114

PR-01723 Hardware Error . . . . . . . .115

PR-01724 Ribbon Break . . . . . . . . .117

PR-01726 Ribbon Out . . . . . . . . . . .119

PR-01730 Printhead Error . . . . . . . .120

PR-01737 Ribbon Low . . . . . . . . . . .121

PR-01738 Ribbon Error . . . . . . . . . .122

SC-01804 No Smart Card . . . . . . . .123

Legal Notices (FCC) . . . . . . . . . . . . . . . .130

Liability statement . . . . . . . . . . . . . .130

Regulatory compliance . . . . . . . . . . .130

Trademark acknowledgments . . . . .130

Proprietary Notice . . . . . . . . . . . . . .130

Page 1

About the printer

This guide applies to the SP75 printer.

The outside of the printer

Printer Cover.

Latch: Lift the latch to open the printer cover.

Locks: Optional locks secure supplies.

Input Hopper: Open the cover to load blank cards.

LCD Panel: Shows the printer status and any

messages. Use it to change network settings.

Ready Key: Push to pause or resume the printer.

The Status Light helps you understand printer

operation. See "Status light" on page 11 for details.

Card out slot: Cards removed from the print area

(using the manual advance knob) exit here.

Laminator Advance Knob: Moves cards in the

laminator area.

Output Hopper: Remove completed cards.

Laminators: All SP75 printers have an L1 laminator.

Some also have an L2 laminator. They apply topcoat

or patch material to cards.

L1 L2

Page 2

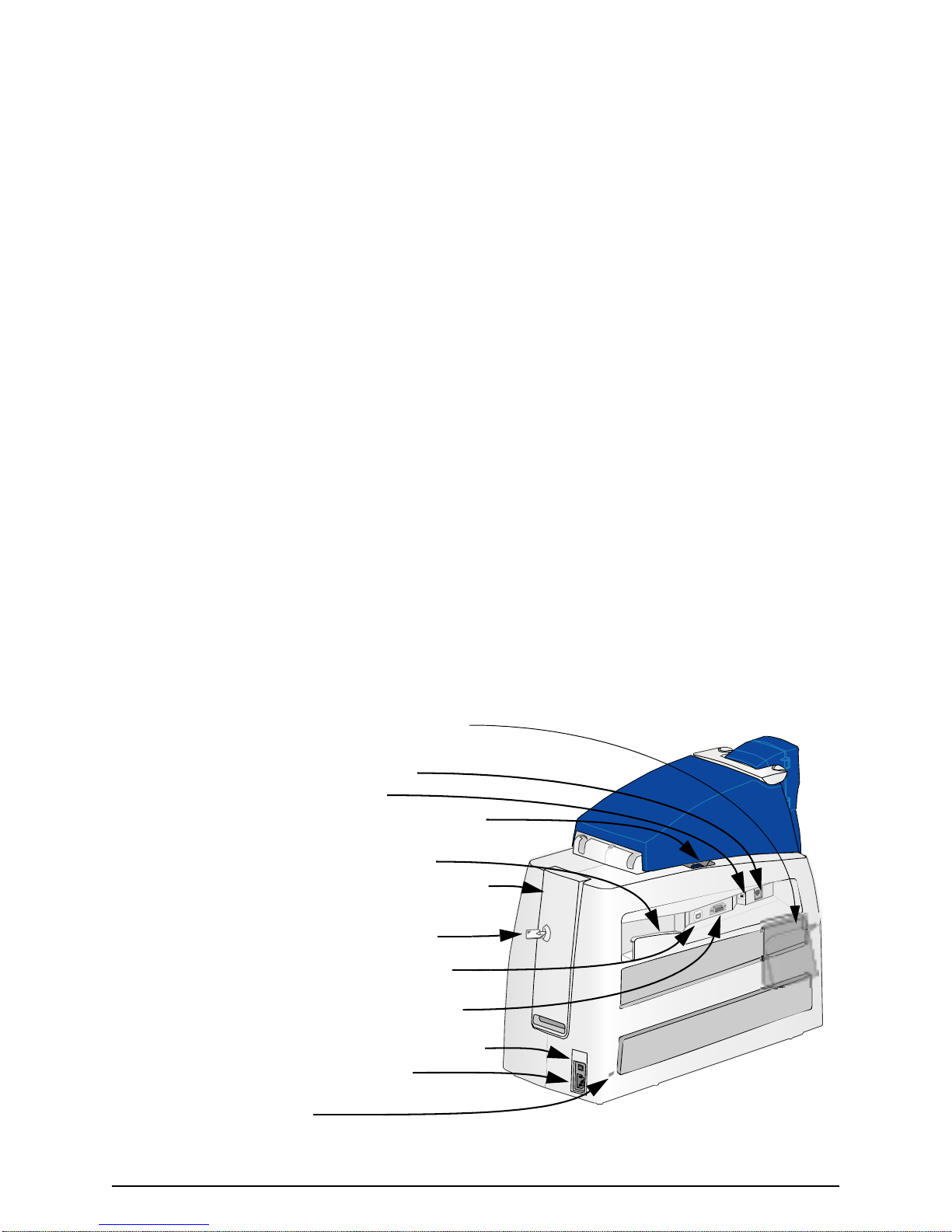

On the left and back sides of the printer:

Printer Guide Holder: Attach the holder and place the

guide in it. Choose any convenient location.

Ethernet Data Port:. Use only one data port.

USB Data Port: Use only one data port.

Manual Advance Knob: Use to move a card in the printer

or to turn rollers.

Cable Guide: Place the data cable in the guide.

Back Door. Open to see both duplex units and the reject

bin.

Locks: Optional lock secures cards and supplies in the

printer. See "Features and options" on page 3.

Optional Smart Card USB Port: See "Features and

options" on page 3.

Optional Smart Card Serial Port: See "Features and

options" on page 3.

Power Switch: Press the switch to power on the printer.

Power Receptacle: Plug in the power cord.

Security Lock Receptacle: Connect the optional

security lock to the opening.

Page 3

The inside of the printer

Cover Arm: Holds the cover and printhead cartridge in place.

Printhead Cartridge: Applies the image to the card.

Print Ribbon Cartridge, shown with color print ribbon.

Printer Label: Includes the serial number and model information

(located on the left side of the printer and not visible in this drawing).

Cleaning Roller (not visible in this drawing): Removes dust and debris

from cards.

Features and options

Features and options are identified on the printer label.

Page 4

• SP75 printers print in full-color (C) and have duplex or two-sided (2) printing.

• SP75 printers have both USB and Ethernet data ports. Use only one of these

ports to connect your printer to the PC or a network.

•Amagnetic stripe module can be a three-track (IAT) or single-track (NTT)

module.

• Printers can have a 100-card (H1) or 200-card (H2) input hopper.

• Printers can have a high-capacity output hopper (no code on label).

• The printer can have locks (K1 or K2) on the input hopper, back door, and top

cover. (The top cover lock also secures the laminator cartridges.)

• All SP75 printers have an L1 laminator. Some also have a second, L2, laminator.

• An optional smart card module can have:

— Combination smart card reader (SC346) with contact and contactless

readers. Visible inside the printer, includes USB port.

— Contactless iCLASS™ reader (SC205). Includes USB port.

— Contact station (SC400): Visible inside the printer, includes a serial port.

Page 5

Loading cards

1Open the input hopper cover.

2Remove cards from the original package.

Tips: Handling cards

•Cards can stick together: Slide or fan cards to separate

the edges.

•Do not touch the surface of cards before printing them.

(Oils on hands will reduce printing quality.)

•Handle cards by the edges or wear gloves.

•Orient all cards the same way.
