Dakota Digital HLC-69F-MUS Manual de usuario

Manual # 650585

HLC-69F-MUS

Dakota Digital HLC Clock Installation

For 1969-70 Ford Mustang

Your new HLC-69F-MUS kit includes:

Installation

2X 3/8” Screws

Harness

Installation Manuals

HLC Clock

1. Remove the eight (8) screws

securing the clock panel to the dash.

Manual # 650585

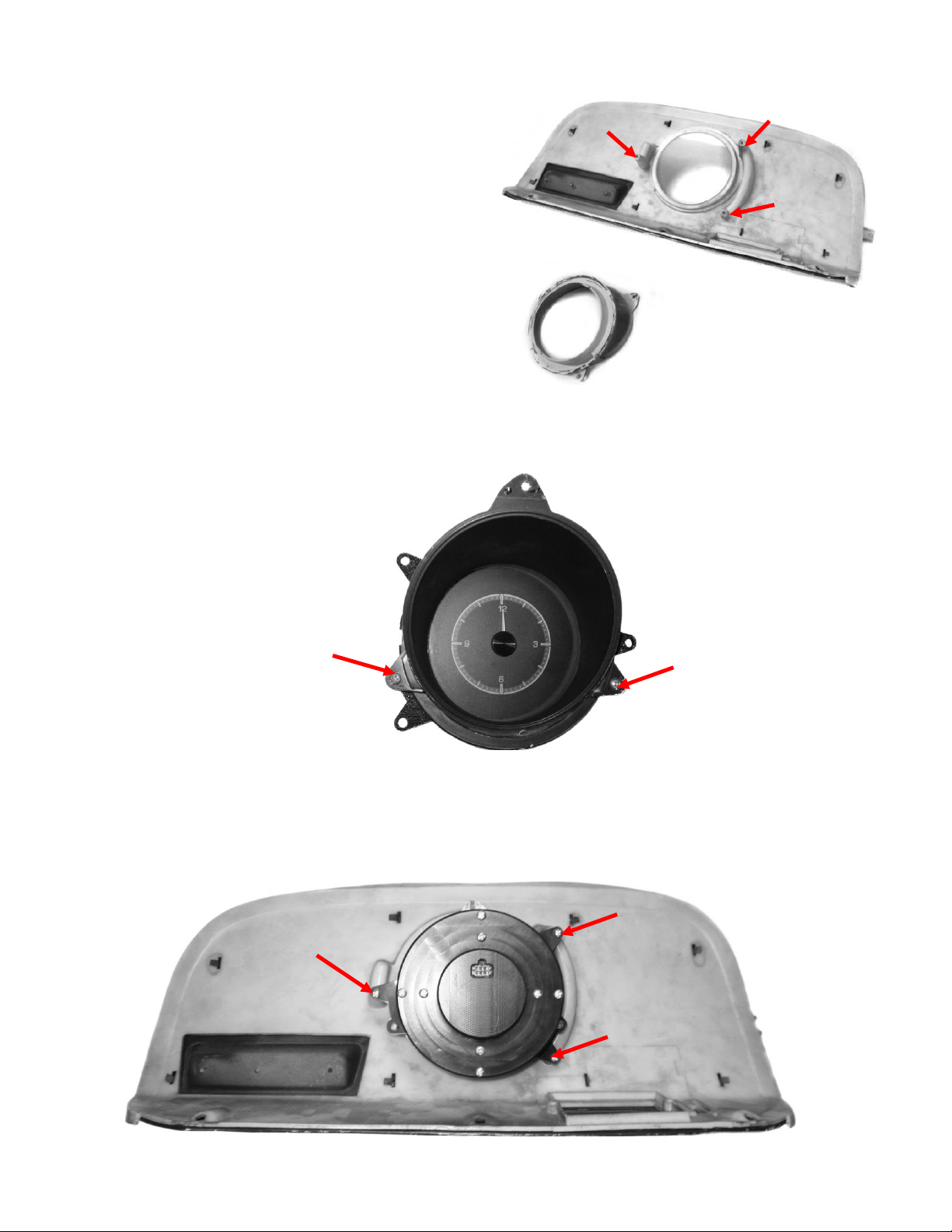

2. Remove the gauge, bezel spacer, and lens

from the clock panel.

3. Using the supplied 6-32 x 3/8” screws, attach the factory spacer to the stand-offs.

4. Attach the clock to the clock panel using the three factory screws from disassembly.

Manual # 650585

WARNING: This product can expose you to chemicals including lead, which is known to the State of

California to cause cancer and birth defects or other reproductive harm. For more information go to

www.P65Warnings.ca.gov

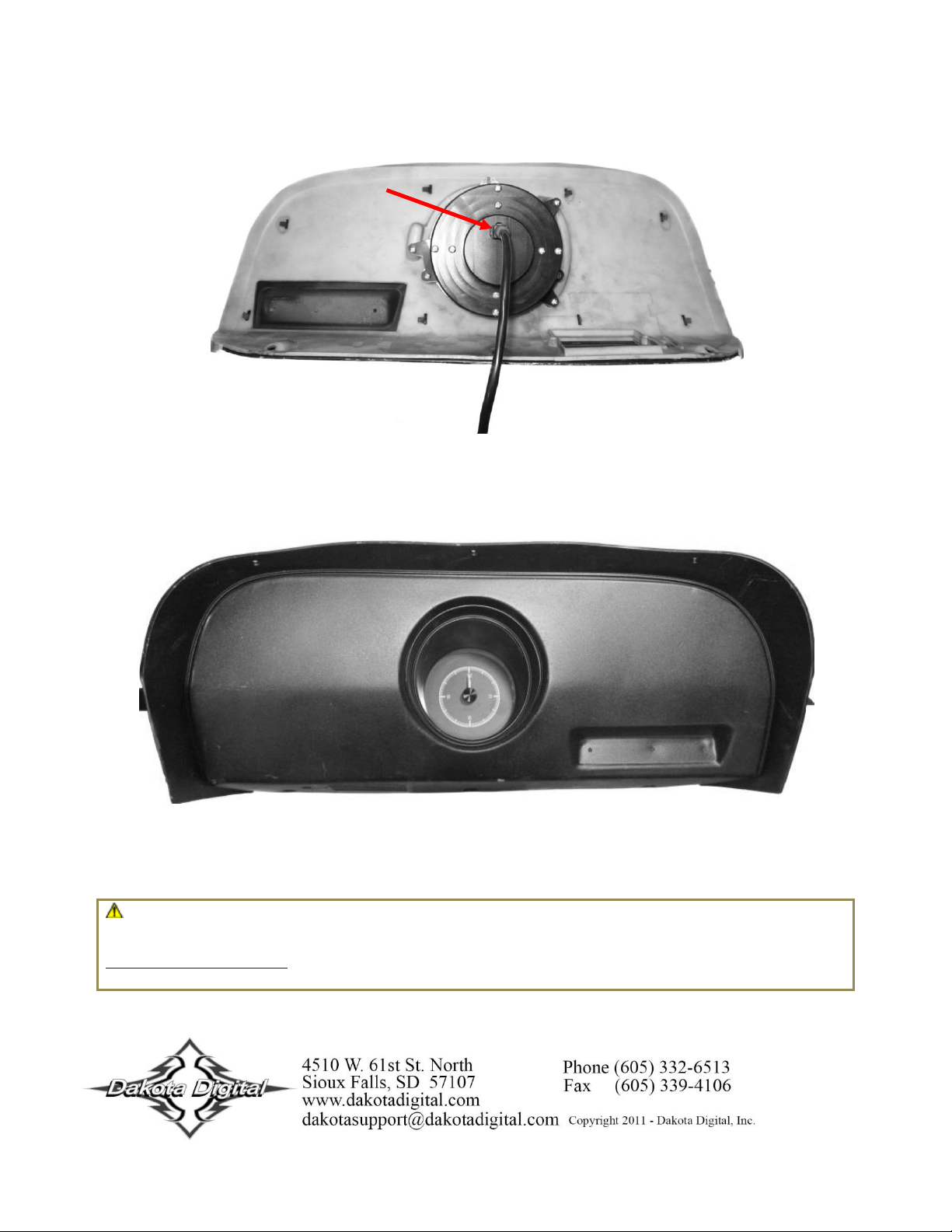

5. Connect the clock harness to the back of the clock. Route the other end of this harness to

the HDX control box.

6. Reinstall the assembly in to the dash and refer to the Operation Manual to complete the clock setup.
